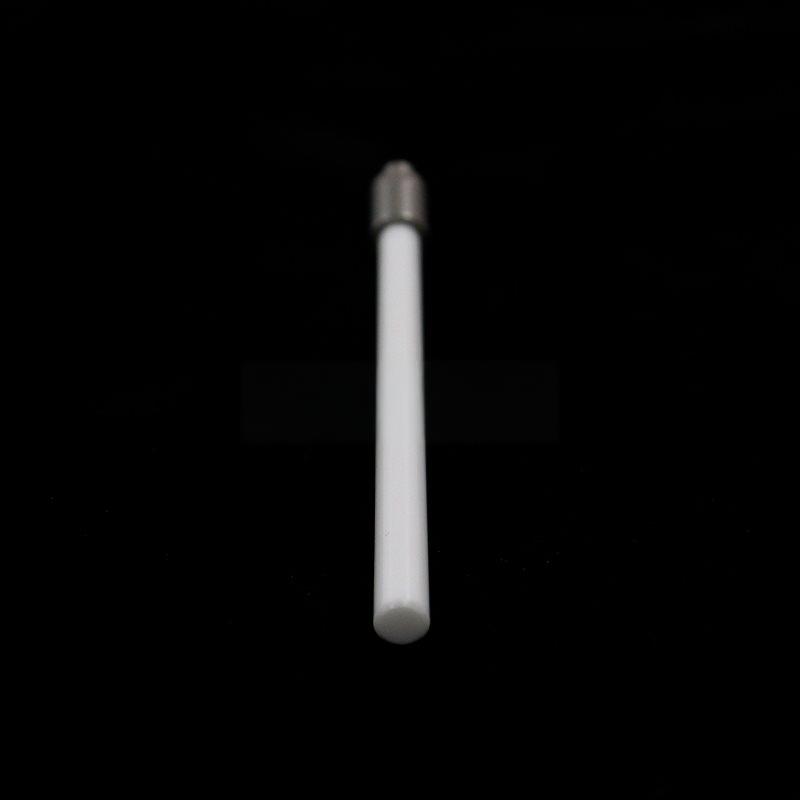

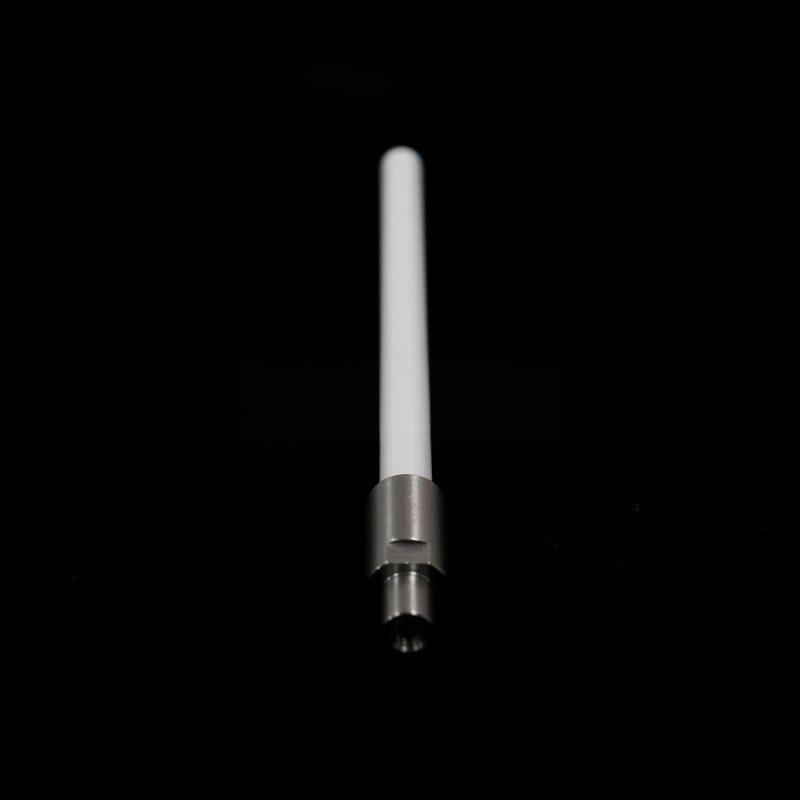

White columnar zirconia ceramic plunger

User question: In high-pressure, high wear, or corrosive media environments, traditional metal plungers are prone to corrosion, wear, and have a short lifespan, which affects production efficiency and costs. How can we solve this problem?
Answer: The white columnar zirconia ceramic plunger, with its ultra-high hardness, corrosion resistance, and self-lubricating properties, can significantly extend its service life, reduce maintenance frequency, and improve equipment operation stability.
User question: In precision metering or high-pressure pumping scenarios, the dimensional accuracy and stability of the plunger are crucial. How can we ensure long-term precise operation?
Answer: The zirconia ceramic plunger adopts precision sintering and grinding processes, with dimensional tolerances controlled at the micrometer level, and almost no deformation at high temperatures, ensuring long-term stability and sealing performance.
User question: In the face of diverse industrial scenarios, can flexible customization services be provided to meet special needs?
Answer: We support full customization from material formula, size specifications to surface treatment, suitable for applications in multiple fields such as high-pressure pumps, medical equipment, chemical equipment, etc.

The white columnar zirconia ceramic plunger is made of high-purity zirconia (ZrO ₂) powder through isostatic pressing and high-temperature sintering, with a columnar structure design that combines high strength, wear resistance, corrosion resistance, and insulation properties. It is an ideal high-performance component to replace metal and plastic plungers.
Key features and advantages

1. Excellent wear and corrosion resistance
   -Vickers hardness ≥ 1200HV, wear resistance far exceeds stainless steel, suitable for media containing particulate matter.
   -Strong chemical inertness, resistant to acid, alkali, and organic solvent corrosion, extending the lifespan in chemical and electroplating environments.
2. High precision and stability
   -The dimensional accuracy can reach ± 0.002mm, and the surface roughness Ra is ≤ 0.2 μ m, ensuring sealing and smooth movement.
   -Low thermal expansion coefficient, no deformation under high temperature conditions, avoiding jamming problems.
3. Self lubrication and energy efficiency
   -The surface micro smooth structure reduces the friction coefficient, reduces lubrication dependence, and saves energy and consumption.

Application field
-High pressure pump equipment: chemical metering pump, cleaning machine plunger pump, petroleum injection pump.
-Medical devices: dental equipment, infusion pumps, precision transmission components for dialysis machines.
-Industrial automation: textile printing and dyeing, ceramic inkjet printers, 3C product testing equipment.
-Laboratory instruments: liquid chromatography pump, fluid control valve core.

Specification customization service
We provide comprehensive customization support to meet differentiated needs:
-Size range: Diameter ranging from 2mm to 150mm, with a maximum length of 800mm.
-Shape design: capable of processing structures such as flat heads, conical heads, threaded holes, and irregular grooves.
-Surface treatment: optional processes such as polishing, coating, laser marking, etc.
-Material upgrade: Stabilizers can be added to enhance toughness, or components can be adjusted to adapt to special media.

Customer Application Case (Anonymous)
-Case 1: A chemical enterprise replaced the original stainless steel plunger with a customized zirconia plunger (Φ 25 × 200mm) for use in strong acid medium pumps, increasing the service life from 3 months to over 2 years and reducing annual maintenance costs by 60%.
-Case 2: A medical device manufacturer used a miniature zirconia plunger (Φ 3 × 50mm) implanted into a high-precision infusion pump, reducing the product defect rate to 0.1%. The product passed FDA certification and was exported in bulk.
-Case 3: The manufacturer of environmentally friendly cleaning equipment purchased a surface polishing plunger group, which solved the problem of frequent leakage of high-pressure water guns and increased the continuous operation time of the equipment by 300%.

The white columnar zirconia ceramic plunger empowers industrial innovation with material technology, providing reliable solutions for high temperature, corrosion, and high wear scenarios. If you need customized solutions or sample testing, please feel free to contact us at any time – let us use precision ceramic technology to help your equipment operate with “zero loss”!
