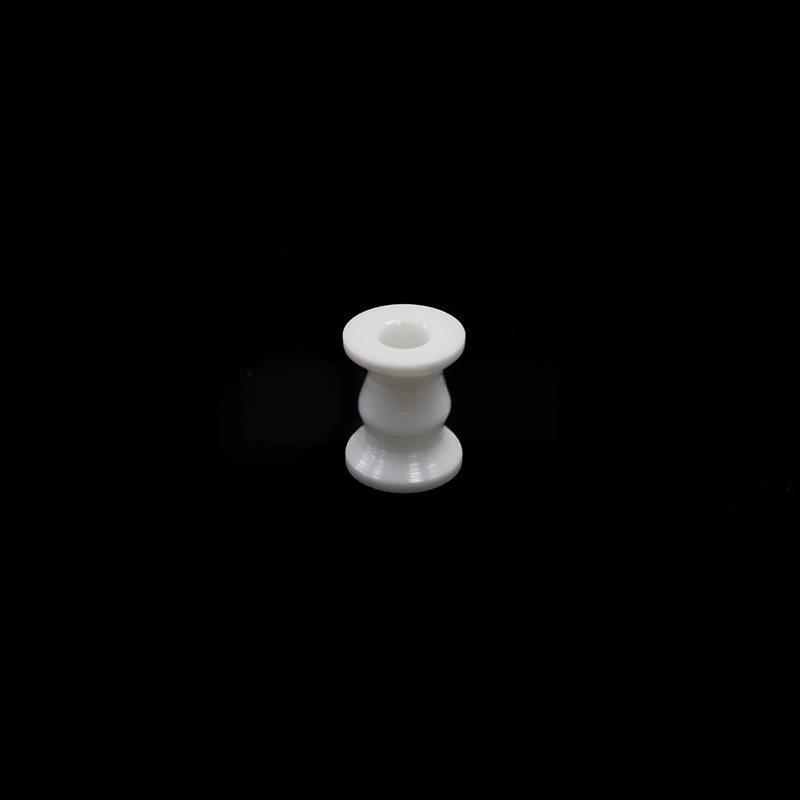

Small Ceramic Insulation

Q: Why does my electronic device always malfunction in high temperature, high pressure, or high frequency environments? Is there a material that can withstand high temperatures and maintain stable insulation?
A: Small ceramic insulators are designed to solve such problems. It can provide excellent electrical insulation and structural support in extreme temperatures (-200 ℃~1600 ℃), strong electric fields, high-frequency signals, and corrosive environments, effectively preventing short circuits, breakdowns, thermal failures, and ensuring long-term stable operation of equipment.

What is a small ceramic insulator?
Small ceramic insulators are miniature insulation components made from advanced ceramic materials such as high-purity aluminum oxide (Al ₂ O3), aluminum nitride (AlN), or zirconium oxide (ZrO ₂) through precision molding and high-temperature sintering processes. Its typical dimensions range from a few millimeters to tens of millimeters, and it is widely used in fields such as power electronics, aerospace, new energy, medical equipment, and semiconductor manufacturing.

Core application scenarios
-New energy vehicles: used for high-voltage isolation in battery management systems (BMS), DC-DC converters, and motor controllers.
-Industrial power module: Provides dual functions of heat dissipation and insulation in power devices such as IGBT and MOSFET.
-RF and microwave communication: as a low dielectric loss support component for high-frequency connectors and antenna feeding systems.
-Medical imaging equipment: Ensure signal purity and patient safety in high-precision instruments such as CT and MRI.
-Aerospace and Military Industry: Enduring electrical stress in extreme environments in satellite power and radar systems.

Customer case (anonymous): A leading new energy vehicle company adopted our customized small alumina ceramic insulator in its 800V high-voltage platform, resulting in a 92% reduction in system insulation failure rate and passing the ISO 26262 ASIL-C functional safety certification.

Core advantages of the product
Ultra high insulation strength: volume resistivity>10 ¹⁴Ω· cm, breakdown voltage can reach over 20 kV/mm
Excellent thermal stability: The coefficient of thermal expansion matches the metal and can withstand repeated thermal impacts without cracking
Low dielectric constant and loss: suitable for GHz level high-frequency circuits, with minimal signal distortion
Strong chemical inertness: acid and alkali resistant, antioxidant, suitable for harsh industrial environments
High mechanical strength: bending strength of 300-400 MPa, far exceeding ordinary plastic or glass insulators
Flexible customization service: meet your exclusive needs

We offer a full range of specifications and deep customization capabilities:
-Material selection: 96%/99.5% alumina, aluminum nitride (high thermal conductivity), zirconia (high toughness)
-Size range: outer diameter 2mm – 50mm, height 1mm – 30mm, tolerance up to ± 0.01mm
-Structural forms: cylindrical, stepped, perforated/threaded, multi-channel integrated, etc
-Surface treatment: metalization (Mo Mn, Ag, Cu), gold plating, laser marking, etc

Whether you are developing the next generation of electric vehicle drive systems or building high-density 5G base stations, small ceramic insulators are the cornerstone for ensuring electrical safety and stable performance. Contact us immediately to obtain samples and customized solutions.
