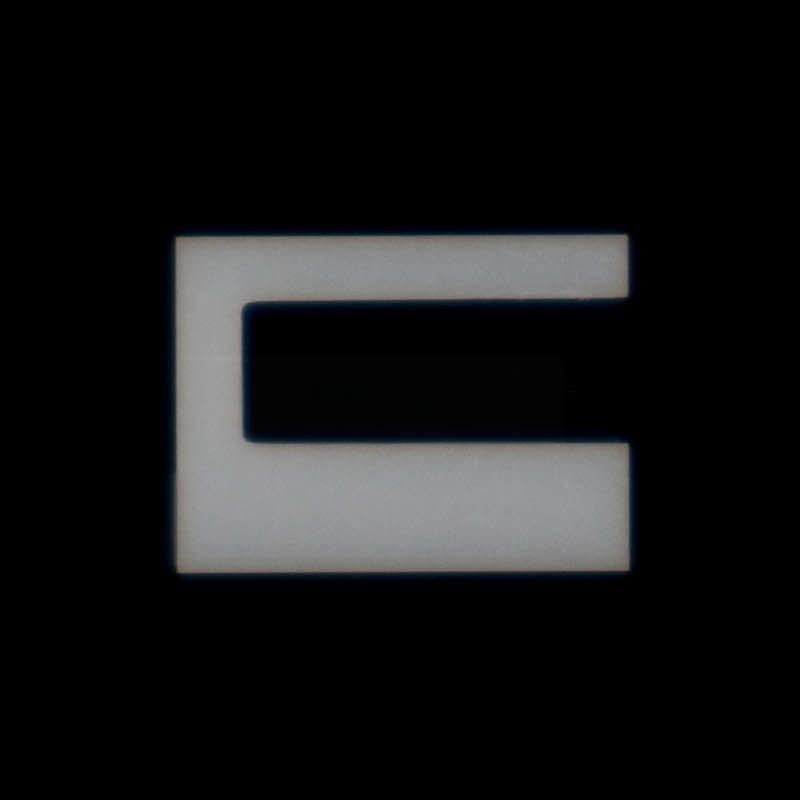

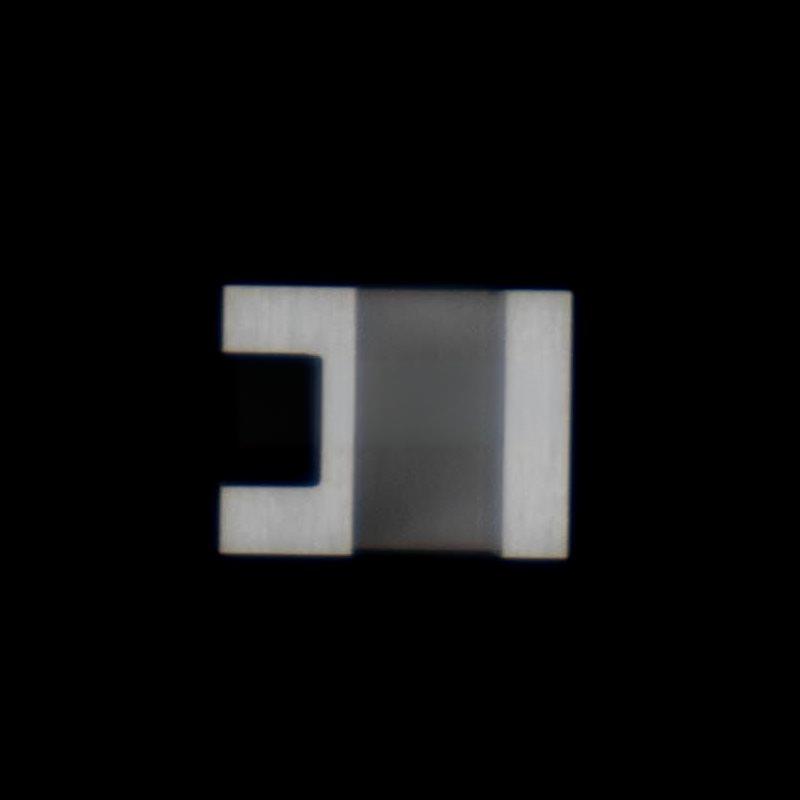

U-shaped ceramic clamping piece

U-shaped ceramic clamping parts are U-shaped fixed components made of high-performance engineering ceramic materials, specially designed for clamping and positioning requirements in harsh environments such as high temperatures, high wear, and strong corrosion. Its unique material properties and structural design make it a key component in fields such as semiconductors, photovoltaics, electronic packaging, precision machinery, and high-temperature processing equipment.

Core advantages of the product

1. Excellent wear resistance
   It is made of ceramic materials such as alumina, silicon nitride or zirconia, with a hardness of over HRA85. Its wear resistance far exceeds that of metal parts, and its service life is extended by 5 to 10 times.
2. Extremely high corrosion resistance
   It can resist the erosion of acids, alkalis, salts and organic solvents, and is suitable for chemical treatment, electroplating and corrosive gas environments.
3. Excellent high-temperature stability
   It has a wide operating temperature range (-50℃ to 1600℃, depending on the material), does not deform or oxidize at high temperatures, and is suitable for vacuum high-temperature furnaces, sintering equipment, etc.
4. Good insulation and non-magnetic properties
   Non-conductive and non-magnetic, it is suitable for precision applications such as electronic component clamping, semiconductor wafer processing, and MRI equipment.
5. Dimensional stability and low thermal expansion
   It has a low coefficient of thermal expansion, ensuring that the clamping accuracy remains unchanged under temperature variations and guaranteeing production consistency.

The key problem to be solved

• Fast wear and frequent replacement: Replace metal clamping parts to solve the problems of downtime and high maintenance costs caused by wear.
• High-temperature deformation and oxidation: Maintain shape and performance stability in high-temperature environments to prevent production accidents caused by component failure.
• Corrosion contamination: Prevent corrosive media from damaging the clamping parts, and at the same time avoid metal ion contamination of the products (such as semiconductor wafers).
• Insufficient accuracy: It provides high dimensional stability and a smooth surface, ensuring that the clamping and positioning accuracy reaches the ±0.01mm level.
  Insulation requirements: In the electronics industry, achieve safe and interference-free clamping to prevent short circuits or signal interference.

Application field

• Semiconductor manufacturing: Wafer transfer, photolithography machine positioning, etching equipment fixtures.
• Photovoltaic industry: Silicon wafer sintering, solar cell clamping and inspection.
• Electronic packaging: IC test sockets, microelectronic soldering fixtures.
  Precision machinery: High-precision machine tool fixtures, positioning parts for measuring instruments.
• High-temperature industry: vacuum furnaces, heat treatment furnaces, ceramic sintering carriers.
• Medical equipment: Components of medical imaging equipment, high-temperature sterilization fixtures.

Customized service for specifications and dimensions
We offer all-round customized production to meet diverse demands

• Material selection: We offer a variety of ceramic materials such as alumina (Al₂O₃), silicon nitride (Si₃N₄), and zirconia (ZrO₂), and recommend them based on application requirements.
• Size range: U-shaped opening width ranges from 0.5mm to 200mm, thickness from 0.3mm to 50mm, and length can be customized according to requirements.
• Accuracy grade: Conventional accuracy ±0.05mm, high accuracy up to ±0.005mm, supports CAD drawing or sample replication.
• Surface treatment: It can undergo secondary processing such as polishing, coating, and laser marking to meet special friction coefficient or marking requirements.

Application Case (Anonymous）
A certain semiconductor equipment manufacturer
Custom U-shaped zirconia clamps were used in the wafer transfer robotic arm to replace the original stainless steel parts, increasing the wear life from 3 months to 2 years and reducing equipment downtime by 70%.

2. Photovoltaic silicon wafer sintering enterprises
   U-shaped silicon nitride clamps are used in high-temperature sintering furnaces, which can withstand long-term operation at 1300℃. This solves the problem of silicon wafer damage caused by metal part deformation and increases the product yield by 8%.
3. Precision Instrument Company
   Customized micro-miniature U-shaped alumina clamps (with an opening width of 1.2mm) are used for optical sensor positioning, with an accuracy of ±0.003mm, ensuring the long-term stability of the measuring equipment.

If you need technical parameters or customization inquiries for U-shaped ceramic clamps, please provide your application requirements and drawings. We will offer you an optimization solution and quotation within 2 hours. Click to contact us and embark on a new, efficient and durable clamping option!
Brudeze Ceramics supplies and sells a wide range of high-quality quartz glass, including alumina ceramics, zirconia ceramics, silicon nitride ceramics, aluminum nitride ceramics, silicon carbide ceramics, boron carbide ceramics, bioceramics, machinable ceramics, etc. We can meet the customization requirements of various ceramic products.
