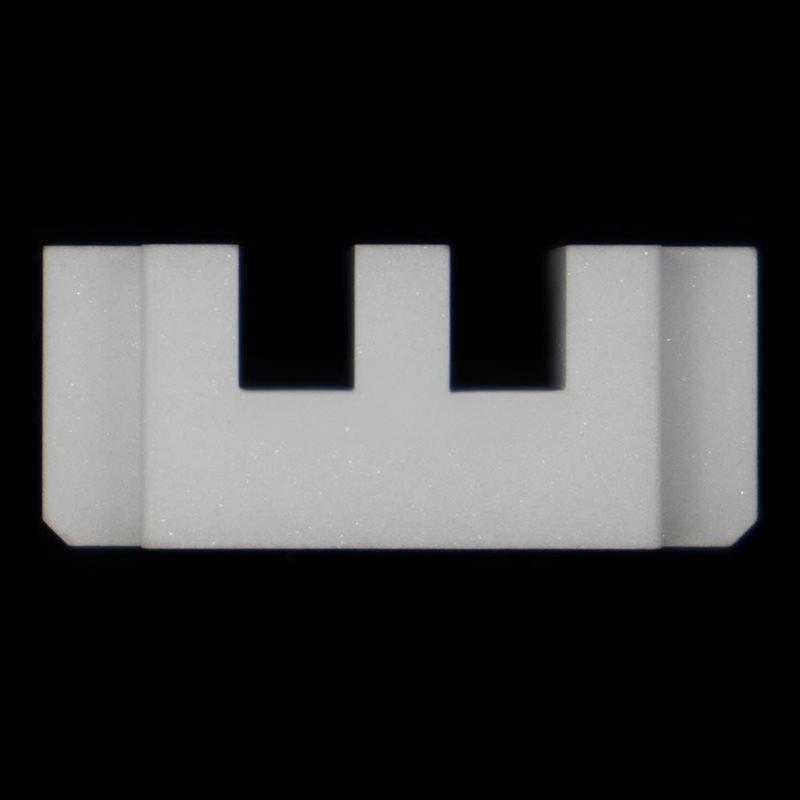

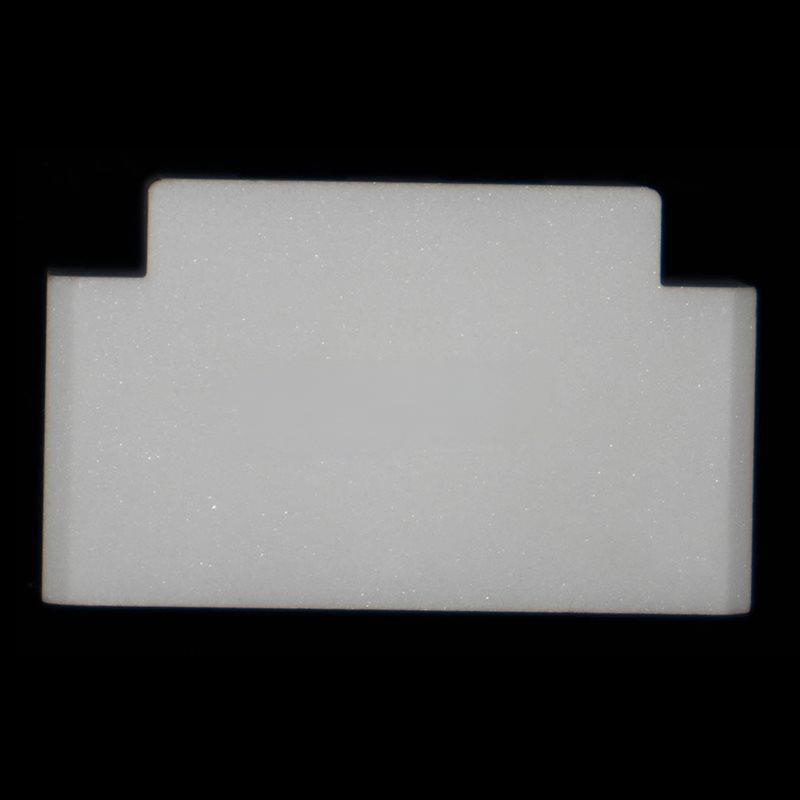

Multi step ceramic structural components

What can this product solve for users?
Q: In multi-stage precision assembly, high temperature and high pressure environments, or highly corrosive working conditions, traditional metal or plastic structural components are prone to deformation, wear, or failure. How to find more reliable solutions?
A: Multi step ceramic structural components are made of ceramic materials with high hardness, high temperature resistance, and corrosion resistance, combined with precise multi-level step design, to provide users with a component replacement solution that is dimensionally stable, has a longer lifespan, and better performance.
Q: In the fields of semiconductors, optics, medical devices, etc., high precision and cleanliness are required for parts. How to ensure zero pollution and meet micrometer level tolerances?
A: Our ceramic structural components are made of high-purity materials such as alumina and zirconia, which are precision sintered and ground to achieve a surface roughness Ra ≤ 0.2 μ m and a tolerance of ± 0.01mm. They are non-magnetic and precipitation free, making them fully suitable for clean environments.
Q: How to quickly obtain matching ceramic components for non-standard equipment or special working conditions that require customized dimensions?
A: We provide full process customization services from drawings to finished products, supporting complex structural designs such as multi-level steps, irregular holes, and special threads, and flexibly responding to various non-standard requirements.

Product Overview and Application Fields
Multi level stepped ceramic structural components are made of high-performance engineering ceramics (such as alumina Al ₂ O ∝, zirconia ZrO ₂, silicon nitride Si ∝ N ₄, etc.) as raw materials, and are formed by dry pressing, injection molding, or casting, followed by high-temperature sintering, and then CNC precision machining to form multi-level stepped components. It combines the characteristics of high hardness, good wear resistance, low thermal expansion coefficient, strong insulation, and excellent chemical stability of ceramics, while achieving precise positioning, layered sealing, or composite assembly functions through multi-level step design.

Typical application scenarios include:
-Semiconductor manufacturing: used for wafer transfer robotic arms, vacuum chamber positioning steps, etching equipment insulation brackets, etc.
-Optics and Laser: As a lens adjustment ring and laser resonant cavity step base, it ensures the accuracy of optical path alignment.
-Medical devices: applied to high-precision surgical instrument guides, ceramic guides for imaging equipment, etc.
-Automation and measurement: used as precision bearing seat, sensor isolation gasket, detection instrument positioning block, etc.

Core advantages of the product

1. Ultimate precision and stability
   After sintering, ceramic materials have almost no internal stress and are not easily deformed. They can achieve long-term dimensional stability in multi-level stepped structures and are suitable for high-precision alignment and repeated assembly.
2. Excellent environmental adaptability
   -High temperature resistance: Alumina ceramics can work in an environment of 1500 ℃ for a long time, while zirconia ceramics can withstand temperatures of over 800 ℃.
   -Corrosion resistance: Excellent resistance to acids, alkalis, and organic solvents, suitable for chemical and electroplating environments.
   -Long wear life: The hardness can reach HRA85 or above, and the wear rate is only 1/10 of alloy steel.
3. Function integration design
   The multi-level step structure can replace multiple component combinations, reduce assembly steps, lower cumulative tolerances, and improve overall equipment reliability.

Specifications, Dimensions, and Customization Services
We provide comprehensive customized production to meet customers’ differentiated needs:
-Material selection: alumina (Al ₂ O ∝ 75% -99.9%), zirconia (ZrO ₂ TZP/Y-TZP), aluminum nitride (AlN), silicon nitride (Si ∝ N ₄), etc.
-Accuracy range: Dimensional tolerance can reach ± 0.005mm, flatness ≤ 0.01mm, and coaxiality of multi-level steps ≤ 0.02mm.
-Size range: Diameter 1mm~500mm, with step levels up to 10 or more, supporting complex geometric shapes such as asymmetric and inclined steps.
-Surface treatment: secondary processing such as polishing, coating, laser marking, and metallization can be carried out.

Customer Application Case (Anonymous)
-Case 1: A semiconductor equipment manufacturer
The original stainless steel step positioning component experienced slight deformation in a vacuum high-temperature environment, resulting in wafer alignment deviation. After replacing with our company’s zirconia multi-stage step ceramic parts, there was no displacement after 6000 hours of continuous operation, and the product yield increased by 2.3%.
-Case 2: A precision optical enterprise
We need a stepped insulation positioning seat for UV laser modules, which is required to be resistant to UV aging and have a size error of ≤ 0.015mm. We use high-purity alumina to customize a dual step structure and perform surface refinement treatment. After delivery, the customer feedback shows that the assembly efficiency has been improved by 40%.
-Case 3: A certain medical device company
Developing a new type of image detection device requires non-magnetic and biocompatible guide components. We design zirconia ceramic multi-level step guide rails to achieve magnetic interference free and smooth movement, and the product has passed FDA related testing.

Multi step ceramic structural components are becoming a key upgrade option in high demand industrial applications. It is not only a material replacement, but also a systematic improvement in accuracy, reliability, and service life. If you are looking for a ceramic structure solution that is resistant to harsh environments, has long-lasting precision, and can be customized, please feel free to contact us at any time for exclusive design solutions and sample testing support!
