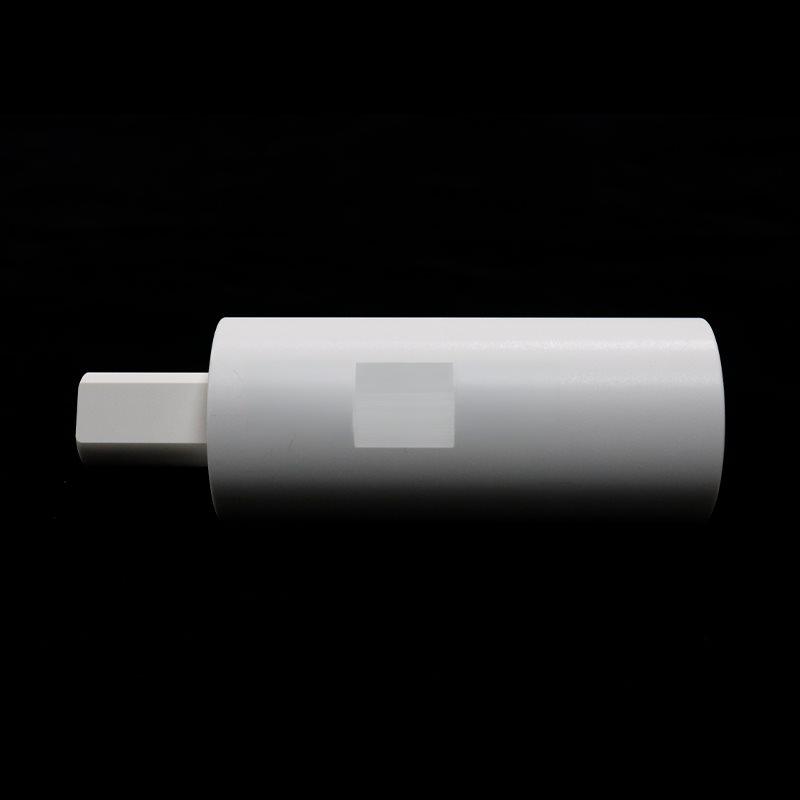

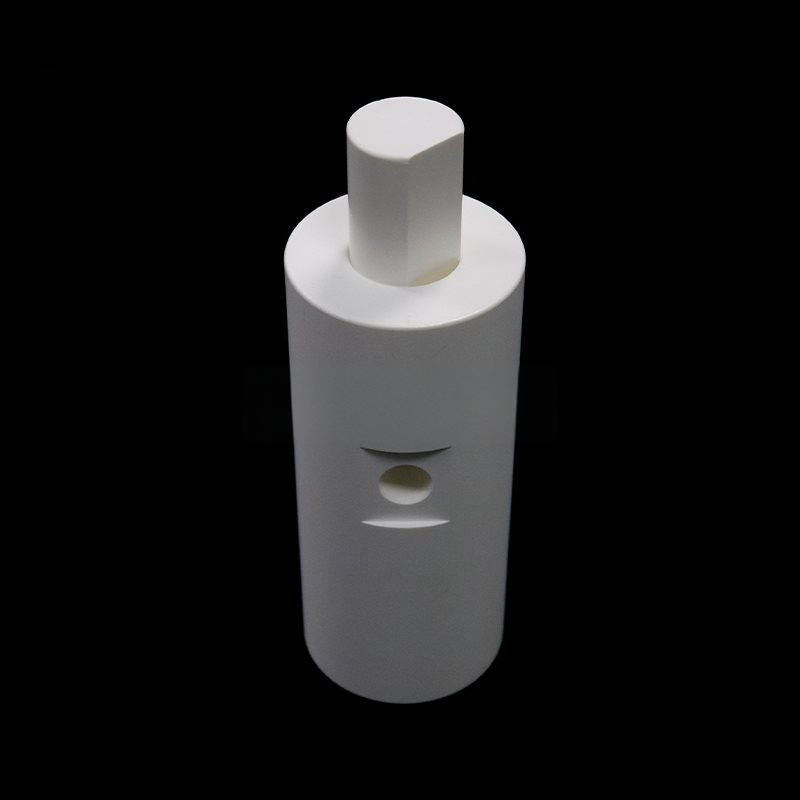

Cylindrical ceramic insulator

Q: Are you looking for an electrical insulation solution that can maintain stable performance even in high voltage, high temperature, or harsh environments?
Q: Are you concerned about equipment failure or safety hazards caused by aging, creepage, or mechanical stress on insulation components?
Q: Do you need an insulation product that can be customized in size, has strong adaptability, and has a long service life?
Answer: Cylindrical ceramic insulators are designed to solve these problems. It is widely used in power, electronics, rail transit, and industrial equipment due to its excellent insulation, mechanical strength, and weather resistance, effectively ensuring the safe and stable operation of the system.

Cylindrical ceramic insulator is a cylindrical insulating component made from high aluminum oxide or high-purity industrial ceramics through high-temperature sintering. Its design structure is simple and the geometric shape is uniform, suitable for various scenarios that require electrical isolation, mechanical support, or environmental protection. The product has high dielectric strength, low loss factor, excellent thermal stability, and chemical corrosion resistance, making it an ideal substitute for traditional plastic or composite insulation components.

Core strengths

1. Excellent electrical performance
   -High insulation strength (up to 20-40 kV/cm), effectively preventing arc and creepage phenomena.
   -Low dielectric loss, able to maintain stable capacitance characteristics in high-frequency or high-voltage electric fields.
2. Excellent mechanical and thermal stability
   -High compressive strength (up to 1000 MPa or more), wear-resistant, and not easily deformed.
   -Wide working temperature range (-50 ℃ to+500 ℃), heat-resistant and shock resistant, suitable for high temperature environments.
3. Strong environmental adaptability
   -UV resistant, acid and alkali resistant, anti-aging, suitable for long-term use in outdoor or chemical environment.
   -The surface is smooth and dense, not easy to accumulate dirt, and can reduce maintenance frequency.
4. Long lifespan and reliability
   -Ceramic materials have no aging or creep, and their service life can reach decades, reducing replacement costs.

Product application areas
-Power equipment: high voltage switches, transformers, mutual inductors, cable terminal supports.
-Rail transit: insulation components for pantographs and traction systems of electric locomotives.
-Industrial automation: insulation sheaths for motors, sensors, and heating elements.
-In the field of new energy: photovoltaic inverters, wind power converters, and insulation structures for charging piles.
-Laboratory and special equipment: insulation support for vacuum equipment and high-precision instruments.

Specifications, Dimensions, and Customization Services
We provide comprehensive customized production services to meet the special needs of different customers:
-Standard specifications: Diameter from 5mm to 200mm, length from 10mm to 500mm, supporting multiple aperture and thread designs.
-Material selection: 95% alumina, 99% high-purity alumina, zirconate ceramics, etc., suitable for different working conditions.
-Customization options: Special shapes, sizes, apertures, chamfers, labels, etc. can be processed according to the drawing.
-Surface treatment: We can provide services such as glazing, polishing, and metallization (copper plating, silver plating).

Customer Application Case (Anonymous)
-A supplier of equipment for a certain national power grid: We use our customized φ 80 × 200mm high alumina ceramic insulators for 110kV isolation switches, which have been running without faults for 5 years, replacing imported products and reducing costs by 30%.
-A charging equipment factory of a certain new energy vehicle enterprise: using our provided cylindrical insulators with threaded holes to solve the insulation aging problem of charging pile modules under high temperature, the product has passed rigorous environmental testing.
-A high-speed rail component manufacturer: customized batch of small ceramic insulators (φ 12 × 30mm) for locomotive traction systems to maintain stable insulation performance in vibration and high temperature environments.

Match your project with the most reliable insulation solution, cylindrical ceramic insulators – using professional materials and precise craftsmanship to safeguard the safe path of every current.
If you need guidance on selection, sample application or customized inquiry, please feel free to contact us at any time. We will provide you with one-on-one technical support and fast quotation service!
