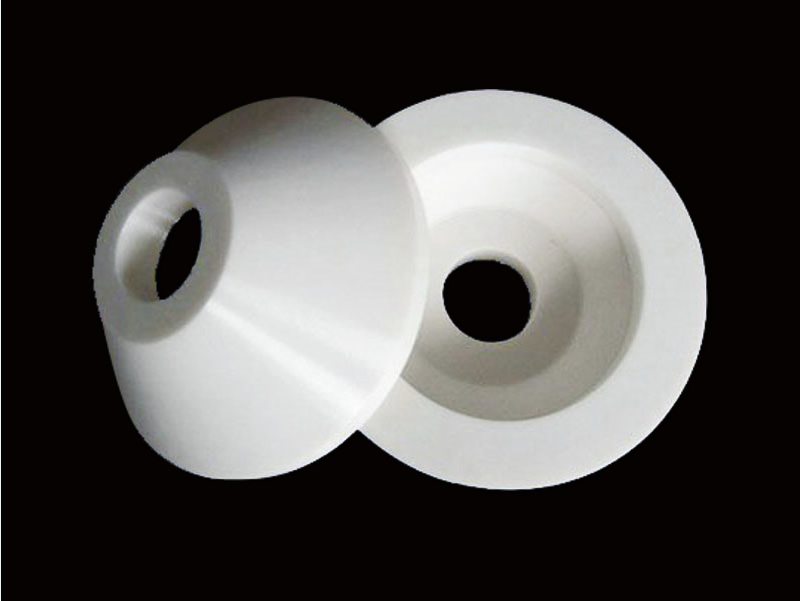

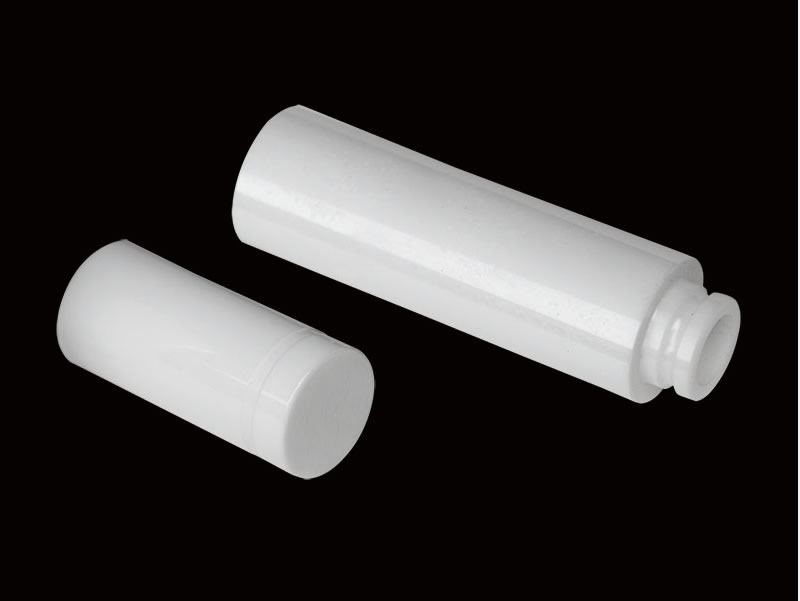

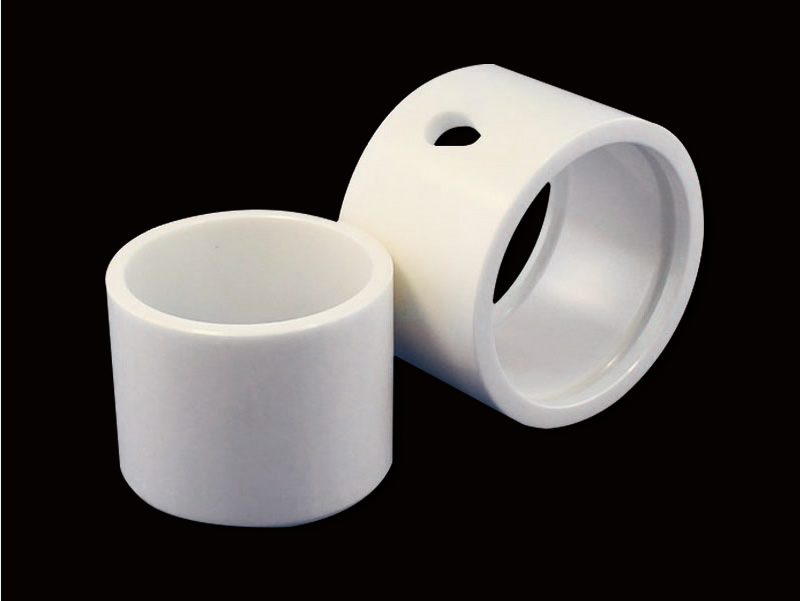

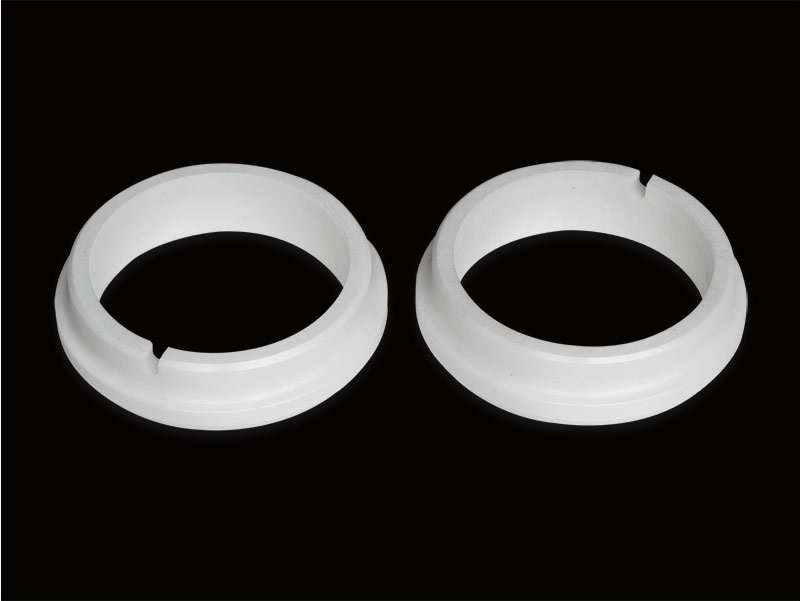

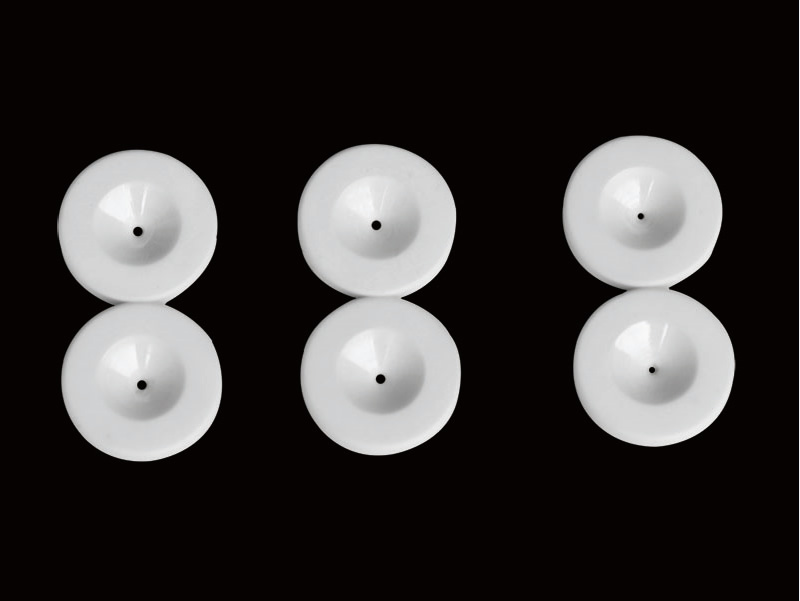

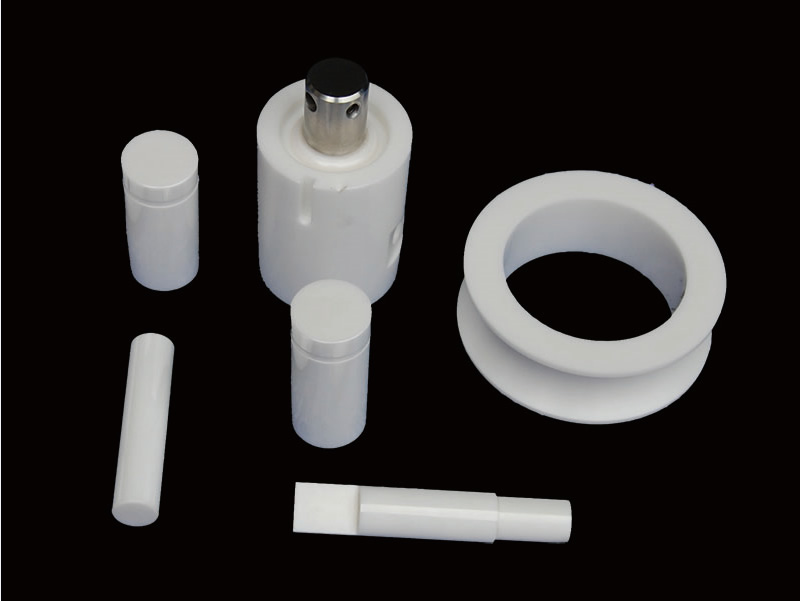

Zirconia ceramic structural components – ceramic tube ring rod

Zirconia ceramic structural components (ceramic tubes, rings, rods) are advanced precision ceramics that combine high strength, high toughness, and excellent wear and corrosion resistance. It completely breaks the stereotype of traditional ceramics being “fragile” and exhibits comprehensive performance beyond metal and engineering plastics under extreme working conditions. It is an indispensable core functional component in modern high-end industrial manufacturing.

FAQ
Q1: What are the core advantages of zirconia ceramic structural components compared to traditional alumina ceramics?
A: The most significant advantage of zirconia ceramics lies in their “combination of rigidity and flexibility” characteristics. Its fracture toughness is 3-5 times that of traditional alumina ceramics, and its bending strength can reach over 1200MPa. This means that zirconia is not easily cracked or broken when subjected to severe impacts or complex forces. Meanwhile, its wear resistance can be increased by 15 times, the friction coefficient can be reduced by about 50%, and its service life far exceeds that of ordinary ceramics.
Q2: What is the maximum temperature that these ceramic tubes, rings, and rods can withstand?
A: Zirconia ceramics have excellent high-temperature stability, with a melting point of up to 2650 ℃. As a structural component, it can usually withstand harsh environments above 1500 ℃ for a long time, and can still maintain dimensional and structural stability under intense thermal shocks of high and low temperature alternation, making it very suitable for applications such as high-temperature furnace tubes and continuous casting nozzles.
Q3: Can you provide customized services for non-standard shaped parts? How much machining accuracy can be achieved?
A: We provide comprehensive non-standard customization services. Relying on advanced five axis linkage machining and precision grinding technology, our dimensional accuracy can reach up to 0.001mm, concentricity can reach 0.003mm, and surface roughness can be polished to mirror level. Whether it’s tiny inner holes, ultra-thin wall thickness, or complex irregular structures, precision manufacturing can be achieved.

Requirements and Problem Solving
If you are looking for a substitute for metal or ordinary engineering plastics to solve the problem of frequent equipment damage and high maintenance costs in strong corrosion, high wear, high temperature or high pressure environments, our zirconia ceramic tubes, rings, and rods will be your ideal choice. It can not only significantly extend the replacement cycle of key components and reduce downtime for maintenance, but also meet the stringent standards in the semiconductor, medical, and precision electronics fields with its excellent insulation, non-magnetic, and biocompatibility.

Advantages and Application Value
Our zirconia ceramic structural components create significant value for you with the following core advantages:
Ultimate wear resistance and extended lifespan: With a hardness of HRA 88-90 (second only to diamond), it can effectively resist continuous erosion and friction when transporting slurry, powder, or used as a bearing or sealing ring. After using zirconia elbows in a certain power ash conveying system, the service life of traditional materials has been directly increased from no more than one month to five years.
Excellent corrosion resistance and adaptability to extreme media: it has strong resistance to the vast majority of acids, bases, salts, and molten metals. In the corrosion chamber of chemical pumps, desulfurization pumps, or semiconductor equipment, it can maintain structural integrity for a long time, avoiding pollution and failures caused by material loss.
Precise and stable, ensuring equipment accuracy: with low thermal conductivity, low thermal expansion coefficient, and excellent electrical insulation. In 5G communication filters, chip carriers, or high-frequency circuit insulation rings, the stability of signal transmission and precise coordination of components can be ensured.
Safe and compatible, expanding medical applications: The material is non-toxic and harmless, with excellent biocompatibility and non-magnetic properties. Widely used in artificial joints, dental stents, and magnetic resonance imaging (MRI) environments, surgical instruments completely eliminate the risk of metal allergies and rejection reactions.

Specification customization service
We are well aware of the differentiated requirements for parts under different working conditions, and therefore provide highly flexible customized services:
Size range: Ceramic rings/tubes/rods with diameters ranging from 0.5mm to 500mm can be produced.
Tolerance control: The dimensional tolerance can be controlled within ± 0.005mm, and the minimum tolerance for inner holes can be machined to 0.005mm.
Special Process: Supports minimum M2 internal thread processing, narrowest 0.1mm straight groove cutting, and ultra-thin wall thickness forming with a minimum of 0.08mm.

Customer application case sharing
Case 1: The Choice of “Cost Reduction and Efficiency Enhancement” for Semiconductor Equipment Enterprises
A well-known semiconductor equipment manufacturer has long been limited by the problems of fast wear and easy generation of dust particles in traditional material fixtures during wafer transfer. After testing our customized zirconia ceramic ring for 18 months, feedback data showed that the wear of the ceramic ring under continuous high load operation was only 0.03mm (the industry average is 0.1mm). This not only reduces the frequency of component replacement by 70%, but also greatly improves the yield rate of wafer production, bringing significant economic benefits to customers.
Case 2: Automation Upgrade of New Energy Battery Production Line
A leading power battery company needs a lightweight and high-frequency grabbing end effector for its production line automation transformation. We have tailored a combination solution of “silicon carbide composite ceramic arm+zirconia ceramic positioning ring” for it. This solution successfully increased the load capacity of the robotic arm by 40%, stabilized the gripping accuracy at 0.02mm, and improved the overall assembly efficiency of the battery pack by 20%, perfectly meeting the automation assembly requirements of precision electronic components.

Is your device also facing severe tests of wear, corrosion, or high temperature?
Please feel free to contact us at any time to provide your specific working conditions and drawing requirements. We will provide you with one-on-one selection suggestions and customized quotations for free!
