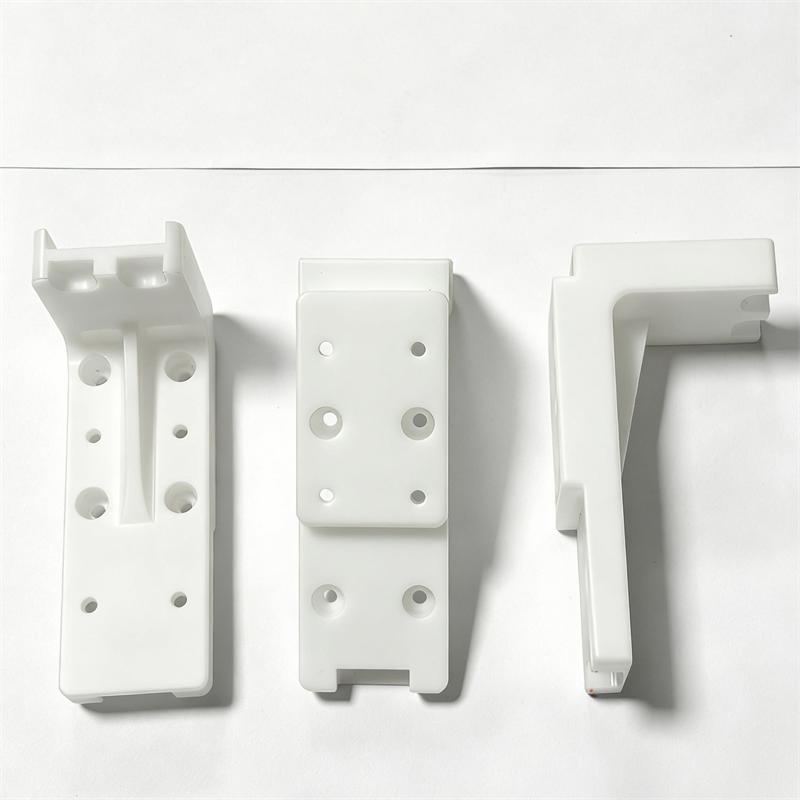

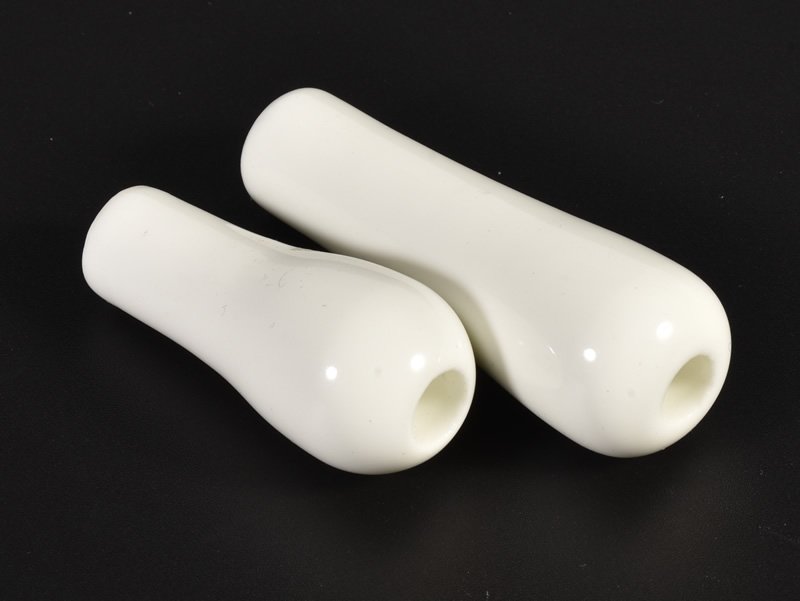

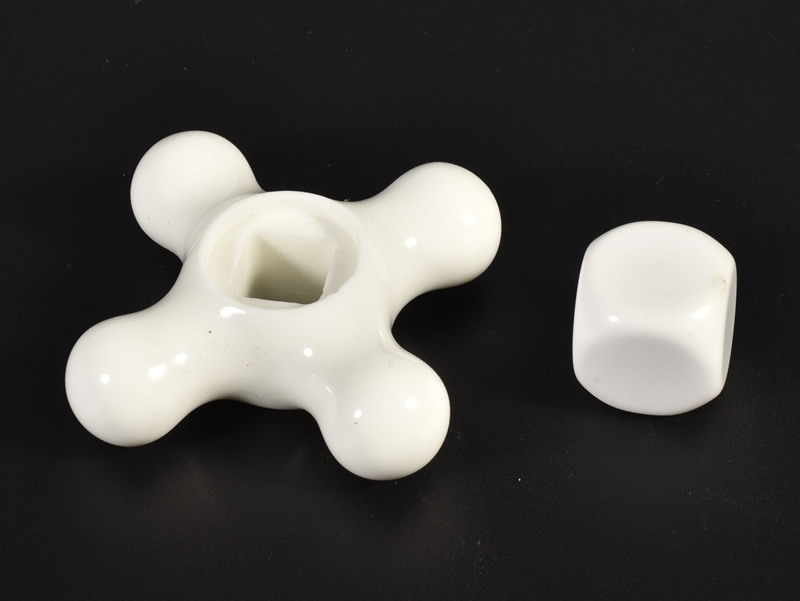

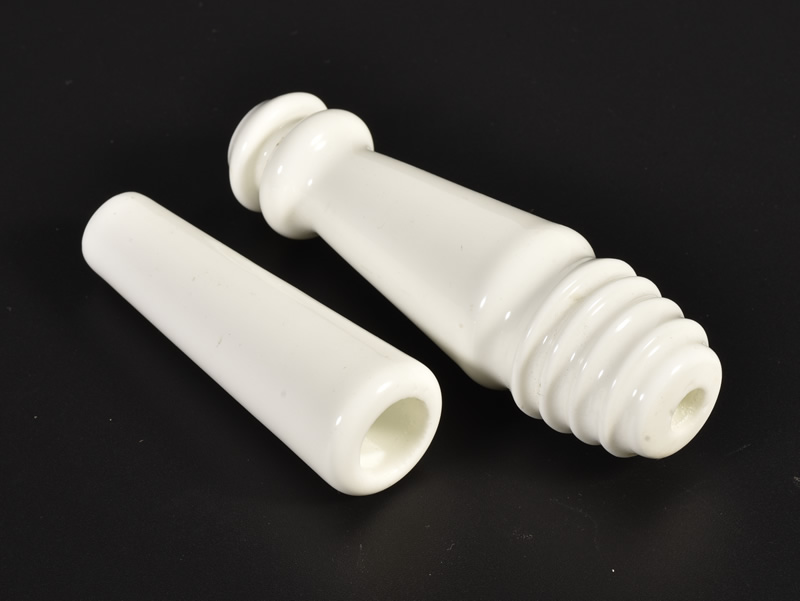

Aluminum oxide ceramic handle

Aluminum oxide ceramic handles are made of high-purity aluminum oxide (Al ₂ O ∝) as the core material and processed through high-temperature sintering technology. They have high hardness (Mohs hardness level 9), wear resistance, corrosion resistance, and strong insulation properties, and are widely used in precision instruments, medical equipment, industrial tools, and high-end consumer electronics.

FAQ：
Q1: What are the main components of alumina ceramic handles?
A: Using 95% -99.9% high-purity alumina powder, it is formed by isostatic pressing and sintered at high temperatures of 1600-1800 ℃ to ensure a density of ≥ 99%, and its hardness and durability far exceed those of metals and plastics.
Q2: How to treat the surface of the handle to enhance grip?
A: Supports matte sandblasting, precision polishing, or anti slip pattern carving, with a friction coefficient adjustable to 0.3-0.8, meeting the anti slip needs of different scenarios.
Q3: Can non-standard sizes or irregular structures be customized?
A: We offer full-size customization from a diameter of 5mm to 200mm, supporting complex structural designs such as arc, cone, and hollow, with a minimum wall thickness of up to 0.5mm.
Q4: What is the temperature resistance range of the product?
A: It can withstand extreme temperature differences from -50 ℃ to 1000 ℃ for a long time, and can withstand temperatures up to 1200 ℃ instantly. It is suitable for high temperature disinfection or low temperature freezing environments.

Core Requirements and Problem Solving
Requirement 1: Wear resistant grip components for high-precision equipment
Resolve the pain points of metal handles being easily scratched and plastic handles being prone to aging, and extend the service life of the equipment.
Requirement 2: Aseptic safety requirements in the medical/food industry
Strong chemical stability, acid and alkali resistance, disinfectant corrosion resistance, avoiding the risk of cross contamination.
Requirement 3: Structural stability in extreme environments
Resistant to high and low temperature impacts, ensuring reliable operation in aerospace, industrial kilns, and other scenarios.
Requirement 4: Balance between lightweight and high-strength
The density is only 3.9g/cm ³, with a weight 60% lighter than stainless steel, and a bending strength of 350-500MPa.

Application scenarios and value
Precision instruments and industrial tools
Applications: Microscope adjustment knob, semiconductor testing equipment operating lever, laser cutting machine handle.
Value: High hardness and wear resistance reduce frequent replacement costs, improve equipment accuracy and operational stability.
Medical and laboratory equipment
Applications: Surgical instrument handles, endoscope operating rods, centrifuge accessories.
Value: Resistant to disinfectant corrosion and biological inertness, compliant with ISO 13485 medical certification standards.
Consumer electronics and high-end kitchenware
Applications: Smartphone camera decorative ring, coffee machine brewing head handle, tool holder handle.
Value: Matte surface and precise color matching enhance product texture and meet brand differentiation needs.
Aerospace and Energy Sector
Application: Satellite antenna adjustment rod, nuclear power plant detection equipment handle.
Value: Resistant to radiation and extreme temperature differences, ensuring long-term reliability of equipment in harsh environments.

Customer Application Case (Anonymous)
Case 1: A German precision instrument manufacturer
The customer needs to develop a ceramic handle for semiconductor testing equipment, with a diameter of 12mm, a length of 80mm, and a surface friction coefficient of ≥ 0.6 to prevent slipping during operation. We adjusted the sandblasting process parameters and added anti slip patterns to ensure that the product passed the customer’s rigorous drop test and durability verification in one go, helping to increase the customer’s equipment production by 30%.
Case 2: A medical technology enterprise
The customer has developed a reusable endoscope handle that meets the requirements of high temperature and high pressure disinfection at 134 ℃ and 100000 non-destructive operations. We use 99.9% high-purity alumina material and special surface coating technology to extend the lifespan of the handle by 5 times compared to traditional stainless steel components.

Whether you need standard specifications or innovative designs, we can provide one-stop service from material selection to finished product delivery. Click to consult for 3D design drawings and free quotes! Make alumina ceramic handles the core competitiveness of your product upgrade.

Brudeze Ceramics supplies and sells a wide range of high-quality quartz glass, including alumina ceramics, zirconia ceramics, silicon nitride ceramics, aluminum nitride ceramics, silicon carbide ceramics, boron carbide ceramics, bioceramics, machinable ceramics, etc. We can meet the customization requirements of various ceramic products.
