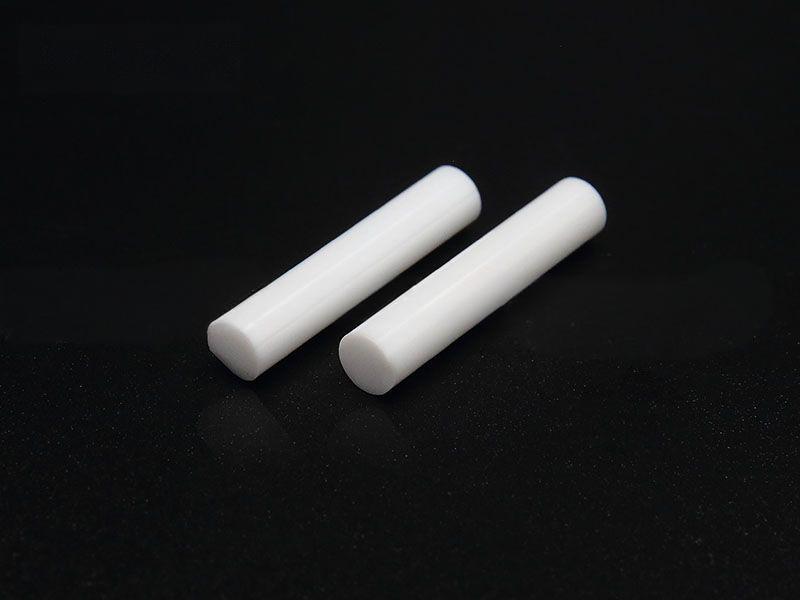

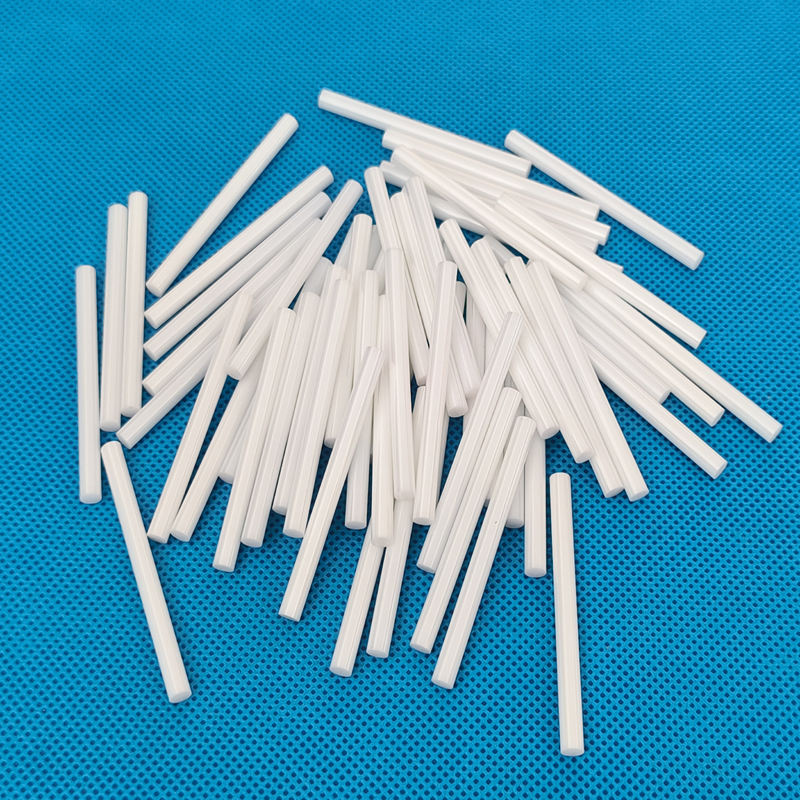

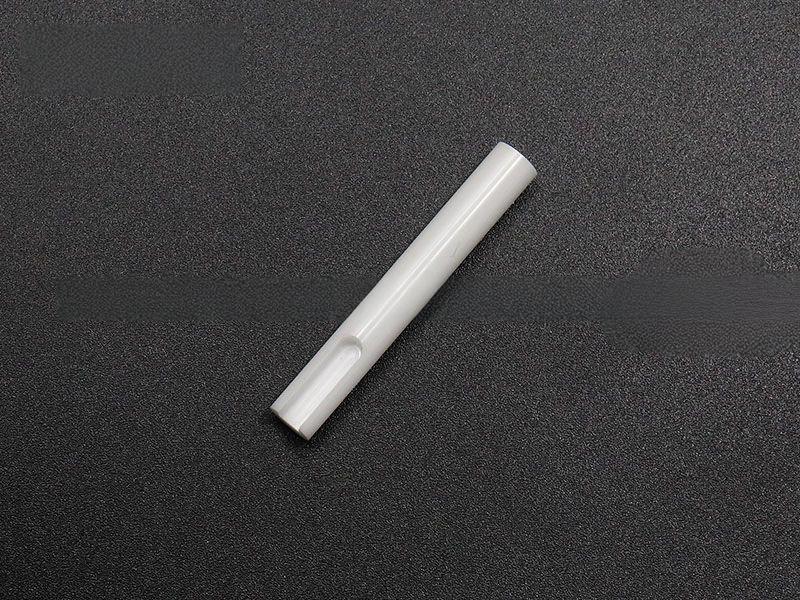

Zirconia rod with U-shaped groove

Zirconia rod with U-groove is a high-performance industrial ceramic component precision machined from high-purity zirconia (ZrO ₂) material. Its core feature is the high-precision U-shaped groove on the surface of the rod, which not only inherits the ultra-high hardness, wear resistance, and corrosion resistance characteristics of zirconia “ceramic steel”, but also achieves the perfect integration of lightweight and structural functions through the unique U-shaped groove design. It is an ideal material for solving the challenges of insulation, weight reduction, and precision transmission in high-end equipment.

FAQ
Q1: What is the biggest advantage of zirconia rods with U-grooves compared to ordinary metal rods?
A: The biggest advantage lies in its outstanding comprehensive physical and chemical properties. Zirconia has extremely high hardness (Mohs hardness close to 9), and its wear resistance is dozens of times that of metals; At the same time, it has excellent insulation, non-magnetic properties, and extremely strong acid and alkali corrosion resistance. The design of the U-slot further breaks the limitations of traditional solid bars, significantly reducing weight while ensuring structural strength, and facilitating embedded installation of cables or connectors.
Q2: Can the size and U-slot specifications of this product be customized?
A: Absolutely possible. We provide comprehensive customization services for specifications and sizes. Whether it is the outer diameter and length of the rod, or the width, depth, and opening angle of the U-shaped groove, precision machining can be carried out according to your drawings or specific working conditions. Our processing accuracy can reach up to micrometer level (± 0.003mm), which can meet the assembly requirements of demanding fields such as semiconductor and medical.
Q3: Will the structure with U-grooves affect the strength of zirconia rods?
A: I won’t. We will optimize the structural parameters of the U-shaped groove through finite element analysis during design, utilizing the extremely high bending strength (generally above 1100MPa) and fracture toughness of zirconia itself to compensate for the cross-sectional changes caused by the groove. After precision grinding and chamfering, the U-groove has a uniform stress distribution and is fully capable of withstanding high-frequency alternating loads and mechanical stresses under complex working conditions.

The core problem solved for you
From your application perspective, this product mainly helps you solve the following three major challenges:
Dealing with extreme wear and corrosion: In high friction or strong acid-base environments, replacing metal parts that are prone to rust and wear can significantly extend equipment maintenance cycles.
Realize the coexistence of lightweight and high rigidity: especially suitable for high-speed operation of robotic arms or transmission shafts, the U-shaped groove design effectively reduces the moment of inertia, improves response speed, and reduces vibration.
Meeting the physical requirements of special working conditions: Perfectly solving application scenarios that require absolute insulation, anti magnetic interference, and biocompatibility, ensuring production safety and product purity.

Performance and Application Value
Zirconia rods with U-shaped grooves are not just simple structural components, they are the crystallization of materials science and precision manufacturing processes.

1. Ultimate material performance
   High quality yttrium stabilized zirconia (Y-TZP) powder is selected and formed by isostatic pressing and high-temperature sintering. Its room temperature hardness is as high as HRA88-90, and its compressive strength exceeds 2000MPa. This material is called “ceramic steel”, which maintains the high temperature resistance and thermal insulation properties of ceramics while possessing mechanical reliability beyond ordinary metals.
2. Clever U-slot structure design
   Unlike traditional solid ceramic rods, the introduction of U-shaped grooves endows the product with more functional attributes. It not only exists as a weight reducing hole, but also serves as a guide rail, wiring harness channel, or a mating interface with other components. Combined with nanoscale surface polishing technology (Ra can reach 0.15 μ m), the inner wall of the U-shaped groove is as smooth as a mirror, greatly reducing the friction coefficient during motion.
3. Wide range of application areas
   Semiconductor and Electronic Manufacturing: Used as a guide rod and vacuum suction cup pin for wafer transfer robotic arms, free from metal contamination and anti-static.
   New Energy and Chemical Industry: Suitable for plungers and valve cores in lithium battery production lines and corrosive fluid pumps.
   Medical equipment: used for surgical instrument handles and dental equipment transmission shafts, safe, non-toxic, and capable of repeated high-temperature disinfection.
   Precision automation: high-speed surface mount machines, thread guides and wear-resistant transmission shafts for textile machinery.

Why choose us? Real customer application cases
We have a mature zirconia precision machining industry chain, strictly controlling every step from powder formulation to final diamond grinding. Here are real cases where we assist clients in solving practical engineering challenges:
Case 1: A semiconductor equipment manufacturer overcomes the problem of wafer transmission jitter
When developing a new generation of wafer handling robots, the customer found that the original stainless steel drive shaft caused slight vibrations due to its heavy weight during high-speed start stop, resulting in wafer alignment deviation. We have customized a zirconia ceramic drive shaft with a dual U-shaped groove structure for it. By utilizing the characteristic that zirconia is about 40% lighter than metal, combined with further optimization and weight reduction of the U-groove, the vibration amplitude at the end of the robotic arm has been successfully reduced by more than 60%. At the same time, its ultra-high dimensional accuracy (with straightness controlled within 0.1mm) ensures absolute smoothness in transmission, helping customers pass production line verification smoothly.
Case 2: A large textile machinery factory – solving the problem of high-speed wire breakage and wear
When processing special fibers on the customer’s high-end air-jet loom, traditional metal wire feeders are easily worn out with grooves, resulting in frequent wire breakage. We provide zirconia ceramic rod components with precision U-shaped guide grooves on the surface. With zirconia’s hardness second only to diamond and ultra smooth surface treatment, the component remains smooth even under tens of thousands of daily frictions, completely eliminating the phenomenon of wire hanging. Customer feedback shows that after replacing the product, the wire breakage rate on the production line has decreased by 90%, and there is no need for frequent downtime to replace parts, resulting in a nearly 30% increase in overall production efficiency.

If you are looking for high-performance ceramic solutions that can improve device performance and extend service life, please feel free to contact us at any time! Whether it’s standard procurement or complex non-standard customization, we will provide you with the most competitive products and services.
