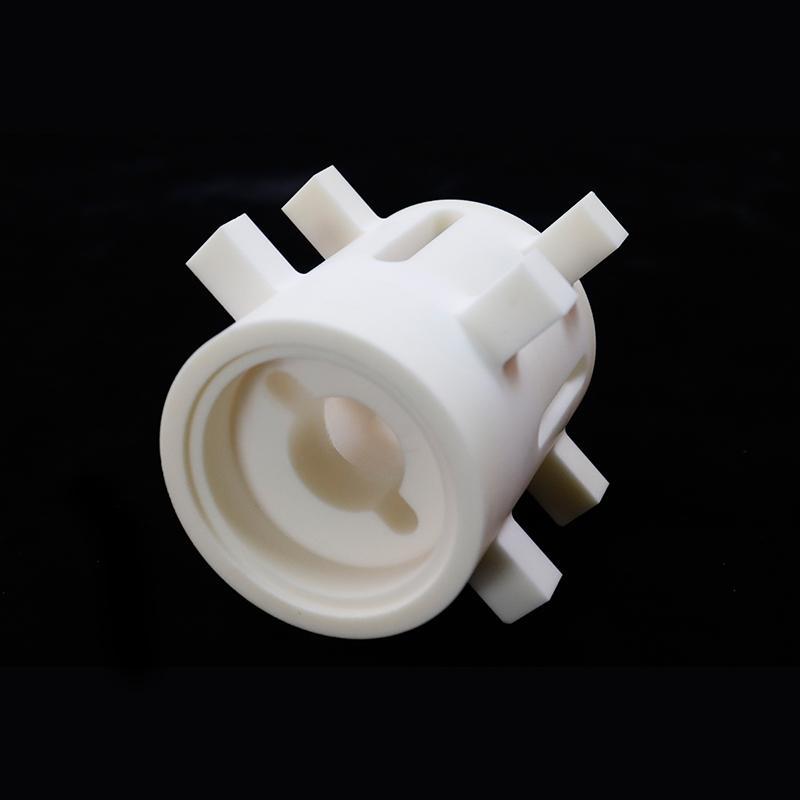

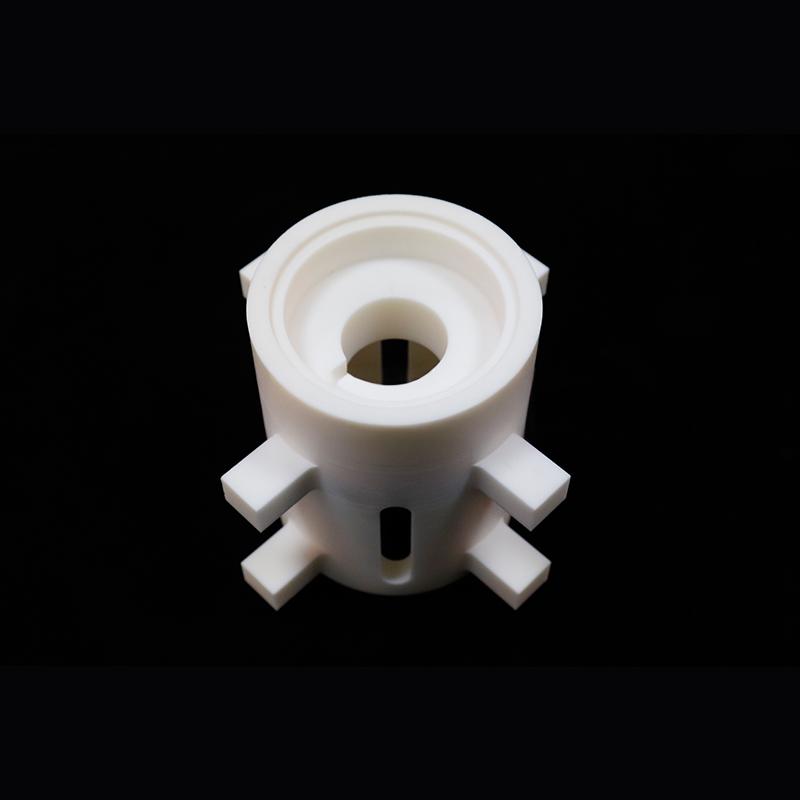

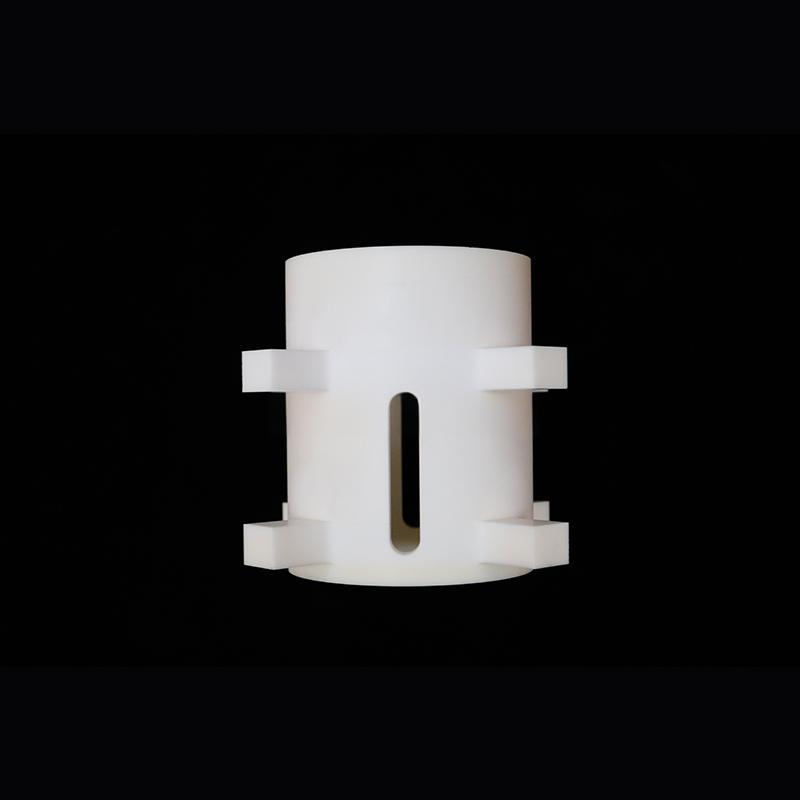

Aluminum oxide ceramic coupling

Alumina ceramic couplings are an ideal connection solution for modern industry under extreme working conditions. In response to the power transmission requirements of precision machinery in high temperature, corrosive, and non-magnetic environments, it utilizes the physical properties of high-purity alumina (Al ₂ O3) to achieve performance advantages that traditional metal couplings cannot match, such as electrical insulation, wear resistance, and corrosion resistance, ensuring long-term stable operation of equipment in complex environments.
Alumina ceramic coupling is a rigid or elastic transmission component made of high-purity alumina (Al ₂ O3 content ≥ 99.5%) through dry pressing or isostatic pressing and high-temperature sintering. It is mainly used to connect two shafts or shafts with rotating parts, transmit motion and torque, and has core characteristics of electrical insulation, high temperature resistance, chemical corrosion resistance, and non-magnetic.

Q: My equipment works in a strong acid and alkali environment, and the metal coupling is severely corroded. What should I do?
Answer: Alumina ceramic couplings have extremely high chemical stability and can almost withstand most acid-base corrosion except hydrofluoric acid, which can completely solve the corrosion problem of metal parts.
Q: How to avoid metal ion contamination generated by couplings in semiconductor equipment?
Answer: The alumina coupling is made of non-metallic ceramics, completely free of metal ion precipitation, and can meet the ultra clean requirements in the semiconductor and medical device fields.
Q: The stray current generated during the operation of the motor can damage the bearings. How to block it?
Answer: Alumina ceramics have extremely high electrical resistivity (>1 × 10 ¹⁴Ω· cm), making them excellent insulators. The use of ceramic couplings can effectively block the current path, achieve electrical insulation protection, and prevent electrical corrosion of bearings.
Q: Which type of coupling can maintain strength without deformation in a high temperature environment of 500 ℃?
Answer: Alumina ceramic couplings can be continuously used at extreme high temperatures up to 1750 ℃ (without load), and still maintain high hardness and dimensional stability at high temperatures, making them the preferred choice for high-temperature furnace equipment.

Choosing an alumina ceramic coupling means choosing the ultimate solution of “three resistances and one insulation”:

1. Ultimate wear resistance: The hardness of alumina ceramics is as high as HRA 80-90 (second only to diamond), and its wear resistance is tens of times that of manganese steel. In scenarios of frequent start stop and high-frequency transmission, dimensional accuracy can still be maintained.
2. Comprehensive corrosion resistance: For chemical fluids, seawater, solvents and other media, aluminum oxide material exhibits inertness and will not undergo electrochemical corrosion, greatly extending the maintenance cycle of equipment under harsh working conditions.
3. High and low temperature adaptability: The working temperature range covers a wide range, from cryogenic environments to oxidation atmospheres up to 1500 ℃ -1750 ℃, maintaining stable mechanical properties. The coefficient of thermal expansion is low (about 8.4 × 10 ⁻⁶/℃), and the size changes very little with temperature.
4. Electrical insulation and non-magnetic: Not only can it be completely insulated, but it is also non-magnetic, suitable for precision instruments such as MRI equipment and electron beam exposure machines that are extremely sensitive to magnetic field interference.

Product application areas
-Semiconductor and photovoltaic manufacturing: In etching, deposition, and cleaning equipment, ceramic couplings are both resistant to plasma corrosion and prevent metal contamination.
-Petroleum and Chemical Industry: Used for magnetic pumps, shielded pumps, and mixers to solve leakage and corrosion problems during the transportation of toxic, harmful, flammable, and explosive liquids.
-Precision instruments and aerospace: In high vacuum environments, ceramic materials have extremely low gas release rates and can withstand extreme temperature differences and radiation in space.
-Medical devices, such as CT machines and orthopedic surgical tools, utilize their non-magnetic, high-temperature and high-pressure sterilization resistant properties.

Customization service for specifications and dimensions
We are well aware that standard parts often cannot meet personalized needs. Therefore, we provide full process customized processing services:
-Material purity: 92%, 95%, 99%, 99.5% and higher purity alumina can be customized according to strength requirements.
-Structural form: Supports various complex inner hole shapes such as hexagonal holes, square holes, keyway, clamping type, flange type, etc.
-Dimensional accuracy: The machining accuracy can reach ± 0.002mm, and the concentricity is strictly controlled at the micrometer level to ensure smoothness during high-speed rotation.
-Special specifications: Whether it is non-standard threads, ultra long shaft sleeves, or irregular structures, our engineering team can sample and mass produce according to drawings or samples.

Customer Application Cases
Case: Frequent leakage problem of magnetic pump in a well-known chemical group
-Customer demand: The customer is transporting strong acid slurry containing solid particles. The metal (Hastelloy) coupling and isolation sleeve originally used were perforated due to wear and corrosion within just 2 months, resulting in expensive material leakage and significant losses due to frequent downtime for maintenance. We urgently need a transmission component that can withstand strong corrosion and high wear.
-Solution: We have customized high-purity alumina ceramic couplings and matching ceramic isolation sleeves for our customers. For its shaft hole size (aperture 25mm, outer diameter 50mm, length 65mm), 99.5% alumina material is used, and seamless replacement with the original pump body is ensured through isostatic pressing and precision inner and outer circular grinding processing.
-Final effect:
-Lifespan improvement: After 12 months of installation and use, the coupling surface is as smooth as new, with almost no signs of wear, and the expected service life is extended by 8-10 times.
-Cost reduction: Thoroughly solved the environmental risks and material waste caused by corrosion leaks, and reduced the maintenance frequency from once a month to zero.
-Stable performance: The low friction coefficient and extremely high dimensional accuracy of ceramics significantly reduce the vibration value of the pump body and reduce operating noise.

If you are looking for transmission components that can withstand high temperatures, high pressures, high corrosion, or high insulation requirements, we are always ready to provide support. Whether it’s standard parts or complex non-standard customization, please feel free to contact us for drawing verification or sample testing. Let’s work together to overcome your transmission challenges!
