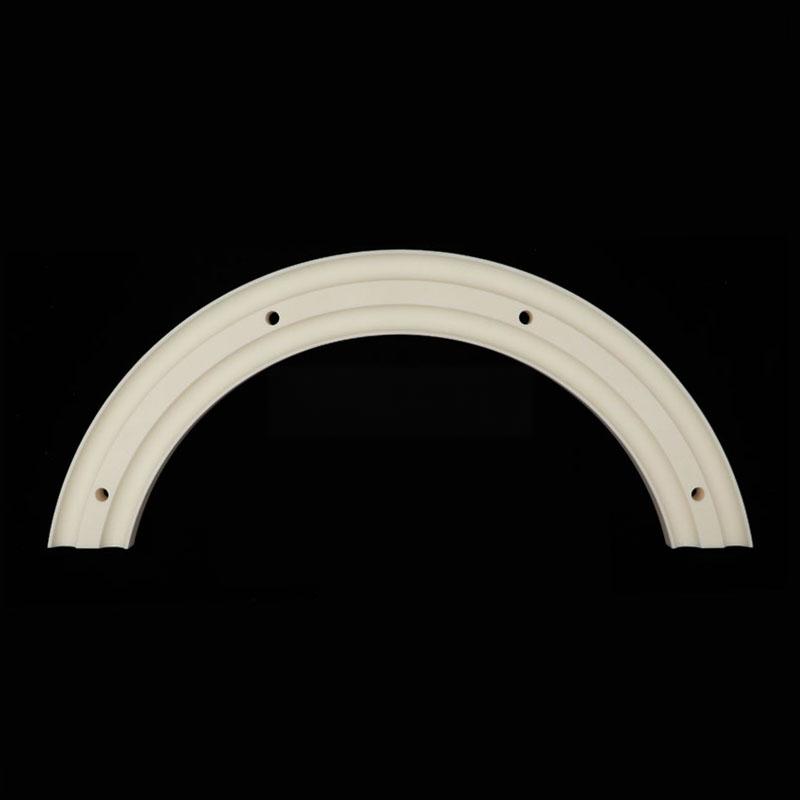

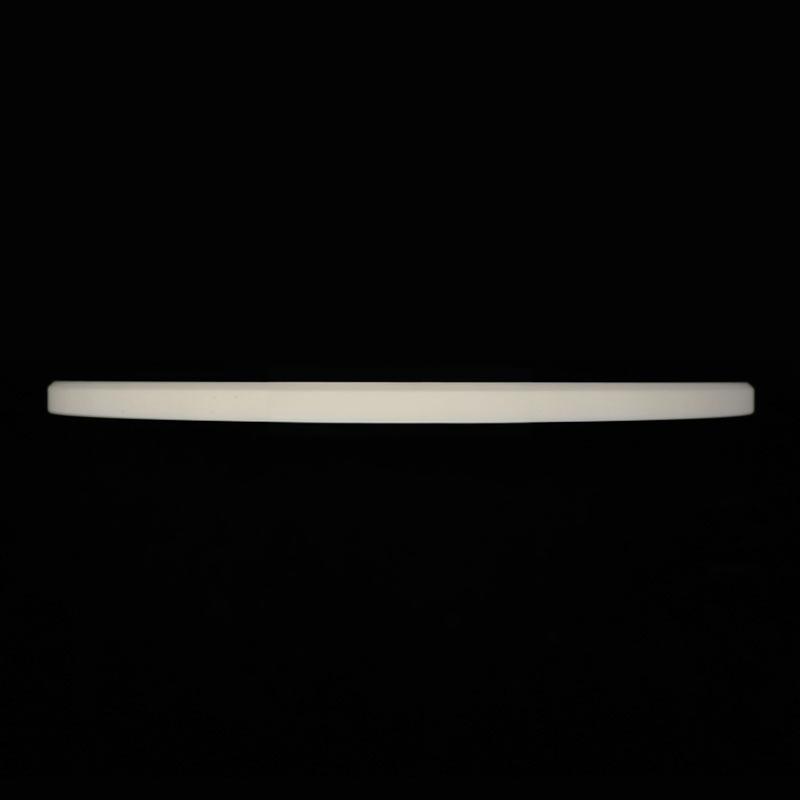

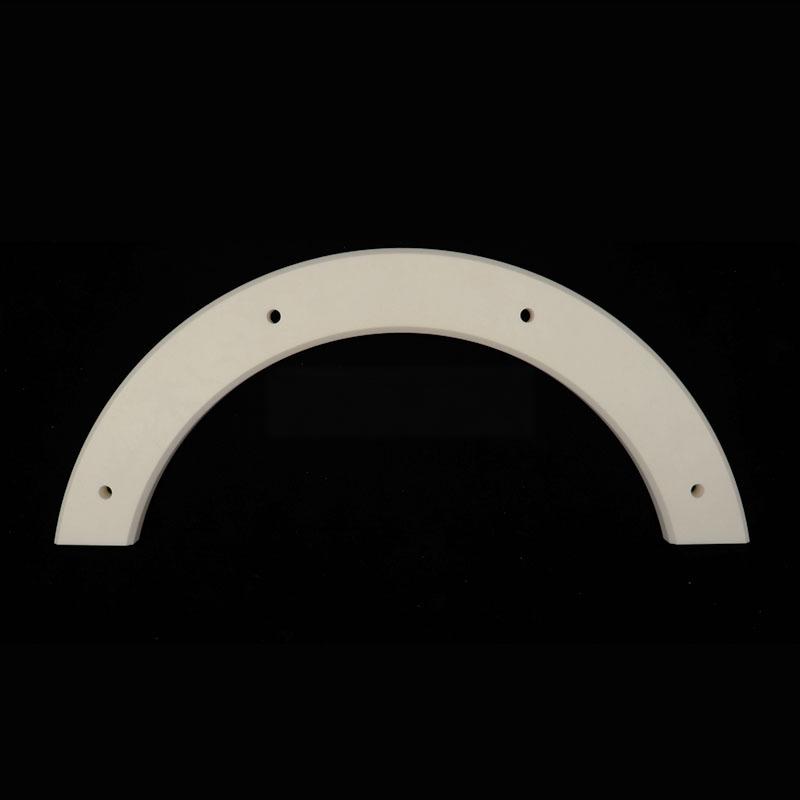

99 alumina heating rod installation cover

In the field of industrial heating, the installation ports of heating rods are often the “hardest hit areas” for heat loss, signal interference, and safety risks. The installation cover of 99 alumina heating rod is a precision sealing component made of high-purity alumina ceramic material, designed to provide stable mechanical fixation, electrical insulation, and environmental sealing for the end terminals of thermocouples and heating rods. It is not only a “reassurance pill” for stable operation of high-temperature equipment, but also a key link in improving the overall life of the heating system.

Product FAQ: Are you also looking for answers to these questions?
Q1: What should I do if the heating rod terminal is prone to oxidation or even short circuit under high temperature for a long time?
A: Our 99 alumina installation cover is made of high-temperature resistant insulation material, which can effectively isolate corrosive gases in the air from contact with metal terminals, fundamentally preventing oxidation leakage and protecting circuit safety.
Q2: How to solve the problem of inaccurate temperature control caused by severe heat loss at the furnace mouth or the tail of the heating rod?
A: The installation cover is designed with precision fitting to form a dense thermal barrier at the installation port, reducing heat convection losses and helping to stabilize the furnace temperature field and improve temperature control accuracy.
Q3: Does the heating rod always shake after installation, or is it prone to loosening in a vibrating environment?
A: The installation cover adopts a threaded or flange locking structure to firmly fix the heating rod on the equipment panel, providing strong mechanical support and preventing displacement and wear caused by vibration.
Q4: Are there any non-standard size installation covers on the market that can match the special specifications of the heating rod in my hand?
A: Absolutely possible. We support full-size customization services, and whether your heating rod has a diameter of 6mm, 8mm, 12mm, or irregular size, we can provide precise matching alumina ceramic installation covers.

Product application scenarios
This product is widely used for fixing and insulating the tail of single head heating rods, thermocouples, and high-temperature heating coils. Commonly seen on the following devices:
-Plastic machinery: protection of heating coil wiring terminals for injection molding machines and extruders.
-Experimental electric furnace: sealing the inlet and outlet of thermocouples or silicon carbide rods in tube furnaces and muffle furnaces.
-Packaging machinery: The heating element of the heat sealing machine is installed and fixed.
-Chemical equipment: Heating ports that require special insulation protection in explosion-proof environments.

Core advantages of the product

1. Ultimate purity and high temperature stability: High purity ceramic materials with a selected alumina content of not less than 99% can be used up to a maximum temperature of 1600 ℃~1700 ℃ (long-term use is recommended to be within 1600 ℃), maintaining extremely high dielectric strength and chemical inertness at high temperatures.
2. Dual protection, security upgrade:
   -Electrical insulation: With high breakdown strength, it effectively prevents electric shock accidents caused by accidental conduction between the metal shell of the heating rod and the equipment casing.
   -Mechanical protection: Ceramic materials have high hardness, wear and corrosion resistance, and can resist external impacts and dust erosion.
3. Precise tolerance and good sealing: Adopting isostatic pressing or dry pressing molding process, the product size consistency is good, and the clearance between the heating rod and the fitting is small, effectively preventing hot gas from overflowing from the furnace.

Customization service for specifications and dimensions
Due to the varying lengths of heating rod flanges, threads, and leads produced by different manufacturers, we offer flexible customization services
-Standard specifications: Common inner diameters (such as Φ 6.5, Φ 8.5, Φ 10.5, Φ 12.5, Φ 16mm) and standard thread specifications (M16, M18, M20, etc.) are available in stock year-round.
-Customized service: We can customize installation covers with special inner diameters, special threads, multi-level steps, or positioning slots based on customer provided drawings or samples.
-Appearance treatment: Provide raw sintered or precision ground polished states to meet different sealing grade requirements.

Customer Application Cases
Case: A new energy material sintering equipment manufacturing enterprise (vacuum/atmosphere furnace)
-Requirement background: When producing experimental tube furnaces, the enterprise needs to insert thermocouples into the furnace tubes to measure temperature. The original fixed head was made of ordinary metal, but due to the high temperature at the furnace mouth of 1300 ℃ and the presence of a slightly corrosive atmosphere, the metal parts are easily oxidized and deformed, causing the thermocouple to loosen and even leak gas, affecting the vacuum degree inside the furnace.
-Solution: We have provided customized 99 alumina thermocouple installation covers for the enterprise. A special alumina cover with a conical sealing structure was designed for its furnace tube wall thickness and flange aperture, and precision through holes matching the diameter of the thermocouple were reserved inside the cover body.
-Final effect:
-Improved sealing: After replacing with a ceramic mounting cover, the problem of air leakage caused by mismatched metal thermal expansion coefficients has been completely solved, and the vacuum retention capacity of the furnace tube has been increased by 40%.
-Extended lifespan: After continuous operation for 2000 hours at a high temperature of 1300 ℃, the aluminum oxide installation cover shows no deformation or softening, and remains as bright as new, whereas previously metal parts needed to be replaced on average once a month.
-Signal stability: Due to the excellent insulation performance of ceramics, the leakage interference between thermocouple signals and furnace shells is completely eliminated, and the temperature control fluctuation range is reduced from ± 5 ℃ to ± 1.5 ℃.

In the face of high-temperature operations, every detail is related to production efficiency and safety. Although the installation cover of the 99 alumina heating rod is small, it is an indispensable “loyal guardian” to ensure the stable operation of your heating system.
If you are looking for a high temperature resistant, well insulated, and tightly sealed heating rod fixing solution, or struggling to find suitable non-standard size accessories, please feel free to contact our engineering team immediately and provide your specific specifications and drawings. We will tailor the most suitable solution for you!
