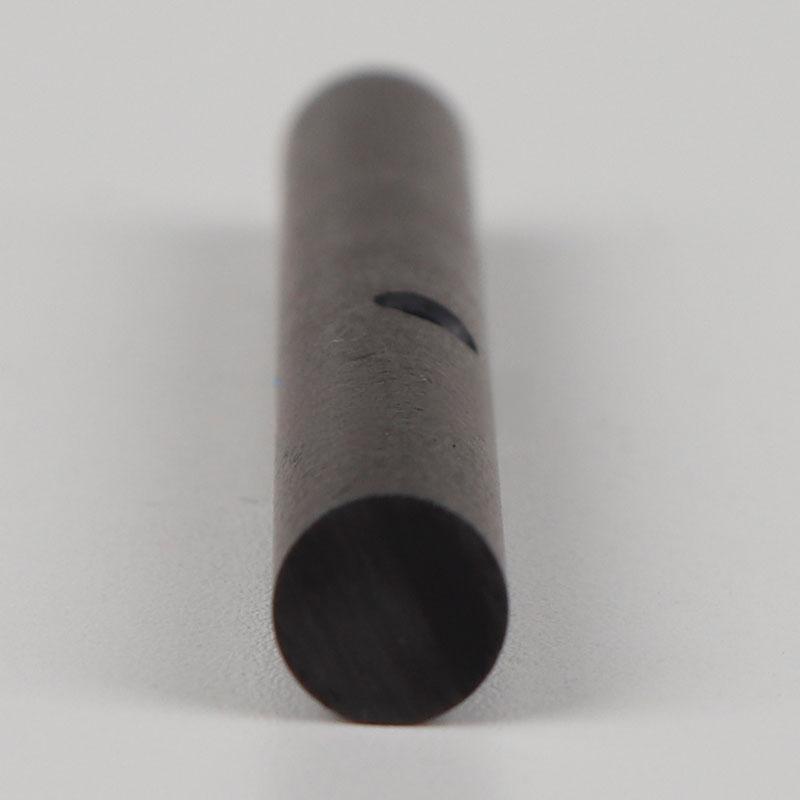

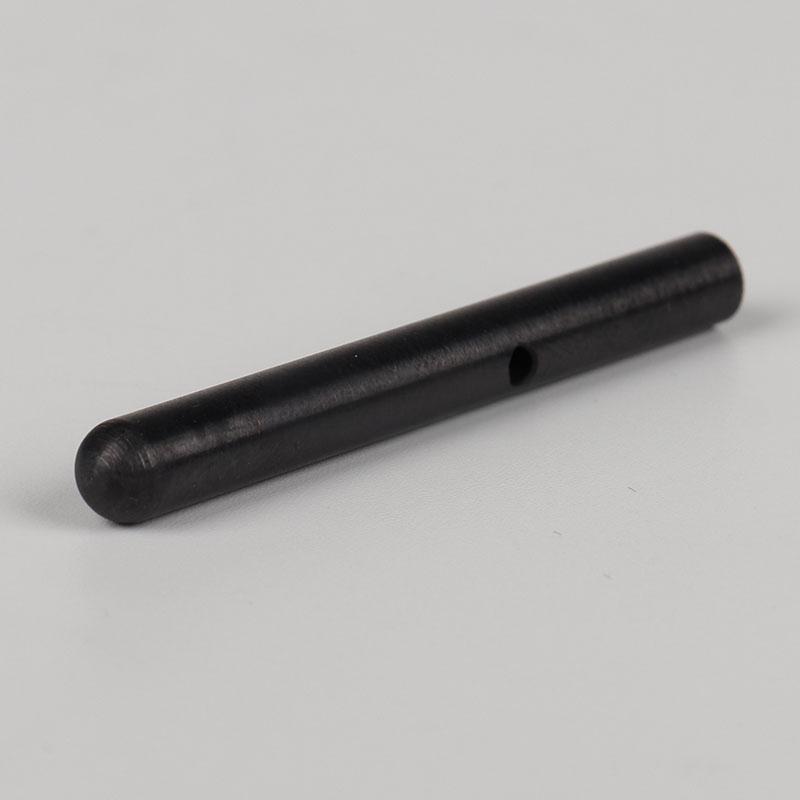

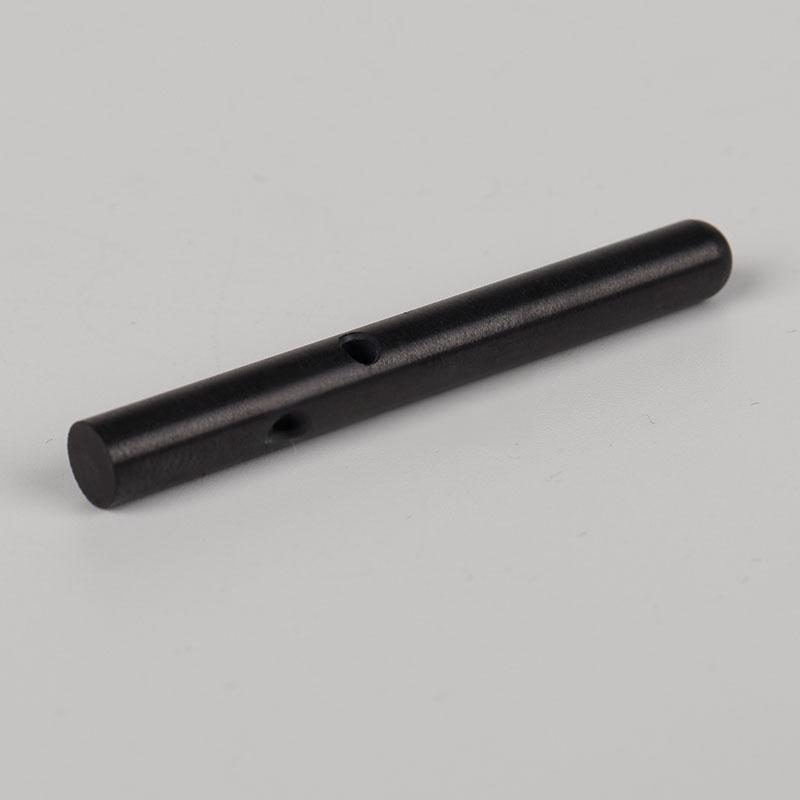

Silicon nitride ceramic ball head rod

Silicon nitride ceramic ball head rod is a high-performance composite structural component that integrates precision spheres made of silicon nitride (Si3N4) material with ceramic rods through sintering or precision assembly. It inherits the reputation of silicon nitride as the “pearl on the crown of ceramics”, combining lightweight, ultra-high hardness, high temperature resistance, electrical insulation, and self-lubricating properties. It is specially designed for cutting-edge equipment that requires precise rotation, guidance, or insulation under extreme working conditions.

Q: What should I do if the metal parts of my device wear severely due to excessive weight and heat generation while running at high speed?
A: Our silicon nitride ceramic ball head rod has a density of only 40% of steel, which can significantly reduce the centrifugal force of moving parts. At the same time, its high temperature resistance ensures that it maintains high strength above 1000 ° C, fundamentally solving the problems of wear and heat generation under high-speed heavy loads.
Q: Do I need non-metallic and non-magnetic precision components in highly corrosive environments or strong magnetic fields? Is there a suitable solution?
A: Yes, there is. Silicon nitride ceramics are not only completely non-magnetic and electrically insulating, but also resistant to strong acid and alkali corrosion. Our ball head rod is an ideal material for chemical pump valves, MRI medical equipment, and semiconductor manufacturing processes.
Q: Can it really be achieved if the equipment requires long-term operation under oil-free lubrication conditions, but there is also concern about getting stuck?
A: Absolutely possible. Silicon nitride ceramics themselves have excellent self-lubricating properties and low friction coefficients. Even without lubricating oil, it can effectively prevent the phenomenon of “biting” and greatly extend the maintenance cycle of the equipment.

Core advantages:
Our silicon nitride ceramic ball head rod is produced using hot isostatic pressing (HIP) or pressure sintering (GPS) processes, ensuring the density and reliability of the material. Its core advantages are mainly reflected in the following aspects:

1. Ultimate mechanical performance: bending strength exceeding 900MPa, high fracture toughness, and hardness second only to diamond. This means that it can maintain structural integrity and is not prone to fracture even under extremely high stress and impact.
2. Unparalleled lightweight: With a density of only about 3.2 g/cm ³, it is about 60% lighter than bearing steel. In high-speed rotating scenarios, this can significantly reduce the rolling and centrifugal force of the sphere on the raceway, which is the key to increasing the rotational speed.
3. Adaptability to harsh environments: Not only can it withstand high temperatures of 1200 ° C, but it can also resist chemical and ionizing corrosion. Whether immersed in molten aluminum or exposed to semiconductor plasma etching environment, it can work stably.
4. Multi functional integration: integrating electrical insulation (to prevent electrical corrosion), non-magnetic (zero magnetic conductivity), and self-lubricating (dry friction operation), solving the physical limits that metal materials cannot overcome.

Product application: Covering high-precision and cutting-edge fields
-High end bearings and machine tools: As the rolling element of electric spindle bearings, it achieves ultra-high speeds of 600000 revolutions per minute, significantly improving machining accuracy and efficiency.
-New energy and electricity: used for insulating bearings in new energy vehicle motors, completely eliminating shaft current damage; As an insulation component in wind power generation, it ensures equipment safety.
-Medical devices: CT equipment rotating parts, dental drill mobile phone bearings. Its low density and self-lubricating properties reduce operating noise and vibration, improving patient comfort.
-Semiconductors and photovoltaics: used as precision positioning components and insulation support rods in etching machines and thin film deposition equipment to avoid metal contamination and ensure wafer purity.
-General industry: corrosion-resistant pump valve cores, high-temperature thermocouple protection tubes, non-contact sealing shaft sleeves, etc. in the petrochemical field.

Specifications, Dimensions, and Customization Services
We are well aware that standard parts cannot meet the unique needs of all cutting-edge equipment. Therefore, we offer full-size customization services:
-Ball head diameter: can cover the range of 0.8mm to 110mm, with a maximum accuracy of G3 level (comparable to or even exceeding international standards).
-Rod size: The length can reach several hundred millimeters, the outer circle tolerance can be controlled within ± 0.003mm, the highest concentricity is 0.003mm, and the highest surface smoothness is Ra0.03.
-Complex Structure: Supports processing of complex structures such as internal threads (minimum M2), through holes, keyways, and irregular taper angles.
-Material grade: Provide different formulations (such as high thermal conductivity and high toughness) to meet the specific thermal and mechanical needs of customers.

Customer Application Cases
Case: A well-known semiconductor equipment manufacturer (anonymous)
-Pain point of demand: The customer needs a positioning sensor top rod for wafer transfer robotic arms when developing a new generation plasma etching machine. The original alumina ceramic top rod wears out quickly under plasma impact, and the micro particle pollution generated affects the wafer yield. The head of the top pole needs to be integrated with a small spherical object, which should be wear-resistant and ensure extremely high repeatability positioning accuracy.
-Solution: We have customized silicon nitride ceramic ball head rods for our customers. Using high-purity silicon nitride material, the head ball and shaft are processed and formed as a whole (or interference fit adhesive), utilizing the strong plasma erosion resistance and ultra-high hardness of silicon nitride (resisting high-speed friction of wafers), replacing the original aluminum oxide solution.
-Final effect:
-Life improvement: The service life of ceramic rods has been extended by more than 5 times, significantly reducing the time for equipment shutdown and replacement.
-Yield improvement: Microparticle contamination has been reduced by 90%, directly improving the yield of wafer manufacturing.
-Accuracy guarantee: Thanks to the high rigidity (large elastic modulus) of silicon nitride, the deformation of the robotic arm during high-speed motion is minimal, and the positioning accuracy remains stable at the micrometer level for a long time.
-Cost savings: Although the single item procurement cost has slightly increased, the overall operating cost for customers has been reduced by about 30% due to extended lifespan and improved yield.

Whether it’s selecting standard parts or customizing special specifications based on drawings, we can provide professional ceramic material solutions. Make the silicon nitride ceramic ball head rod your powerful assistant for improving equipment performance and breaking through technical bottlenecks.
Contact us immediately to obtain samples or submit your purchasing requirements!
