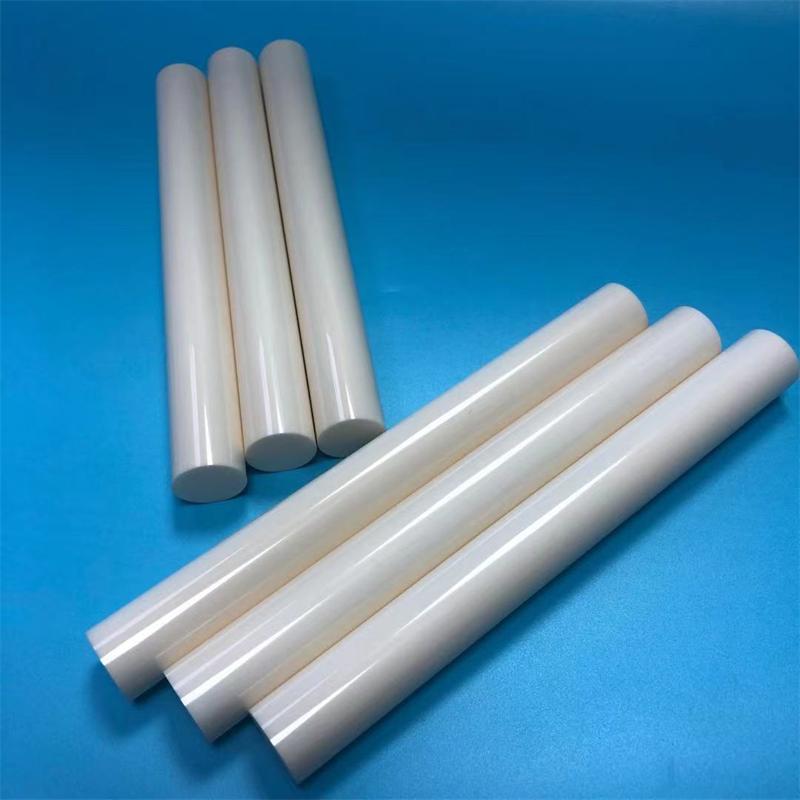

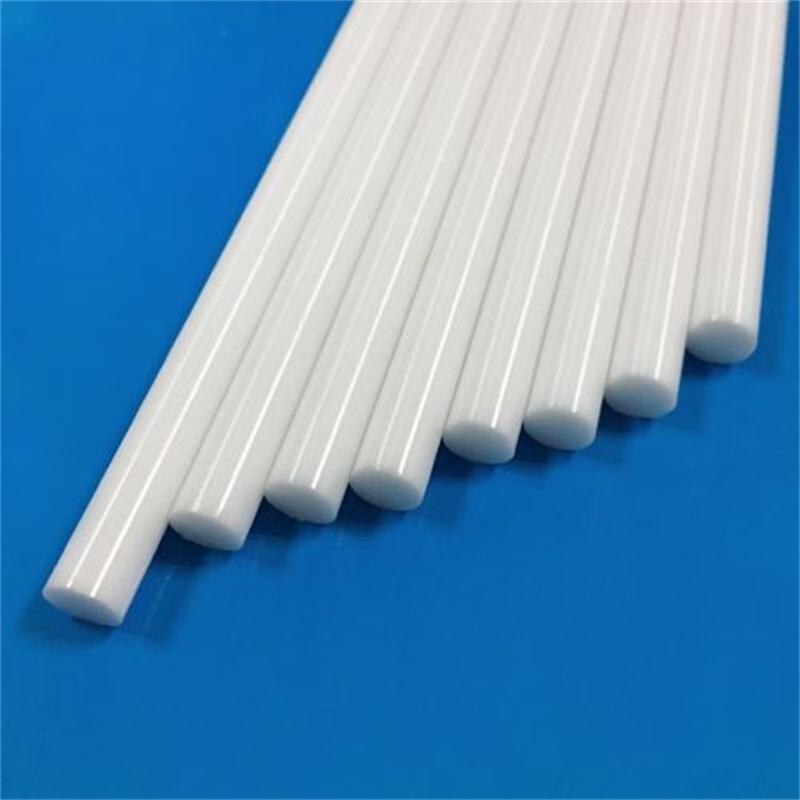

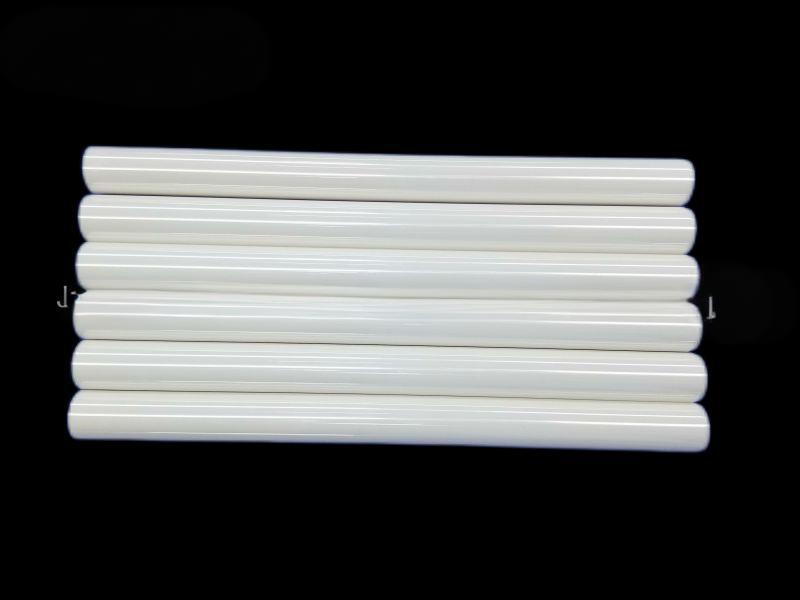

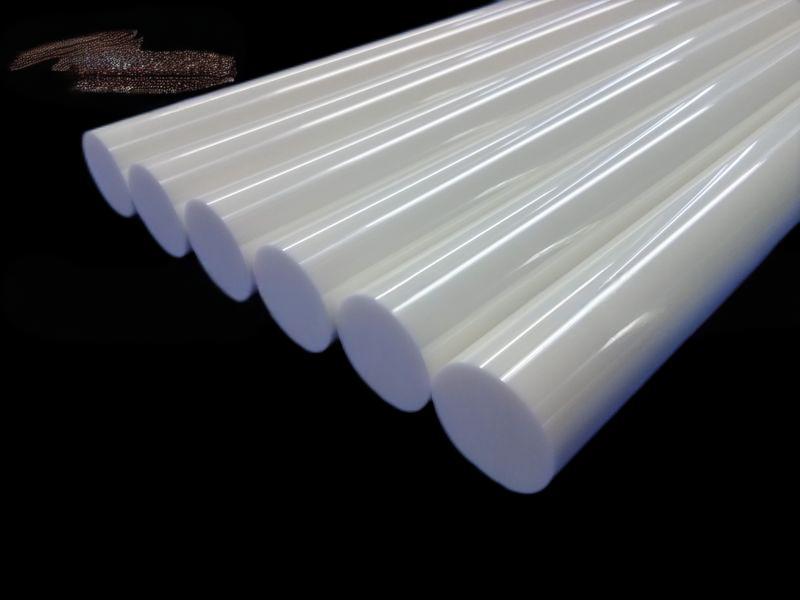

Precision processed zirconia ceramic rod

Precision processed zirconia ceramic rod is a special ceramic structural component made of high-purity zirconia powder, which is formed by isostatic pressing, high-temperature sintering, and atomic level precision grinding and polishing. It has become an indispensable “white gold” in cutting-edge fields such as semiconductor, medical, aerospace, etc., thanks to its sub nanometer surface roughness, extremely high dimensional tolerance control (up to micrometer level), and excellent mechanical properties, perfectly solving the performance bottleneck of traditional metal materials in extreme working conditions.

FAQ
Q1: What precision and surface smoothness can be achieved by precision machining zirconia ceramic rods?
A1: Through advanced precision grinding and mirror polishing processes, the diameter tolerance of our zirconia ceramic rods can be controlled within ± 0.003mm, with minimal errors in straightness and roundness. The surface roughness can reach up to Ra0.01 μ m (sub nanometer level), achieving a true mirror effect and fully meeting the strict requirements for cleanliness and accuracy in semiconductor wafer transportation.
Q2: What are the core advantages of zirconia ceramic rods compared to traditional metal rods (such as stainless steel)?
A2: The core advantage lies in being “strong but not heavy” and “corrosion-resistant and wear-resistant”. Its bending strength is as high as 1200MPa, which is three times that of aluminum alloy; The corrosion resistance in strong acid and alkali environments is 200 times that of 316 stainless steel; At the same time, it has extremely high fracture toughness, breaking the stereotype of traditional ceramics being “broken when dropped”, and its service life is usually 3-5 times that of metal parts.
Q3: Do you provide non-standard customization services? What is the minimum order quantity?

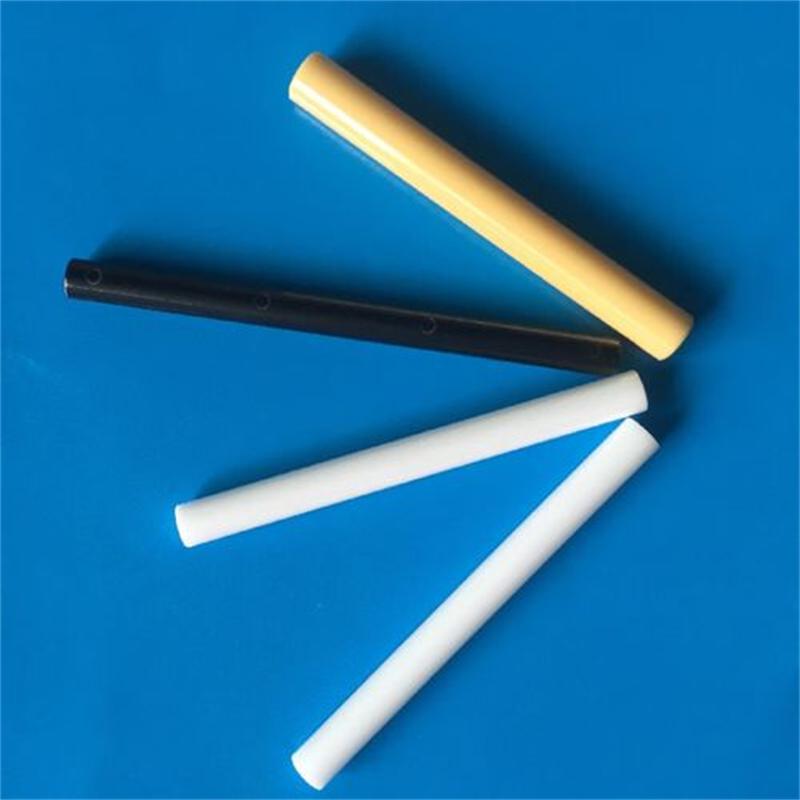

A3: Yes, we provide comprehensive customization services for specifications and sizes. Whether it is diameter, length, special shaped structure, or special requirements for colors (such as white, black, blue, etc.), customization based on drawings and samples is available. In order to support our customers’ research and development sampling, our minimum order quantity is as low as 2 pieces, and we promise to quickly sample and deliver.

Requirement and Value Explanation
Choosing our precision processed zirconia ceramic rods means you will receive the ultimate solution to tackle extreme industrial challenges.
Resolve accuracy bottleneck: Provide micrometer level positioning and transmission for semiconductors and precision instruments, eliminating yield loss caused by part deformation.
Dealing with harsh environments: Replace metal components in high temperatures above 1200 ℃ or highly corrosive chemical media, completely eliminate metal ion precipitation pollution, and ensure long-term stable operation of equipment.
Reduce maintenance costs: With its ultra-high wear resistance and fracture toughness, it significantly reduces the frequency of downtime for parts replacement and significantly lowers maintenance costs throughout the entire lifecycle.

Application and core advantages
Our precision processed zirconia ceramic rods are not only materials, but also key components that enhance the performance of your equipment.

1. The “Clean Guardian” in the field of semiconductor and electronic manufacturing
   In the process of wafer manufacturing and packaging testing, even minor metal contamination can lead to the scrapping of entire batches of chips. Zirconia ceramic rods have the characteristics of zero metal ion precipitation, anti-static, and ultra-high cleanliness.
   Application value: Used as a wafer carrier rod, robotic arm gripper, etching machine chamber component, etc. Its excellent insulation and low thermal expansion coefficient ensure dimensional stability in vacuum and plasma environments, directly improving chip production yield.
2. Anti corrosion armor in the fields of new energy and chemical engineering
   Faced with lithium battery electrolytes, hydrogen fuel cells, and various strong acid and alkali chemical media, traditional metal pump shafts and seals are often overwhelmed.
   Application value: As a shaft for injection pumps, valve sealing surfaces, and stirring shafts for reaction vessels. Zirconia ceramic rods can withstand ppb level chemical corrosion and have a dense and smooth surface that is not prone to scaling, ensuring the purity of fluid transport and extending the service life of equipment under harsh working conditions.
3. “Biocompatible partners” in the fields of healthcare and food
   Zirconia ceramics have excellent biocompatibility, are non-toxic and odorless, and are resistant to repeated high-temperature disinfection.
   Application value: Widely used in dental implants, surgical handles, wear-resistant plungers for food filling machines, etc. Its surface can meet food grade or even medical grade hygiene standards, preventing bacterial growth and cross infection.
4. Lightweight engines for aerospace and precision machinery
   In the aerospace industry, which pursues ultimate energy efficiency, the specific strength of materials is crucial.
   Application value: Used for aircraft flight control system transmission rods, high-temperature resistant sensor protection tubes, etc. Under the same load-bearing capacity, zirconia ceramic components reduce weight by 15% -20% compared to traditional steel parts, and can maintain stable performance in extreme temperature differences of -180 ℃ to 1600 ℃ without softening or cracking.

Customer Application Cases
Case 1: A well-known medical device company’s “sterile surgical instrument upgrade”
Challenge: When developing a new minimally invasive surgical forceps, the customer encountered slight oxidation and corrosion on the surface of the original stainless steel drive shaft after hundreds of high-temperature and high-pressure steam sterilization processes. This not only increased the friction of the instrument, but also posed a potential risk of metal ion precipitation leading to patient allergies.
Solution: We have customized and developed a medical grade precision machined zirconia ceramic transmission shaft for it. By utilizing the excellent biological inertness and repeated sterilization resistance of zirconia, the corrosion and allergy pathways are completely blocked.
Application results: After thousands of simulated sterilization cycles, the surface of the ceramic shaft remains as bright as new without any performance degradation. The opening and closing feel of the equipment is smoother and completely eliminates the risk of metal allergies. After its launch, the product quickly gained high recognition from surgical experts in tertiary hospitals due to its extremely high safety and durability.
Case 2: Breakthrough in Strong Acid Medium Transportation by a Large Chemical Pump and Valve Manufacturer
Challenge: On the production line that transports high concentration hydrofluoric acid and strong alkali mixtures, the customer’s original special alloy valve stem and shaft sleeve experienced severe wear and corrosion perforation after continuous operation for 3 months, resulting in frequent shutdowns for replacement. This not only incurs high maintenance costs, but also poses significant safety production risks.
Solution: We provide customized zirconia ceramic valve stem and shaft sleeve components for it. With the excellent corrosion resistance of zirconia to the vast majority of acid, alkali, and salt solutions (corrosion resistance is more than 200 times that of 316 stainless steel), as well as its ultra-high wear resistance hardness, it has solved the long-term problem of wear and corrosion that has plagued customers.
Application results: This batch of ceramic components has been running continuously for more than 2 years under strong corrosion conditions, with minimal wear and tear, achieving true “zero leakage and long service life”. Customer feedback shows that the equipment utilization rate has increased to over 99.5%, saving over one million yuan in spare parts replacement and maintenance costs annually, successfully assisting in the safe and stable operation of their production line.

If you are looking for precision ceramic components that can improve equipment accuracy, extend service life, and adapt to extreme working conditions, please feel free to contact us at any time! Whether it’s standard procurement or complex non-standard customization, our engineering team will provide you with one-on-one professional solutions and quotations.
