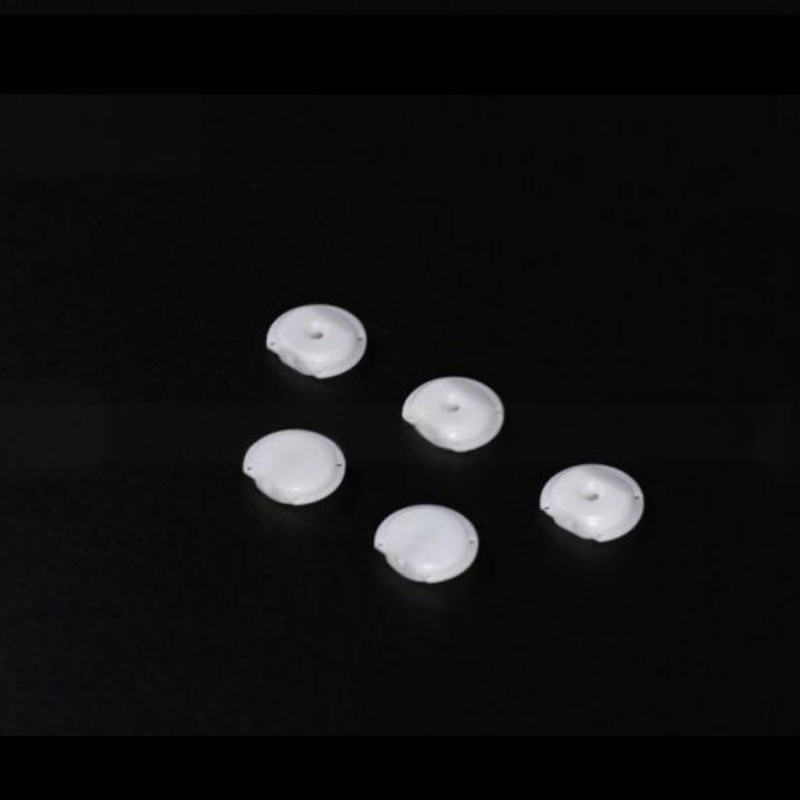

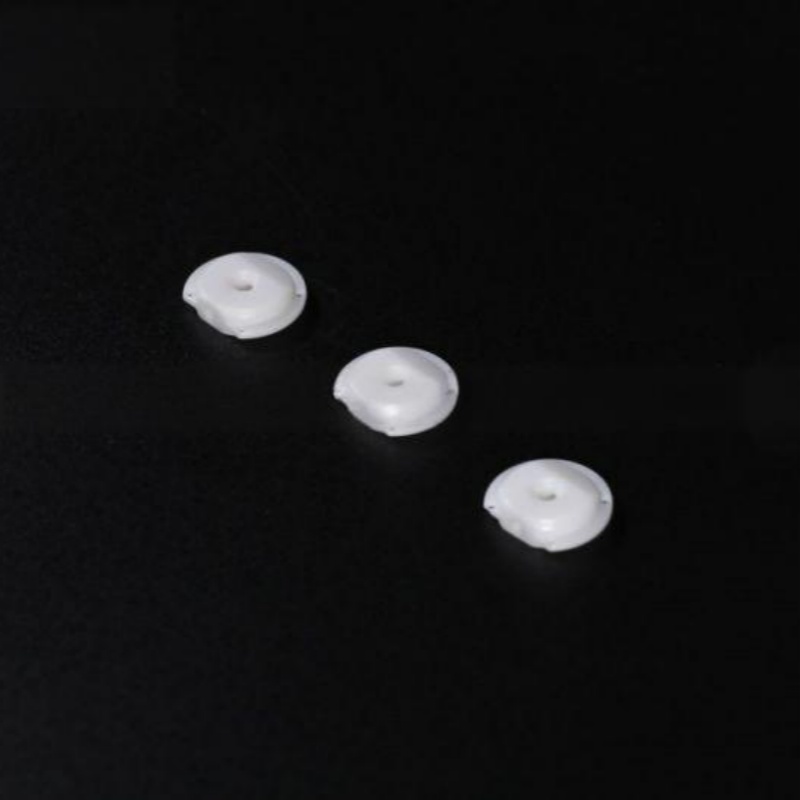

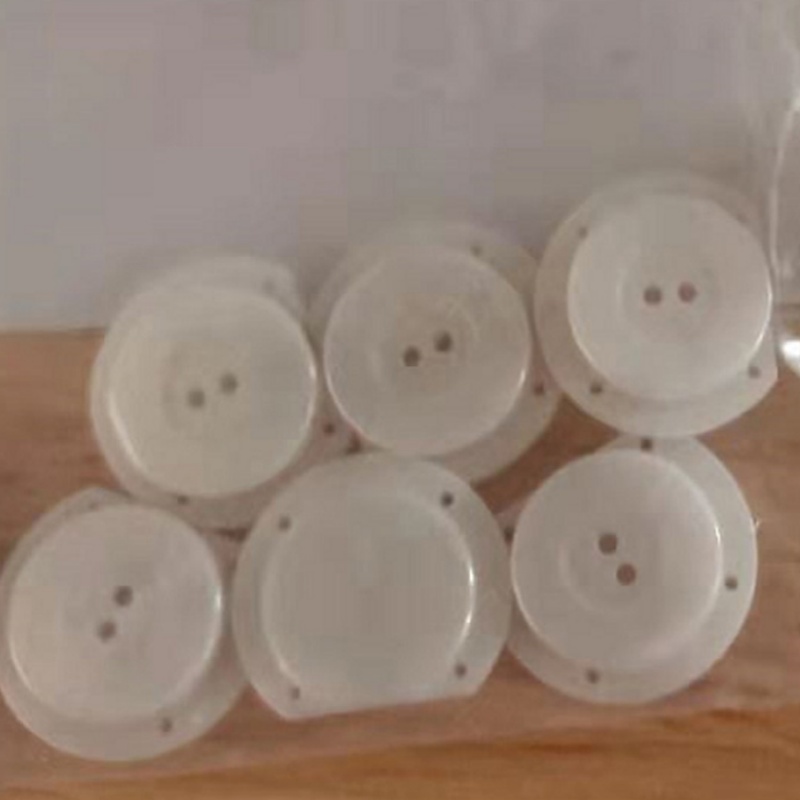

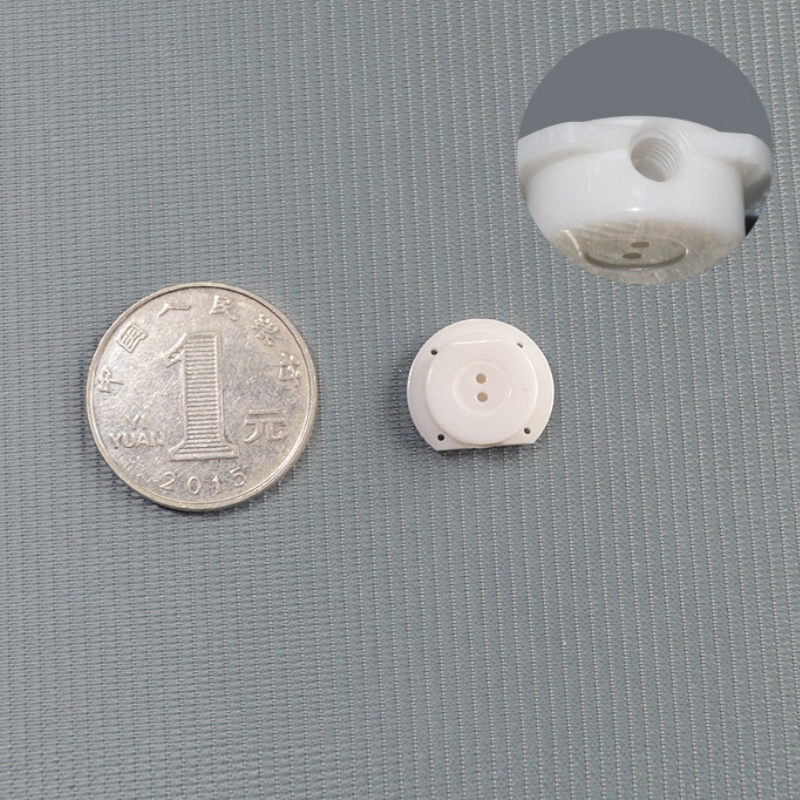

Zirconia Ceramic Suction Cups for the Photovoltaic Industry

Zirconia ceramic suction cups for the photovoltaic industry are precision vacuum-suction components specifically designed for the manufacture of high-efficiency photovoltaic cells. Made from high-purity nano-zirconia material and featuring an advanced microporous structure design, they provide reliable assurance for the damage-free handling, precise positioning, and safe transport of ultra-thin silicon wafers. With exceptional wear resistance, chemical stability, and superior flatness, this product effectively meets the stringent demands of the photovoltaic industry’s shift toward thinner and larger wafers, significantly improving cell production yield and equipment operational efficiency.

FAQ
Q1: What is the main difference between zirconia ceramic suction cups for photovoltaics and traditional metal or rubber suction cups?
A1: The key difference lies in the material and structure. Zirconia ceramic suction cups are made of high-hardness, high-purity ceramic material with an extremely smooth surface (up to Ra 0.02 μm) and are internally filled with interconnected micropores at the micron level. Compared to traditional suction cups, they completely eliminate issues such as contamination from metal impurities, surface wear and scratches, and wafer deformation or breakage caused by uneven vacuum suction force. Their service life is typically more than five times longer than that of traditional suction cups.
Q2: Can these ceramic suction cups withstand the high-temperature or chemically corrosive environments found in photovoltaic production?
A2: Absolutely. Zirconia ceramic offers excellent high-temperature resistance (with a melting point as high as 2715°C) and chemical inertness. It can not only withstand the high-temperature baking conditions in photovoltaic equipment but also resist corrosion from various chemical reagents used during wafer processing, ensuring dimensional stability and consistent performance under complex operating conditions.
Q3: What specifications and dimensions do you offer for customization?
A3: We provide comprehensive customization services. Whether it’s standard dimensions or special shapes, hole patterns, and vacuum interfaces tailored to specific equipment drawings, we can manufacture them to your requirements. Our minimum order quantities are flexible, and we support rapid delivery from sample production to mass production.

Value: Solving Key Challenges in PV Manufacturing
For PV manufacturers, as wafer thickness continues to decrease (now commonly below 120 μm), achieving high-speed, precise automated handling without damaging the wafers has become a core challenge in boosting production capacity.
Zirconia ceramic suction cups for PV applications were developed specifically to address this challenge. Through uniformly distributed micron-scale micropores, they form an “invisible net” that applies vacuum suction evenly to the back of the wafer. This design completely eliminates the “orange peel effect” or risk of fragmentation caused by excessive localized pressure in traditional suction cups. At the same time, the high-purity material prevents metal ion contamination, ensuring the photovoltaic conversion efficiency of the cells and helping companies reduce costs and improve efficiency in the face of intense market competition.

Applications and Key Advantages
Application Scenarios
Wafers Cutting and Sorting: During ingot cutting and subsequent wafer sorting, the suction cup handles the high-speed pickup and handling of ultra-thin wafers; its high-hardness surface ensures no scratches occur even under frequent friction.
Solar Cell Printing and Sintering: During screen printing and high-temperature sintering processes, ceramic suction cups maintain exceptional flatness even in high-temperature environments due to their low coefficient of thermal expansion, ensuring precise alignment during paste printing.
Automated Equipment Transfer: As a core end-effector in photovoltaic automation lines, they facilitate the transfer of wafers between processes, ensuring stable production rhythms.

Advantages and User Value
Damage-Free Handling, Improved Yield: With an extremely smooth surface and no metal impurity leaching, these cups effectively prevent surface scratches and metal contamination on silicon wafers, significantly reducing breakage rates and improving the final cell yield.
Superior Wear Resistance, Cost Reduction and Efficiency Improvement: With a Vickers hardness of up to HV1250, their wear resistance far exceeds that of metal and rubber materials. Its exceptionally long service life drastically reduces the frequency of production line downtime required for consumable replacement, thereby lowering overall operating costs.
Uniform Adhesion, Precise Positioning: The precisely controlled microporous structure ensures uniform distribution of vacuum adhesion (fluctuation < ±5%), enabling micron-level positioning accuracy even when handling extremely thin and fragile wafers.
Strong Weather Resistance and Stable Performance: Excellent thermal and chemical stability ensure consistent performance even under extreme conditions such as acid and alkali cleaning and high-temperature baking, guaranteeing long-term operational precision of the equipment.

If you are looking for zirconia ceramic suction cups for the photovoltaic industry that can significantly improve production line yield and reduce maintenance costs, please feel free to contact us at any time for detailed specifications and customized quotes. Let’s work together to help upgrade your photovoltaic manufacturing!
