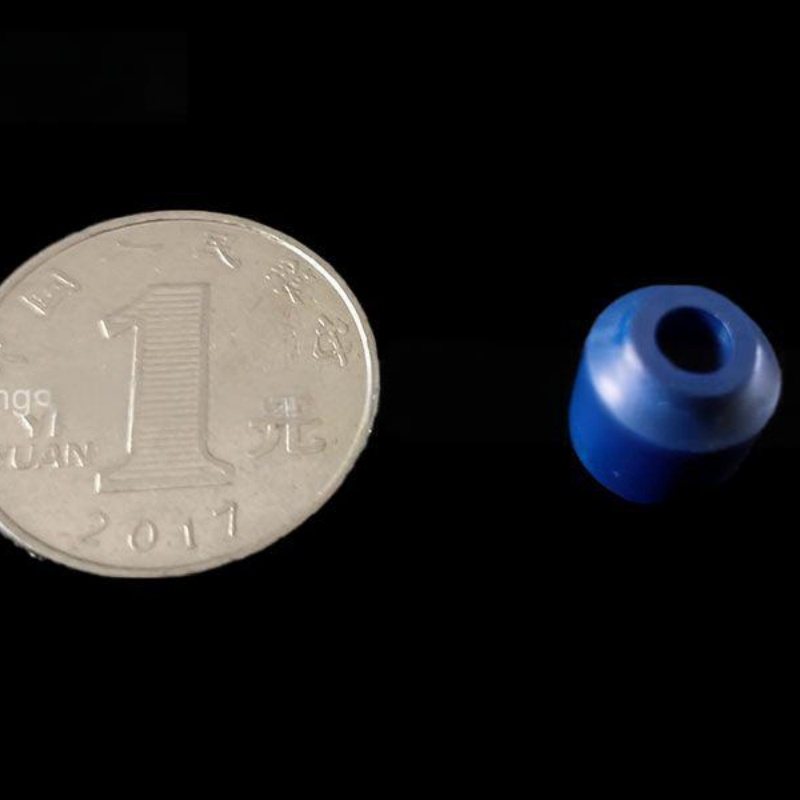

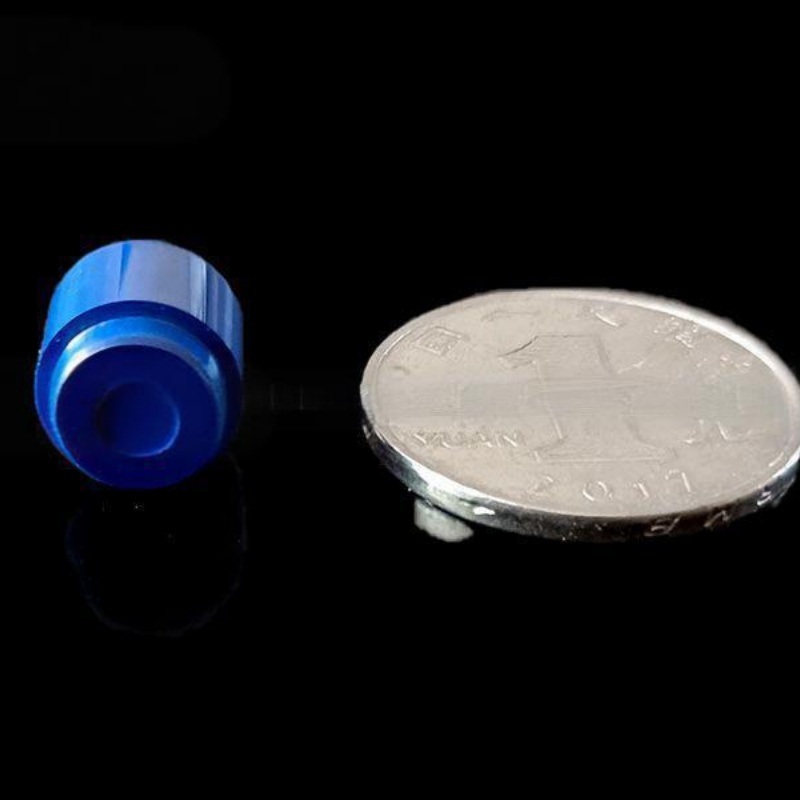

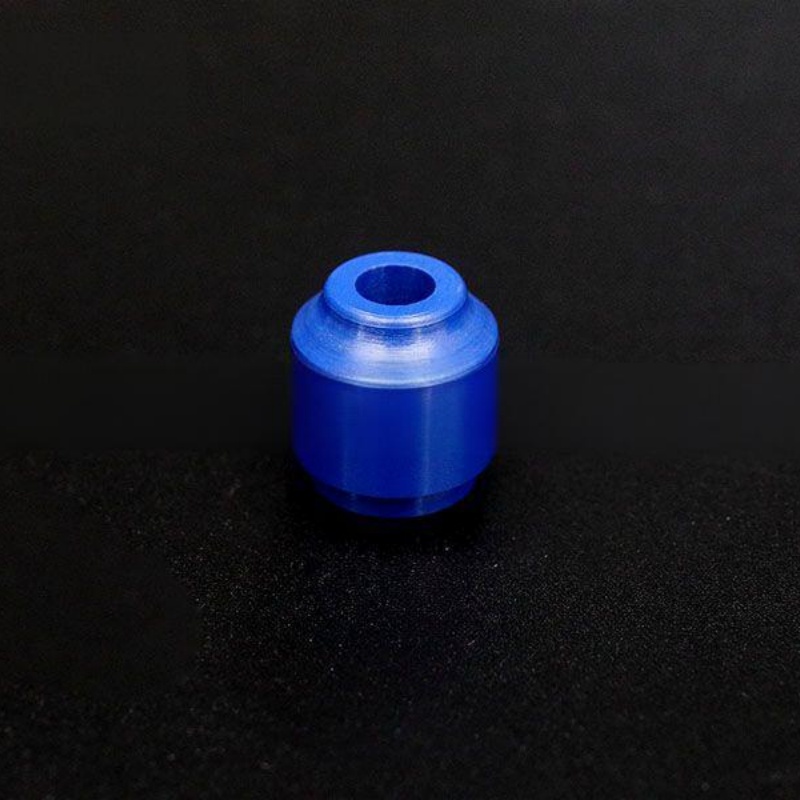

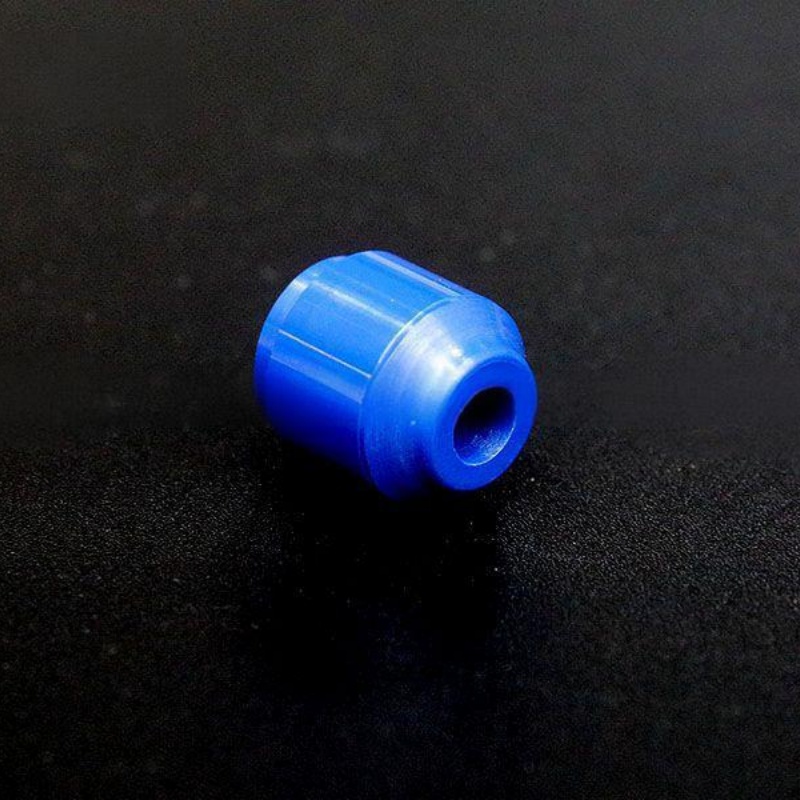

Blue zirconia sensor

Blue zirconia sensor is a high-precision industrial oxygen measurement core component based on solid-state electrochemical principles. It typically presents a unique blue appearance and achieves precise measurement of oxygen content in gases by doping stabilizers into zirconia (ZrO2) ceramic matrix and utilizing oxygen concentration differences to generate potential differences at high temperatures. As the “heart” of various industrial oxygen analyzers, this sensor has the characteristics of rapid response, strong thermal shock resistance, and excellent long-term stability, and is widely used in harsh working conditions such as metallurgy, chemical industry, power, and environmental monitoring.

Frequently Asked Questions (FAQ) for Blue Zirconia Sensors
Q1: What is the working principle of the blue zirconia sensor?
A1: It is based on the principle of solid-state electrochemical cells. At high temperatures (usually 600 ° C to 1400 ° C), the different oxygen concentrations on both sides of the zirconia tube will form an oxygen concentration difference cell. Oxygen ions will migrate from the high concentration side through the zirconia crystal to the low concentration side, resulting in a potential difference between the platinum electrodes on both sides. By measuring the potential difference and probe temperature, the oxygen partial pressure and concentration in the gas to be measured can be accurately calculated.
Q2: What is the typical lifespan of sensors? Do you need frequent maintenance?
A2: Under normal operating conditions, the service life of blue zirconia sensors is usually 5 years or longer. It has the characteristics of maintenance free and drift free, and almost no manual calibration is required after installation, greatly reducing the maintenance cost and workload of users.
Q3: What gases can sensors measure? Are there any restrictions?
A3: It is suitable for dry and less corrosive gas environments, such as inert gases, nitrogen, argon, flue gas, etc. It should be noted that it is not suitable for use in environments containing flammable or explosive gases, and long-term exposure to highly corrosive gases such as chlorine, hydrogen fluoride, or high concentrations of sulfur dioxide should be avoided as much as possible to avoid affecting its lifespan.
Q4: What specifications and sizes do you offer? Do you support customization?
A4: We offer various standard lengths (such as 0.6 meters, 0.8 meters, 1.0 meters, 1.2 meters, etc.) and installation flange specifications. At the same time, we have strong non-standard customization capabilities and can provide comprehensive size and material customization services based on customers’ specific furnace depth, installation interface, and special working conditions requirements.

Value: Solving the problem of industrial oxygen measurement
In complex industrial production, accurate oxygen measurement often faces multiple challenges such as high temperature, dust, corrosive gases, and limited installation space. The blue zirconia sensor, with its sturdy and durable ceramic structure and excellent thermal shock resistance, can be directly inserted into the furnace or flue for real-time online monitoring. It not only solves the problem of slow response and easy drift of traditional oxygen measuring equipment, but also helps enterprises achieve precise management in combustion control, gas purity detection, and environmental emission monitoring through wide temperature range adaptability (0-700 ℃ measured gas temperature) and fast response (≤ 5 seconds), effectively improving combustion efficiency, saving energy, and reducing environmental pollution.

Advantages and Application Value

1. Excellent performance
   High precision and high stability: Made of high-quality zirconia ceramic material, with built-in intelligent temperature control and compensation algorithms, ensuring measurement accuracy under complex working conditions. The product has excellent repeatability and linearity, long-term use without drift, and reliable data.
   Quick response: With extremely short response time, it can reflect real-time changes in combustion or gas purity inside the furnace, providing accurate data support for automation control.
   Durable and sturdy: It has excellent resistance to thermal shock and corrosion, and can maintain long-term stable operation in harsh industrial environments.
2. Wide range of application areas
   Combustion control and energy conservation: widely used in small and medium-sized boilers, industrial kilns, incinerators, etc. By monitoring the oxygen content of flue gas, the air-fuel ratio is optimized, significantly improving combustion efficiency and saving fuel costs.
   Industrial gas purity testing: suitable for air separation equipment, inert gas reactors, nitrogen/argon purification systems, to ensure the production quality of high-purity gases.
   Environmental Protection and Process Monitoring: Plays a key role in CEMS (Continuous Emission Monitoring System), chemical synthesis, metal heat treatment, and welding protection gas monitoring, helping enterprises meet strict environmental emission standards.
3. Flexible customized services
   We are well aware of the significant differences in installation environments and working conditions across different industrial sites. Therefore, in addition to standard models, we offer in-depth customized services. Whether it’s special probe lengths, non-standard flange interfaces, or material optimization for specific corrosive environments, our technical team can provide you with the most suitable solutions.

If you are looking for a high-performance, long-life, and flexible zirconia sensor that supports customization, or have any oxygen measurement difficulties under special working conditions, please feel free to contact us at any time. We will provide you with exclusive selection solutions and customized quotations.
