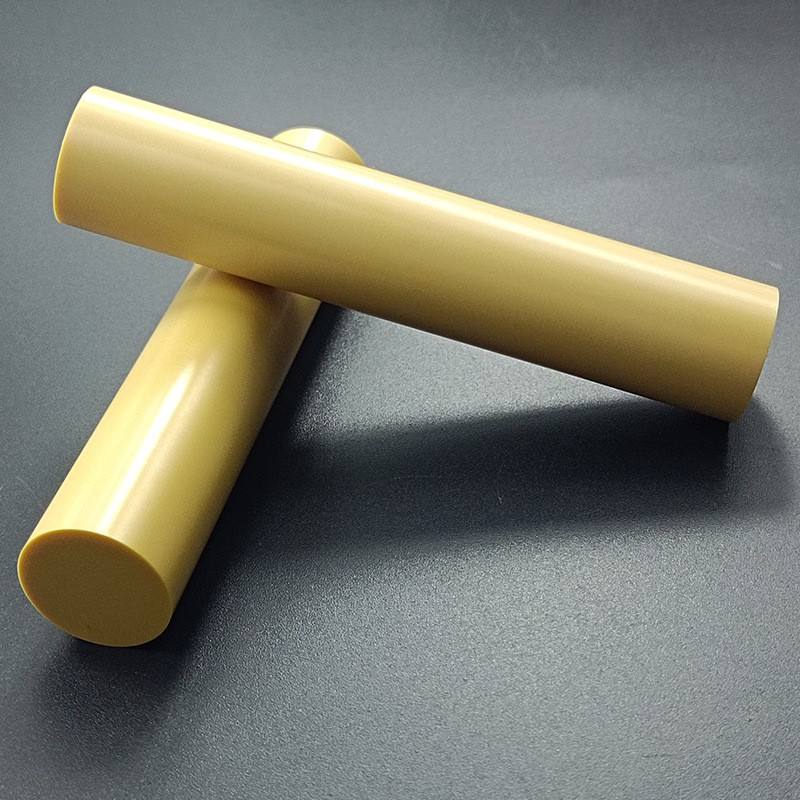

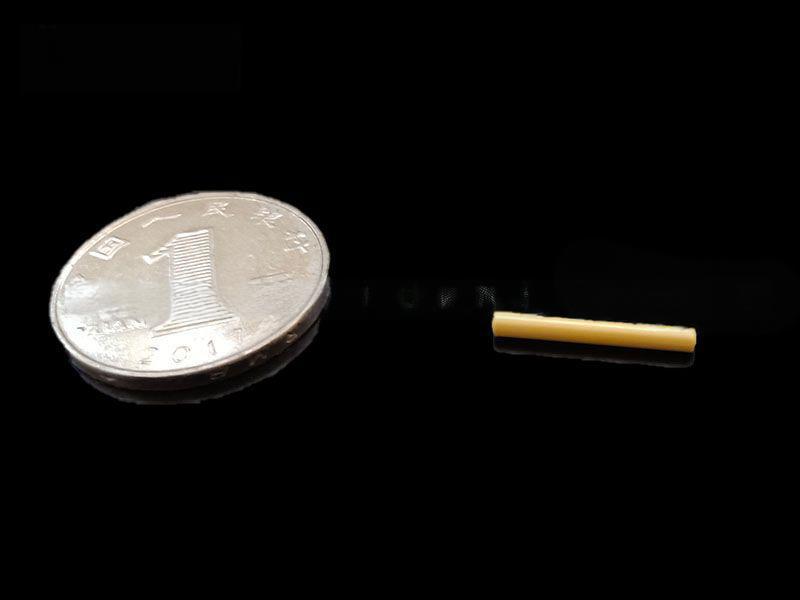

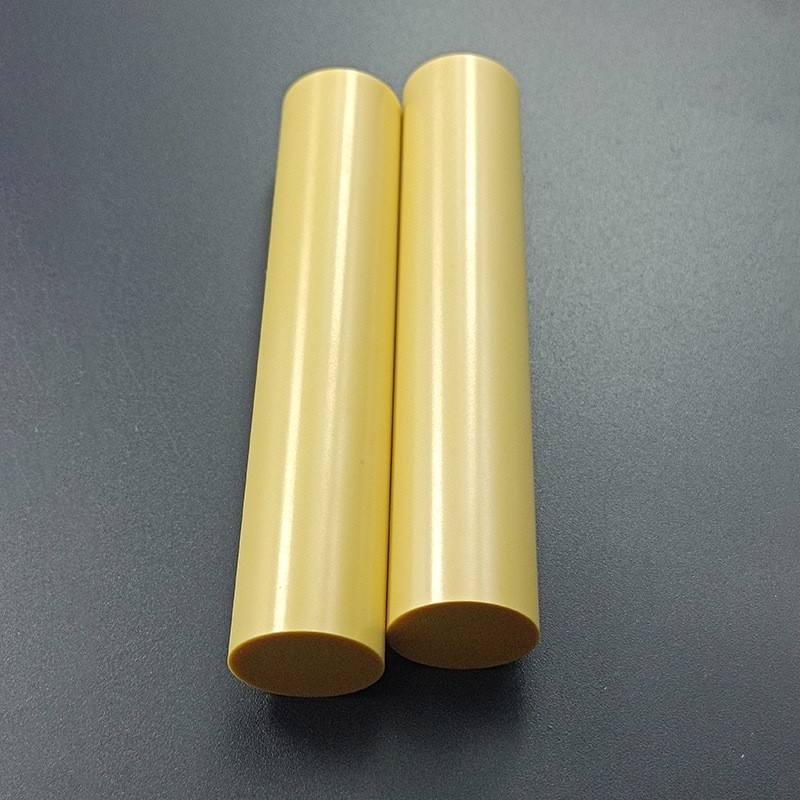

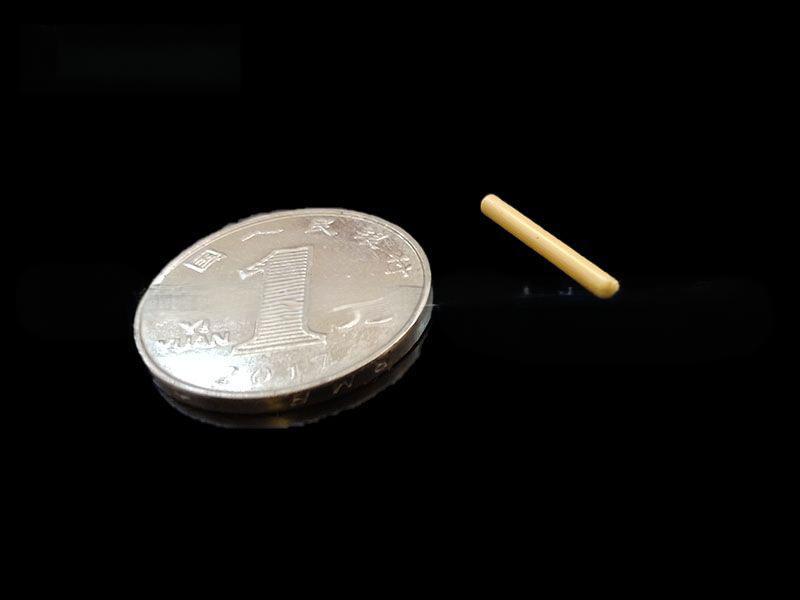

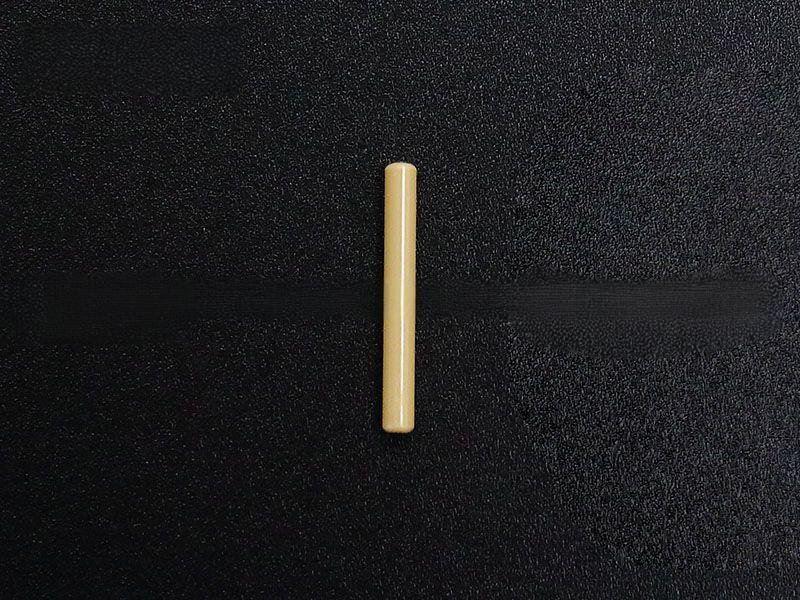

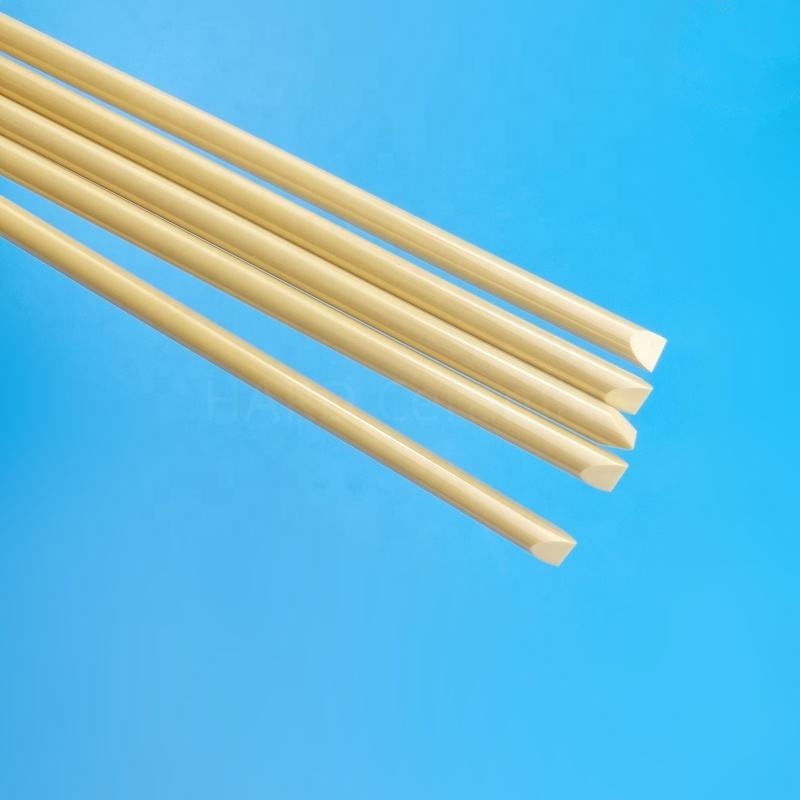

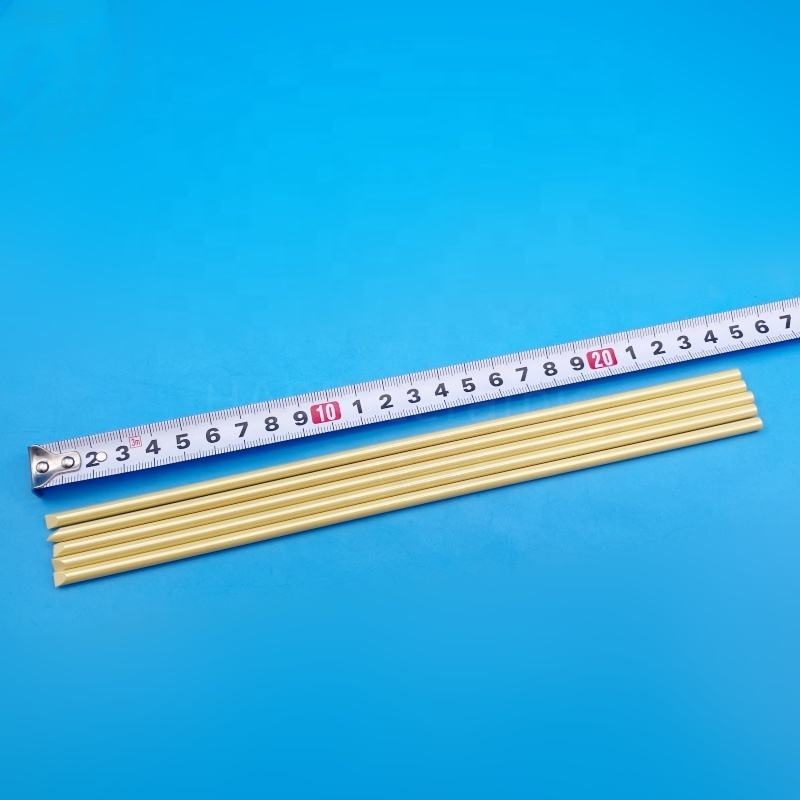

Yellow magnesium stabilized zirconia rod

Yellow magnesium stabilized zirconia rod is a high-performance advanced structural ceramic material stabilized by magnesium oxide, with a characteristic light yellow or bright yellow appearance. This material has a cubic lattice structure, completely eliminating the hydrothermal aging effect, and can still maintain excellent mechanical properties and dimensional stability in high temperature and humid environments up to 2000 ℃. With high hardness, extremely strong wear resistance, and excellent chemical corrosion resistance, it has become an ideal choice to replace traditional metal components, supporting various personalized specifications customization.

FAQ
Q1: Why does yellow magnesium stabilized zirconia rod not undergo phase transition cracking?
A: Because the product uses magnesium oxide as a stabilizer, the crystal structure after molding is a stable cubic lattice. Compared to other stable systems, it is completely unaffected by hydrothermal effects, and even under harsh conditions of high temperature and humidity, it will not cause volume changes or cracking due to phase transitions.
Q2: What is the maximum working temperature of this material? Can we customize special sizes?
A: Its maximum working temperature can reach 2000 ℃, and the long-term continuous use temperature is usually above 1000 ℃. We provide comprehensive customized services, whether it is diameter, length, or irregular structure, precision machining can be carried out according to your drawings.
Q3: Compared to ordinary white zirconia, what are the unique advantages of yellow magnesium stabilized zirconia rods?
A: The core advantage of yellow magnesium stabilized zirconia lies in its excellent high-temperature creep resistance and extremely strong thermal shock resistance. In high-temperature environments, it can maintain extremely high strength and wear resistance, making it particularly suitable for extremely demanding scenarios such as high-temperature steam valves and wire drawing molds.

Core values and demand resolution
Starting from the practical engineering applications of users, the yellow magnesium stabilized zirconia rod is mainly dedicated to solving two core problems in complex industrial environments. Firstly, in response to high temperature and high humidity alternating environments, it effectively overcomes the challenges of traditional ceramics that are prone to low-temperature aging and phase transition cracking, ensuring the safe operation of equipment over a long period of time; Secondly, in the face of strong acid-base corrosion and severe mechanical friction, it significantly extends the service life of components with ultra-high hardness and chemical inertness, thereby significantly reducing the frequency of downtime maintenance and overall operating costs of enterprises.

Core Physical and Chemical Parameters
Appearance and density: Characteristic lemon yellow/bright yellow, dense and pore free, with an apparent density of approximately 5.7 g/cm ³.
Mechanical properties: Vickers hardness up to 11.8 GPa, flexural strength ≥ 900 MPa, fracture toughness>7.0 MPa · m ¹/², possessing extremely strong impact resistance and wear resistance.
Thermal performance: The highest temperature resistance is up to 2000 ℃, the thermal conductivity is about 2.2 W/(m · K), the thermal expansion coefficient (0-1400 ℃) is 10.2 × 10 ⁻⁶/℃, and the thermal shock resistance is excellent.
Chemical composition: ZrO ₂ content ≥ 96%, MgO content controlled between 3.0% and 3.5%, extremely low impurities, ensuring high purity and chemical stability of the material.

Typical application areas
Chemical and Energy: Used as corrosion-resistant pump shaft sleeves, sealing rings, valve components, and solid oxide fuel cell (SOFC) components.
Mechanical manufacturing: textile ceramic parts, papermaking bottom mesh ceramic blocks, high-precision wire drawing molds, wire wheels, and oil extraction pipeline liners.
Aerospace and Semiconductors: High temperature structural components for aircraft engines, thermocouple protection tubes, refractory materials for semiconductor crystal growth furnaces, and precision fixture pins.

Full dimensional specification customization service
To meet the stringent assembly requirements of different industries, we provide in-depth customized processing services. Standard cylindrical zirconia rods support customization of multiple gradient diameters and lengths; At the same time, relying on precision machining equipment, we can undertake customized development of chamfering, slotting, threading, punching, and various shaped structural components. The maximum dimensional accuracy can reach ± 0.001mm, and the surface smoothness can reach Ra0.1, ensuring precise coordination with your equipment.

Addressing Application Challenges and Customer Success Stories
In practical industrial applications, many enterprises often face severe challenges brought by extreme working conditions, such as corrosion and rapid wear of ordinary metal materials in high-temperature and high-pressure steam environments, while conventional ceramics are prone to microcracks due to thermal stress. The yellow magnesium stabilized zirconia rod is designed to overcome these challenges.
Customer Application Cases
A large specialized chemical fiber manufacturing enterprise was once plagued by the problem of rapid wear and tear of wire drawing molds for a long time. Due to the continuous high-temperature steam environment of the production line, the original metal molds not only have a very short lifespan, but also lead to a decrease in product yield. After introducing our customized yellow magnesium stabilized zirconia wire drawing rod, the mold did not show any dimensional deformation or cracking during months of continuous high-temperature operation due to its excellent high temperature resistance and zero hydrothermal aging characteristics. In the end, the company extended the mold replacement cycle by nearly four times, not only solving the problem of frequent downtime for parts replacement, but also saving hundreds of thousands of yuan in consumables procurement costs annually.

If you are looking for structural ceramic solutions that can withstand extreme high temperatures, strong corrosion, and high-strength wear tests, please feel free to contact us at any time. We will provide you with the most professional material selection suggestions and customized quotes based on your specific working conditions and drawing requirements.
