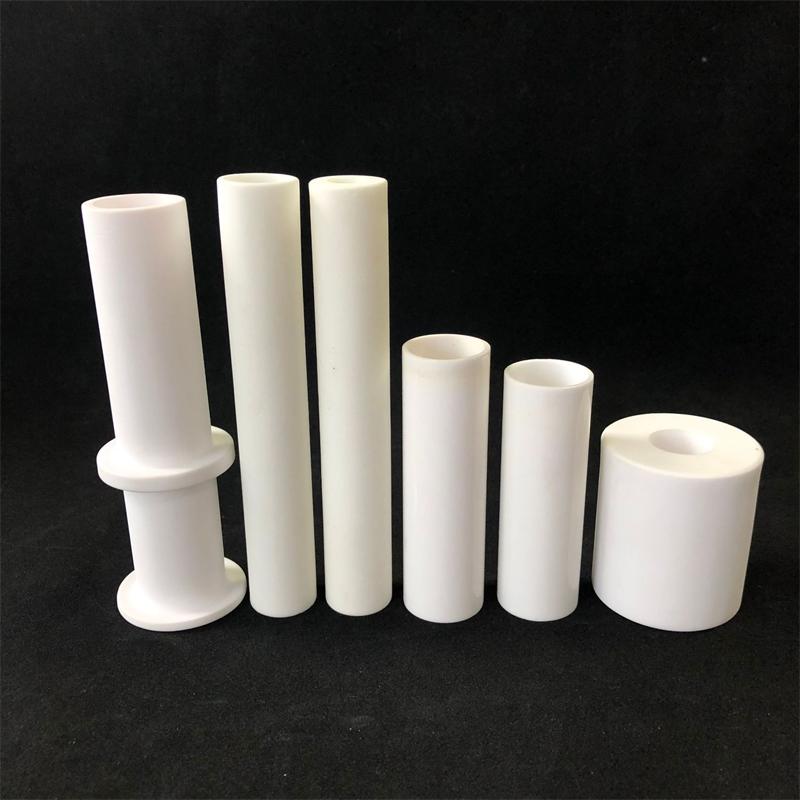

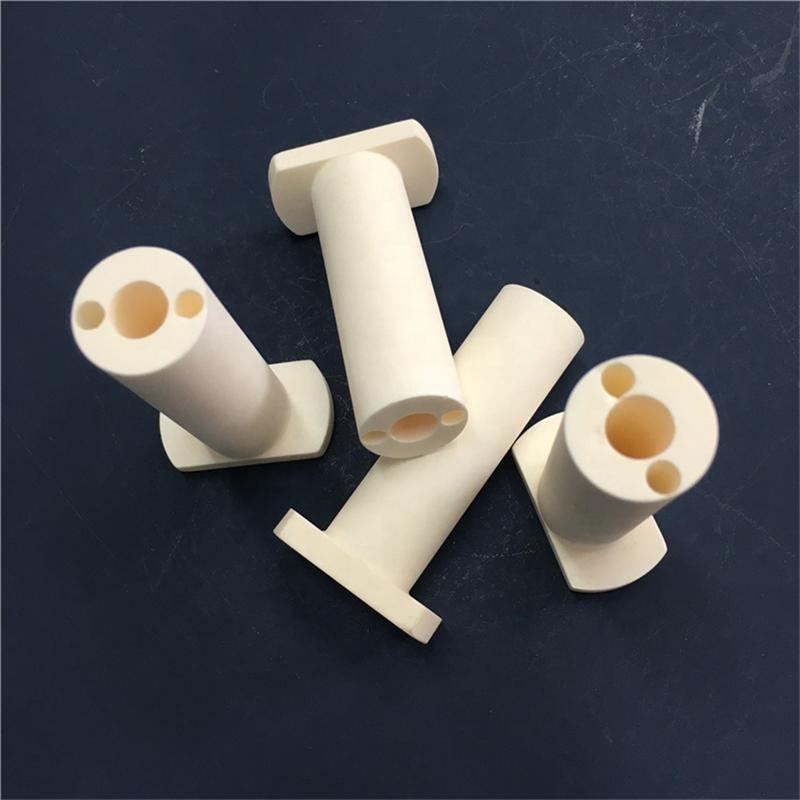

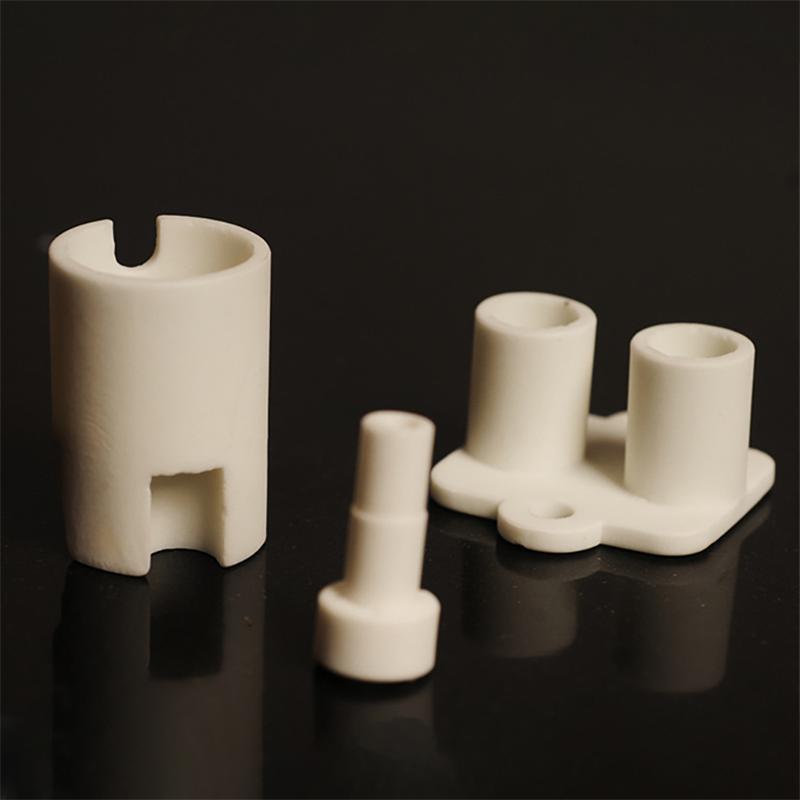

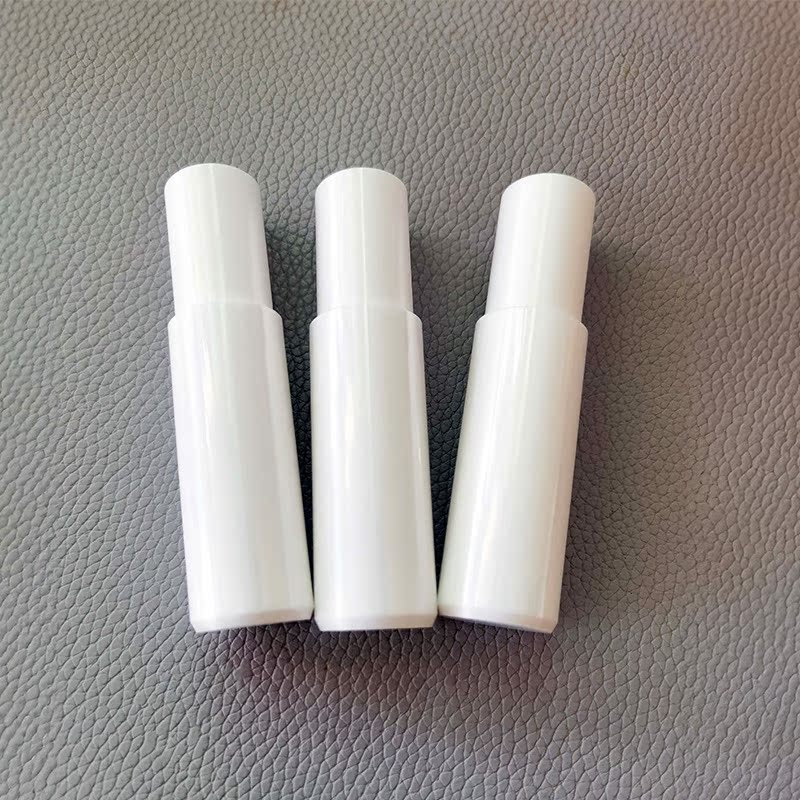

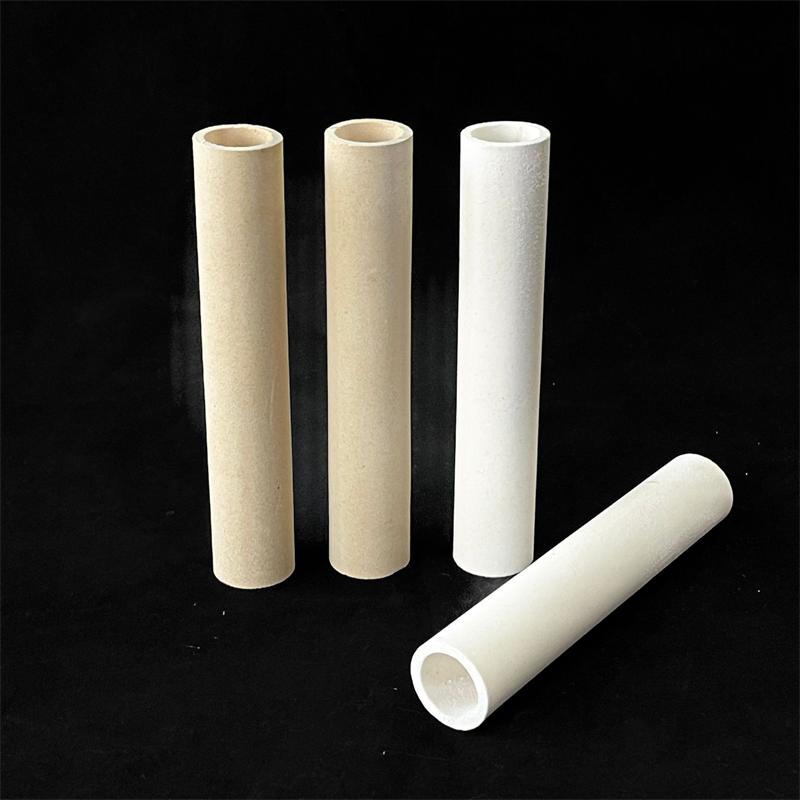

Aluminum oxide ceramic step tube

Aluminum oxide ceramic step pipe is a composite wear-resistant pipe designed specifically for harsh working conditions. It uses high-purity alumina ceramic as the inner lining, and through precise structural design, it is combined with the outer steel pipe to form a unique stepped or composite protective system. This product effectively solves the problem of pipeline wear and corrosion in industrial transportation due to the extremely high hardness and chemical stability of ceramic materials. It is an ideal upgrade solution for material transportation systems in industries such as power, mining, metallurgy, and chemical engineering.

FAQ
Q1: How strong is the wear resistance of alumina ceramic step tube?
A1: The main component of the ceramic lining layer of this product is α – Al ₂ O3 (corundum), with a Mohs hardness of up to 9, second only to diamond. Its wear resistance is usually 10 to 20 times higher than that of ordinary steel pipes, and it can significantly extend the service life of pipelines when transporting high wear media such as coal powder, ash, and slurry.
Q2: How high can this type of pipeline withstand operating temperatures?
A2: Thanks to the excellent thermal stability of alumina ceramics, our step tubes can operate stably for a long time in the temperature range of -50 ℃ to 800 ℃. Some high-purity formula products can even withstand higher instantaneous high temperatures, making them very suitable for transporting high-temperature materials or flue gas.
Q3: Compared to traditional metal pipelines, is installation and maintenance more complicated?
A3: It’s not troublesome. The outer layer of alumina ceramic step pipes retains the toughness and welding performance of metal pipes, usually connected by flanges or welding, and installed in the same way as traditional steel pipes. And due to the smooth inner wall that is not prone to scaling, the frequency of daily maintenance is extremely low, greatly reducing operation and maintenance costs.
Q4: Do you provide customized services for non-standard sizes?
A4: Yes, we provide comprehensive customization services for specifications and sizes. Whether it is the diameter, length, wall thickness of the pipeline, or the thickness of the ceramic layer (usually adjustable between 3-30mm) and the design of the step structure, we can customize it according to your specific working conditions and transportation needs.

Core needs solved for you
Choosing alumina ceramic step pipes means you will completely bid farewell to the downtime caused by frequent pipeline replacement. It can not only help you solve the problem of severe erosion of pipe walls by high hardness granular materials, but also resist the erosion of corrosive media such as acid and alkali. We are committed to providing you with a system solution of “replacing steel with materials, longevity and consumption reduction”, which significantly reduces your comprehensive maintenance costs and operational energy consumption while ensuring production continuity and safety.

Core advantages and values
Our alumina ceramic step tube pursues ultimate professionalism and objectivity in design and manufacturing, aiming to create tangible value for users:
Excellent wear and erosion resistance: The lining is made of alumina ceramics with different purities ranging from 92% to 99%, which are sintered at high temperatures to form a dense corundum structure. The unique stepped or composite structure design can effectively buffer the impact of large particle materials, prevent the ceramic layer from falling off, and is particularly suitable for wear prone parts such as elbows and variable diameter pipes.
Excellent corrosion resistance and anti scaling performance: Aluminum oxide is a neutral oxide with extremely stable chemical properties, resistant to acid and alkali corrosion. At the same time, the smoothness of the ceramic inner wall is superior to any metal pipeline, and the friction coefficient is extremely low (the clearance resistance coefficient is only about 0.0193). Not only is it not easy to stick or hang materials, but it can also effectively reduce conveying resistance and save energy consumption.
Flexible specification customization service: We are well aware of the differences in operating conditions of different production lines. Therefore, we support comprehensive customization from pipe diameter (minimum adaptable to 120mm pipes, maximum adaptable to several meters), ceramic layer thickness to connection methods. Whether you need straight pipes, elbows, tees, or special-shaped parts, we can provide precise adaptation solutions.

Practical application challenges and solutions
In practical industrial applications, many enterprises face the problems of short service life and high risk of leakage in material conveying pipelines. For example, in the ash removal system of a thermal power plant, high-speed flowing ash particles can cause extremely fast cutting wear on pipeline bends; In the tailings transportation of mining beneficiation plants, the slurry mixed with acid and alkali not only wears down pipelines, but also causes serious chemical corrosion.
Aluminum oxide ceramic step tubes are designed to address these challenges. By compounding a high hardness ceramic “armor” on the inner wall, it fundamentally changes the physical properties of the pipeline surface. Even in the face of complex media with high concentration, large particles, and high flow rate, it can maintain the integrity of the inner wall, prevent material leakage and environmental pollution accidents caused by pipe wall abrasion, and ensure the long-term stable operation of the production system.

Customer application case (anonymous):
The ash conveying pipeline system of a large thermal power plant once faced severe challenges. The original ordinary steel pipes experienced multiple wear through leaks in less than six months of use, seriously affecting the normal operation of the unit. After adopting our suggestion and replacing it with customized alumina ceramic step pipes (95% alumina content, ceramic layer thickness 15mm), the factory carried out technical modifications on key elbows and tees. After two consecutive years of operation tracking, this ceramic composite pipeline system is still intact and the inner walls are as smooth as new. According to feedback from the factory, the lifespan of the renovated pipeline is expected to be extended to over 10 years, saving hundreds of thousands of yuan annually on pipeline replacement and maintenance costs, truly achieving cost reduction and efficiency improvement.

If you are facing the problem of wear or corrosion of material conveying pipelines, please feel free to contact us at any time! Please provide your specific operating parameters (such as conveying medium, temperature, pipe diameter requirements, etc.), and we will provide you with one-on-one professional consultation and exclusive customized quotation to help you create a more durable industrial conveying system.
