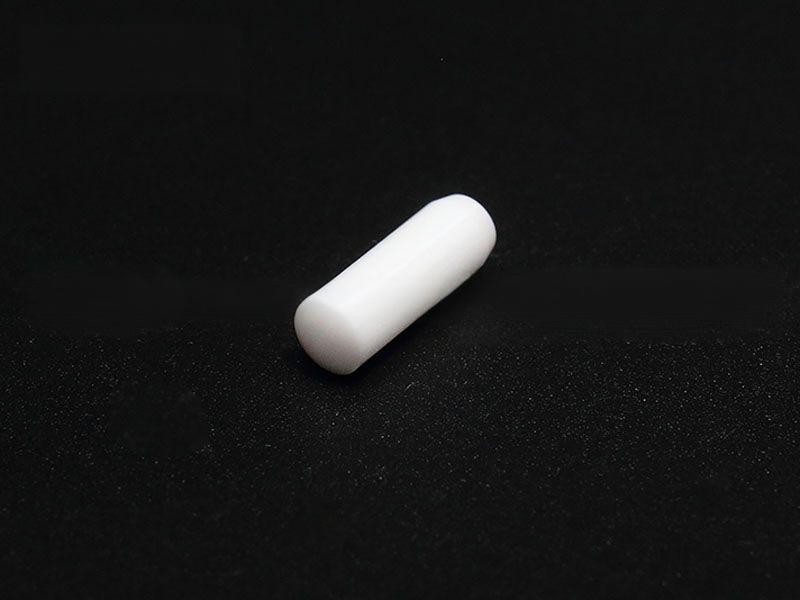

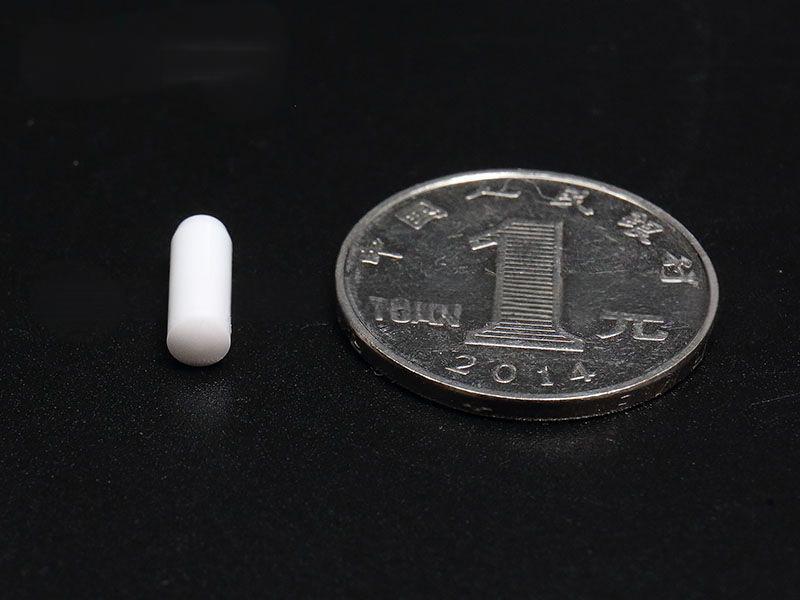

Short white zirconia rod

Short white zirconia rod is a precision micro ceramic structural component made of high-purity yttrium stabilized zirconia (YSZ) material. Its appearance presents a pure white or ivory color, and the surface has undergone high-precision grinding and polishing treatment, with a smooth touch and extremely compact size. As an “invisible cornerstone” in the industrial and medical fields, it maintains extremely high operational stability in narrow spaces due to its excellent fracture toughness, wear resistance, and outstanding electrical insulation performance, making it an ideal choice for solving the problems of precision transmission and corrosion resistance under extreme working conditions.

FAQ
Q1: What is the maximum operating temperature of a short white zirconia rod?
A: Conventional yttrium stabilized zirconia material can work stably in a high-temperature environment of about 1000 ° C for a long time, and has extremely low thermal conductivity, making it an excellent insulation material; If you need to cope with higher temperatures, you can customize aluminum oxide composite materials.
Q2: Does this type of miniature ceramic rod support customized non-standard sizes?
A: Fully supported. We can provide customized services ranging from a diameter of 3mm to 80mm, with a maximum length of 300mm. The tolerance can be controlled within ± 0.01 mm, and the surface finish can reach Ra ≤ 0.2 µ m. We also support customized threads and other complex interfaces.
Q3: What are the irreplaceable advantages of zirconia rods compared to metal shafts?
A: It not only has non-magnetic and electrical insulation properties, but also completely eliminates rust problems. Its fracture toughness is 3-4 times that of traditional alumina ceramics, and its impact resistance is extremely strong, making it very suitable for use in environments with acid and alkali corrosion, strong magnetic fields, or high-frequency friction.

Value and demand resolution
For engineers facing harsh working conditions, this short white zirconia rod can perfectly solve multiple core challenges. Firstly, it effectively overcomes the problem of metal components being easily corroded in acidic and alkaline solvents, greatly extending the service life of the equipment; Secondly, in response to the wear and heat generation issues during high-speed operation, its self-lubricating characteristics and low thermal expansion coefficient ensure micrometer level positioning accuracy; Finally, in semiconductors and medical devices, it meets the strict requirements of zero metal ion precipitation and biocompatibility, making the operation of precision instruments safer and more worry free.

Advantages and Application Value
As a high-performance structural ceramic, the short white zirconia rod exhibits excellent comprehensive physical properties. Its Vickers hardness is as high as 1200-1350 HV, bending strength reaches 900-1200 MPa, and density is about 6.0 g/cm ³. Through a special phase transformation toughening mechanism, it can effectively absorb mechanical impact energy and prevent cracking. In practical applications, whether as micro joints in semiconductor wafer handling robots or corrosion-resistant plungers in chemical high-pressure pumps, it can provide reliability far beyond traditional materials. We are well aware of the strict requirements for size in different application scenarios, and therefore provide comprehensive customized services for specifications and sizes, including micro tooth wire processing, anti-static dissipation treatment, and extremely high cylindricity precision polishing, ensuring that every ceramic rod can seamlessly integrate into your existing system.

Why Choose Us and Customer Application Cases
In many advanced manufacturing scenarios, the choice of materials often determines the ultimate success or failure of the product. We not only provide standardized short white zirconia rods, but also strive to provide customers with in-depth material solutions. Taking a well-known medical device manufacturer as an example, they encountered severe challenges in developing a new generation of dental handheld devices: the original micro metal spindle was prone to wear and tear under long-term high-temperature sterilization and high-speed rotation, resulting in increased noise and even fracture due to metal fatigue. After introducing our customized version of micro zirconia ceramic spindle, the problem was easily solved. Thanks to the biocompatibility and ultra-high wear resistance of zirconia, the new spindle not only achieved smooth and trouble free operation for several months, but also successfully passed thousands of high-temperature and high-pressure sterilization cycles without any degradation. This successful case fully proves that precise material customization can bring a qualitative leap to high-end equipment.

If you are looking for high-precision micro ceramic accessories that can cope with extreme environments, please feel free to contact us at any time. We will provide you with one-on-one exclusive specification customization and procurement consulting services.

Brudeze Ceramics supplies and sells a wide range of high-quality quartz glass, including alumina ceramics, zirconia ceramics, silicon nitride ceramics, aluminum nitride ceramics, silicon carbide ceramics, boron carbide ceramics, bioceramics, machinable ceramics, etc. We can meet the customization requirements of various ceramic products.
