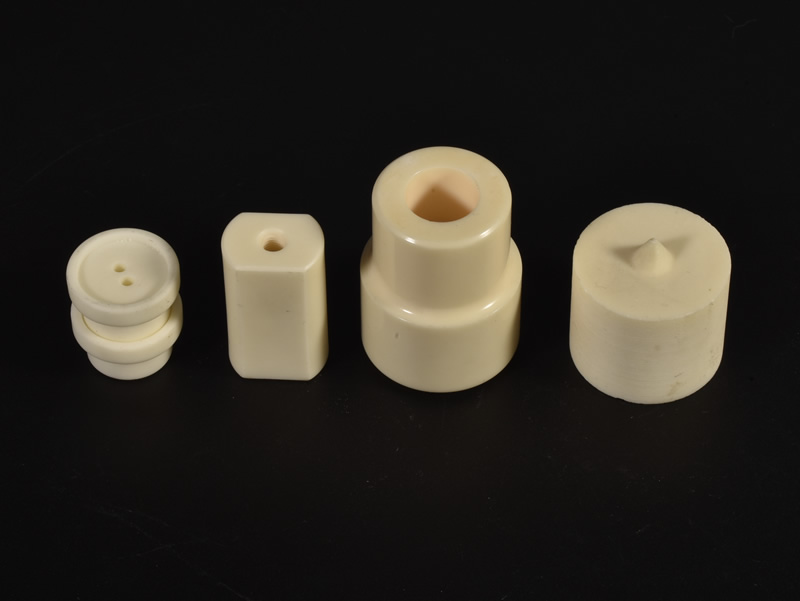

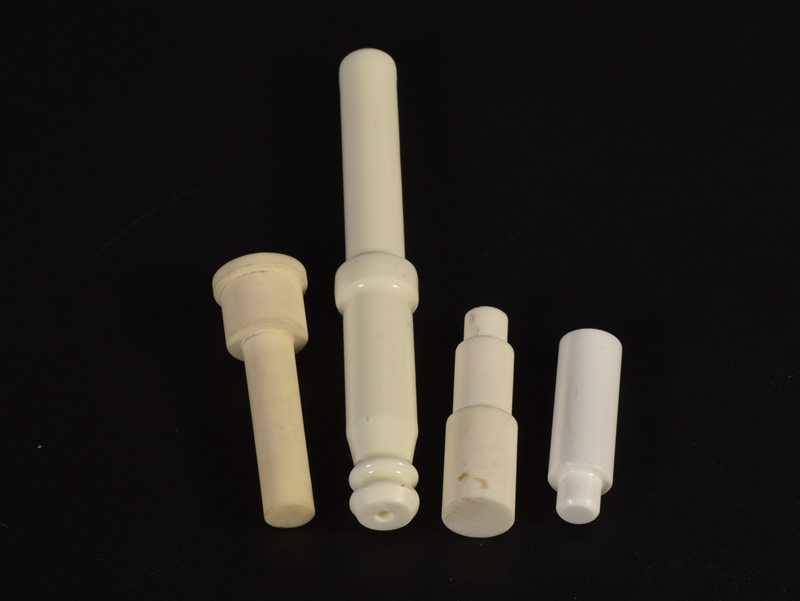

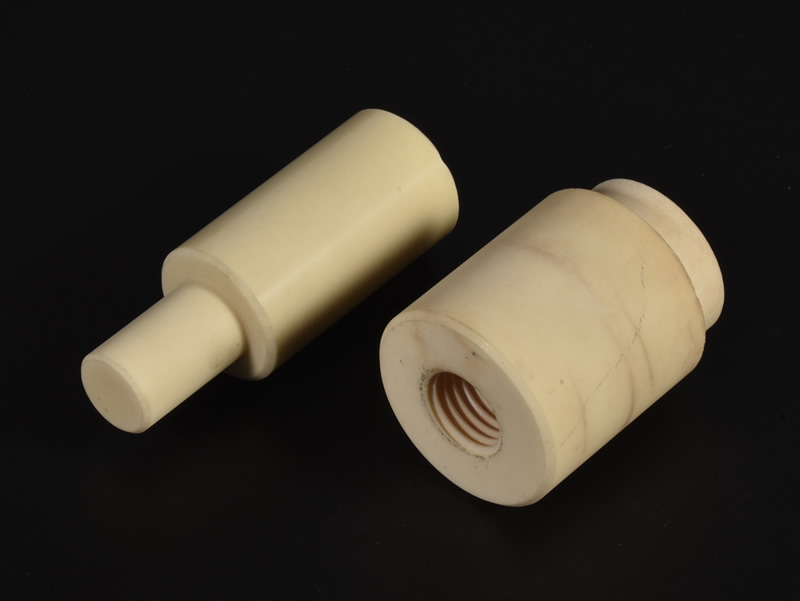

Alumina ceramic long rod pump core

The alumina ceramic long rod pump core is a high-performance fluid transport core component designed specifically for extreme working conditions, refined from high-purity 99% alumina ceramics. With its excellent corrosion resistance, high temperature resistance, and ultra-high hardness characteristics, it perfectly solves the pain points of traditional metal or ordinary ceramic pump cores being prone to corrosion and short lifespan in strong acid, alkali, and high wear environments. It is an ideal key consumable for the chemical, electroplating, and semiconductor industries.

Frequently Asked Questions (FAQ)
Q1: What is the biggest advantage of alumina ceramic long rod pump cores compared to stainless steel pump cores?
A: The biggest advantage lies in its ultimate chemical stability and wear resistance. Stainless steel is prone to pitting corrosion or stress corrosion cracking in environments with strong acids (such as sulfuric acid, hydrochloric acid), strong bases, and organic solvents, while alumina ceramics are almost unaffected by any chemical medium. At the same time, its Mohs hardness is as high as 9, and its wear resistance is several times that of hard alloys, which can significantly extend its service life in particle containing slurries.
Q2: What was the original intention of designing this long pole structure to solve?
A: The long pole structure is specifically designed for deep tank reactors, large storage tanks, or electroplating tanks of special depths. It allows the pump body to penetrate deeper below the liquid level, effectively preventing cavitation and ensuring stable flow and head in low or deep containers, while reducing the complexity of external pipeline connections.
Q3: Does the product support customized non-standard sizes? What is the maximum length that can be achieved?
A: We provide comprehensive customized services. In addition to standard diameters (such as 20mm -80mm) and length specifications, we can customize special pump cores with lengths ranging from 500mm to 3000mm or even longer according to the specific depth and installation space of the customer’s equipment. At the same time, the tolerance of the inner hole, the flatness of the end face, and the form of the connection interface can all be precision machined as needed.
Q4: Will alumina ceramics explode in rapid cooling and heating environments?
A: Although the thermal shock stability of ceramic materials is relatively weak compared to metals, the isostatic pressing technology and special microstructure control we use significantly improve the thermal shock resistance of the product. Within the temperature fluctuation range of conventional chemical processes (stable changes within the range of -50 ℃ to+800 ℃), the product exhibits stable performance. For extreme and severe temperature difference conditions, we recommend users to use toughening formulas or provide specific heating/cooling operation guidance.

User core needs and solutions
For you who are in a harsh industrial environment, alumina ceramic long rod pump core is not only a component, but also a key defense line to ensure production continuity. It directly addresses the three core pain points you face:
Frequent shutdown replacement: Completely bid farewell to unplanned shutdowns caused by pump core corrosion, perforation, or wear, and extend the maintenance cycle from the “weekly/monthly” level to the “annual” level.
Risk of medium contamination: Eliminate metal ion precipitation from contaminating high-purity chemicals or electroplating solutions to ensure the purity and yield of the final product.
Difficult to adapt to extreme working conditions: Whether it’s conveying slurry in mines up to kilometers deep or high-temperature and highly corrosive chemical reaction vessels, the long rod integrated design can perfectly adapt, allowing you to no longer worry about finding corrosion-resistant pump cores of suitable length.

Product Core Analysis: Application Value and Technological Advantages
The cornerstone of excellent material performance
Our pump core is made of 99% high-purity alumina (Al ₂ O3) as raw material, formed by cold isostatic pressing (CIP), and sintered at high temperature above 1650 ℃ for densification.
Corrosion resistance: except for hydrofluoric acid and hot concentrated phosphoric acid, it can withstand long-term immersion in all inorganic acids, organic acids, strong bases, and salt solutions.
Ultra high hardness: Vickers hardness ≥ 1500 HV, with strong anti scouring ability for fluids containing solid particles (such as catalyst powder, slurry).
Insulation and cleanliness: Excellent electrical insulation performance, high surface smoothness (Ra ≤ 0.4 μ m), not easy to hang materials, and easy to clean.
Advantages of structured long pole design
Integrated molding process: For the requirements of long rods, we use special segmented sintering or integral isostatic pressing technology to ensure that the long axis meets precision mechanical standards in coaxiality and straightness, avoiding vibration problems during high-speed rotation.
Channel optimization: The internal channel is optimized through fluid dynamics simulation to reduce turbulence and resistance, improve conveying efficiency, and reduce energy consumption.
Modular interface: The tail connection flange or threaded interface can be seamlessly connected according to existing pump head brands (such as magnetic pumps and centrifugal pumps) without the need to modify the original equipment.
Comprehensive customized service system
We are well aware of the diversity of industrial scenarios, and therefore provide customized services tailored to individual needs
Size customization: diameter range from 10mm to 100mm, length range from 300mm to 3500mm, any combination.
Structural customization: Special structures such as internal spiral grooves, porous distribution, and irregular end faces can be customized.
Performance customization: For ultra-high temperature or ultra strong corrosion scenarios, we can provide zirconia toughened alumina (ZTA) or composite coating upgrade solutions.

Application scenarios and reasons for selection
Why choose alumina ceramic long rod pump core?
In the following typical applications, our product demonstrates irreplaceable value:
Wet metallurgy and slurry transportation: solving the problem of rapid wear of metal pumps caused by high concentration acidic slurry.
Semiconductor chemical cycle: Ensure zero metal ion contamination of high-purity reagents such as electronic grade hydrofluoric acid (requiring special treatment), sulfuric acid, hydrogen peroxide, etc.
Environmental desulfurization and denitrification: In the circulation of limestone slurry, it resists the erosion of high hardness particles and the corrosion of acidic gases.
High temperature reactor feed: Maintain structural integrity in a high-temperature and high-pressure reaction system at 200 ℃ -400 ℃.

Customer application case sharing
Case 1: A large lithium battery cathode material precursor production enterprise (anonymous)
Background challenge: The customer needs to use a long axis pump to extract highly corrosive sulfate slurry containing small grains from the bottom of a reaction vessel at a depth of 2.5 meters during the production of nickel cobalt manganese oxide lithium precursor. The original 316L stainless steel long rod pump core experiences severe corrosion and leakage every two weeks, resulting in expensive material losses and frequent shutdowns for cleaning. Additionally, metal ion pollution affects the electrochemical performance of battery materials.
Solution: Our company has customized a 99% alumina ceramic long rod pump core with a length of 2600mm and an outer diameter of 60mm. In response to the particle characteristics of its slurry, the inner holes were specially mirror polished to reduce material hanging.
Implementation effect: After replacement, the pump core ran continuously for 14 months without any signs of corrosion, with an inner diameter wear of less than 0.05mm. The customer not only saved hundreds of thousands of yuan in spare parts procurement costs every year, but also increased the batch qualification rate of the final product by 3.5% by eliminating impurities such as iron and nickel.
Case 2: A multinational electroplating group factory (anonymous)
Background challenge: In a hard chrome plating production line, high flow circulation is required in a 60 ℃ chromic acid solution. Traditional fluorine lined plastic long rod pumps are prone to creep deformation at high temperatures, leading to impeller sweeping; However, ordinary ceramic rods have limited length and are prone to leakage at the joints.
Solution: We provide a 2200mm ultra long alumina ceramic pump core that is sintered as a whole, and have designed a dedicated reinforced flange interface to ensure rigidity and sealing in high-temperature acidic environments.
Implementation effect: The product has been online for more than 18 months, during which there has not been a single malfunction caused by pump core fracture or deformation. The circulation stability of the plating solution has been significantly improved, and the uniformity of the coating has been improved. The customer has listed this specification as a standard procurement part for the entire group.

Do your working conditions also face challenges such as corrosion, wear, or special dimensions?
Contact us immediately for free working condition evaluation and customized solution quotation. Let us use professional alumina ceramic technology to create a rust free “strong heart” for your fluid delivery system!
