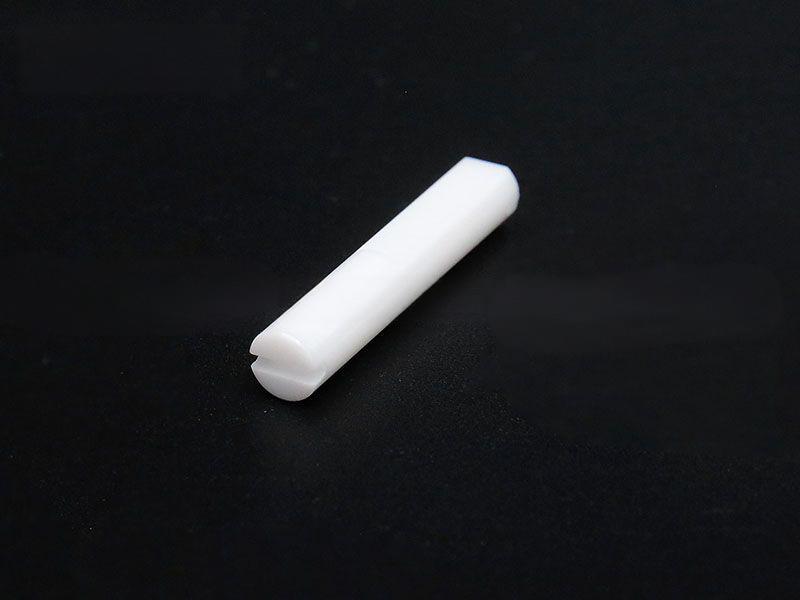

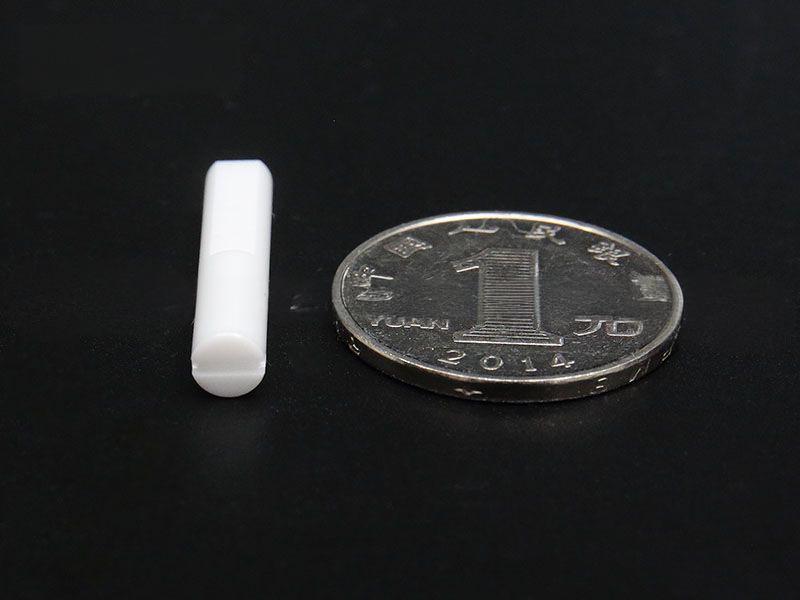

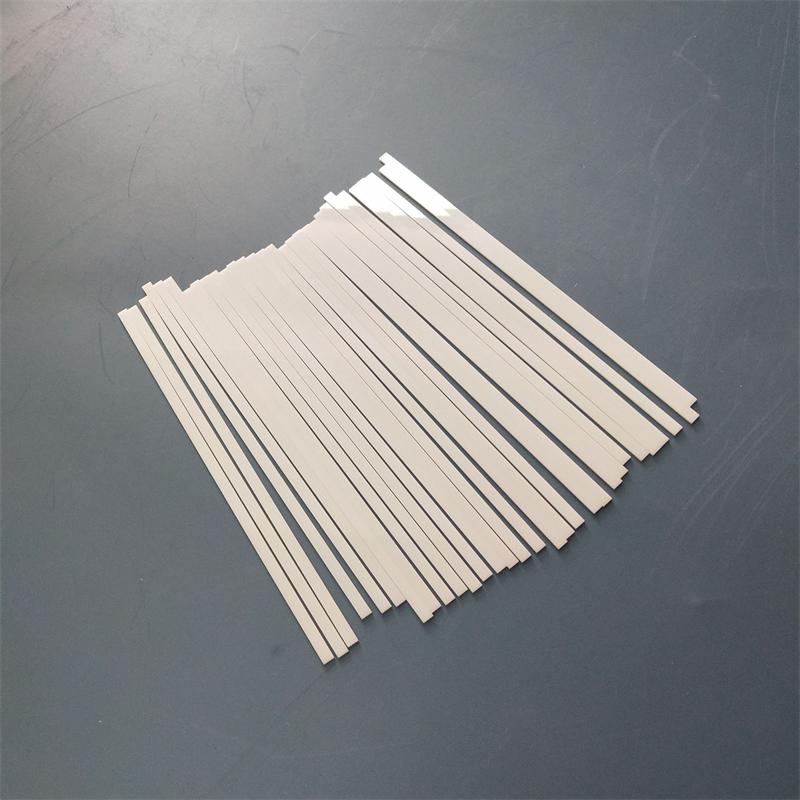

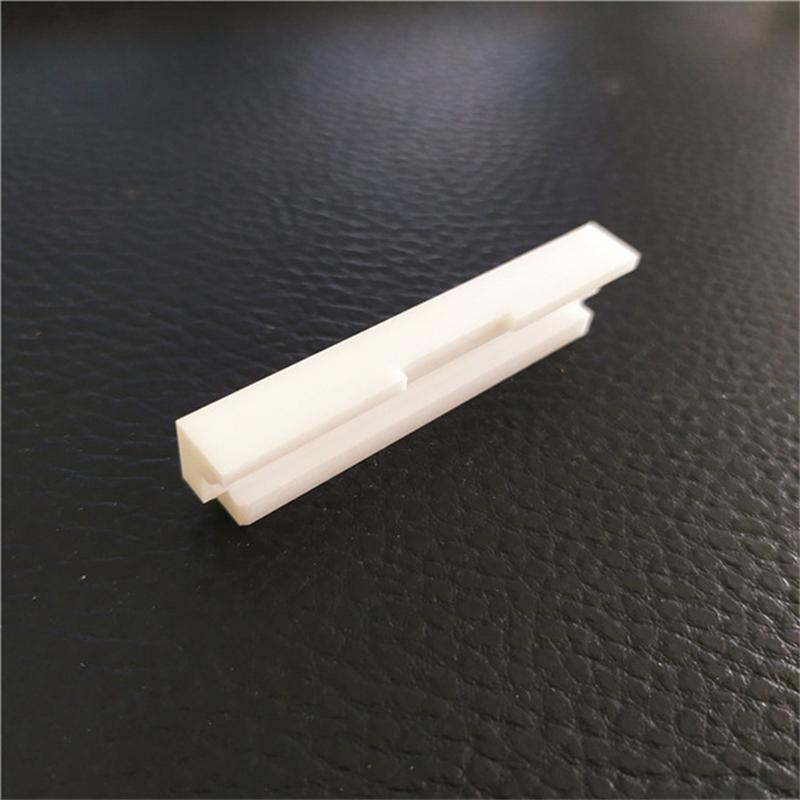

Zirconia precision machined ceramic strip

Zirconia precision machined ceramic strip is a special industrial ceramic structural component made of high-purity zirconia powder, which is formed by isostatic pressing and high-temperature sintering, and then processed by precision grinding. With its extremely high hardness, excellent fracture toughness, and outstanding corrosion resistance, it breaks the limitations of traditional ceramics’ fragility and becomes an ideal material to replace metals and cope with high wear and strong corrosion conditions.

FAQ
Q1: What are the core advantages of zirconia precision processed ceramic strips compared to traditional metal strips?
A1: Compared to metals, zirconia ceramic strips have a hardness of HRA 88-90, wear resistance several times higher than ordinary metals, and excellent corrosion resistance and high temperature resistance (able to withstand temperatures above 1200 ℃). In addition, it also has characteristics such as non-magnetic, insulating, and self-lubricating, making it very suitable for use in precision electronics, medical, and strong acid-base environments.
Q2: What specifications and sizes of customized services can you provide?
A2: We support highly customized services. Whether it is the cross-sectional shape (square, rectangle, circle, irregular shape, etc.), length, or special tolerance requirements, they can be processed according to your drawings. Our precision machining equipment can control the dimensional tolerance within ± 0.005mm, and the surface roughness can reach Ra 0.02 μ m, meeting extremely demanding assembly requirements.
Q3: How to ensure accuracy and yield during the processing of zirconia ceramic strips?
A3: We adopt a full process quality control system, from raw material powder configuration, isostatic pressing to high-temperature sintering, and finally precision grinding of diamond cutting tools, with strict inspection nodes in each link. Through advanced ceramic carving and milling machines and intelligent temperature control systems, the processing difficulties caused by the “hardness and toughness” of ceramics have been effectively solved, ensuring the consistency of product straightness, flatness, and size.

Requirements and Problem Solving
In practical industrial applications, many equipment components face challenges such as frequent wear, chemical corrosion, and high-temperature deformation. Our zirconia precision machined ceramic strips are designed to solve these problems. It can effectively extend the service life of equipment in harsh environments and significantly reduce the frequency of downtime maintenance caused by component damage; At the same time, its ultra-high dimensional accuracy and surface smoothness can perfectly adapt to high-speed operation or precision transmission of mechanical structures, ensuring the stability and yield of equipment operation.

Advantages and Application Value

1. Ultimate mechanical performance and durability
   Zirconia ceramic strips have top-notch strength and toughness in ambient temperature engineering ceramics. Its bending strength can reach over 1200MPa, and its fracture toughness is extremely high, which can effectively resist strong mechanical impact and vibration. In high wear scenarios such as mining machinery and power coal transportation systems, using zirconia ceramic strips instead of traditional metal liners or wear-resistant parts can extend equipment maintenance cycles by more than three times, significantly reducing long-term unit wear costs.
2. Excellent chemical stability and temperature resistance
   This material has strong resistance to the vast majority of acids, bases, and organic solvents, and can maintain stable physical properties even in high temperature environments. In highly corrosive media such as chemical pumps, valves, and pipeline transportation, it can maintain structural integrity for a long time, avoiding the precipitation of metal ions and contaminating the media. It is particularly suitable for food grade, pharmaceutical grade, and high-purity chemical scenes.
3. Precise size customization and surface processing
   Relying on advanced precision grinding technology, we can provide customers with micrometer level machining accuracy. Whether it is used for plungers and seals in precision pumps, or for transmission guides in medical devices and food machinery, we can ensure that the straightness, roundness, and surface roughness of our products meet sub micron standards, perfectly solving the matching problems in precision assembly.

Customer Application Cases
Case 1: A mining equipment manufacturer
The customer has been using imported alloy steel for a long time on the key lining components of the crusher, but faces the challenges of rapid wear and frequent replacement. We have customized high-density (≥ 6.0g/cm ³) and high hardness zirconia wear-resistant ceramic strips for it. After 18 months of continuous on-site operation testing, the component performed excellently in strong impact and high wear ore crushing environments, with a service life more than twice that of the original metal component, and no fracture occurred, helping customers significantly reduce annual maintenance costs.
Case 2: Upgrading the Conveyor System of a Large Chemical Enterprise
The original metal valves and sealing strips of the company often leak due to corrosion in the transportation pipelines of strong acidic chemical liquids, which not only increases maintenance costs but also poses safety hazards. We have customized high-purity zirconia ceramic strips as the core wear-resistant and sealing components for it. After continuous operation in a strong acid environment for 18 months, there were no corrosion marks on the surface of the ceramic components, and the dimensional accuracy did not change, completely solving the problem of frequent shutdown maintenance and ensuring the continuous and stable operation of the production line.
Case 3: A high-end food processing equipment enterprise
On high-end automated ham processing production lines, customers have extremely high requirements for the hygiene standards and sharpness retention of cutting tools and guides. We have developed food grade high toughness zirconia ceramic strips for it. This material not only has a much lower lead and cadmium leaching amount than the national standard, but also maintains sharpness more than 8 times that of traditional stainless steel. After being put into use, it not only perfectly meets the food contact safety standards, but also greatly improves the flatness and production efficiency of the cutting surface.

If you are looking for high-performance wear-resistant and corrosion-resistant structural components, or have special customized requirements for shaped ceramic strips, please feel free to communicate with us at any time! Please provide your specific parameters or operating conditions description, and we will provide you with professional selection suggestions and pricing solutions.
