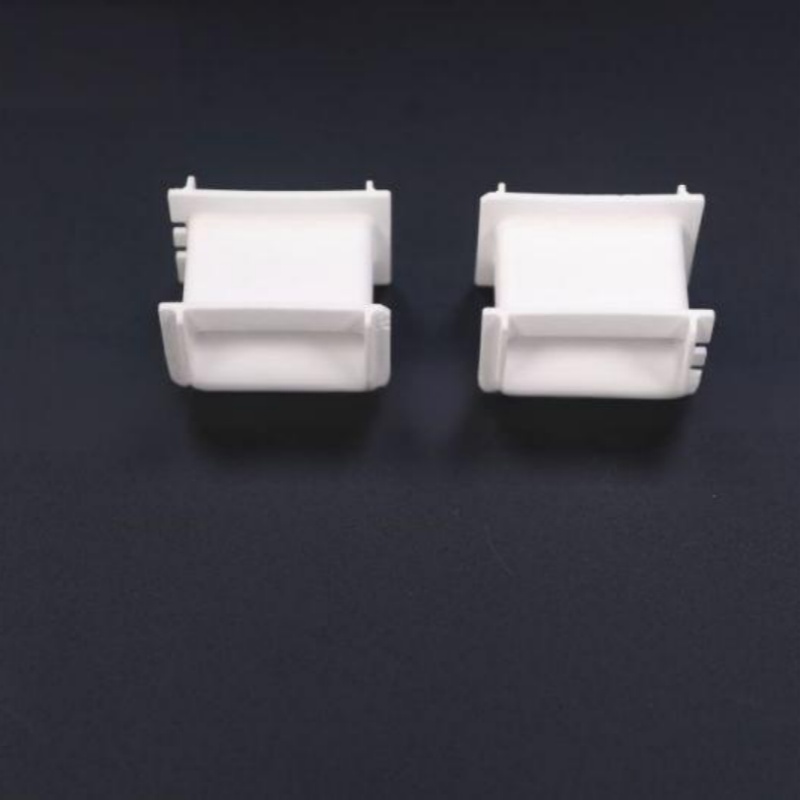

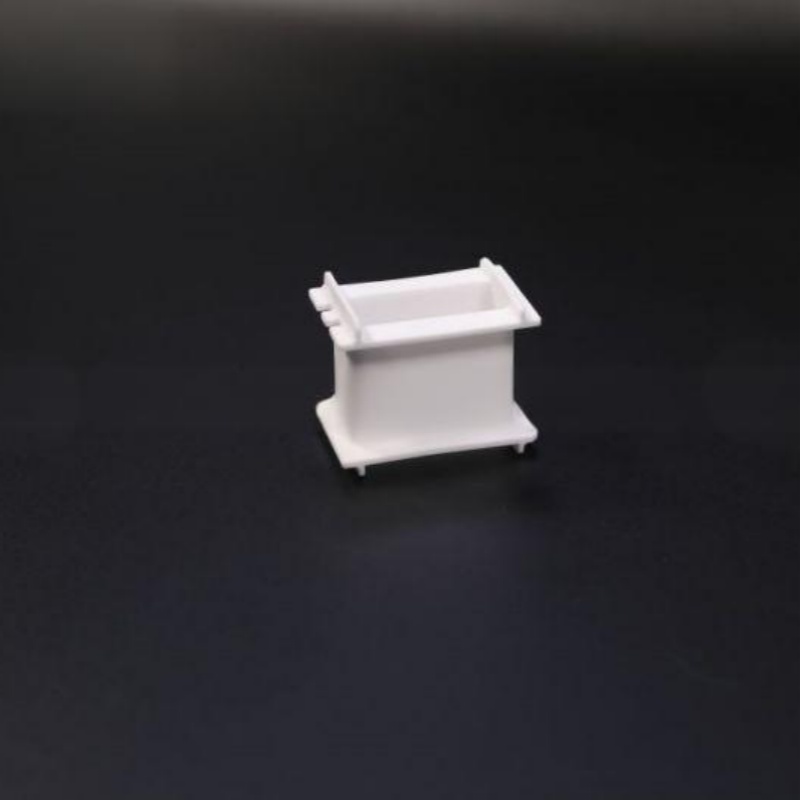

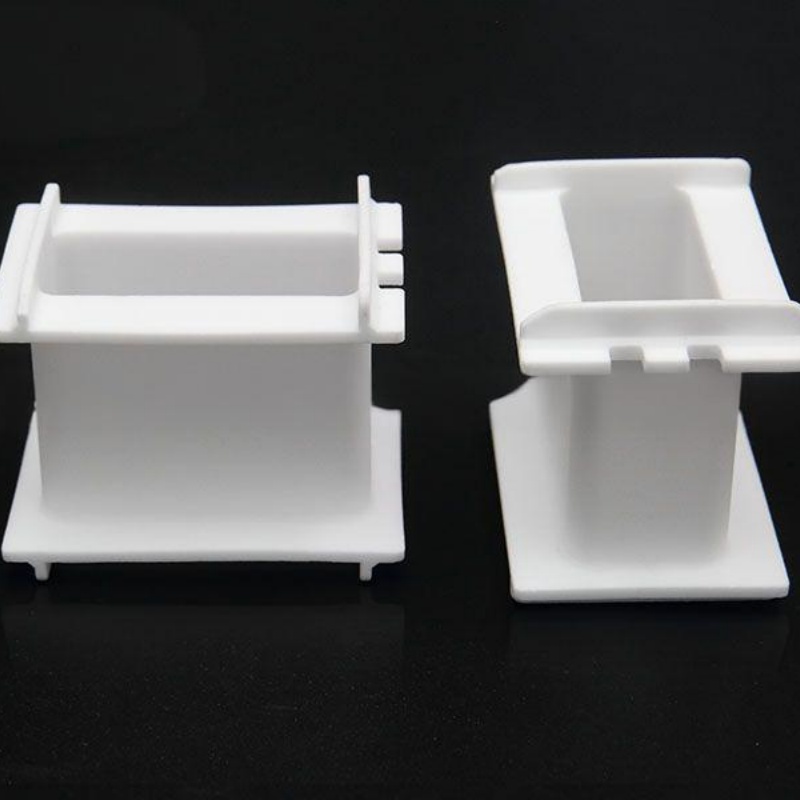

95% alumina ceramic square skeleton

95% alumina ceramic square skeleton is a special structural ceramic component mainly made of high-purity alumina (Al ₂ O3), formed by precision dry pressing or isostatic pressing, and sintered at high temperature. As a key support and insulation component in industrial equipment, 95% alumina ceramic square skeleton is widely used in various harsh working conditions due to its excellent high temperature resistance, high hardness, and excellent electrical insulation performance. It not only provides stable mechanical support for precision components, but also maintains extremely high dimensional stability in strong corrosion or high temperature environments, making it an ideal choice to replace traditional metal or plastic skeletons.

Frequently Asked Questions (FAQ)
Q1: What is the conventional dimensional tolerance for 95% alumina ceramic square skeleton?
A1: For regular dimensions, we can control the dimensional tolerance within ± 0.05mm; If high-precision CNC precision machining is used, the flatness and dimensional tolerance can be further controlled within ± 0.01mm, fully meeting the requirements of precision assembly.

Q2: What is the temperature resistance limit of this ceramic skeleton? What is the long-term usage temperature?
A2: The melting point of 95% alumina ceramics is extremely high, and the maximum operating temperature can reach 1600 ℃. In conventional industrial applications, its long-term safe use temperature can be stably maintained at 1000 ℃ -1200 ℃ without deformation or performance degradation.

Q3: Does it support customized alien shapes? What is the minimum order quantity?
A3: We provide comprehensive customization services, whether it’s special aperture, slotting, or complex square skeleton structures, we can produce samples according to drawings. We have flexible minimum order quantity policies for both standard and customized parts to meet procurement needs at different stages.

Q4: What are the main differences in performance between 95% alumina and 99% alumina skeletons?
A4: 95% alumina maintains excellent mechanical strength and insulation properties while offering high cost-effectiveness, making it suitable for most industrial support and wear-resistant scenarios; And 99% alumina has higher purity, denser structure, and better corrosion resistance, usually used in semiconductors or extreme chemical environments.

Value: Solve your engineering problems
In complex industrial applications, traditional metal skeletons are prone to corrosion and have poor insulation, while ordinary plastic skeletons cannot withstand high temperatures. The 95% alumina ceramic square skeleton is designed to solve these engineering problems. It can provide you with a support solution that combines metal like high strength with excellent electrical insulation and chemical corrosion resistance. Whether facing severe temperature fluctuations or corrosive environments of strong acids and alkalis, it can ensure the long-term stable operation of equipment, significantly reducing your equipment maintenance frequency and replacement costs.

Application and core advantages
Main application areas
Electronics and Electrical Industry: As a high-voltage insulator, sensor base, and electric heating element support frame, it provides reliable electrical isolation and mechanical fixation.
Chemical and environmental protection equipment: used for the skeleton of corrosion-resistant pump valves and internal support components of waste gas treatment equipment, resistant to the erosion of strong acidic and alkaline media.
High temperature furnace and heat treatment: As the load-bearing support in the furnace and the load-bearing skeleton of the push plate kiln, it maintains structural stability at a high temperature of 1600 ℃.
Precision Machinery and Automation: Used as wear-resistant connectors for robotic arms and guiding frames for automation equipment, utilizing its high hardness to reduce wear.

Core Advantages
Excellent mechanical strength: Mohs hardness up to level 9, flexural strength ≥ 320 MPa, compressive strength ≥ 2000 MPa, able to effectively resist physical impact and heavy pressure.
Excellent dimensional stability: Using isostatic pressing technology, the product has a high density (≥ 3.65 g/cm ³), extremely low water absorption rate (≤ 0.02%), and is not easily cracked or deformed in alternating cold and hot environments.
Excellent insulation and temperature resistance: volume resistivity>10 ¹⁴Ω· cm, breakdown voltage>15kV/mm, maintaining excellent insulation performance at high temperatures.
Flexible customization services: We have a complete production line from mold design, molding to precision CNC machining, supporting customized square skeletons of various sizes, apertures, and slots to meet the personalized needs of different industries.

If you are looking for high-performance and high reliability 95% alumina ceramic square skeleton, or have any special specification customization needs, please feel free to contact us at any time for exclusive material solutions and the latest quotes!
