What are the structural components of zirconia ceramics and what are their applications

---

Zirconia ceramic structural components are industrial parts made from high-purity zirconia (ZrO ₂) through precision molding and sintering processes. It is known as “ceramic steel” because it combines the toughness of metals with the hardness and wear resistance of ceramics. From precision medical devices to wear-resistant parts for heavy machinery, zirconia ceramic structural components provide a high-performance alternative solution for the global industry under extreme working conditions, solving the problem of traditional metal parts and ordinary ceramic parts being unable to balance strength and lifespan.

FAQ: Core Issues of User Concern
Q: Our equipment wears out too quickly during high-speed operation and frequently stops for parts replacement. Do you have any more durable materials?
Answer: The wear resistance of zirconia ceramics is 15 times that of alumina ceramics, and the friction coefficient is extremely low. The use of zirconia wear-resistant structural components (such as shaft sleeves and sealing rings) can significantly extend equipment maintenance cycles and reduce downtime losses.
Q: In semiconductors or medical devices, we need precision components that are completely non-magnetic and insulated. Metal parts cannot be used. What should we do?
Answer: Zirconia ceramic structural components are excellent insulators at room temperature and completely non-magnetic. Our customized components, such as fiber optic pins and medical fixtures, can perfectly meet the stringent requirements of high cleanliness and non-interference.
Q: We need melting fixtures that can withstand ultra-high temperatures (above 1800 ℃). Do you have suitable materials?
Answer: Zirconia products can withstand high temperatures of up to 2300 ℃ and are ideal materials for melting precious metals and superalloys. We can customize high-temperature resistant burning plates or crucible supports according to your furnace operating conditions.

What is zirconia ceramic structural component?

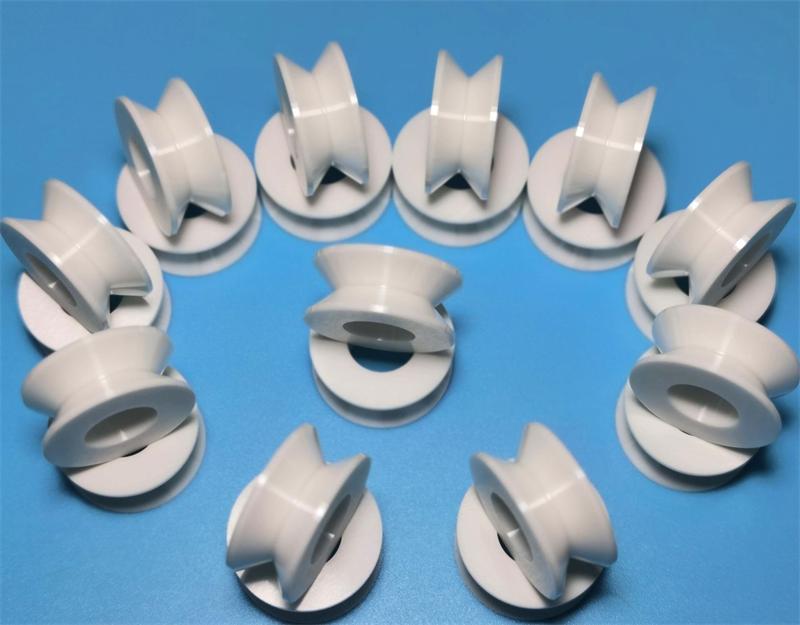

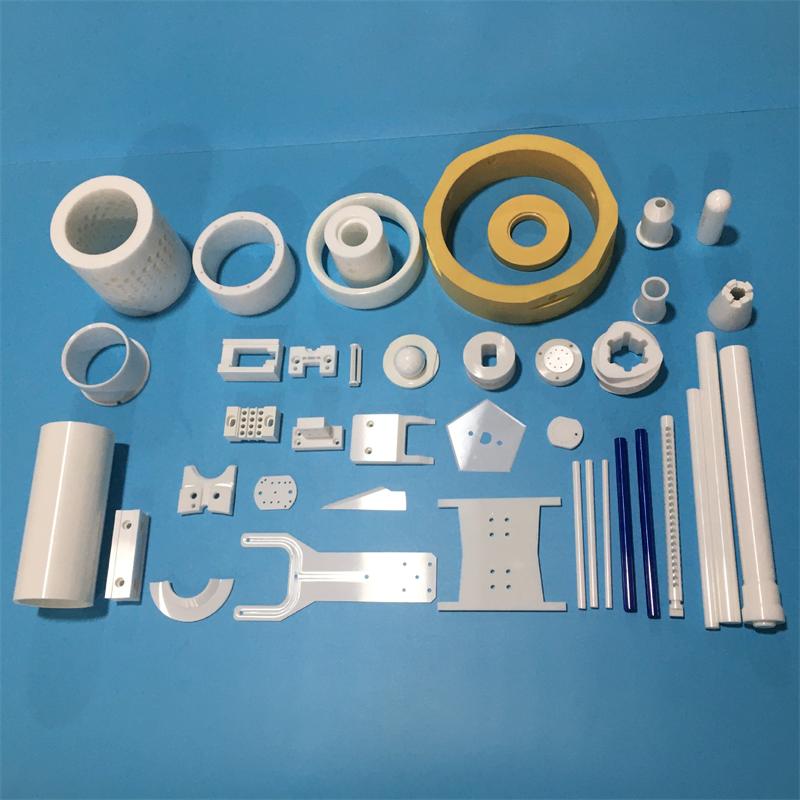

Zirconia ceramic structural components refer to precision parts made using the unique phase transformation toughening mechanism of zirconia materials. It overcomes the brittle defects of ordinary ceramics, while maintaining high hardness (Mohs hardness above 8.5), it has extremely high bending strength (exceeding 900MPa) and fracture toughness. Common product forms include wear-resistant shaft sleeves, precision guide rails, valve ball seats, irregular fixtures, insulation gaskets, fiber optic sleeves, etc.

Core application areas
Zirconia ceramic structural components are widely used in the following high-end industrial fields due to their comprehensive excellent performance:

1. Precision Machinery and Bearings: Utilizing their high toughness, low friction coefficient, and high surface finish, they manufacture micro fan shafts, ceramic bearings, ball valve seats, and grinding media (Y-TZP grinding balls). These components can effectively prevent material contamination and are particularly suitable for high-end grinding processes of electronic ceramics and pigments.
2. Optical communication and electronics: Zirconia is an ideal material for fiber optic pins, fiber optic sleeves, and ceramic sleeves. Its small thermal expansion coefficient and high dimensional stability ensure high-precision docking of optical signal transmission.
3. Biomedical: With its excellent biocompatibility and beautiful color, zirconia is widely used in the production of dentures (crowns), artificial hip joints, and orthopedic surgical instruments. Its wear resistance ensures the long-term lifespan of the implant.
4. Chemical and Energy: In the field of new energy, nano zirconia is used to enhance the stability of lithium battery cathode materials, which can increase the thermal runaway temperature of the battery by 20-30 degrees. At the same time, it is also the preferred choice for cylinders, pistons, and quantitative valves used in chemical pumps, resistant to acid and alkali corrosion.
5. Daily and fashion consumption: Zirconia is processed into high-end consumer products such as mobile phone backplates, watch cases, watch straps, and clothing buttons, utilizing its high hardness, scratch resistance, wear resistance, and non blocking signal characteristics.

Core advantages of the product
-Ultra high wear resistance: The wear resistance of zirconia ceramics is 15 times that of alumina ceramics, and the friction coefficient is only half of that of alumina ceramics, making it the ultimate material for solving abrasive wear problems.
-Metallic grade toughness: Different from other brittle ceramics, zirconia has a unique stress phase transformation toughening mechanism, which can withstand large impact loads and is not easily shattered.
-High temperature resistance: It can work for a long time in an environment of up to 2200 ℃~2400 ℃, with low thermal conductivity and excellent insulation effect, and can be used as a key component of high-temperature furnaces.
-Electrical insulation and non-magnetic: With high volume resistivity, it is an ideal material for insulating components; Simultaneously, there is no magnetic penetration, meeting the anti magnetic requirements of MRI equipment and precision electronic workshops.

Specifications, Dimensions, and Customization Services
As a professional foreign trade manufacturer of quartz and special ceramic products, we are well aware of the uniqueness of global customer needs. We not only provide standard specifications of zirconia round bars, tubes, and plates, but our core business is “customized according to drawings” service:
-Diverse molding processes: supporting dry pressing, isostatic pressing, and injection molding to meet the production needs of structural components with different complexities.
-Precision machining: Equipped with high-precision CNC machining centers, it can grind, drill, and slot sintered ceramics to ensure dimensional tolerances are controlled at the micrometer level (up to 0.002mm).
-Non standard rapid prototyping: For research and development projects for foreign trade customers, we provide rapid prototyping services (delivered within weeks at the earliest) to help you verify the feasibility of the design before investing in bulk molds.

Customer Application Cases
Case: A well-known fiber optic communication equipment manufacturer in Germany
-Background of demand: The customer requires a sleeve material with extremely low thermal expansion coefficient, wear resistance, and long-term dimensional stability when developing the next generation of high-density fiber optic connectors. The original metal parts experience signal attenuation due to thermal expansion and contraction, while ordinary plastic parts are not resistant to insertion and removal wear.
-Solution: We recommend and customize high-precision zirconia (ZrO ₂) fiber optic pin and sleeve components. In response to the special inner diameter and concentricity requirements of our customers’ connectors, we use precision grinding technology to control the inner diameter tolerance within ± 1 micron.
-Final effect:
-Signal stability: The thermal stability of ceramic materials completely solves the problem of insertion loss fluctuations caused by temperature changes.
-Life improvement: The ultra-high wear resistance of zirconia increases the insertion and extraction life of connectors from hundreds to tens of thousands of times, far exceeding industry standards.
-Customer feedback: The customer used this component as the core technology selling point of their product and successfully won a large order from a large data center in Northern Europe. The annual framework agreement will continue to be signed in the future.

Whether you are looking for standard zirconia wear-resistant parts or complex shaped structural parts that require customized development, as a precision ceramic supplier deeply rooted in the global market, we welcome you to provide drawings or technical parameters. Please contact us immediately to obtain samples or arrange an exclusive technical solution quotation for you!
