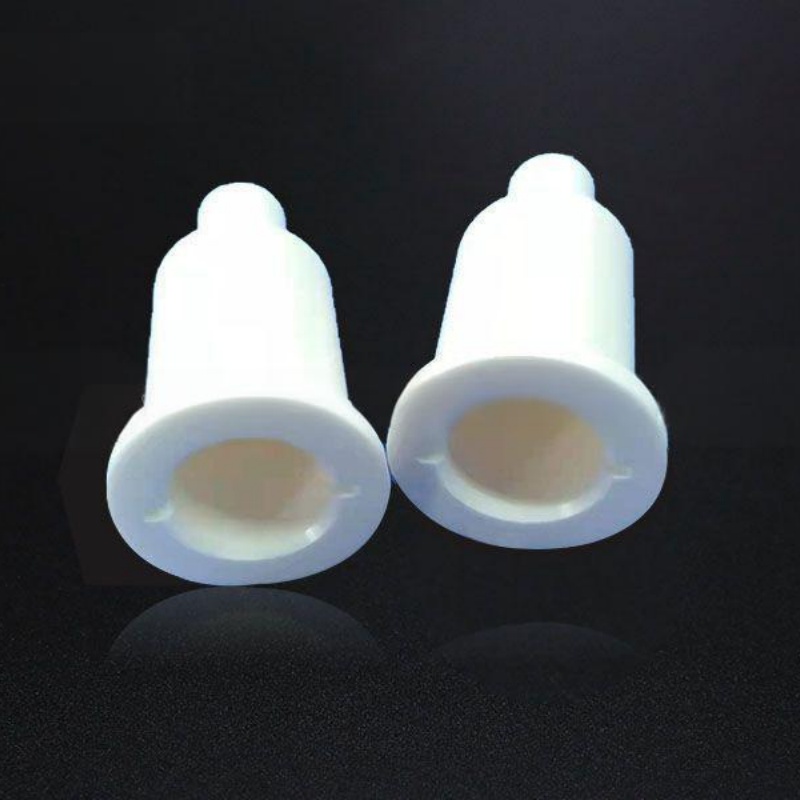

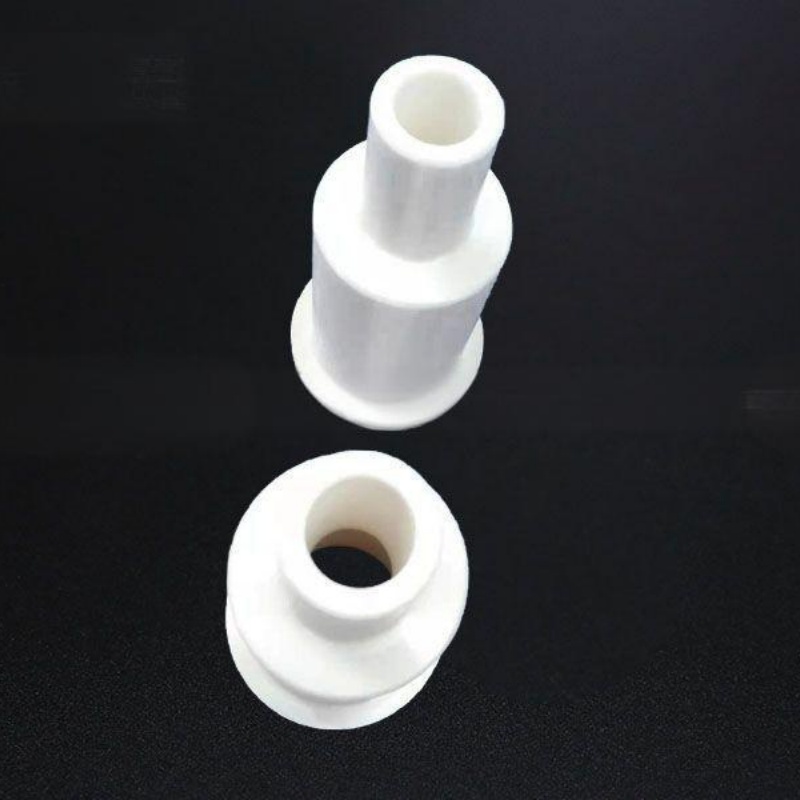

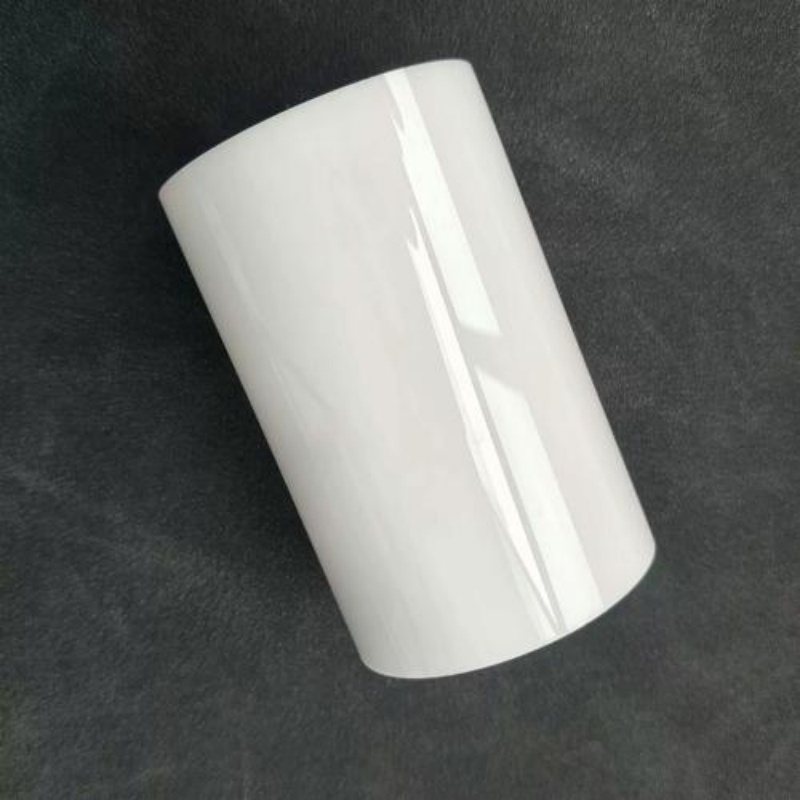

Wear-Resistant, Electrically Insulating Zirconia Ceramic Bushings

Wear-resistant, electrically insulating zirconia ceramic bushings are advanced structural components precision-sintered from high-purity zirconia (ZrO₂), specifically designed to withstand harsh operating conditions. With their exceptional wear resistance and superior electrical insulation properties, they completely overcome the application limitations of traditional metal bushings in highly corrosive, high-voltage, and extreme-temperature environments. This product not only features non-magnetic properties, self-lubrication, and thermal shock resistance but also effectively prevents electrochemical corrosion, making it an indispensable core wear-resistant insulating component in high-end equipment manufacturing.

Frequently Asked Questions (FAQ)
Q1: How do zirconia ceramic bushings perform in terms of wear resistance and electrical insulation?
A: Zirconia ceramics have extremely high hardness, a low coefficient of friction, and self-lubricating properties, exhibiting excellent wear resistance in both dry friction and media containing particles. At the same time, they have an extremely high volume resistivity, making them excellent electrical insulators with a voltage withstand capacity of over 15 kV/mm, effectively blocking shaft currents and preventing electrochemical corrosion.
Q2: Can this product withstand extreme temperatures and highly corrosive environments?
A: Absolutely. Zirconia is chemically inert and can operate stably over the long term in concentrated acids, strong alkalis, and oxidizing media. With a low coefficient of thermal expansion and excellent thermal shock resistance, it maintains dimensional stability under extreme temperature fluctuations and in high-temperature environments (reaching several hundred degrees Celsius in some operating conditions).
Q3: Do you offer customization for non-standard specifications? What level of machining precision can be achieved?
A: We provide comprehensive customization services for specifications and dimensions. Leveraging precision machining technology, the outer diameter, inner diameter, and length of the bushings can all be customized to meet specific requirements. Machining precision is extremely high (e.g., concentricity and roundness can be controlled to the micrometer level), and surface roughness can reach Ra 0.05 or even lower, meeting the demands of high-precision assembly.

Addressing Users’ Core Needs
In practical industrial applications, users often face challenges such as the wear and tear of traditional metal bushings, their susceptibility to stray current corrosion, and their inability to withstand acid and alkali corrosion. Wear-resistant, electrically insulating zirconia ceramic bushings are specifically designed to overcome these challenges. Not only do they significantly extend the service life of equipment in harsh environments and reduce the frequency of downtime for maintenance, but their insulating and wear-resistant properties also ensure the safety and stability of precision equipment operation, creating significant long-term economic value for customers.

Advantages and Application Value

1. Exceptional Physical and Tribological Properties
   Zirconia ceramic bushings feature moderate density and excellent wear resistance. Their extremely low coefficient of friction and good self-lubricating properties enable them to operate smoothly even in conditions where grease lubrication is not feasible (such as the transport of high-purity media and food processing). Compared to traditional metals, they are less prone to deformation under load, which helps improve equipment operational precision.
2. Perfect Electrical Insulation and Corrosion Barrier
   For equipment such as variable-frequency motors and servo motors, these bushings serve as a reliable electrical insulation barrier, completely eliminating the problem of pitting caused by electrochemical corrosion. At the same time, the material itself is virtually impervious to chemical media; in chemical pumps and valves, as well as seawater desalination equipment, it effectively resists corrosion from strong acids, strong alkalis, and inorganic salts, ensuring the long-term effectiveness of sealing and guiding functions.
3. Flexible Custom Manufacturing Services
   We understand that assembly requirements vary across different equipment, so we offer one-stop customization services from drawings to finished products. Whether it’s a miniature precision guide sleeve or a shaft sleeve for large mechanical seals, we can tailor the manufacturing process to meet your specific dimensional requirements, tolerance specifications, and surface finish standards, ensuring a perfect fit.

Typical Applications and Real-World Case Studies
Addressing the Challenges of High-Frequency Vibration and Electrocorrosion
In a large-scale R&D project for new energy vehicle drive motors, traditional metal bushings frequently suffered from electrocorrosion caused by shaft currents at high rotational speeds of 18,000 rpm, resulting in pitting on the surface and severely affecting motor lifespan. After introducing our zirconia ceramic bushings, their excellent electrical insulation and wear resistance completely blocked the shaft current path. After 5,000 consecutive hours of high-temperature, high-load testing, the bushing surface remained as smooth as new, and the motor’s overall efficiency improved by 3%, successfully resolving the industry-wide challenge of electrical erosion in high-speed motor bearings.
Overcoming Seal Wear in Highly Corrosive Media
At a major chemical enterprise, the metal guide sleeves in centrifugal pumps used to transport highly concentrated, strong acids failed within a few months due to corrosion and particle erosion, resulting in frequent leaks and downtime. After adopting custom-made, high-density zirconia ceramic bushings, the material’s excellent chemical inertness and high hardness played a crucial role. During two years of continuous operation, the bushings showed no signs of significant degradation or seizing, extending the equipment maintenance cycle several-fold and significantly reducing the company’s operational and maintenance costs.
Ensuring Ultimate Cleanliness in Semiconductor Wafer Handling
In semiconductor wafer manufacturing equipment, even the slightest contamination from metal ions can lead to a drop in yield. We customized ultra-precision zirconia ceramic guide sleeves for a leading semiconductor equipment manufacturer. These sleeves not only met the cleanliness requirements for zero metal ion leaching but also maintained axial runout accuracy within 0.01 mm at ultra-low temperatures of -180°C, perfectly ensuring the high-precision positioning of the wafer manipulator.

If you are seeking wear-resistant, electrically insulating solutions capable of withstanding extreme operating conditions and enhancing equipment reliability, please feel free to contact us at any time for a customized quote and technical guidance on zirconia ceramic bushings.
