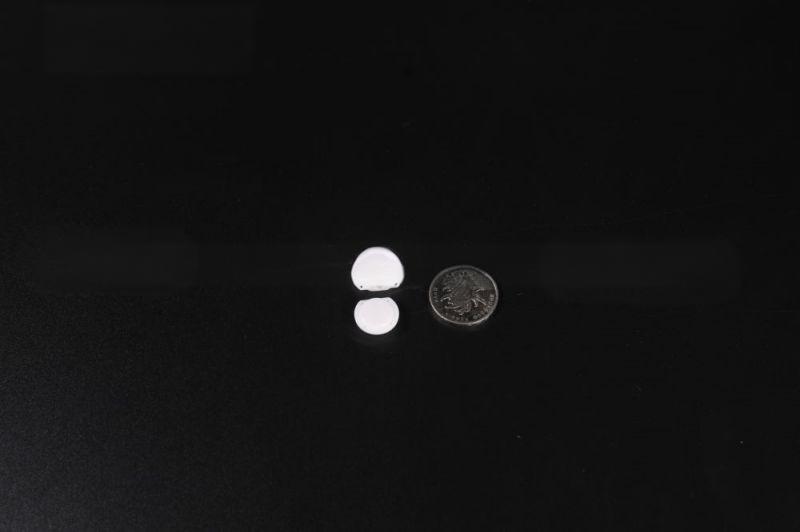

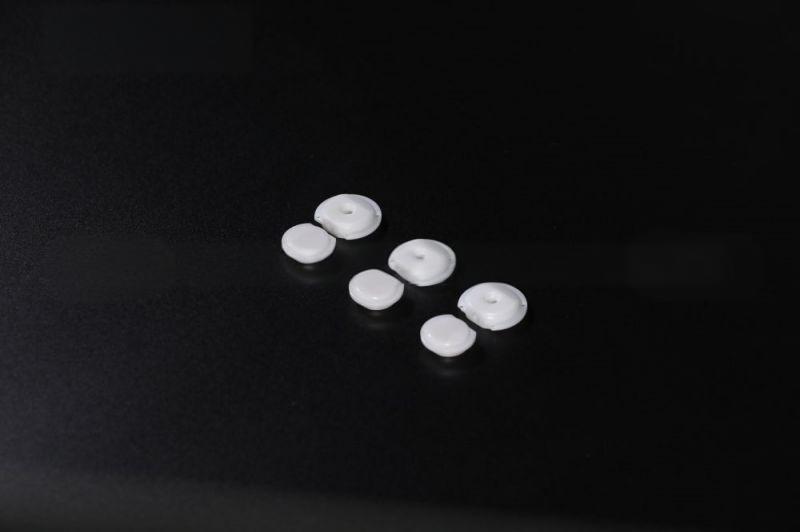

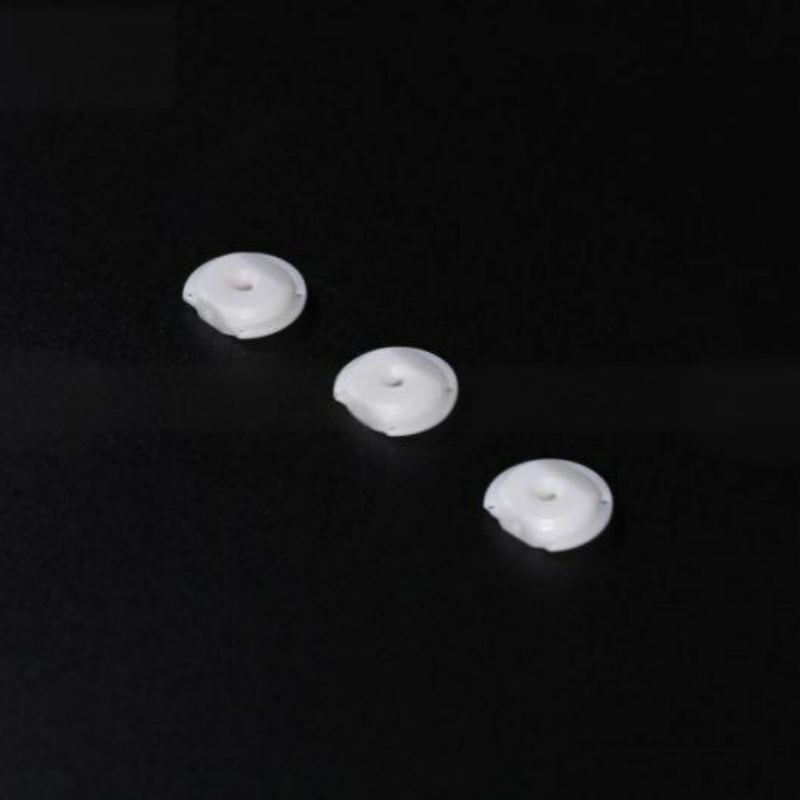

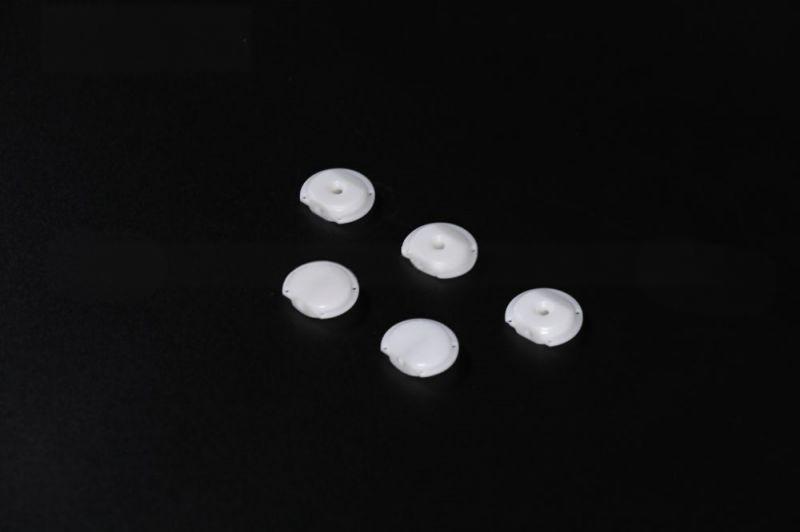

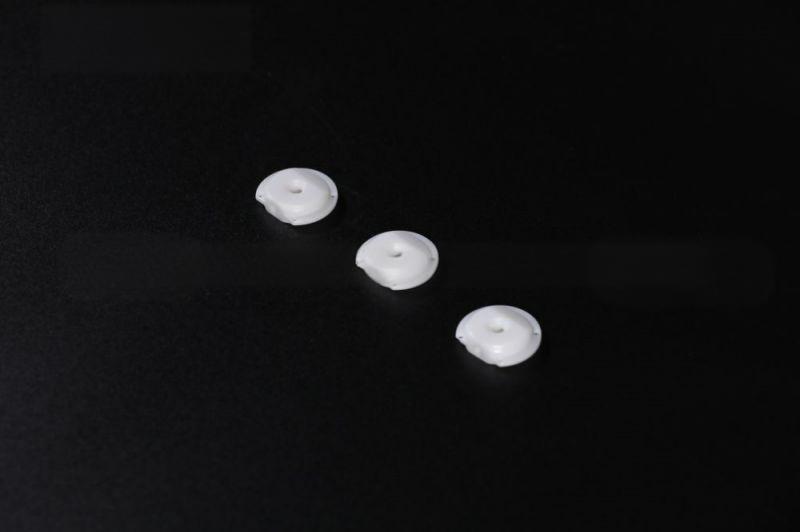

Zirconia ceramic threaded suction cup

Zirconia ceramic threaded suction cup is a clamping and fixing component specially designed for high-precision and high-purity industrial scenarios. It adopts high-purity zirconia ceramic material, combined with precision threaded connection structure, which has extremely high hardness, wear resistance, and excellent high temperature and corrosion resistance. This product can effectively avoid scratches on the surface of workpieces, ensure stable adsorption and precise positioning under complex working conditions, and is an ideal choice for precision machining, optical manufacturing, and automation fields.

Frequently Asked Questions (FAQ)
Q1: What are the significant advantages of zirconia ceramic threaded suction cups compared to traditional metal suction cups?
A1: The Vickers hardness of zirconia ceramics far exceeds that of traditional metals, with excellent wear resistance and a service life of 5-10 times that of metal suction cups. At the same time, it has strong chemical inertness and does not react in strong acid and alkali environments. Its low thermal expansion coefficient makes it difficult to deform at high temperatures, which can perfectly avoid workpiece pollution caused by metal ion precipitation.
Q2: In which extreme working conditions is this suction cup suitable for use?
A2: Very suitable for high temperature, highly corrosive chemical environments, and vacuum or dust-free workshops that require extremely high cleanliness. For example, scenarios such as ultra precision grinding of precision optical components, femtosecond laser cutting, microfluidic chip manufacturing, and biomedical device processing.
Q3: Does your company support non-standard customization services?
A3: Fully supported. We provide comprehensive customization services for specifications and sizes, including suction cup outer diameter, thickness, thread specifications (such as M3-M16, etc.), micro hole diameter and density, etc., all of which can be designed and produced according to customers’ specific drawings and process requirements.

User needs and solutions
In actual industrial production, users often face difficulties such as easy scratching of workpieces, fixture failure in high temperature or corrosive environments, and deformation of thin-walled parts due to adsorption. Zirconia ceramic threaded suction cups are designed to address these challenges: their high hardness and smooth surface eliminate machining scratches; Excellent heat and corrosion resistance ensure long-term stable operation in harsh environments; The precise micro hole design and uniform adsorption force distribution effectively prevent displacement and deformation of precision workpieces, greatly improving processing yield and equipment operating efficiency.

Core advantages and application value

1. Excellent physical and chemical properties
   Zirconia ceramic materials have extremely high hardness and wear resistance. When hard workpieces (such as sapphire glass and fused silica) are frequently clamped, the surface is almost free of wear, which greatly reduces the maintenance frequency and cost of consumables. At the same time, it exhibits strong chemical inertness in strong acids, strong bases, and various organic solvents, with no metal ion precipitation, perfectly meeting the requirements of high cleanliness production.
2. Ultimate precision clamping and thermal stability
   The microporous structure formed by precision machining, combined with a vacuum system, can achieve uniform adsorption force distribution, with fluctuations controlled within a very small range, effectively avoiding deformation and fracture of thin-walled or fragile workpieces. In addition, the coefficient of linear expansion of zirconia ceramics is extremely low, and its thermal deformation is only a very small proportion of traditional metal materials in high temperature or thermal shock environments, ensuring that the positioning accuracy in precision machining is not affected by temperature.
3. Wide industry application value
   Precision optical manufacturing: In ultra precision grinding and femtosecond laser cutting of non spherical lenses, it provides uniform pressure distribution, achieves extremely high surface shape accuracy, and effectively reduces the diffusion of heat affected zones, improving the quality of cutting edges.
   Biomedical and Microfluidics: Used for fixing zirconia artificial joints, dental crown blanks, or microfluidic chip substrates to avoid surface microcracks caused by mechanical clamping, ensuring etching accuracy and processing yield.
   Automation and Robotics: Replace traditional rubber or plastic suction cups, solve aging and deformation problems, and improve gripping reliability in automated production lines such as material handling, packaging, and assembly.
4. Flexible customized services
   We are well aware that different application scenarios have strict and differentiated requirements for clamping components. Therefore, we provide full process customization services from material formulation, molding process to precision machining. No matter what outer diameter size, thread interface standard, or specific micro hole array layout you need, our engineering team can provide professional technical support and sampling services to ensure that the product perfectly matches your equipment.

Customer application case: A precision optical component manufacturer
The customer encountered severe challenges during the ultra precision grinding and femtosecond laser cutting process of high-end non spherical lenses. Due to the high brittleness of optical glass material and the extremely high requirement for surface flatness, traditional fixtures are prone to leaving micro cracks at the edges or causing lens deformation, and the thermal stress during processing is difficult to control, resulting in poor cutting edge quality and high scrap rates.
After introducing our customized zirconia ceramic microporous threaded suction cup, the situation has been fundamentally improved. Thanks to the uniform adsorption force brought by the microporous structure of zirconia, the surface accuracy of the lens during grinding has successfully reached a very high level of λ/10, completely eliminating the problem of edge collapse caused by local stress concentration. At the same time, in the femtosecond laser processing stage, the excellent high-temperature ablation resistance of zirconia effectively reduces the diffusion of the heat affected zone and greatly improves the smoothness of the cutting edge. In the end, the customer’s optical component processing yield significantly improved, and the product quality set a new benchmark in the industry.

If you are looking for highly reliable precision clamping solutions or have any customized needs for zirconia ceramic threaded suction cups, please feel free to contact us at any time for exclusive technical support and pricing solutions!
