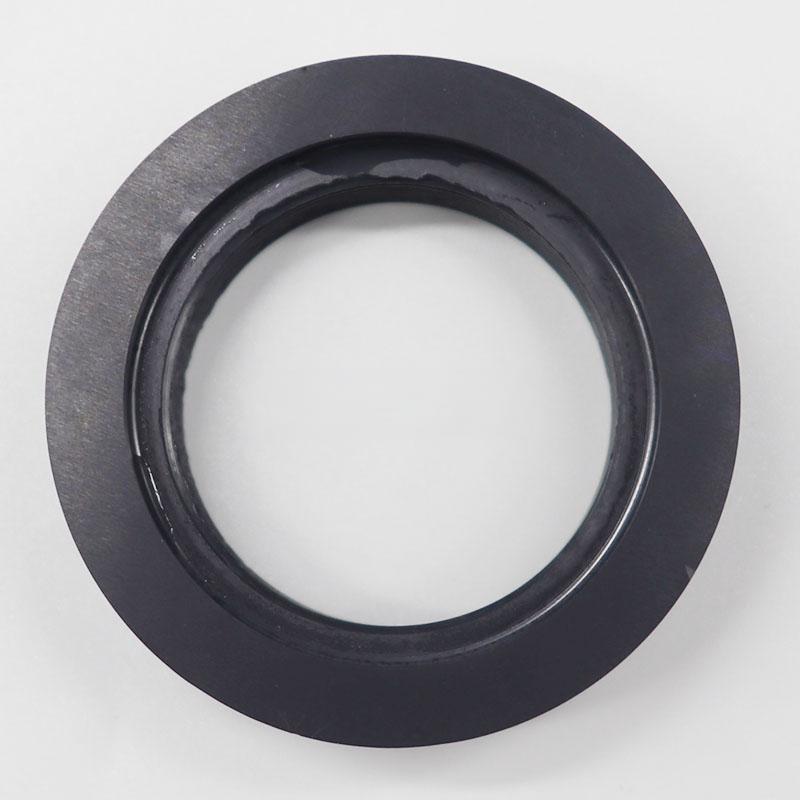

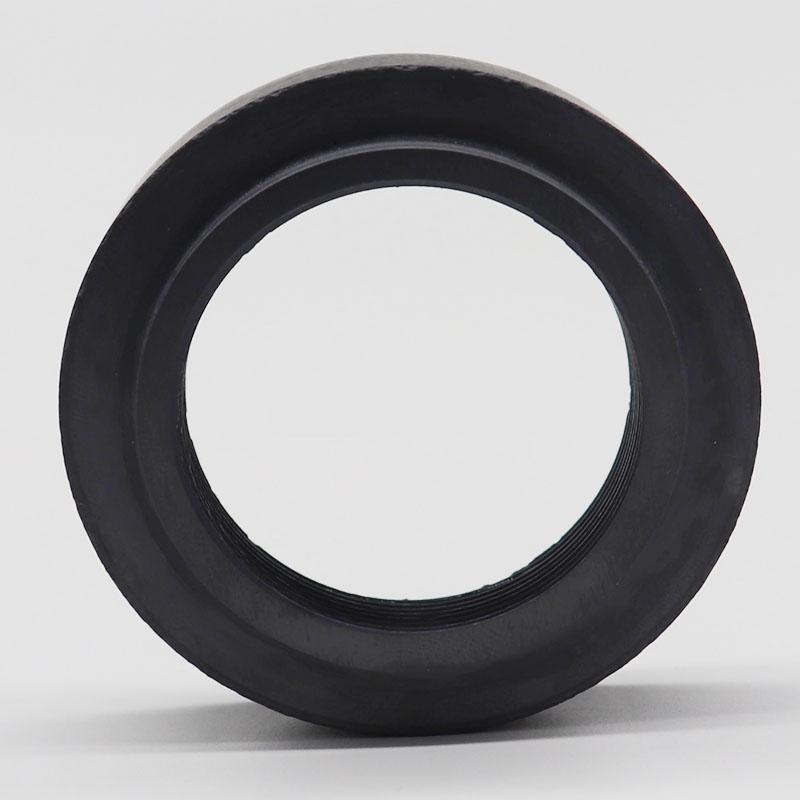

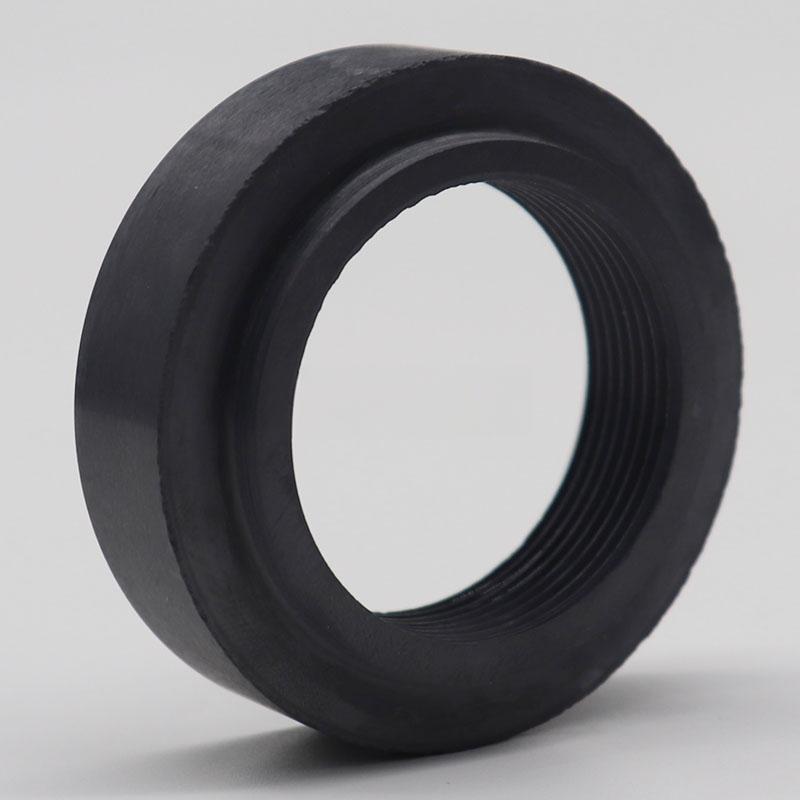

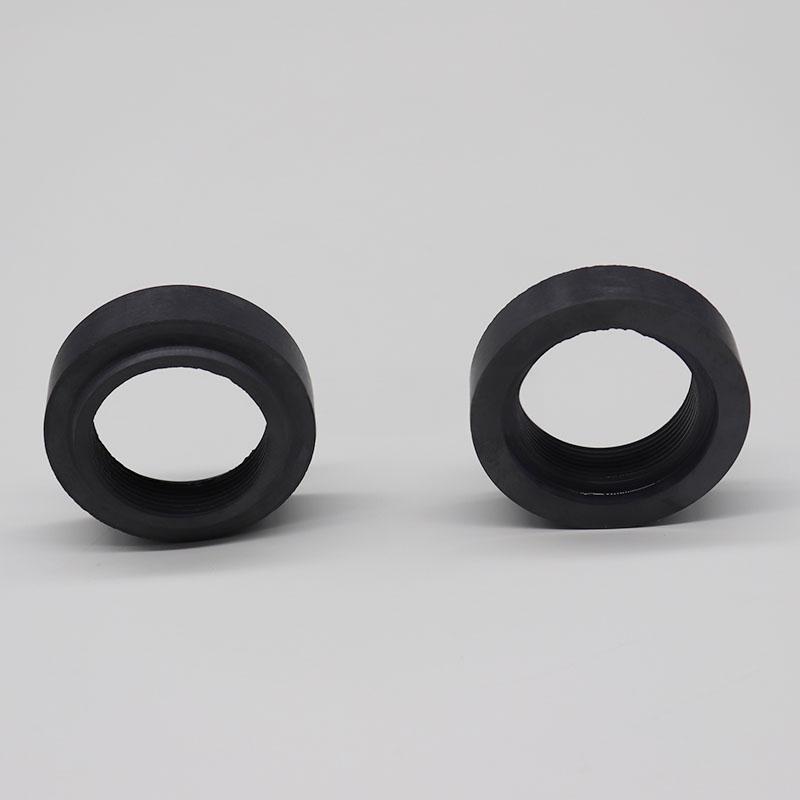

Silicon nitride ceramic sleeve

Silicon nitride ceramic sleeve is a precision annular component made mainly of high-performance silicon nitride (Si3N4) through high-temperature hot isostatic pressing (HIP) process. It not only inherits the natural genes of high temperature resistance, corrosion resistance, and electrical insulation of ceramic materials, but also has bending strength (≥ 800MPa) and fracture toughness far exceeding traditional metal sleeves. As the core component of mechanical transmission and protection, silicon nitride ceramic sleeves solve the problem of frequent failure of metal sleeves due to wear, rust, or deformation in high-speed, non-magnetic, vacuum, and strongly corrosive environments. They are an ideal solution for modern precision manufacturing and extreme engineering fields.

Product FAQ:
Q1: My device operates in a high-temperature environment, and the metal kit often gets stuck or deformed due to thermal expansion. What should I do?
A: The thermal expansion coefficient of silicon nitride ceramic sleeve is extremely low (about 3.0 × 10 ⁻⁶/℃), only about 1/4 of that of steel. It can maintain excellent dimensional stability in temperature difference environments below 800 ℃, effectively avoiding equipment failures caused by thermal deformation and ensuring rotational accuracy.
Q2: In environments with strong acids, alkalis, or high humidity, metal shaft sleeves can rust and become unusable after a few months. Is there a more durable option?
A: Silicon nitride materials have inherent chemical inertness and can withstand almost all corrosive media (except for molten alkali). Whether immersed in seawater or in a chemical reactor environment, silicon nitride ceramic sleeves can achieve “zero corrosion” and their service life is usually extended by 3-5 times compared to metal alloys.
Q3: The equipment needs to work in a non-magnetic environment, and the weak magnetism of metal parts can interfere with the precision magnetic field. How to solve this problem?
A: Silicon nitride ceramics are a perfect insulator and non-magnetic material. The use of silicon nitride ceramic sleeves can completely eliminate eddy current losses and magnetic field interference, ensuring the magnetic field purity and operational stability of medical MRI equipment and precision electronic detection instruments.

Core advantages of the product:

1. Ultimate mechanical performance
   The silicon nitride ceramic sleeve formed by hot isostatic pressing (HIP) technology has a uniform microstructure and extremely high density. Its hardness is second only to diamond, with a bending strength of 600-900MPa and a fracture toughness of 6-7 MPa · m ¹/². It can withstand severe impacts under high loads without shattering.
2. Self lubrication and wear resistance
   Silicon nitride ceramics themselves have excellent self-lubricating properties and low friction coefficients. Under vacuum or boundary lubrication conditions lacking lubricating oil, it can effectively reduce friction and wear, prevent the occurrence of “shaft hugging” phenomenon, and is particularly suitable for frequent start stop or difficult to maintain situations.
3. Lightweight design
   The density of silicon nitride is about 3.2-3.7 g/cm ³, and its weight is only about 40% of that of bearing steel. The lightweight feature can significantly reduce the centrifugal force of high-speed operating components, helping equipment move towards higher speeds and lower energy consumption.

Application scenario: Accurately solving industry pain points
-Petrochemical and Mining: Used as cylinder liner/shaft sleeve in mud pumps and plunger pumps, it can withstand highly corrosive media containing sand and solve the problems of fast wear and short pump inspection cycle of traditional metal cylinder liners.
-New energy and semiconductors: used as guide/insulation sleeves in photovoltaic and lithium battery production equipment, utilizing their electrical insulation properties to prevent arc damage and avoid metal pollution.
-Medical devices: In CT slip rings, high-speed dental drills, surgical robots and other equipment, their non-magnetic and high-temperature steam sterilization resistant characteristics are utilized to ensure biocompatibility and equipment accuracy.
-Precision Machinery: Used for high-speed machine tool spindles and textile machinery winding wheels, utilizing its low inertia and high rigidity to improve machining accuracy and efficiency.

Customer application case: A precision equipment manufacturer
-Background of demand: This customer mainly produces precision CNC machine tools for polishing heat dissipation components of 5G base stations. The metal copper sleeve used for the original machine tool spindle is severely worn during high-speed operation (20000 revolutions per minute), and rusting is caused by coolant penetration. On average, it needs to be shut down for maintenance and replacement every 3 months, which not only increases maintenance costs but also seriously affects the delivery cycle.
-Solution: We have recommended customized high-precision silicon nitride ceramic sleeves (Si3N4) to our customers to replace the original copper sleeves. We have redesigned the fit clearance based on its spindle size and adopted mirror polishing technology to reduce the friction coefficient.
-Final effect:

1. Extended lifespan: After installation, the ceramic sleeve can run continuously for 12 months without wear, increasing its lifespan by more than 4 times.
2. Precision improvement: Due to the high rigidity of ceramics, the spindle runout has been reduced from 0.008mm to 0.003mm, resulting in a 5% increase in workpiece yield.
3. Zero maintenance costs: Thoroughly solved the problem of coolant corrosion and achieved maintenance free operation.

Specifications and Customization
We offer circular, tubular, and sheet-like silicon nitride ceramic sleeves with diameters ranging from 1mm to 500mm. Support customized drawings, including but not limited to:
-Material: High purity silicon nitride (Si3N4 content ≥ 99%)
-Form: Straight sleeve, taper sleeve, flange sleeve, irregular combination component
-Surface treatment: precision grinding, mirror polishing, metalized welding layer

Do you want your device to also have the “Diamond Unbreakable” body? We provide free sample testing and technical consultation. Welcome to submit your drawings or working condition requirements. Our engineers will tailor a unique silicon nitride ceramic solution for you.
