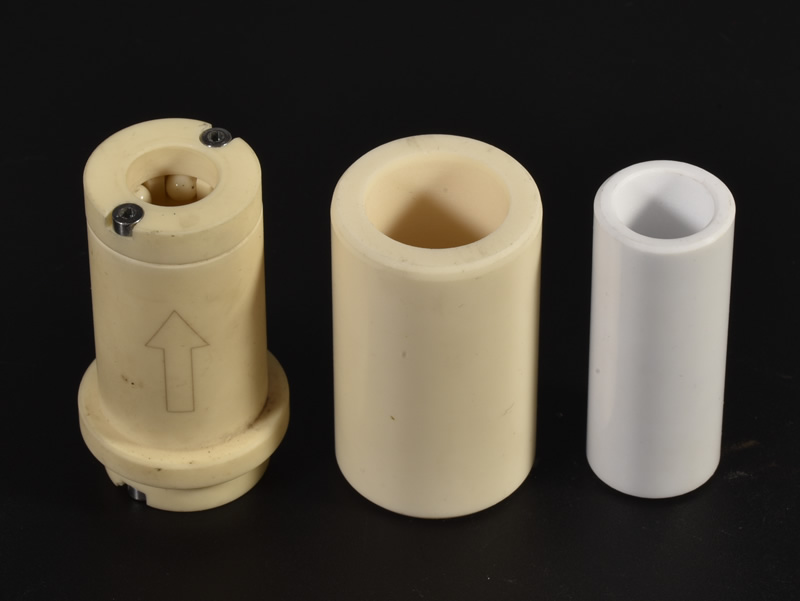

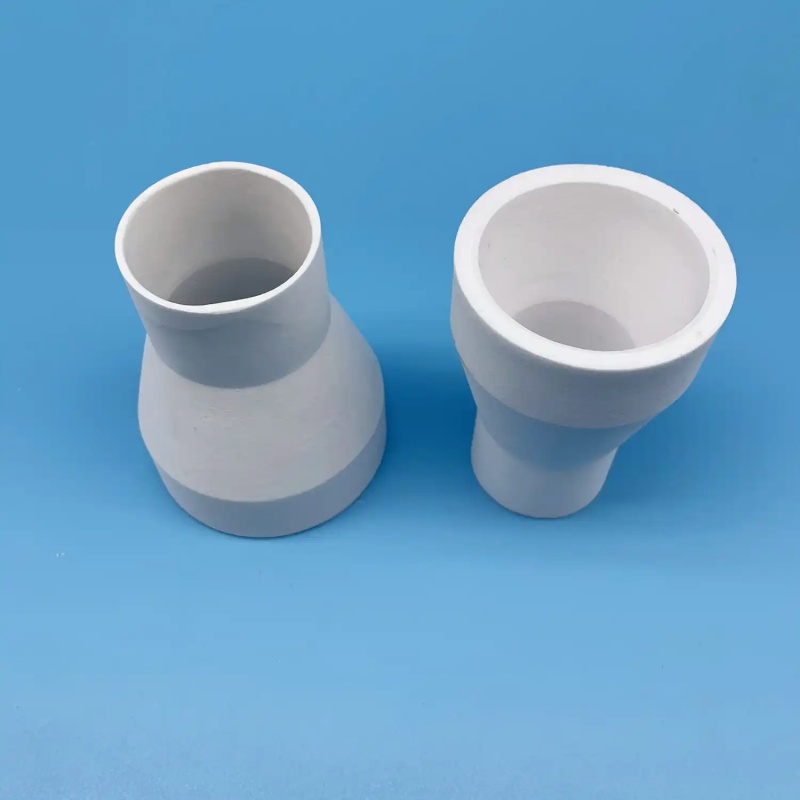

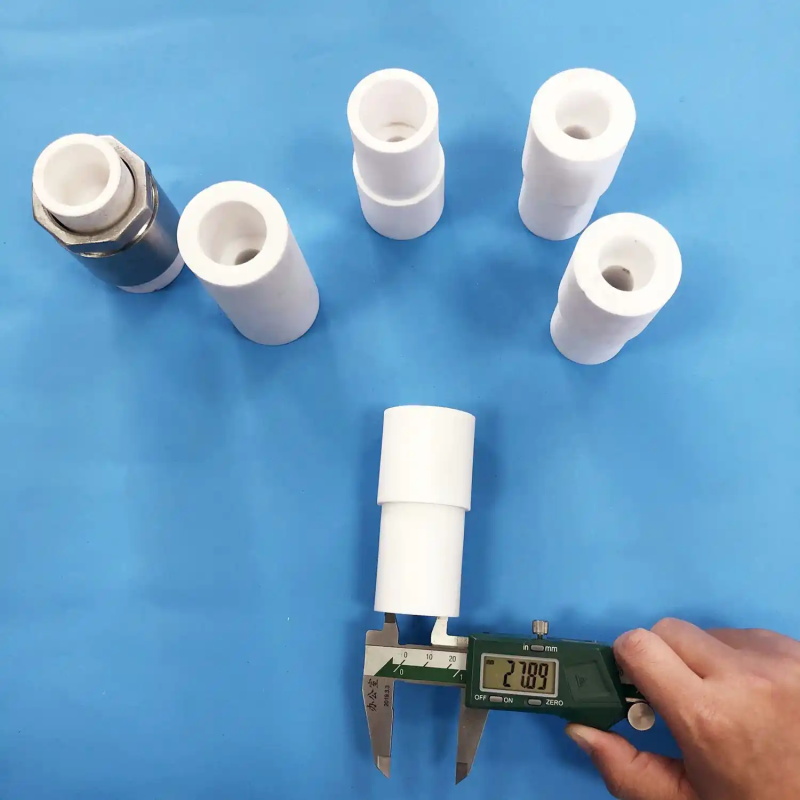

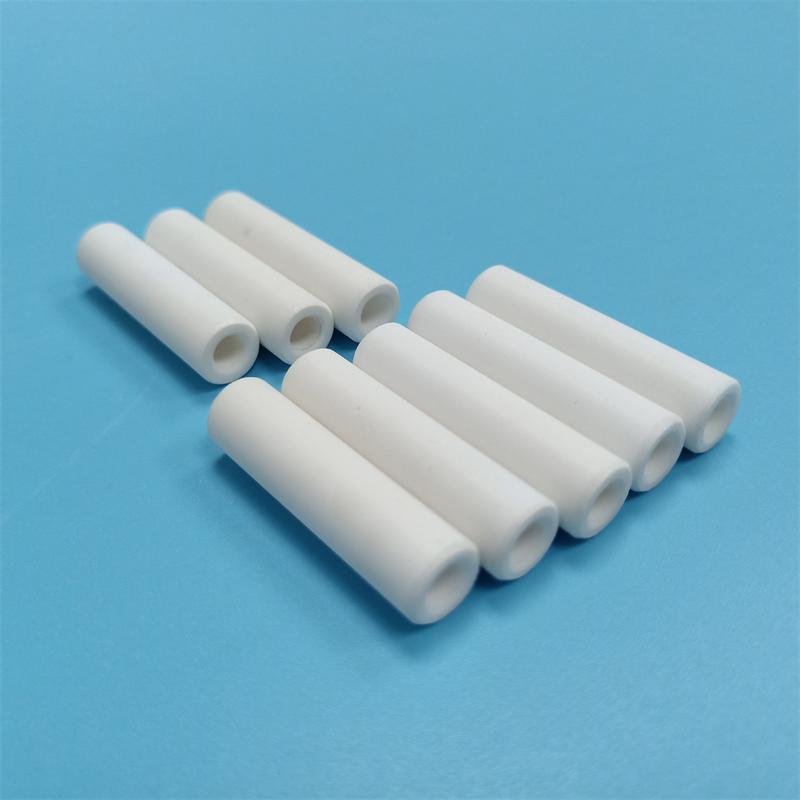

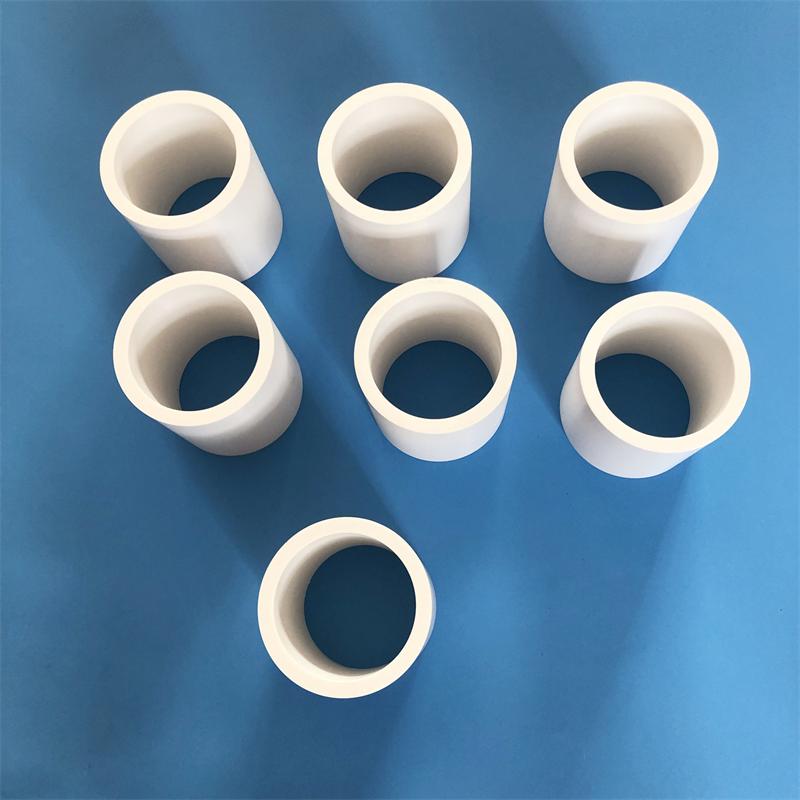

Precision alumina ceramic bearing piston tube

The precision alumina ceramic bearing piston tube is manufactured using high-purity alumina (Al ₂ O3) material through isostatic pressing and precision grinding processes. It is designed to solve the problems of wear, corrosion, and high-temperature failure under extreme working conditions. The product has a hardness (HRA ≥ 85) and insulation properties that cannot be compared to metals, making it an ideal choice to replace traditional metal piston rods in hydraulic, pneumatic, and chemical fluid machinery.

User FAQ (Frequently Asked Questions)
Q1: How much longer can the lifespan of this ceramic piston tube be compared to ordinary chrome plated steel rods?
A: In environments with abrasive wear or strong corrosive media, the wear resistance of alumina ceramic tubes is more than 10 times that of chrome plated steel. Its surface roughness can reach Ra ≤ 0.1 μ m and it will never rust. In practical cases, the replacement cycle of ceramic piston tubes in mud pumps containing sand media has been extended from the original 2 weeks to over 8 months.
Q2: What non-standard size customization services can your company provide?
A: We support full-size customization. The outer diameter range is from 5mm to 200mm, the inner diameter range is from 3mm to 180mm, and the longest length can reach 800mm. Whether it is British (inch) specifications, special tolerance grades (such as H7/g6), or non-standard wall thickness or irregular ends (such as snap ring grooves and threaded interfaces), we can provide precise production based on drawings.
Q3: Is alumina ceramic prone to brittle cracking? How to ensure safety during installation?
A: We use high toughness alumina formulations (95 ceramic, 99 ceramic or zirconia toughened) and have passed rigorous crushing strength tests (compressive strength>2000MPa). At the same time, we provide metal hot fitting nested or adhesive composite structure designs, and the ceramic tube can be coated with stainless steel or aluminum alloy shells on the outside, which not only retains the ceramic properties of the contact surface, but also solves the risk of brittle fracture.

Why do you need it?
-Quick wear and tear: Traditional metal piston rods are prone to tearing and leakage in environments with dust, sand, gravel, or hard particles. The ceramic surface is like a mirror, and hard particles cannot be embedded, completely eliminating “pulling the cylinder”.
-Addressing corrosion and oil leakage: In chemical, marine, or acid washed environments, metal rods may develop rust spots within a few weeks. Aluminum oxide has stable chemical properties and is resistant to strong acids and bases (except for hydrofluoric acid and hot concentrated alkali).
-Solving high temperature jamming: Under high temperature conditions of 300 ° C-800 ° C, metal thermal expansion deformation is prone to jamming, while ceramic materials have excellent thermal stability and do not soften.
-Addressing insulation requirements: In electroplating, electrolysis, or electromagnetic equipment, the insulation properties of ceramics can prevent shaft current from corroding bearings or seals.

Core technological advantages of the product

1. Ultimate precision and surface quality
   -Tolerance control: The roundness of the outer cylinder can reach 0.002mm, and the roundness is ≤ 0.001mm, ensuring a perfect fit with the seal.
   -Mirror effect: Surface roughness Ra 0.03-0.1 μ m (customizable), friction coefficient as low as 0.1 or below, significantly reducing starting resistance.
2. Excellent physical performance
   -Hardness: HRA 85-90 (99 ceramic), second only to diamond.
   -Density: 3.85-3.95 g/cm ³, about 50% lighter than steel, suitable for high-speed reciprocating motion.
   -Temperature resistance: Long term working temperature -50 ° C~1000 ° C (according to seal matching).
3. Flexible structural composite capability
   We not only sell ceramic tubes, but also provide “ceramic+metal” composite piston rods:
   -Ceramic lining+metal joint
   -Ceramic outer tube+metal core shaft
   -All ceramic integrated piston
   *All metal connectors are fitted with interference fit and high-temperature resistant adhesive, and have undergone cold and hot shock testing at -40 ℃ to 200 ℃ without any looseness. *
4. Full specification flexible customization
   We have complete CNC internal and external cylindrical grinding machines, centerless grinding and laser drilling equipment, and accept:
   -Small batch samples: minimum order of 1 piece, delivery within 7 days at the earliest.
   -Large scale replication: Size consistency CPK ≥ 1.33.
   -Special shapes: taper tube, stepped shaft, with flange, with radial hole, end face ball head, etc.

Customer application case (anonymous real-life scenario)
Case 1: Oil fracturing sand pump (anonymous: a certain oilfield equipment manufacturer)
Problem: The customer is using a high-pressure mud pump for transporting quartz sand and fracturing proppants. The original chrome plated piston rod had deep scratches on its surface after running for 40-60 hours, causing seal leakage and a sudden drop in pressure. It needs to be replaced every two weeks, resulting in significant downtime losses.
Solution: We have customized a 99 alumina ceramic piston tube with an outer diameter of Φ 80mm, a length of 450mm, and a surface roughness of Ra 0.05 μ m.
Result: After 6 months of continuous operation (over 2000 hours), the ceramic surface remained shiny and without any scratches upon disassembly and inspection. The maintenance cycle of the customer’s pump has been extended from 2 weeks to 6 months, saving approximately 370000 yuan in spare parts and labor costs annually.
Case 2: Pharmaceutical filling metering pump (anonymous: a high-end pharmaceutical machinery enterprise)
Problem: When filling corrosive chemicals (containing organic solvents), the 316L stainless steel piston rod experiences pitting corrosion, leading to contamination of the chemicals and hindering GMP certification. At the same time, it is required that the piston rod be non-magnetic to avoid adsorbing metal particles.
Solution: Adopt zirconia toughened alumina piston rod (ZTA), with a fully ceramic structure and no metal components.
Result: Perfectly solved the problems of drug corrosion and metal ion precipitation. The surface smoothness ensures a measurement accuracy of ± 0.5%. This series of filling machines has been exported to the European Union and has passed CE certification.
Case 3: High temperature hot melt glue gun (anonymous: electronic component dispensing equipment manufacturer)
Problem: In a 220 ° C high-temperature hot melt adhesive environment, traditional hardened steel piston rods experience changes in fit clearance due to thermal expansion, resulting in wire drawing and glue dripping.
Solution: Customize low expansion coefficient alumina ceramic piston rod with PTFE seal.
Result: The thermal expansion is only one-third of that of steel, and the gap is stable at high temperatures, completely solving the problem of glue dripping. The dispensing accuracy is improved by 40%, and the equipment life is extended from 1 year to 5 years.

Whether you need standard round tubes or non-standard ceramic piston rods with complex steps and threaded holes, simply provide drawings or working condition descriptions, and our engineers will provide you with technical solutions and quotations within 2 hours.
