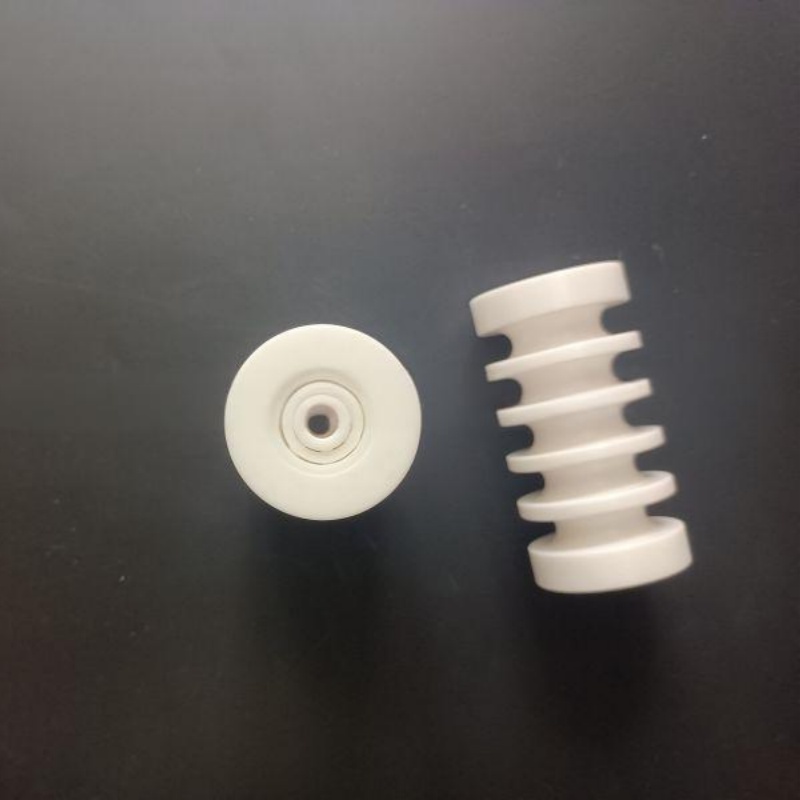

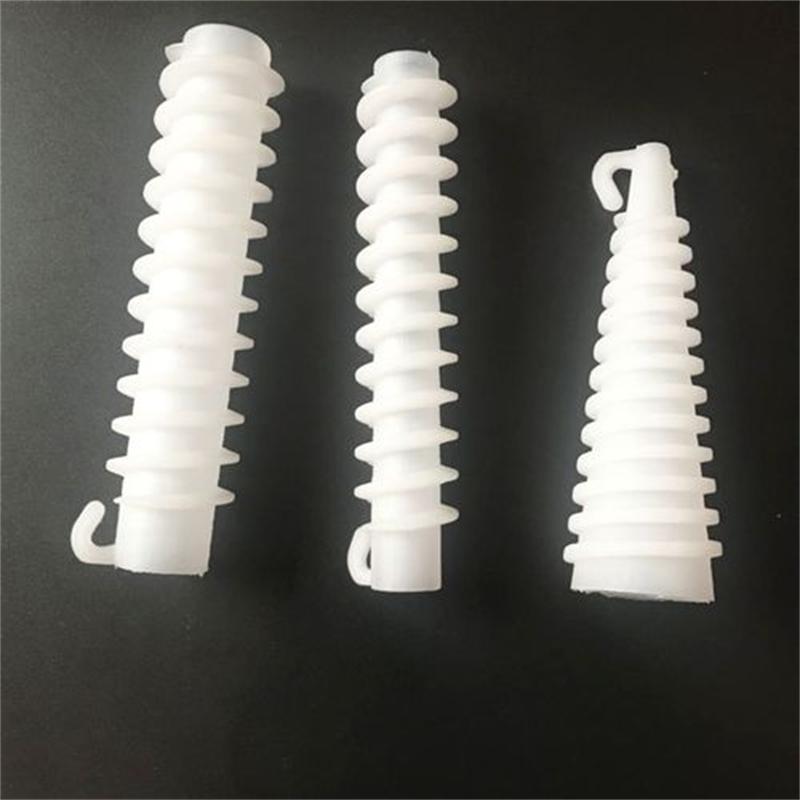

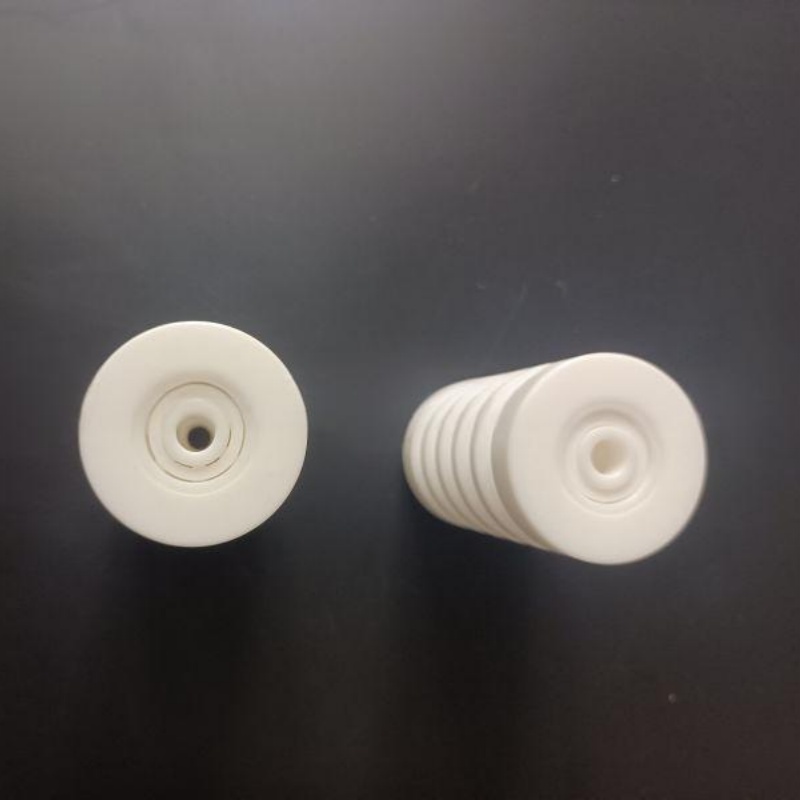

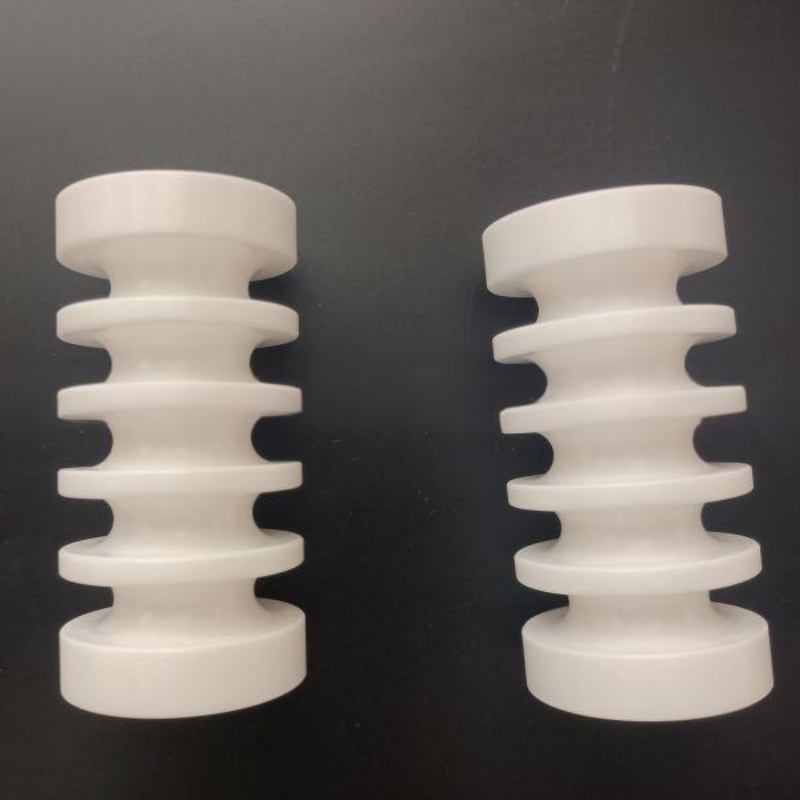

Alumina Injection-Molded Threads

Alumina injection-molded threads are an advanced manufacturing process that utilizes ceramic injection molding (CIM) technology. In this process, high-purity alumina ceramic powder is mixed with a binder and then injection-molded using precision molds. This technology was specifically developed to address the industry challenge of machining complex external and internal thread structures—a difficulty often encountered with traditional ceramics—and is capable of directly forming standard metric threads such as M10, as well as various non-standard, custom threads. Compared to traditional machining, injection-molded threads not only significantly improve production efficiency but also ensure extremely high dimensional accuracy and surface finish. They are widely used in precision connection and fastening applications under harsh operating conditions, such as in photovoltaic equipment, specialty glass manufacturing, mining machinery, and chemical plants.

Frequently Asked Questions (FAQ)
Q1: What level of precision can be achieved with injection-molded aluminum oxide threads?
A1: Through the high-precision ceramic injection molding (CIM) process, we can achieve sub-micron machining precision. After the molded thread blanks undergo subsequent precision grinding, tolerances can be strictly controlled between ±0.01 mm and ±0.05 mm, fully meeting the requirements for precision mechanical connections.
Q2: What are the unique advantages of alumina ceramic threads compared to metal threads?
A2: Alumina ceramic threads feature extremely high hardness (over HV1200), excellent wear resistance, and a low coefficient of friction. In harsh environments with severe corrosion and high wear—such as chemical plants or mining machinery—their chemical stability and high-temperature resistance far exceed those of traditional metal materials, significantly extending their service life.
Q3: Can non-standard thread specifications be customized?
A3: Absolutely. We offer comprehensive customization services for specifications and dimensions. Whether it’s standard M10 coarse- or fine-pitch threads or special non-standard thread configurations, simply provide the drawings, and we can produce them via mass injection molding using custom molds.

Core Value and Challenges Addressed
For buyers, injection-molded aluminum oxide threads perfectly address the challenges posed by traditional ceramic materials—namely, their “hard yet brittle” nature and the difficulty of performing complex thread cutting operations. This solution enables users to obtain threaded fasteners with high mechanical strength without sacrificing the ceramic material’s excellent physical properties, such as high-temperature resistance, corrosion resistance, and high electrical insulation. It significantly reduces the assembly complexity and overall manufacturing costs of precision ceramic components.

Applications and Key Advantages

1. Wide Range of Industrial Applications
   Thanks to its exceptional mechanical strength and chemical inertness, this product plays a critical role in multiple high-end manufacturing sectors:
   Photovoltaic equipment and specialty glass manufacturing: In high-temperature, high-purity production environments, alumina threaded components provide stable structural support without introducing metal impurity contamination.
   Mining machinery: Faced with intense friction and impact, their extremely high wear resistance ensures the long-term stable operation of equipment.
   Chemical Plants: In corrosive media such as strong acids and alkalis, aluminum oxide threaded components demonstrate excellent corrosion resistance, effectively replacing easily worn-out metal fasteners.
2. Why Choose Injection Molding?
   Near-net-shape manufacturing for cost reduction and efficiency improvement: Directly injection-molding the threaded shape eliminates the need for costly secondary machining steps, making it particularly suitable for high-volume production of components with complex geometries.
   Superior Material Modification: We use a high-purity alumina matrix; some products incorporate zirconia toughening technology, which increases fracture toughness by approximately 30%, effectively overcoming the brittleness typically associated with ordinary ceramics.
   Flexible Structural Design: In addition to standard external and internal threads, we can integrally mold composite structures such as guide threads and flanges, enhancing the overall rigidity of connection points.

We fully understand the stringent requirements for precision ceramic components across various industrial applications, which is why we offer one-stop, customized services—from material formulation and mold development to injection molding. Whether you need standard metric threads or special custom-shaped parts, we can provide you with cost-effective solutions. Feel free to contact us at any time to receive a customized solution for aluminum oxide injection-molded threads and the latest quote!
