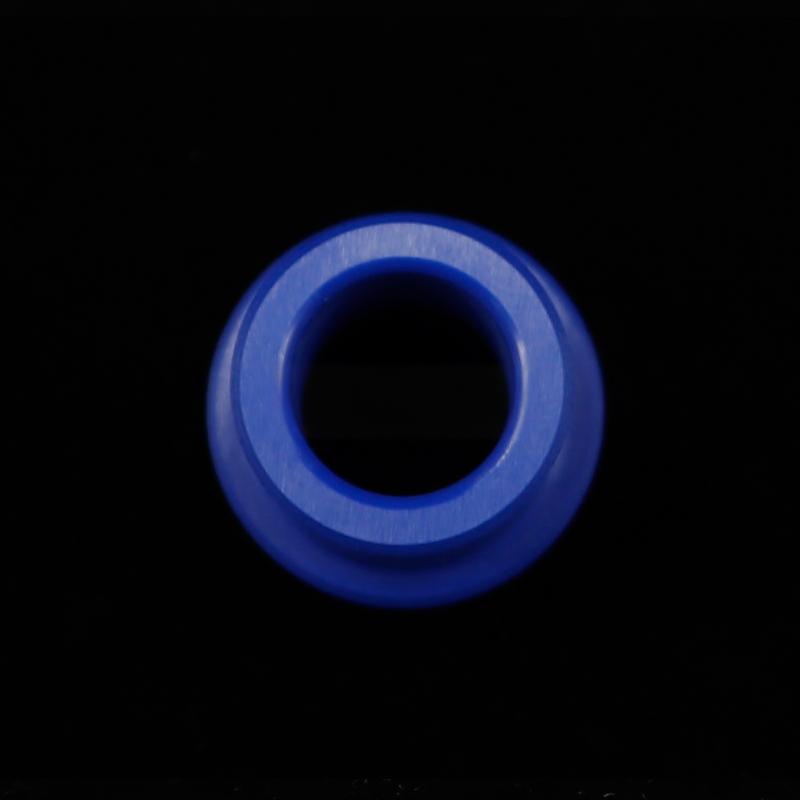

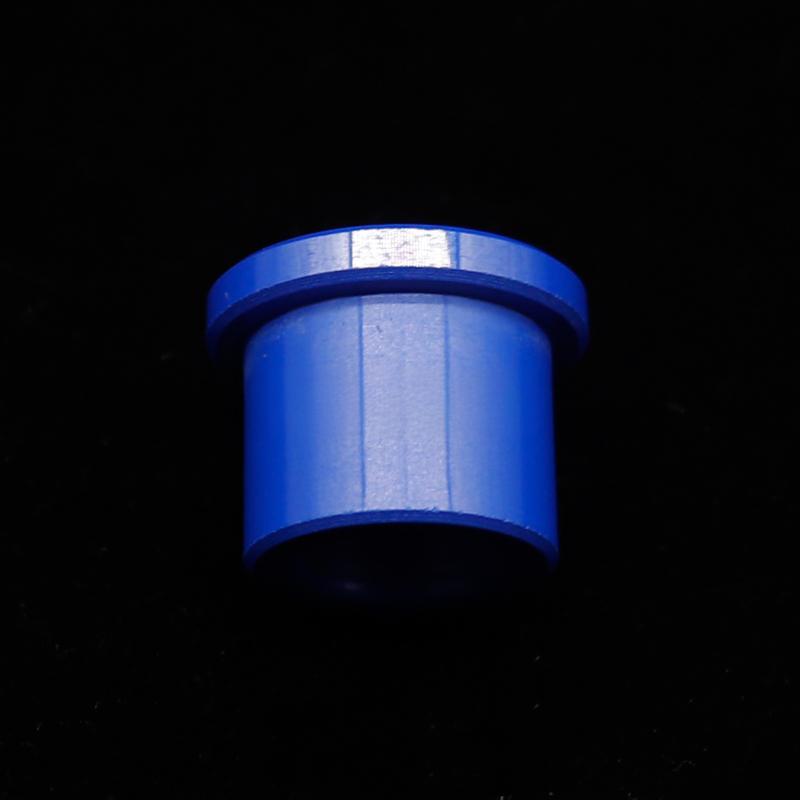

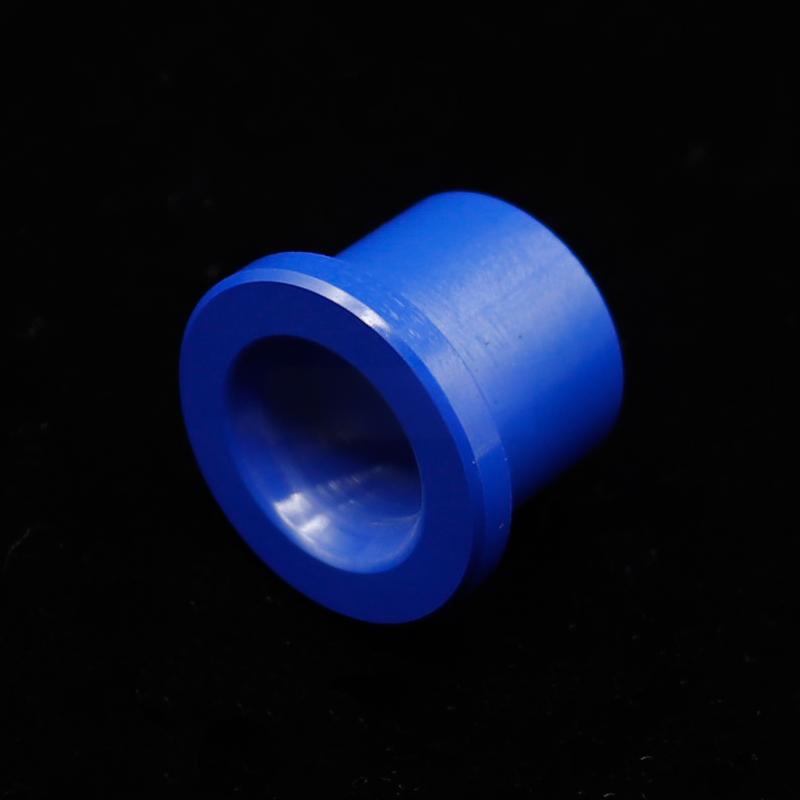

Blue zirconia ceramic shaft sleeve

Blue zirconia ceramic shaft sleeve is a high rigidity component made of high-performance yttrium stabilized zirconia powder through isostatic pressing and precision machining. Its unique blue appearance not only facilitates identification and anti mixing, but also represents the optimized density and high purity inside the material. Compared to traditional metal shaft sleeves, it achieves a perfect combination of insulation, wear resistance, corrosion resistance, and “zero self lubrication”, providing long-lasting protection for rotational motion under high-precision, high pollution, and strong corrosion conditions.

Product FAQ: Targeting the Core Pain Points of Users
Q: My equipment often experiences a decrease in accuracy due to wear and tear on the metal shaft sleeve, and frequent shutdowns for maintenance give me a headache. What should I do?
Answer: Our blue zirconia ceramic shaft sleeve has a hardness of HRA90 or above, and its wear resistance is more than 10 times that of bearing steel. It can greatly extend the maintenance cycle and maintain equipment assembly accuracy for a long time.
Q: In seawater or strong acid environments, metal shaft sleeves rust and corrode too quickly. Is there a more durable alternative solution?
Answer: Zirconia ceramics are inert materials and can even exist stably in aqua regia. After replacing with blue zirconia shaft sleeves, the problem of electrochemical corrosion can be completely solved, especially suitable for marine and chemical pump valve scenarios.
Q: How to avoid metal powder falling off and contaminating products in dust-free workshops or semiconductor equipment?
Answer: The blue zirconia shaft sleeve not only does not generate metal dust during movement, but its surface smoothness can reach Ra 0.1 μ m or less, and the friction coefficient is extremely low, making it an ideal choice for clean and vacuum environments.
Q: There is strong electric field interference in the equipment, and insulation isolation is required. What should be done if metal parts are not conductive?
Answer: Zirconia ceramics are excellent insulators that can withstand high voltage breakdown. Our blue zirconia shaft sleeve can effectively block current, ensuring the safety of electronic devices and personnel.

Product core advantage: Why choose blue zirconia?

1. Excellent mechanical performance
   The bending strength of blue zirconia ceramics can usually reach 900-1200MPa, and the fracture toughness is much higher than that of ordinary ceramics. It not only has high hardness, but also possesses rare “toughness”, which can withstand impact loads under high-speed operation without brittle fracture.
2. Ultimate surface and dimensional accuracy
   Through precision grinding with diamond grinding wheels, the outer diameter tolerance of our shaft sleeve can be controlled within ± 0.002mm, and the concentricity can reach up to 0.01mm. This high-precision fit can effectively eliminate vibration and ensure the stability of the equipment under high-speed operation.
3. Self lubrication and high temperature resistance
   Ceramic materials themselves have self-lubricating properties and can still function normally in the absence of lubricating oil. At the same time, it has excellent high-temperature resistance and can maintain stable shape in environments above 800 ° C, making it very suitable for high-temperature furnace rollers or heat treatment equipment.

Product application areas
Blue zirconia ceramic shaft sleeves play an irreplaceable role in multiple demanding fields due to their unique properties:
-Semiconductor and LCD panel manufacturing: as a sleeve for vacuum coating equipment or transmission rollers, utilizing its plasma corrosion resistance and anti-static properties.
-Medical equipment: used in components such as CT machines, dental drills, and mobile phones that require high-speed rotation and avoid metal allergies.
-Chemical process pump: replacing graphite or metal shaft sleeves, resistant to strong acid and alkali corrosion, ensuring the purity and safety of fluid transportation.
-Precision instruments: As rotating support components for laser equipment or optical adjustment frames, they provide nanoscale stability.

Specifications, Dimensions, and Customization Services
We are well aware that standard parts cannot meet all unique needs, so we provide comprehensive customized services based on drawings:
-Size range: The inner diameter of the shaft sleeve can be machined from 1.0mm to 300mm, and the length can be customized according to customer needs.
-Irregular machining: Whether it is a shaft sleeve with flange, a shaft sleeve with keyway, or a stepped special structure, we can achieve corner cleaning through CNC technology.
-Surface treatment: Mirror polishing or special anti-static treatment can be provided according to needs.

Customer Application Cases
Case: Semiconductor wafer transfer equipment manufacturer – Jiangsu Precision Machinery Co., Ltd
-Background and Requirements:
During the operation of the company’s wafer transfer robotic arm, the metal composite shaft sleeve originally used produced trace amounts of metal particles due to frequent start stop and micro motion wear, resulting in surface contamination of the wafer and a decrease in yield. At the same time, the equipment needs to operate in a vacuum environment for a long time, and the volatilization of traditional lubricants can contaminate the chamber. They urgently need a “lubrication free, zero pollution” solution.
-Our solution:
We recommended the blue zirconia ceramic shaft sleeve to the customer as a replacement for the original metal shaft sleeve. We have designed a thin-walled shaft sleeve with an inner diameter of 12mm, an outer diameter of 18mm, and a length of 25mm for its specific installation dimensions. By utilizing the self-lubricating properties of zirconia, dry operation of the equipment has been achieved; Meanwhile, through precise grinding, the precise fit between the shaft sleeve and the ceramic shaft is ensured, eliminating operational shaking.
-Final effect:

1. Yield improvement: After replacement, the particle detection value in the cavity decreased to 0, and the wafer scratch problem was completely solved, resulting in a direct 3% increase in product yield.
2. Extended lifespan: After 12 months of continuous operation, the wear on the inner diameter of the shaft sleeve can be almost negligible, and the expected service life is more than 8 times that of a metal shaft sleeve.
3. Maintenance cost: The equipment maintenance cycle has been extended from once a month to once every six months, significantly reducing labor costs and downtime losses.

If you are looking for high-precision, wear-resistant, and customizable non-metallic shaft sleeve solutions, we sincerely invite you to provide drawings or samples. Whether it’s standard or irregular parts, our engineering team will provide you with one-stop service from material selection to mass production.
