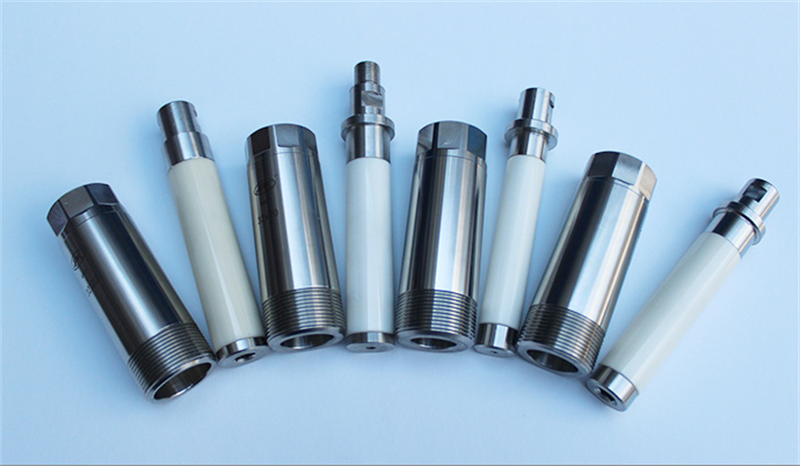

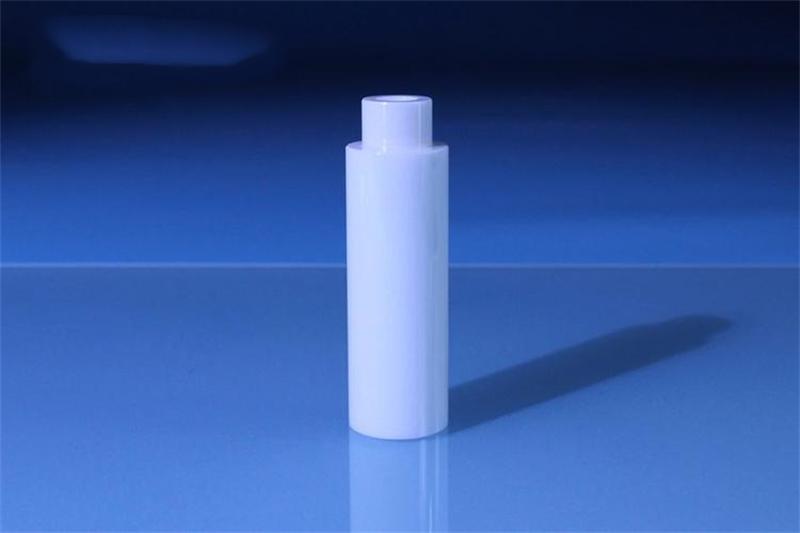

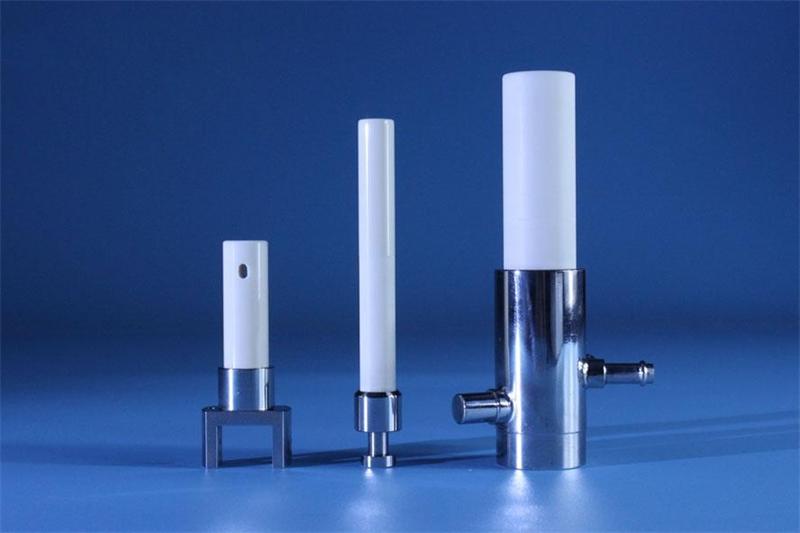

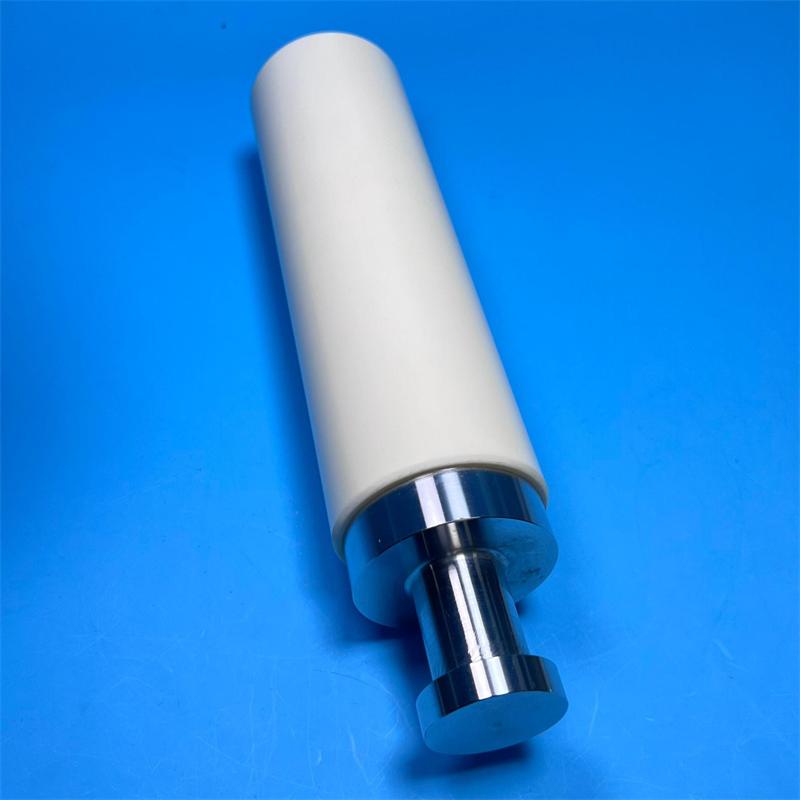

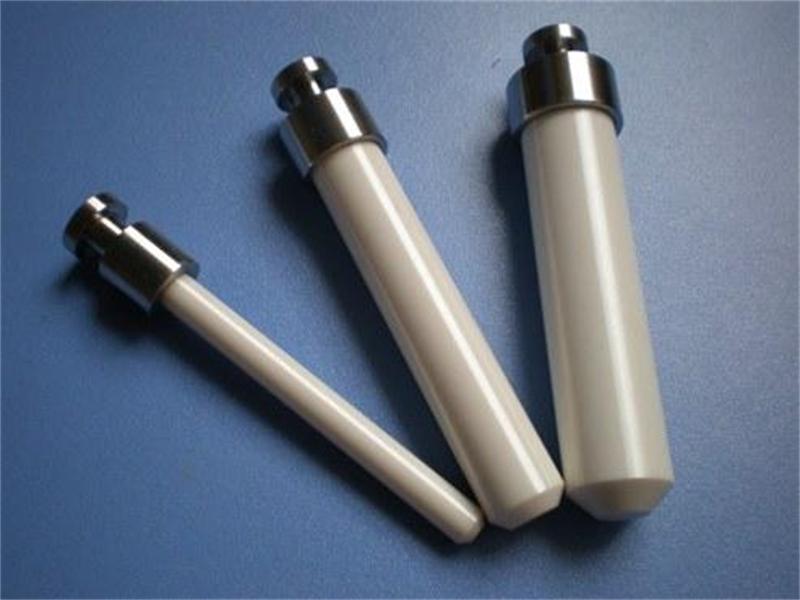

Stainless steel zirconia ceramic plunger

Stainless steel zirconia ceramic plunger is a precision fluid control core component that combines metal structural strength with excellent ceramic surface properties. This product is based on stainless steel to provide impact resistance support, and the working end is made of high-purity zirconia ceramic, which has ultra-high hardness, wear resistance, and strong corrosion resistance. Through precision inlay and adhesive technology, stable composite is achieved, perfectly solving the problems of corrosion and short service life of traditional metal plungers. It is an ideal choice for high-precision transportation in the fields of medicine, chemical engineering, and new energy.

FAQ
Q1: How is the stainless steel zirconia ceramic plunger combined with metal and ceramic?
A: The product adopts precision thread connection and embedding technology, combining ceramic plunger with stainless steel drive components, and sealing and anti loosening treatment with corrosion-resistant adhesive at the interface. This combination ensures the convenience of detachable maintenance, avoids assembly stress concentration, and ensures no leakage under high pressure conditions.
Q2: Compared to traditional metal plungers, how does the service life of zirconia ceramic plungers improve?
A: Zirconia ceramics have extremely high hardness and chemical inertness, and their wear resistance life is usually 5-10 times that of traditional chrome plated steel or metal plungers. At the same time, its surface microporous structure has a self-lubricating effect, which can significantly improve the service life of the sealing packing and greatly reduce the frequency of equipment maintenance.
Q3: Does the product support customized non-standard sizes?
A: Fully supported. We provide customized services ranging from standard specifications (such as Φ 24mm to Φ 57mm) to completely non-standard sizes. We can conduct exclusive research and precision machining based on customer provided drawings and operating requirements (such as temperature resistance, pressure resistance, and medium type) to meet the assembly needs of different equipment.

Addressing user needs and value
From the perspective of actual user usage, stainless steel zirconia ceramic plungers mainly solve the following core challenges for you:
Dealing with strong corrosive media: Thoroughly solve the corrosion of metal parts by strong acids, strong alkalis, or organic solvents, and avoid frequent equipment scrapping.
Ensure extremely high purity: eliminate metal ion precipitation and particle detachment, meet the strict requirements of pharmaceutical GMP standards and semiconductor and new energy batteries for “zero pollution”.
Reduce comprehensive operation and maintenance costs: Although the initial investment is slightly higher than that of ordinary metal parts, the long service life and extremely low downtime maintenance rate can save enterprises a lot of long-term replacement and labor costs.

Advantages and Application Value
The stainless steel zirconia ceramic plunger provides reliable assurance for modern precision fluid transportation through the synergistic advantages of material science

1. Ultimate wear and corrosion resistance
   Zirconia ceramics have a Mohs hardness of up to 8-9 levels and a compressive strength of up to 2100MPa. When conveying high viscosity (up to 20000 CPS) or corrosive media, its quality loss rate is extremely low, perfectly resisting strong acid and alkali erosion, and solving the problem of rapid accuracy degradation of traditional metal pumps.
2. Excellent precision measurement and sealing performance
   Through CNC grinding and laser polishing processes, the cylindricity error of ceramic working surfaces can be controlled within ≤ 0.005mm, and the surface roughness can reach mirror level (Ra ≤ 0.05 μ m). This high-precision combination enables measurement accuracy to reach 0.1% -0.5%, with no pulsating output, ensuring precise control of every drop of fluid.
3. Wide customization of specifications and flexible adaptation
   We are well aware of the differences in operating conditions of different equipment and provide comprehensive customized services. Whether it is a miniature medical pump or a large industrial hydraulic system, the outer diameter, length, and connection method can be customized according to the needs. The special anti detachment structure design ensures the reliability of the connection during high-frequency reciprocating motion.
4. Wide applicability across industries
   Medicine and food: resistant to high temperature steam sterilization above 140 ℃, easy to clean without dead corners, suitable for vaccine and water injection filling.
   New energy and semiconductors: meet the limit requirement of less than 0.1ppb of iron ion precipitation for electrolyte and photoresist transportation.
   Petrochemical industry: Stable transportation of catalysts and polymers under high pressure and extreme temperature of 30MPa.

Overcoming application challenges and our reasons for choosing
In practical industrial applications, users often face challenges such as high wear and tear leading to seal failure, and medium contamination causing a decrease in product yield. The stainless steel zirconia ceramic plunger eliminates these hidden dangers from the root by virtue of its chemical inertness and self-lubricating properties.

Customer application case: A lithium battery electrolyte injection project
Application background: A lithium battery manufacturing enterprise encountered severe technical challenges during the new electrolyte injection process. Traditional metal plungers, after long-term exposure to highly corrosive electrolytes, not only exhibit severe corrosion pits on the surface, but also cause trace metal ions to mix into the electrolyte, directly affecting the cycle life and safety of the battery. In addition, the metal plunger wears out too quickly, causing fluctuations in injection accuracy and requiring weekly shutdowns for replacement, seriously slowing down production capacity.
Solution: The enterprise introduces our customized stainless steel zirconia ceramic plunger. For the special chamber of its injection pump, we have designed a dedicated embedded anti drop structure and polished the ceramic working surface to the ultimate mirror state of Ra0.02 μ m.
Application effect: After being put into use, the zirconia ceramic plunger exhibits excellent chemical stability, and the surface remains smooth and new even after continuous operation for 6 months. The amount of metal ion precipitation in the electrolyte is stably controlled below 0.05ppb, greatly improving the battery yield rate. At the same time, the lifespan of the plunger has been increased by more than 8 times compared to the original metal parts, and the injection accuracy has always remained within ± 0.3%. This has saved the enterprise over a million yuan in equipment maintenance and downtime losses every year, and has gained high recognition from customers.

If you are looking for high-precision and long-life fluid control solutions, or need customized services for stainless steel zirconia ceramic plungers for special working conditions, please feel free to contact us at any time for exclusive technical solutions and quotations!

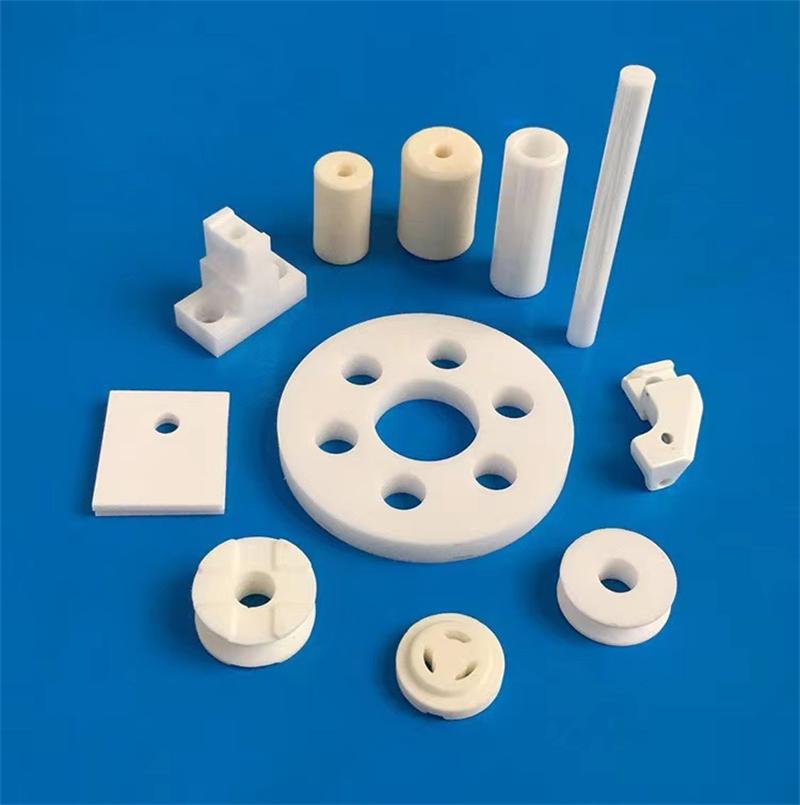

Brudeze Ceramics supplies and sells a wide range of high-quality quartz glass, including alumina ceramics, zirconia ceramics, silicon nitride ceramics, aluminum nitride ceramics, silicon carbide ceramics, boron carbide ceramics, bioceramics, machinable ceramics, etc. We can meet the customization requirements of various ceramic products.
