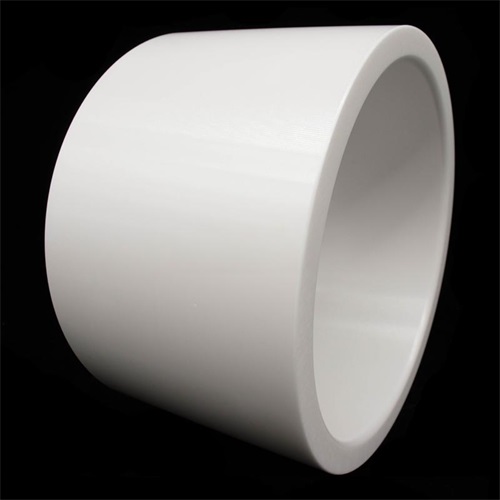

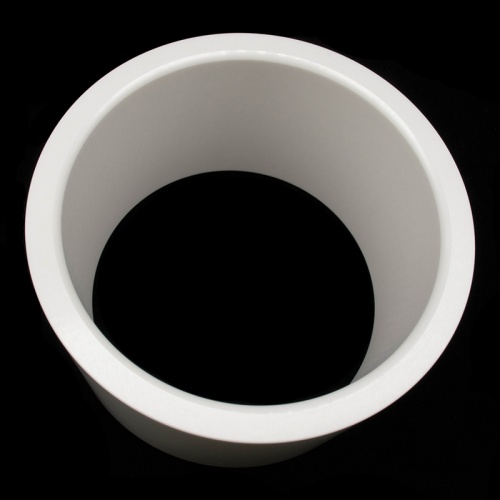

10-300mm zirconia ceramic ring

10-300mm zirconia ceramic ring is a high-performance precision ceramic component made of high-purity zirconia (ZrO ₂) material, which has excellent mechanical strength, wear resistance, high temperature resistance, and chemical stability. Zirconia ceramic rings are widely used in industrial, medical, electronic, chemical and other fields due to their excellent performance.

Main features:
-High strength and toughness: Zirconia ceramics have much higher fracture toughness than ordinary ceramics, and their bending strength can reach 800-1200MPa, making them suitable for high load environments.
-Excellent wear resistance: high hardness (HV ≥ 1200), excellent wear resistance, long service life.
-High temperature resistance: It can work stably in high temperature environments of 800-1200 ℃, with low thermal expansion coefficient and good thermal shock resistance.
-Chemical inertness: Resistant to acid and alkali corrosion, suitable for strong acid, strong alkali, and organic solvent environments.
-Insulation performance: high resistivity, suitable for electronic insulation applications.
-Precision machining: High dimensional accuracy (up to ± 0.01mm), good surface smoothness (Ra ≤ 0.2 μ m).

Specification parameters:
-Inner diameter range: 10mm-300mm (supports non-standard customization)
-Outer diameter range: 12mm-350mm (adjusted according to requirements)
-Height range: 1mm-100mm (customizable with different thicknesses)
-Material grade: 3Y-TZP (Yttrium stabilized zirconia), 5Y-TZP (High toughness zirconia)
-Color: White, Black (customizable according to requirements)

Application Fields
Zirconia ceramic rings are widely used in the following industries due to their excellent performance:

1. Industrial Machinery
   -Bearings and bushings: used for high-speed and high load equipment to reduce friction losses.
   -Sealing ring: a corrosion-resistant and wear-resistant sealing component suitable for equipment such as pumps, valves, and compressors.
   -Guide wheels and rails: used for precision machining equipment to improve positioning accuracy.
2. Electronics and Semiconductors
   -Insulation ring: used for insulation support in high-frequency electronic components and semiconductor equipment.
   -Vacuum chamber components: resistant to high temperature and plasma corrosion, suitable for semiconductor coating equipment.
3. Medical and Bioengineering
   -Artificial joints and dental implants: have good biocompatibility and are suitable for medical implants.
   -Surgical instrument components: resistant to high temperature disinfection, corrosion-resistant, and extend the service life of instruments.
4. Chemical and Energy
   -Corrosion resistant reactor liner: suitable for chemical reaction vessels in strong acid and alkali environments.
   -Fuel cell components: Electrolytes and connectors used in solid oxide fuel cells (SOFCs).
5. Aerospace and Military Industry
   -High temperature structural components: used for high-temperature resistant parts such as aircraft engines and missile guidance heads.
   -Wear resistant protective ring: suitable for mechanical protection in extreme environments.

Customized service
We provide comprehensive zirconia ceramic ring customization services to meet the special needs of different industries

1. Size customization
   -Support customized non-standard sizes (inner diameter, outer diameter, height), with tolerances controlled within ± 0.005mm.

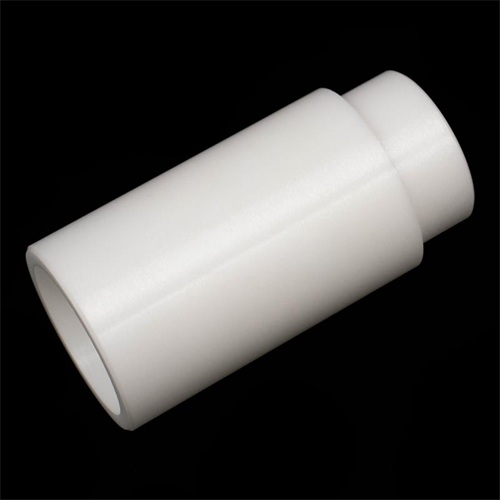

   -Provide irregular ceramic rings (such as stepped, conical, perforated, and other special structures).
2. Material optimization
   -Provide different zirconia formulations (3Y-TZP, 5Y-TZP, partially stabilized zirconia PSZ, etc.) to optimize mechanical properties.
   -Special elements such as Al ₂ O ∝ and CeO ₂ can be added to enhance specific properties such as thermal shock resistance.
3. Surface treatment
   -Polishing: Mirror polishing (Ra ≤ 0.1 μ m), suitable for high-precision seals.
   -Coating: It can be plated with silicon carbide (SiC), titanium nitride (TiN) and other materials to enhance wear resistance.
   -Laser marking: supports the engraving of product numbers, logos, and other identification marks.

10-300mm zirconia ceramic rings have become key components in high-end industrial and technological fields due to their excellent performance and wide range of application scenarios. We are committed to providing customers with high-quality zirconia ceramic products and offering professional customized services to meet the demanding needs of different industries. If you need further information about the product or to obtain samples, please feel free to contact us at any time!

Brudeze Ceramics supplies and sells a wide range of high-quality quartz glass, including alumina ceramics, zirconia ceramics, silicon nitride ceramics, aluminum nitride ceramics, silicon carbide ceramics, boron carbide ceramics, bioceramics, machinable ceramics, etc. We can meet the customization requirements of various ceramic products.
