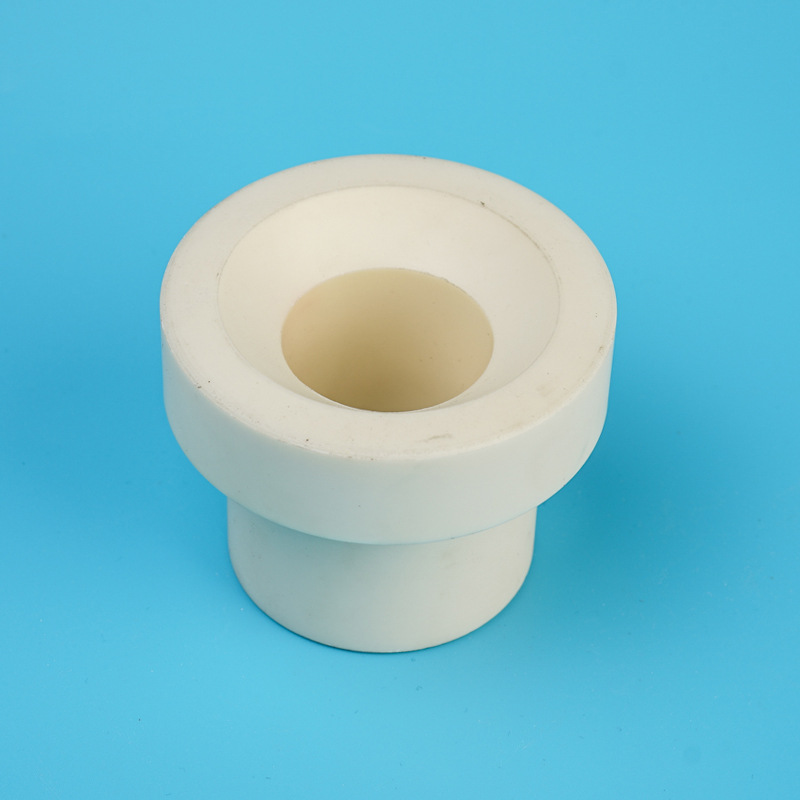

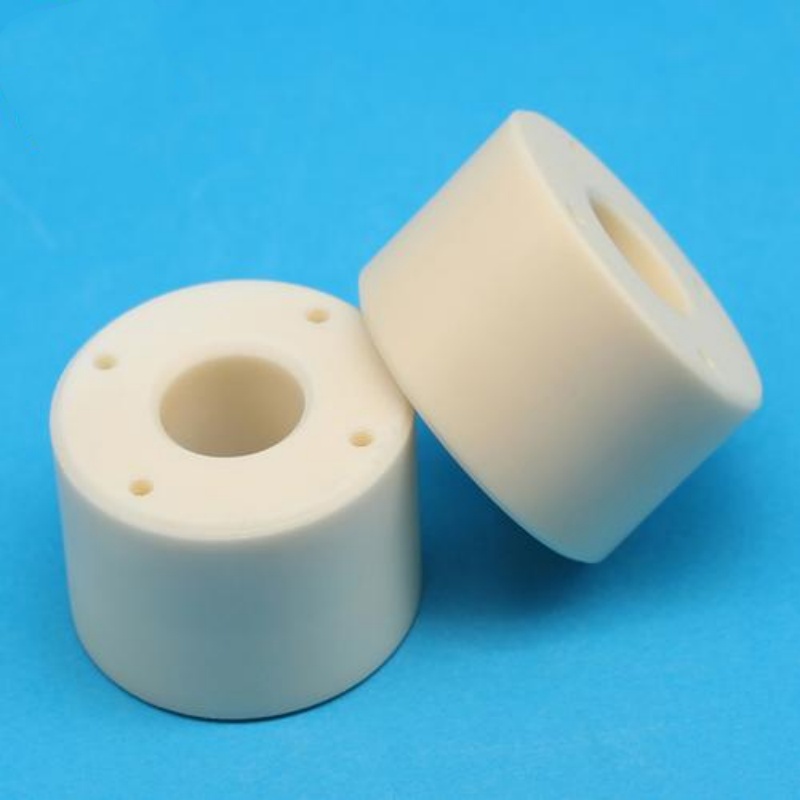

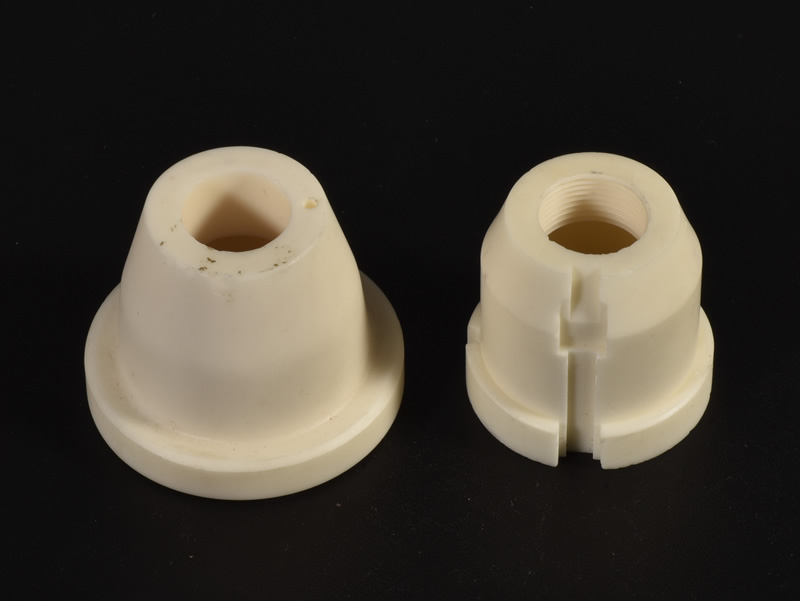

Aluminum oxide ceramic annular ceramic sleeve

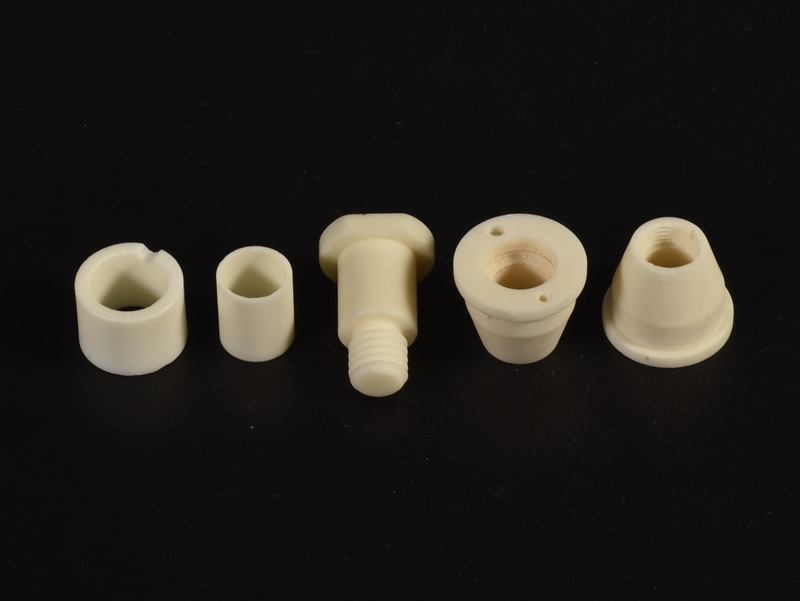

Aluminum oxide ceramic annular ceramic sleeve is a circular structure ceramic component made from high-purity aluminum oxide (Al ₂ O ∝) through precision molding and high-temperature sintering. With its excellent insulation, wear resistance, high temperature resistance, and chemical stability, it is widely used in laser equipment, semiconductors, electronic packaging, sensors, and fluid control systems as insulation sleeves, positioning rings, guide sleeves, or connectors, providing critical support for high-precision and high reliability industrial scenarios.

Frequently Asked Questions (FAQ)
Q: What are the purity options for alumina ceramic ring sleeves? What is the difference between different purities?
A: We offer two mainstream purity levels of alumina ceramic rings, 95% and 99%. 95% alumina ceramics have low cost, mechanical strength, and insulation properties that meet most industrial needs; 99% alumina ceramics have higher purity, better density, superior wear resistance, high temperature resistance, and electrical insulation, making them suitable for high-precision and high reliability applications such as semiconductor equipment or high-frequency electronic devices.
Q: Does the circular ceramic sleeve support customized non-standard sizes? What is the minimum tolerance that can be achieved?
A: Yes, we support full-size customization services. We can customize structures such as inner diameter, outer diameter, height, chamfer, notch, thread, etc. based on customer drawings or samples. Conventional machining tolerances can be controlled within ± 0.05mm, while high-precision grinding processes can achieve a precision tolerance of ± 0.01mm, meeting the requirements of precision assembly.
Q: How high temperature can this ceramic ring withstand? Is it resistant to high temperature impact?
A: 99% alumina ceramics can work stably in environments below 1600 ° C for a long time, with a short-term temperature resistance of up to 1750 ° C. They have a low coefficient of thermal expansion, good thermal shock resistance, and can withstand rapid temperature changes from high temperature to room temperature. They are suitable for working conditions with frequent thermal cycles such as high-temperature furnaces and laser welding.
Q: Is the ceramic ring conductive? Can it be used in high-voltage insulation scenarios?
A: Alumina ceramics are excellent electrical insulation materials with a volume resistivity of up to 10 ¹⁴Ω· cm and a dielectric strength exceeding 15 kV/mm. They are fully suitable for electronic devices with high voltage, high frequency, and high insulation requirements, such as IGBT modules, high voltage sensors, vacuum devices, etc.

Addressing core user needs
High insulation requirements: In high-voltage and high-frequency electronic equipment, prevent leakage and breakdown to ensure system safety.
Wear resistant and long-lasting: In environments with frequent friction or particle erosion, it can replace metal or plastic parts and extend their service life.
High temperature resistance and thermal stability: Maintain structural integrity without deformation or cracking in hot environments such as high-temperature furnaces and laser equipment.
Precision assembly requirements: Through high-precision machining, achieve tight fit with metal parts and other ceramic parts, and improve the overall performance of the machine.
Corrosion resistance: Stable operation in acidic, alkaline, or corrosive gas environments to avoid rusting of metal components.

Core advantages and application value of the product

1. Excellent material performance
   Using high-purity alumina powder, it is formed by isostatic pressing and sintered at high temperatures above 1600 ° C to ensure that the material is dense, pore free, and has high strength. 99% alumina ceramics have a bending strength of 300-400 MPa and a hardness of HRA85 or higher, far exceeding ordinary engineering ceramics.
2. Precision machining capability
   Equipped with CNC precision machining centers, centerless grinders, internal cylindrical grinders and other equipment, it can achieve complex structural machining, such as internal threads, external threads, keyways, notches, conical surfaces, etc. Support customized drawings and sample copying to meet the needs of small batches and multiple varieties.
3. Diversified application scenarios
   Laser equipment: As a ceramic nozzle, insulation sleeve, and gas guide ring for laser heads, it ensures laser focusing accuracy and equipment stability.
   Semiconductor manufacturing: used for wafer transfer arm insulation, cavity sealing rings, and electrostatic chuck components to avoid pollution and electrical interference.
   Electronic power: As insulation gaskets for IGBT modules, ceramic sleeves for high-voltage relays, and protective tubes for sensors, it enhances electrical safety.
   Chemical and Fluid Control: Used for corrosion-resistant valve sealing rings, pump shaft sleeves, and flow meter insulation components, suitable for harsh chemical environments.
4. Flexible customization services
   We provide full process services from material selection, structural design, sample making to mass production. Support customized requirements for different purities, colors (white, beige), and surface treatments (polishing, sandblasting, metallization), with flexible minimum order quantities to meet different needs in the research and production stages.

Customer Application Cases
When a well-known laser equipment manufacturer was developing a new type of fiber laser welding head, the original stainless steel nozzle was prone to oxidation and conductivity in high temperature and high humidity environments, resulting in unstable laser focusing. We have customized a 99% alumina ceramic nozzle ring for it, with an inner diameter of Φ 3.2mm and an outer diameter of Φ 8.0mm, featuring M6 internal threads and a mirror polished surface. After testing, the ceramic ring showed no wear or carbon deposition after 500 hours of continuous operation. The stability of laser output power increased by 18%, and the equipment maintenance cycle was extended by three times. The customer has purchased it in bulk and applied it to their main models.

If you are looking for high-performance and high reliability alumina ceramic ring sleeves, please feel free to provide your specific needs – whether it is standard part replacement or new structure customization, we can provide you with professional solutions. Support small batch trial production, rapid prototyping, and assist in upgrading and innovating your products.
