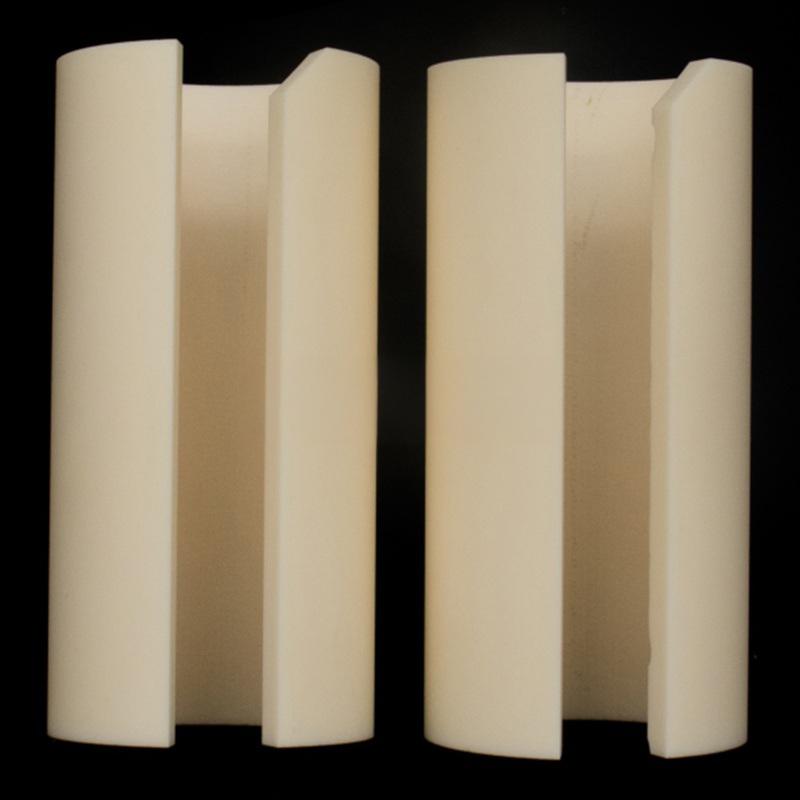

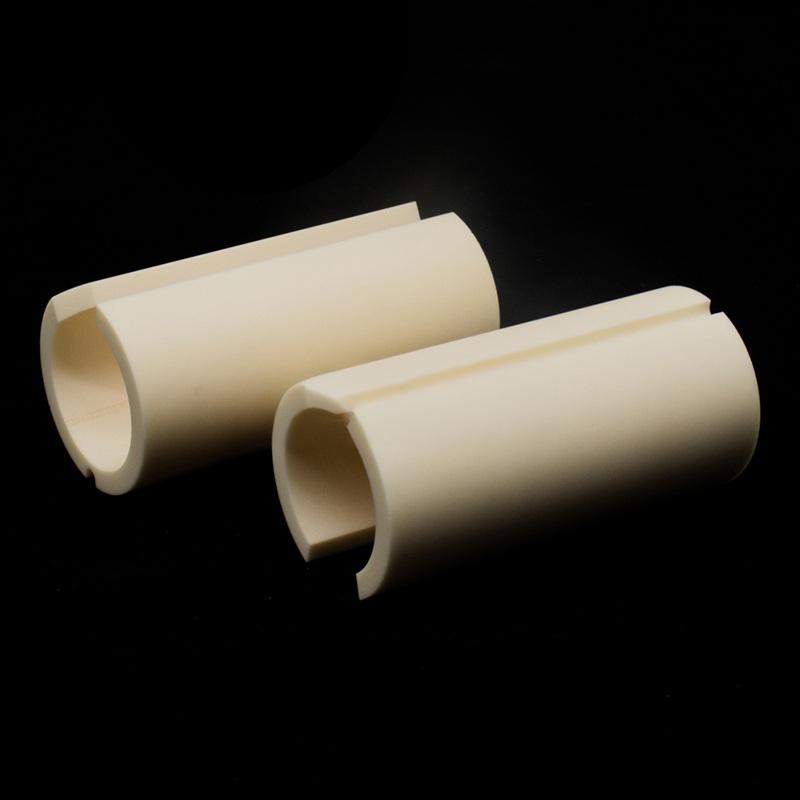

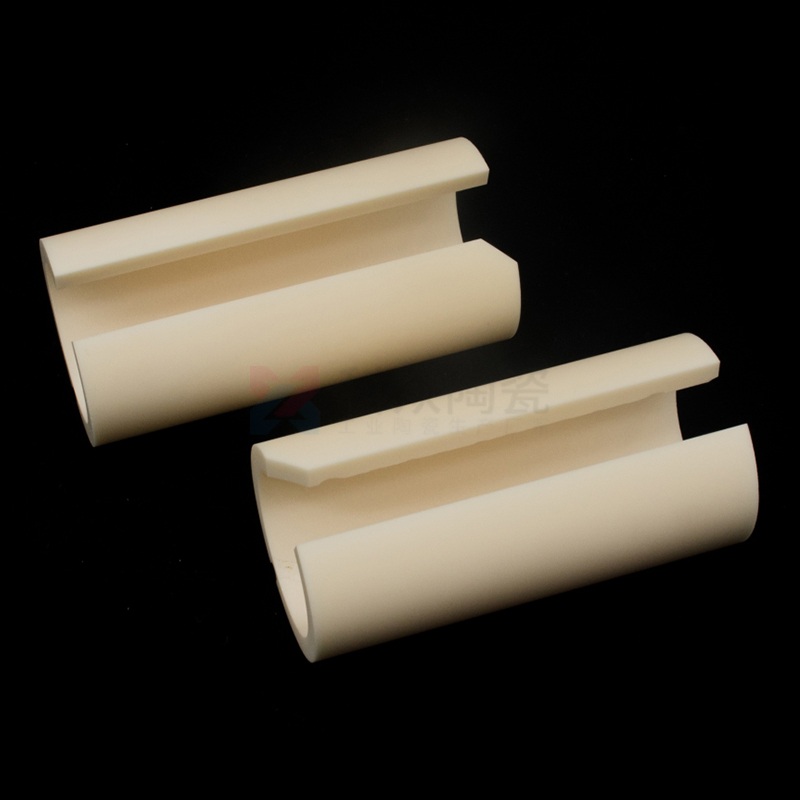

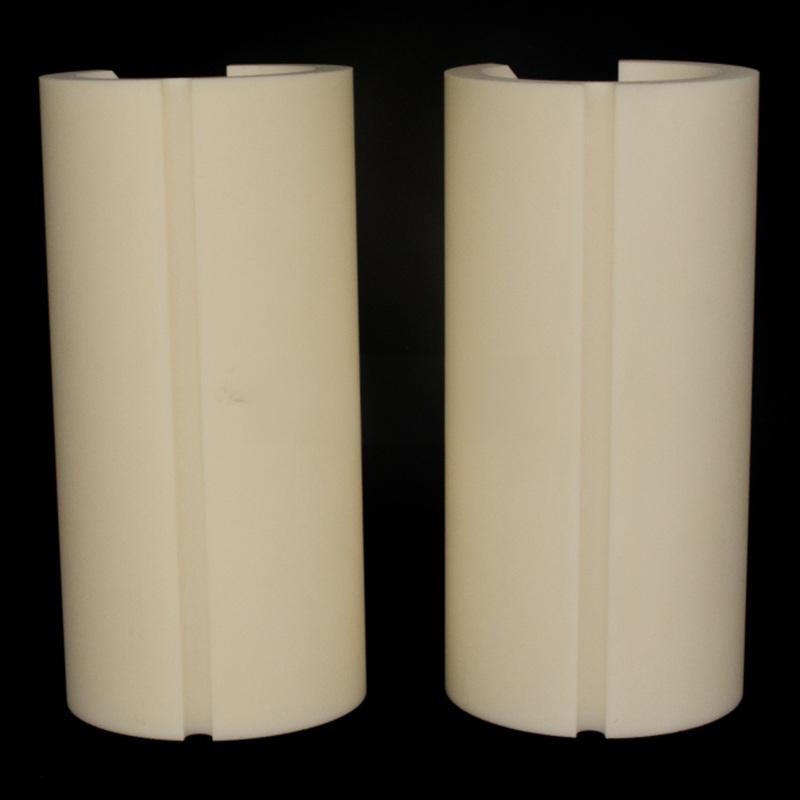

99 alumina ceramic insulation cylinder

Are you looking for insulation components with high temperature resistance, excellent insulation performance, and high mechanical strength?
Are you troubled by the problem of traditional materials being prone to aging, breakdown, or deformation in harsh environments?
Do you need customized sizes to meet special equipment or experimental needs?
99 alumina ceramic insulation cylinder is the ideal choice to meet your core needs! It provides electrical insulation, thermal stability, and mechanical support in extreme environments through ultra-high purity alumina material, and is widely used in fields such as new energy, electronics, aerospace, and high-temperature metallurgy, ensuring safe, efficient, and long-lasting operation of equipment.

99% alumina ceramic insulation cylinder is a tubular ceramic component made mainly of alumina (Al ₂ O3) with a purity of ≥ 99%, which is precision formed and high-temperature sintered. Its crystal structure is dense, with superior electrical insulation, corrosion resistance, high hardness, and thermal shock resistance. It can work stably for a long time under harsh conditions such as high temperature, high voltage, and strong corrosion, and is a benchmark material for high-end industrial insulation applications.

Core strengths

1. Excellent electrical insulation performance
   -Volume resistivity>10 ¹⁴Ω· cm, dielectric strength ≥ 15 kV/mm, effectively preventing high-voltage breakdown.
2. High temperature resistance and thermal stability
   -Long term use temperature up to 1600 ℃, low thermal expansion coefficient, and not easy to crack in sudden cooling and heating environments.
3. High strength and wear resistance
   -Compressive strength>2000 MPa, Mohs hardness level 9, resistant to mechanical impact and wear.
4. Chemical inertness
   -Resistant to acid, alkali, and molten metal corrosion, suitable for corrosive environments.
5. Precise dimensions and smoothness
   -The inner/outer diameter tolerance can be controlled within ± 0.1mm, and the surface smoothness Ra is ≤ 0.2 μ m, making it easy to integrate and install.

Typical application scenarios
-In the field of new energy: fuel cell stack insulation sleeves, electrolytic cell isolation liners.
-Electronic power: vacuum circuit breaker insulation tube, semiconductor diffusion furnace carrier.
-Aerospace: Sensor protective sleeves, engine ignition system insulation components.
-Industrial furnaces: high-temperature thermocouple protection tubes, sintering furnace lining tubes.
-Research equipment: Particle accelerator insulation components, vacuum system connectors.

Specification customization service
We support comprehensive customized production to meet diverse needs:
-Size range: Inner diameter 1mm~500mm, length ≤ 2000mm, wall thickness 0.5mm~50mm.
-Shape adaptation: various structures such as straight tube, cone, threaded mouth, flange end, etc.
-Surface treatment: polishing, coating, laser marking, metalized packaging.
-Quick response: Provide drawings or samples and provide technical solutions within 3 working days.

Customer Case (Anonymous)
-Case 1: A new energy vehicle company uses customized threaded insulation tubes for hydrogen fuel cell stacks, which can withstand wet hydrogen environments and temperature cycles, and increase insulation life by three times.
-Case 2: The European Organization for Nuclear Research purchases a batch of thin-walled insulated tubes for particle detector assembly, meeting the zero deformation requirements in ultra-high vacuum and radiation environments.
-Case 3: Domestic special motor factories replaced the original polymer insulation parts to solve the problem of short circuit in high-temperature windings, raising the upper limit of motor operating temperature to 600 ℃.

Welcome to send your requirements to customer service or upload drawings. Our engineering team will provide you with technical consultation and sample support within 24 hours. Click to contact for a one-stop ceramic insulation solution!

Brudeze Ceramics supplies and sells a wide range of high-quality quartz glass, including alumina ceramics, zirconia ceramics, silicon nitride ceramics, aluminum nitride ceramics, silicon carbide ceramics, boron carbide ceramics, bioceramics, machinable ceramics, etc. We can meet the customization requirements of various ceramic products.
