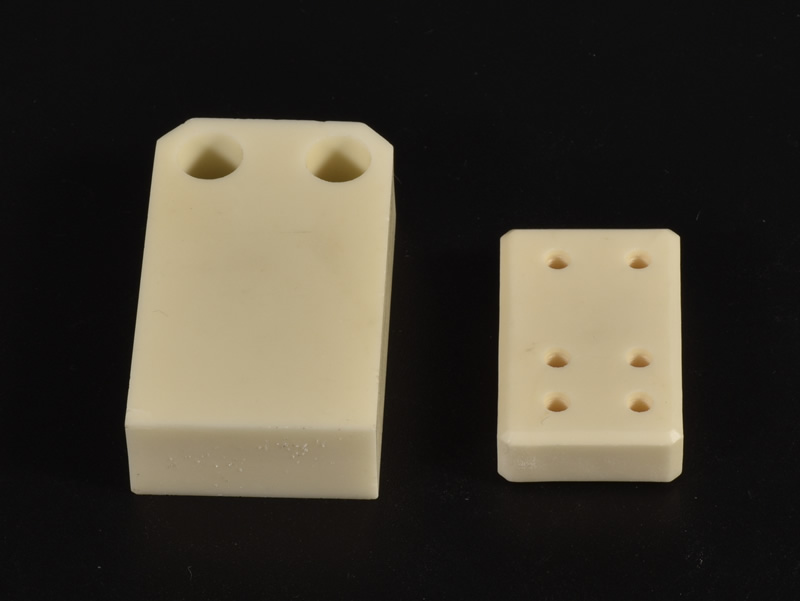

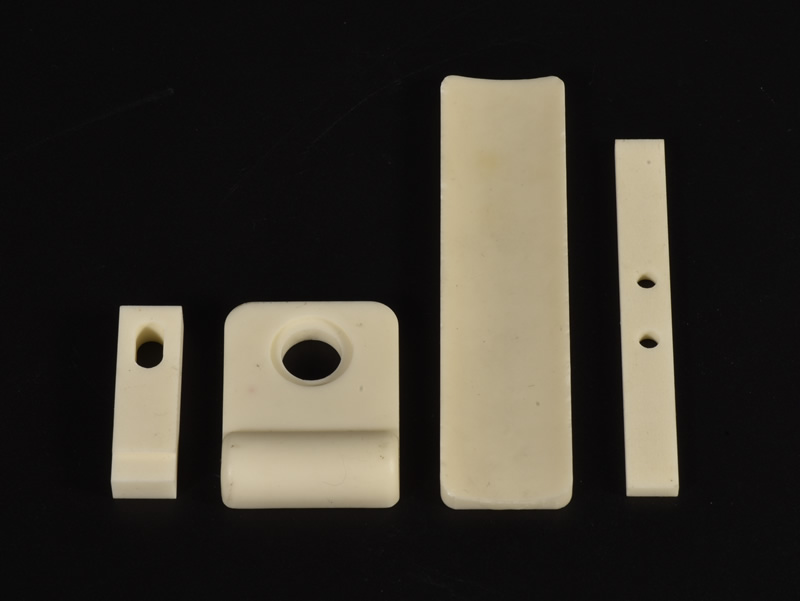

Aluminum oxide ceramic slider

Aluminum oxide ceramic slider, as a key wear-resistant component in modern industrial equipment, is gradually replacing traditional metal materials with its extremely high hardness, excellent high temperature resistance, and excellent chemical stability. It is designed to provide ultra long lifespan and maintenance free solutions under extreme working conditions, making it the best choice for improving equipment reliability and reducing overall operating costs.

Frequently Asked Questions (FAQ)
-Q: What are the main working conditions and environments that alumina ceramic sliders are suitable for?
Answer: It is particularly suitable for harsh environments with high temperature, strong corrosion, high wear, and high insulation requirements. For example, in acidic medium conveying equipment in the chemical industry, transmission components in high-temperature kilns, and automated production lines that require high-frequency friction, alumina ceramic sliders exhibit excellent adaptability.
-Q: What are its advantages compared to metal sliders?
Answer: The core advantage lies in lifespan. The Rockwell hardness of alumina ceramics is as high as HRA80-90, far exceeding that of ordinary steel, and its wear resistance is several times or even dozens of times higher. At the same time, it hardly reacts with acids and bases, and does not require regular lubrication like metal parts, effectively preventing equipment failures caused by lubrication failure.
-Q: Can your company provide customized services for non-standard sizes?
Answer: Absolutely possible. We have advanced precision machining equipment and a mature technical team, which can provide full-size customized services from micro precision sliders to large heavy-duty sliders based on customer provided drawings or specific application scenarios. The tolerance can be strictly controlled at the micrometer level to ensure perfect matching with customer equipment.

User core needs and solutions
Solving the problem of frequent downtime and replacement: Traditional metal sliders wear out quickly, leading to frequent downtime and maintenance on the production line. Our ceramic sliders extend their service life by 5-10 times, greatly improving the overall efficiency of the equipment.
Addressing failure issues in special environments: Metal parts are prone to deformation and corrosion in high temperature, acidic and alkaline environments, while alumina ceramics can maintain stable performance for a long time, ensuring continuous operation of equipment under harsh conditions.
Addressing the issue of high maintenance costs: eliminating the need for oil lubrication systems, completely bidding farewell to oil pollution and maintenance labor costs, and achieving the ideal state of “no maintenance after installation”.

Core advantages and application value of the product
1、 Excellent material performance
This product is made of high-purity alumina powder (with Al ₂ O3 content ≥ 95% or 99%), which is sintered at high temperature and precision processed. It has:
Ultra high hardness and wear resistance: The wear resistance is equivalent to 266 times that of manganese steel and 171 times that of high chromium cast iron, effectively resisting size loss caused by long-term sliding friction.
Excellent high temperature resistance: It can work stably for a long time at a high temperature of 1600 ℃, with higher short-term temperature resistance. It can still maintain high bending strength and rigidity at high temperatures.
Excellent corrosion resistance and insulation: except for hydrofluoric acid and hot phosphoric acid, it exhibits extremely high inertness to most acids, bases, and organic solvents, while also having excellent insulation properties, suitable for special fields such as electronic devices.
2、 Customized services, precise matching of needs
We are well aware that standard parts cannot meet all working conditions. Therefore, we provide users with flexible and comprehensive customized services:
Specification and size: The minimum size can be processed to millimeter level micro sliders, and the maximum size can meet the requirements of irregular structural components for large heavy-duty equipment.
Precision control: Provides various precision machining processes such as grinding, grinding, and polishing. Flatness, parallelism, and roughness can be customized as needed, up to mirror level.
Structural design: Multiple guiding structures such as V-shaped, T-shaped, and dovetail groove can be customized according to the device’s motion trajectory to ensure smooth sliding and no jamming.

Customer Application Cases
Case 1: A large-scale photovoltaic material production line (silicon wafer conveying guide slider)
Background issue: The customer originally used stainless steel sliders, but during high-speed transportation, a large amount of metal dust was generated due to high-frequency friction, resulting in surface contamination of silicon wafers. The sliders also need to be replaced every two weeks, which seriously affects production capacity and yield.
Solution: We have provided customized 99 alumina ceramic sliders for it, optimized the contact surface curvature between the slider and the guide rail, and carried out precision polishing treatment.
Application effect: The dust-free characteristics of ceramic sliders completely solve the problem of silicon wafer contamination, and the product yield has been improved by 4.5%. At the same time, after continuous high-speed operation for 6 months, the size wear of the slider is only 0.02mm, and the expected service life can reach more than 3 years, completely eliminating unplanned downtime caused by component wear, saving customers hundreds of thousands of yuan in spare parts replacement and manual maintenance costs every year.
Case 2: A fine chemical enterprise (high-temperature acidic medium pumping guide ring)
Background issue: When transporting high-temperature slurry containing sulfuric acid, the metal guide ring inside the equipment experiences severe pitting and size failure under the dual effects of high temperature and acid corrosion after only one week of operation, resulting in increased pump body vibration, seal damage, and a significant risk of leakage.
Solution: We use 99.7% high-purity alumina ceramics with stronger corrosion resistance, and have designed an integrated embedded ceramic guide ring based on the internal space of the pump body, replacing the original split metal components.
Application effect: The ceramic guide ring has been continuously operated in a strong acid, high temperature, and slurry environment containing solid particles for more than 8 months. After removal and inspection, it was found that the surface is still smooth, without any corrosion marks or obvious wear. The vibration value of the equipment during operation has been significantly reduced, and the service life of the seals has been extended, ensuring the safety and continuity of chemical production. The user has made this ceramic solution a standard configuration for their newly built production line.

Aluminum oxide ceramic sliders, with their excellent wear resistance, temperature resistance, and corrosion resistance, as well as the precise customization services we provide, have become the ideal choice for high-end equipment to achieve long-term, stable, and precise operation. No matter what harsh challenges you face, we can tailor the most reliable ceramic moving parts solution for you.
If you are looking for a slider that can completely solve the problem of wear and tear, please feel free to contact us for selection suggestions or submit your customization needs. We will be dedicated to serving you!
