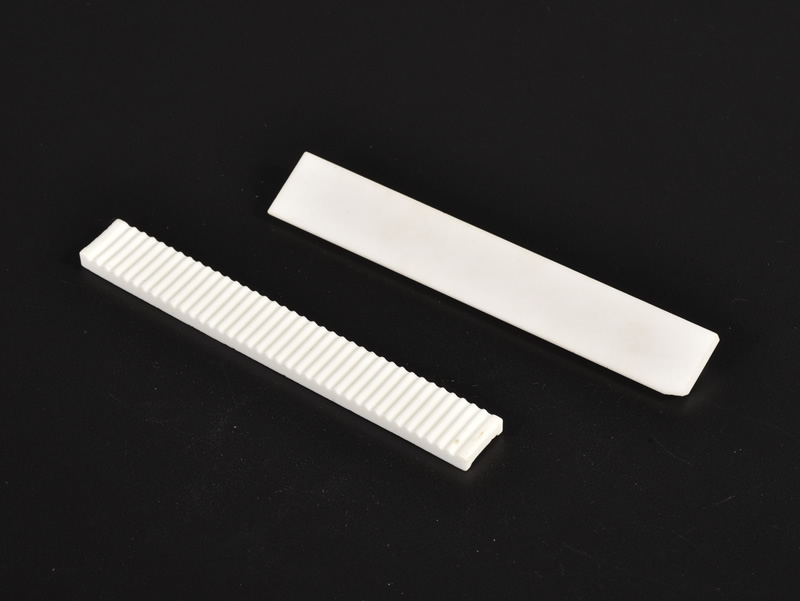

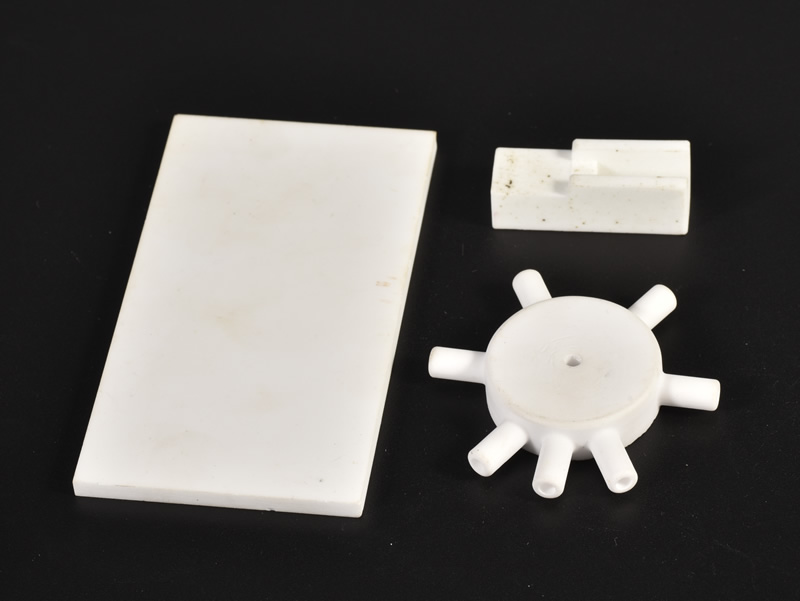

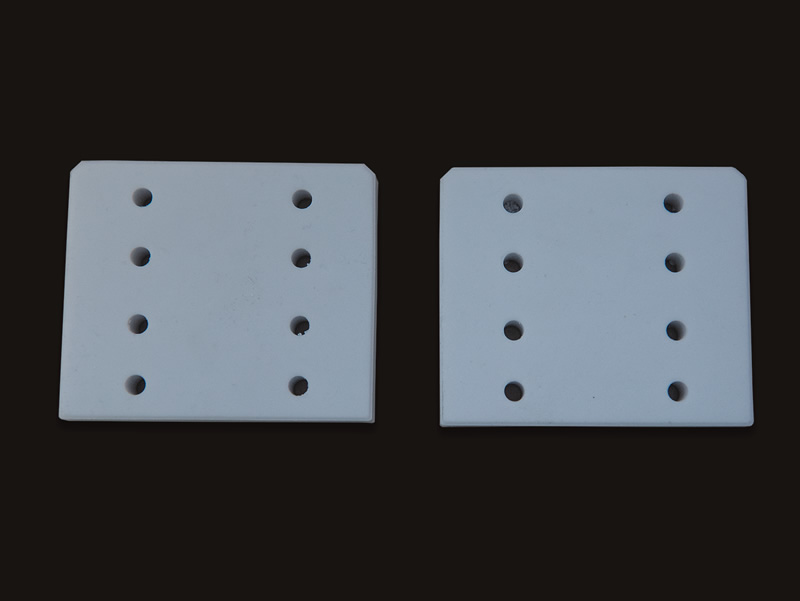

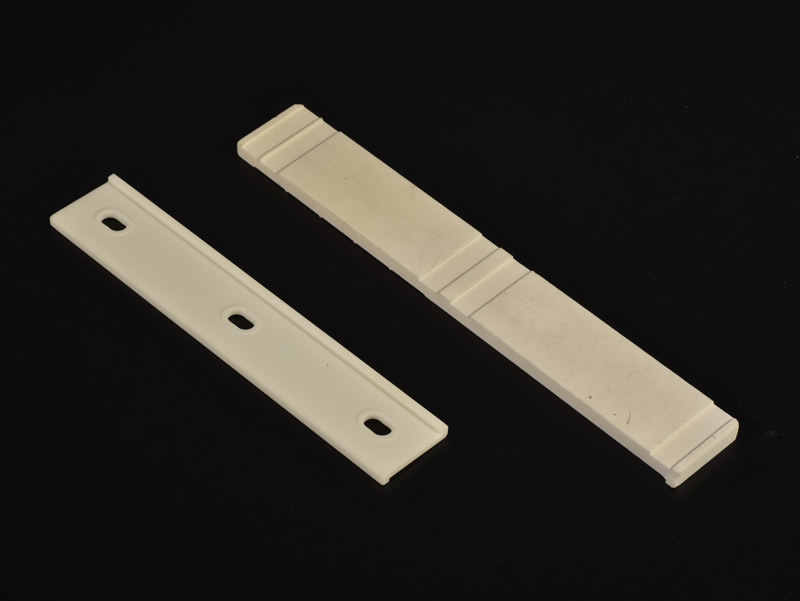

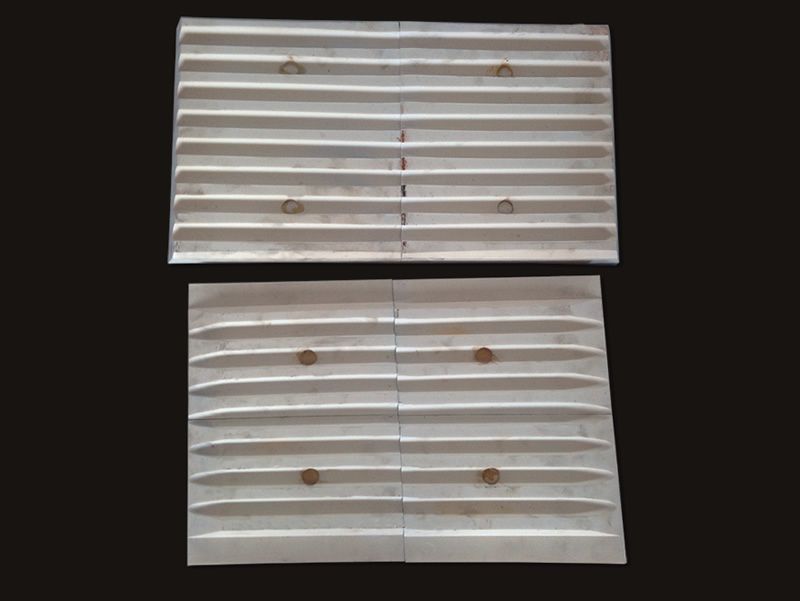

Aluminum oxide ceramic jaw breaking fixed plate

The alumina ceramic jaw plate is an advanced solution designed specifically for the core working components of jaw crushers (jaw crushers) – the moving jaw plate and the fixed jaw plate (collectively referred to as the jaw plate) – to provide excellent wear-resistant protection. It is made of high-purity alumina ceramic material, which is compounded with steel plates through special processes. It aims to address the serious wear and tear problems faced by crushing equipment in processing high hardness and high abrasive materials, significantly extend equipment service life, improve production efficiency, and reduce maintenance costs. It is an ideal upgrade choice for crushing equipment in modern mining, metallurgy, building materials and other industries.

Frequently Asked Questions (FAQ)
Q: What is the main material of the alumina ceramic fracture fixing plate?
Answer: The main material is high-purity alumina (Al ₂ O3) ceramic, with a content usually above 92% to 95%, supplemented by special rubber and steel plate, and compounded through high-temperature vulcanization or high-strength bonding process.
Q: What are the advantages of this ceramic lining plate compared to traditional manganese steel lining plate?
Answer: The hardness of alumina ceramics is extremely high (Rockwell hardness HRA ≥ 85), and its wear resistance is tens or even hundreds of times that of manganese steel, which can greatly extend the life of the lining plate. At the same time, it is lightweight, corrosion-resistant, and has a smooth surface that is not easy to stick to materials, which helps reduce energy consumption and maintenance frequency.
Q: Is it easy for ceramic lining plates to shatter in high impact environments like E Po?
Answer: In response to the high impact working conditions in Hubei, we have adopted a toughening ceramic formula and designed a unique “ceramic rubber steel plate” composite structure. The rubber layer can effectively absorb impact energy, prevent the ceramic layer from breaking due to direct impact, and ensure stable operation in harsh environments.
Q: Is installation and replacement convenient?
Answer: Very convenient. We provide modular design lining plates and support various installation methods such as bolt fixing or specialized adhesive, which can be selected according to the actual situation of the equipment, greatly reducing downtime for replacement.
Q: Can we customize different sizes and shapes?
Answer: Of course you can! We provide comprehensive customization services, which can accurately process dynamic fixed plates of various sizes, thicknesses, and shapes according to the specific model, specifications, and working conditions of your equipment, ensuring perfect fit.

Product Core Value: Addressing Your Core Pain Points
Extend equipment lifespan: resist the severe wear and tear caused by crushing high hardness ores and rocks, significantly extend the replacement cycle of dynamic plates, and reduce equipment wear and tear.
Reduce maintenance costs: significantly reduce the frequency and time of downtime and maintenance caused by liner wear, and save on spare parts procurement and manual maintenance costs.
Improve production efficiency: reduce unplanned downtime, ensure continuous and stable operation of crushing operations, and improve overall production efficiency and capacity.
Ensure material purity: Ceramic materials have stable chemical properties and will not introduce metal impurities during wear, avoiding contamination of crushed materials, especially suitable for industries with high purity requirements.
Improving the working environment: Ceramic lining plates have relatively low operating noise and a smooth surface that is not easily clogged, which helps to improve the working environment.

Product Core Introduction: Professional, Reliable, Customizable
Aluminum oxide ceramic jaw plate is a high-performance composite wear-resistant material designed to address the extreme wear challenges faced by jaw crushers when crushing high hardness and highly abrasive materials such as iron ore, granite, quartz, basalt, etc.
Product Structure and Materials
Ceramic layer: Made of high-purity aluminum oxide (Al ₂ O3) ceramics with a purity of 92% -95% or higher, sintered at 1700 ℃. With extremely high hardness (HRA ≥ 85, Mohs hardness level 9) and excellent wear resistance, it is the core barrier to resist material wear.
Buffer layer: a special high elasticity rubber layer located between the ceramic and steel plate. It can effectively absorb the impact energy generated during the crushing process, prevent the ceramic layer from shattering due to impact, and enhance the overall impact resistance.
Substrate layer: High quality steel plate (such as Q235), providing structural support and installation interfaces, making it easy to fix on the crusher body through bolts or welding.
Core performance parameters
Alumina content: ≥ 92%/≥ 95% (can be selected according to demand)
Density: ≥ 3.5 g/cm ³
Rockwell hardness: ≥ 85 HRA
Compressive strength: ≥ 850 MPa
Temperature resistance range: -40 ℃ to 250 ℃ (long-term use)
Wear resistance: 20-270 times higher than manganese steel (depending on operating conditions)
Impact resistance: The unique composite structure can effectively resist the impact of large materials.

Product advantages and user value
Extraordinary wear resistance and doubled lifespan: The ultimate hardness of alumina ceramics enables them to easily resist cutting and erosion from ores, and their service life is usually 5-10 times or even longer than that of high manganese steel lining plates, directly reducing spare parts costs and replacement frequency.
Anti impact, stable and reliable: The composite structure design of “ceramic rubber steel plate” cleverly combines the high hardness of ceramics with the high elasticity of rubber, solving the problem of pure ceramics being fragile under high impact and ensuring stable operation under harsh working conditions.
Lightweight, energy-saving and consumption reducing: The density of ceramics is much lower than that of steel. Using ceramic lining plates can reduce the weight of the moving parts, lower the operating load and energy consumption of equipment, and achieve energy-saving effects.
Corrosion resistance and strong adaptability: It has excellent stability to chemical media such as acids, alkalis, and salts, and is suitable for complex working conditions with humidity or corrosiveness, avoiding corrosion problems of metal lining plates.
Smooth surface, not easy to stick: The ceramic surface has high smoothness, low friction coefficient, and the material is not easy to stick or block, ensuring smooth material flow in the crushing chamber and improving crushing efficiency.
No iron pollution, ensuring purity: Ceramic materials will not introduce metal impurities during the wear process, ensuring the purity of the crushed materials, which is crucial for industries such as ceramics, chemicals, and high-end building materials.

customized service
We are well aware of the differences in crushing equipment and conditions, and therefore provide comprehensive customized services:
Size customization: Based on the specific drawings or on-site surveying of your equipment, we can accurately process dynamic fixed plates of various lengths, widths, and thicknesses.
Shape customization: supports processing various complex shapes such as flat, curved, perforated, and slotted, ensuring perfect fit with the equipment.
Customization of Ceramic Content and Thickness: Based on material hardness, impact size, and other working conditions, we recommend and produce products with different alumina contents (92%, 95%, etc.) and ceramic layer thicknesses.
Customization of installation methods: We provide various installation solutions such as bolt fixing, adhesive bonding, or welding (with holes and accessories) to meet the installation preferences and equipment requirements of different users.

Application scenarios and problem solutions
Application problems solved
Rapid wear of the E Po moving fixed plate: Traditional manganese steel lining plates wear extremely quickly when crushing high hardness ores, and frequent replacement leads to high costs and long downtime. The ultra-high wear resistance of ceramic lining completely solves this pain point.
High impact may cause damage to the lining plate: During the crushing process, the impact of large pieces of ore may cause deformation or cracking of the lining plate. The ceramic lining plate with composite structure effectively buffers the impact through a rubber layer, preventing ceramic fragmentation.
Material contamination issue: Iron filings generated by the wear of metal lining plates can contaminate the materials. Ceramic lining plate has stable chemical properties, no iron pollution, and ensures product quality.
High energy consumption of equipment: The heavy metal lining plate increases the operating load of the equipment. Lightweight ceramic lining helps reduce energy consumption.
Material adhesion blockage: The rough metal surface is prone to material adhesion, which affects the crushing efficiency. Smooth ceramic surface reduces adhesion and keeps the cavity unobstructed.

Customer Application Cases
Case 1: A large iron ore crushing station
Problem: The iron mine uses traditional high manganese steel perforated lining plates. When processing iron ore with high hardness, the average service life of the lining plates is only 3 months. Frequent replacement not only incurs high costs (annual spare parts costs exceed one million yuan), but also requires a 2-day shutdown for each replacement, seriously affecting production progress.
Solution: Introduce our customized 95% alumina ceramic composite jaw breaking fixing plate, which is fixed with bolts.
Effect: After using ceramic lining, the service life of the lining is extended to more than 18 months, which is 6 times longer than before. The number of annual shutdowns and replacements has been reduced from 4 to less than 1, saving over 800000 yuan in spare parts and maintenance costs annually, and significantly improving production efficiency.
Case 2: A granite building materials factory
Problem: When crushing granite, iron shavings generated by the wear of the metal lining plate mix into the stone material, resulting in excessive iron content in the produced mechanism sand and aggregate, which affects the product grade and price. Meanwhile, the lining plate wears out quickly and requires frequent maintenance.
Solution: Using our company’s 92% alumina ceramic lining plate, the surface is smooth and free of iron pollution.
Effect: Thoroughly solved the problem of material iron pollution, ensured product purity, and increased product added value. The lining plate has excellent wear resistance, and its service life is 5 times longer than the previous manganese steel lining plate, greatly reducing maintenance costs and downtime, resulting in extremely high customer satisfaction.
Case 3: A quartz sand processing enterprise
Problem: Quartz sand has high hardness and strong abrasion resistance, and the wear of the lining plate is extremely fast. In addition, quartz sand has extremely strict requirements for iron content. The original lining board not only has a short lifespan, but also causes product pollution.
Solution: We have selected our high-purity (95% Al ₂ O ∝) ceramic jaw breaking fixing plate and customized it with curved bonding according to its equipment characteristics.
Effect: The ceramic lining plate perfectly fits the equipment, with excellent wear resistance and a service life of over 2 years. More importantly, it completely eliminates iron pollution, ensures the high purity of quartz sand, meets the demand of the high-end market, and brings considerable economic benefits to the enterprise.

If you are troubled by the rapid wear and tear, high cost, and impact on production of the E Po lining plate, please feel free to contact us at any time! We will provide you with professional wear-resistant solutions and personalized product customization services based on your specific working conditions and equipment parameters. Consult now for exclusive pricing and technical support.
