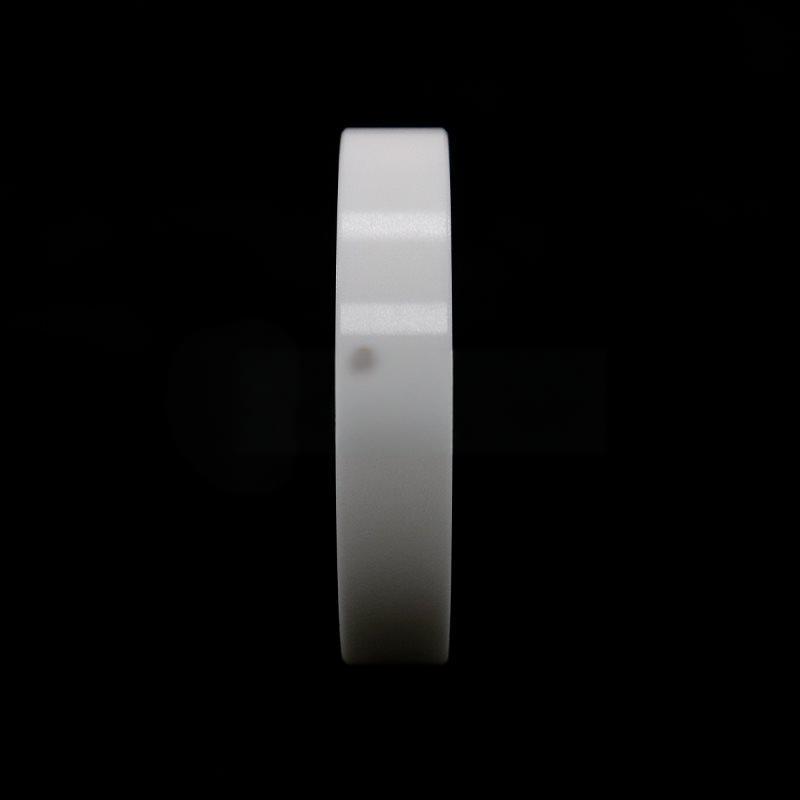

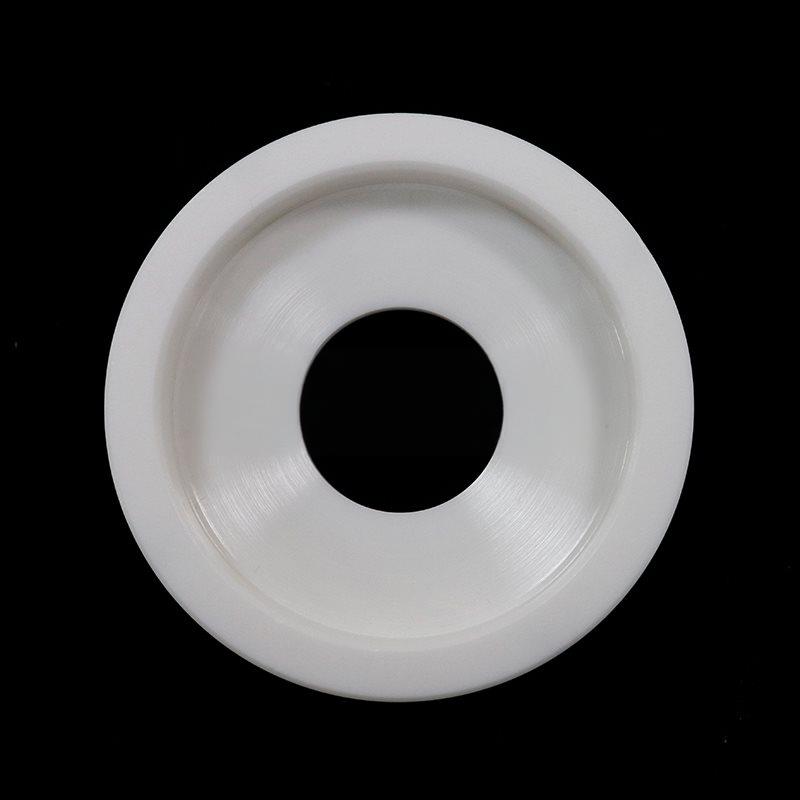

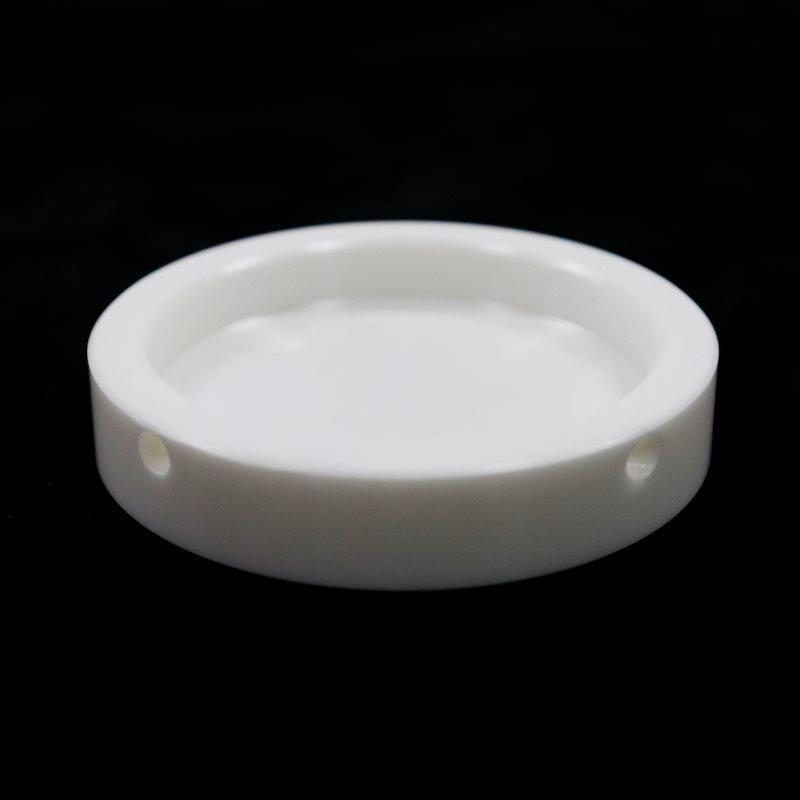

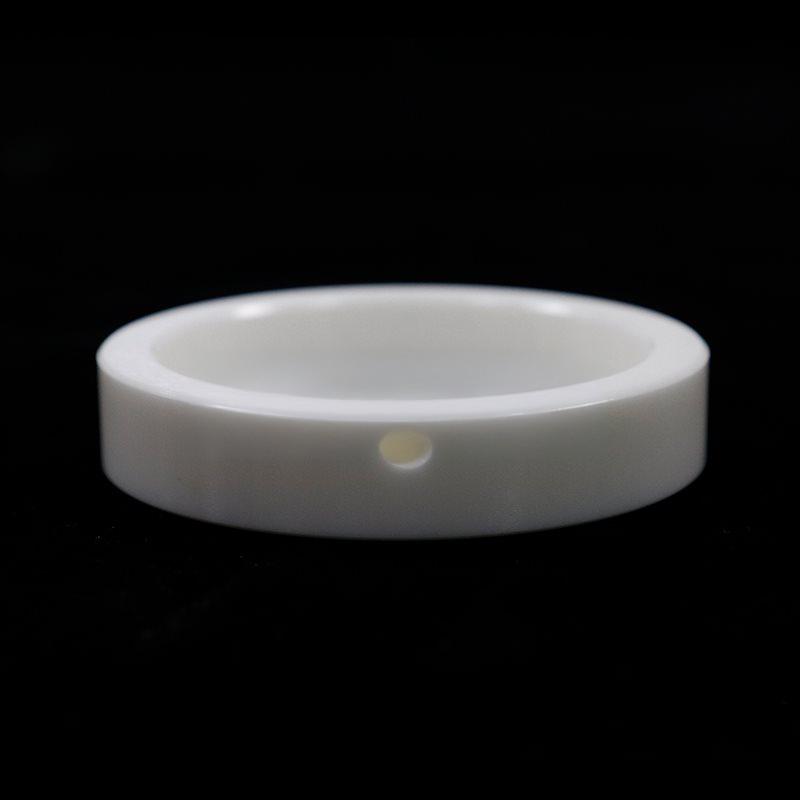

Zirconia ceramic lower cover lining

Zirconia ceramic lower cover lining: high-performance sealing and wear-resistant solution

User’s question: My device’s lower cover seal is prone to wear and has poor corrosion resistance, resulting in frequent shutdowns for replacement and affecting production efficiency. What should I do?
Answer: Zirconia ceramic lower cover liner provides you with a super wear-resistant, high-temperature resistant, and corrosion-resistant sealing solution, significantly extending component life and reducing maintenance costs.
User question: Traditional metal lining is prone to deformation in high temperature and high pressure environments, leading to seal failure. How can this be resolved?
Answer: Zirconia ceramics have extremely high hardness and stability, maintaining shape and performance under extreme working conditions, and eliminating leakage problems caused by deformation.
User asked: I need to customize a special size lining, but standard products on the market cannot match. What are my options?
Answer: We provide full-size customization services, from micro precision components to large industrial components, all of which can be designed and manufactured according to your needs, perfectly adapting to your equipment.

The inner lining of the zirconia ceramic lower cover is made of high-purity zirconia (ZrO ₂) material, which is produced through advanced molding and sintering processes. It is a sealing and protective component designed specifically for high wear, strong corrosion, and high temperature and high pressure environments. Widely used in fields such as pump valves, mechanical seals, chemical equipment, medical devices, etc.

Product advantages

1. Excellent wear resistance
   Zirconia ceramics have a hardness of HRA88 or higher, and their wear resistance is more than 10 times that of traditional metal materials, greatly extending the service life of equipment.
2. Excellent corrosion resistance
   Resistant to corrosion from chemical media such as acids, alkalis, and solvents, suitable for corrosive environments such as chemical, electroplating, and pharmaceutical industries.
3. High temperature stability
   It can withstand temperatures above 800 ℃, has a low coefficient of thermal expansion, maintains dimensional stability in high temperature environments, and avoids thermal stress failure.
4. High strength and toughness
   Through phase transformation toughening technology, the fracture toughness is superior to ordinary ceramics, and the impact resistance is significantly improved.
5. Precision machining capability
   The surface smoothness can reach Ra0.2 μ m, with a dimensional accuracy of ± 0.01mm, ensuring a tight fit of the sealing surface.

Specifications and Customization Services
-Standard size range: Inner diameter ranging from 10mm to 500mm, thickness ranging from 1mm to 30mm
-Customized support:
-Non standard size design and manufacturing
-Alien structures (conical, stepped, porous, etc.)
-Surface treatment (polishing, coating, laser marking)
-Material optimization (yttrium stabilized, cerium stabilized zirconia)
-Quick response: Sample cycle of 7-15 days, bulk order of 3-5 weeks

Core problem solved

1. Frequent replacement issue: Replace vulnerable metal/plastic liners, extending the replacement cycle from months to years.
2. Risk of sealing failure: High hardness and low deformation rate ensure long-term sealing reliability.
3. Pollution control challenge: Inert materials prevent product contamination and meet food and pharmaceutical grade requirements.
4. Energy consumption optimization: Low friction coefficient reduces equipment operating resistance, saving energy and reducing consumption.

Customer Application Cases
-Case A (Chemical Pump and Valve Enterprise): By replacing the original 304 stainless steel lining, the service life of the hydrochloric acid delivery pump has been increased from 3 months to over 24 months, and the annual maintenance cost has been reduced by 70%.
-Case B (Medical Device Manufacturer): Customized Φ 8mm micro zirconia lining for blood analyzers to meet the dual requirements of biocompatibility and wear resistance, resulting in a 90% reduction in product defect rate.
-Case C (New Energy Battery Equipment Manufacturer): Applied in an electrode material sintering furnace, it can withstand continuous operation at 800 ℃ and solve the sealing leakage problem caused by oxidation deformation of the metal lining.

The combination of material science and engineering innovation provides a reliable and durable solution for industrial sealing and protection of zirconia ceramic lower cover lining. Whether you are facing wear, corrosion, or high temperature challenges, we can tailor the most suitable product for you.
If you need customized solutions or sample testing, please feel free to contact us at any time.
