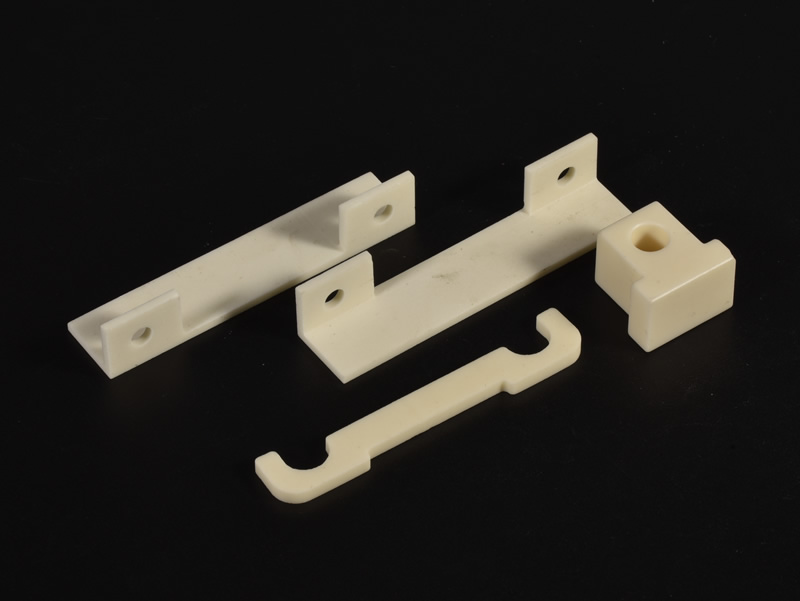

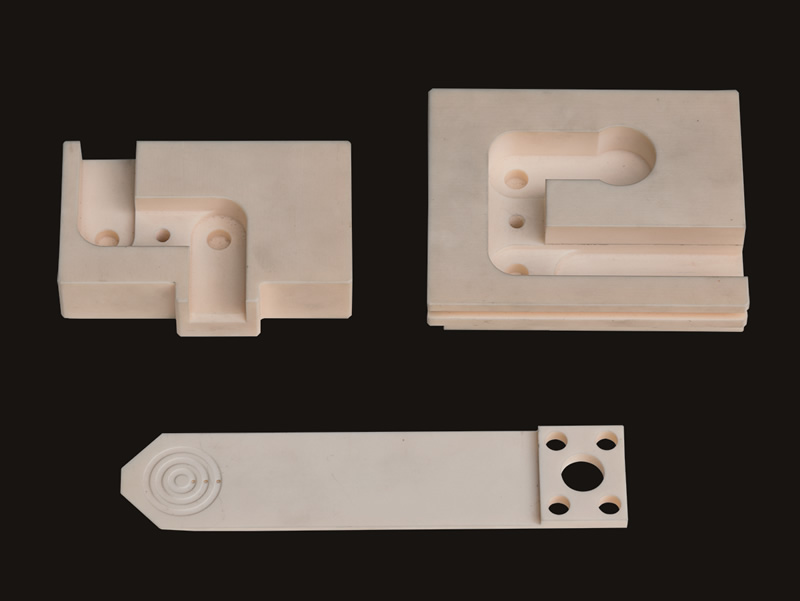

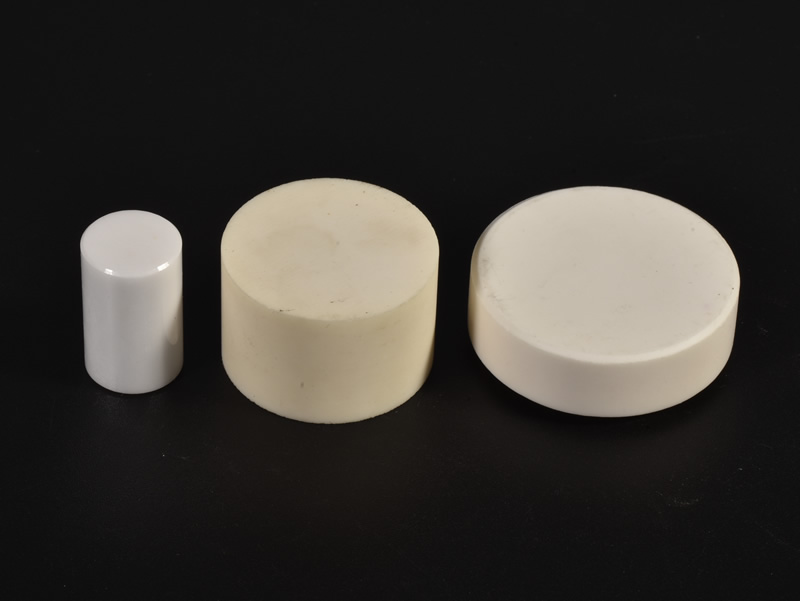

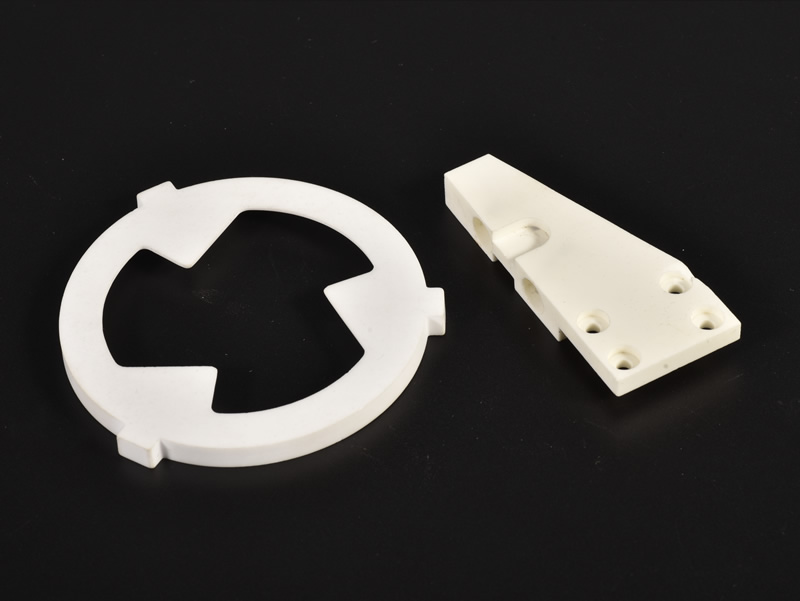

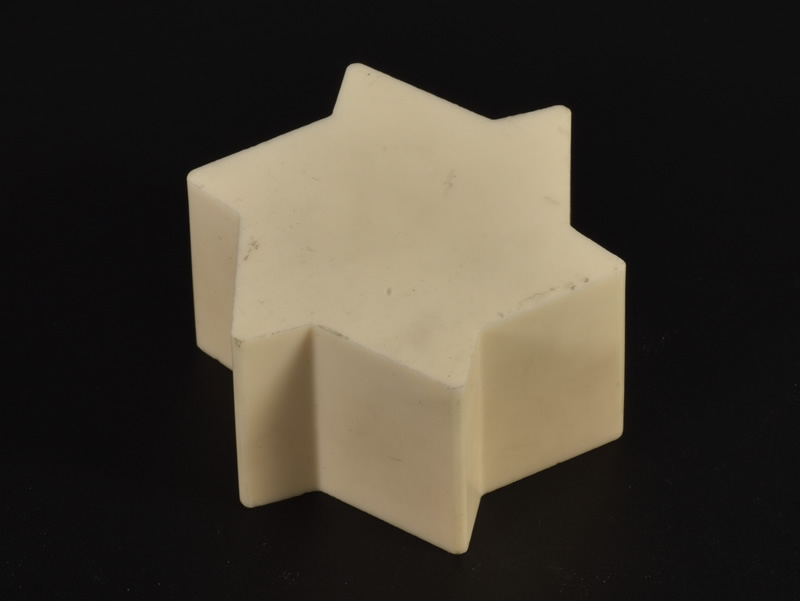

Special industrial ceramic shaped parts

Special industrial ceramic shaped parts refer to non-standard geometric structural parts made from high-purity oxide or non oxide ceramic powders through precision molding and high-temperature sintering processes. This type of product breaks through the limitations of traditional ceramics, which are limited to simple shapes, and can perfectly adapt to complex mechanical structures under extreme working conditions. With excellent high-temperature resistance, corrosion resistance, and ultra-high hardness characteristics, it has become an indispensable key basic material in high-end equipment manufacturing.

Frequently Asked Questions (FAQ)
Q1: How complex geometric structures can special industrial ceramic shaped parts achieve at most?
A: Relying on advanced injection molding (CIM), gel injection molding and 3D printing technology, we can manufacture special-shaped parts with extremely high complexity such as cavities, threads, micropores, thin walls and curved surface transitions. As long as the drawings have manufacturability, we can achieve near net forming from millimeter level precision parts to large and complex structural parts, greatly reducing the difficulty of subsequent processing.
Q2: What are the differences in temperature resistance limits between shaped parts made of different materials?
A: The material determines the upper limit of performance. Zirconia (ZrO2) is typically suitable for high toughness scenarios below 1200 ℃; Aluminum oxide (Al2O3) can withstand high temperature insulation environments around 1600 ℃; Silicon carbide (SiC) and silicon nitride (Si3N4) can maintain extremely high strength and thermal shock resistance in an oxidizing or inert atmosphere between 1400 ℃ and 1600 ℃, and the specific selection needs to be customized according to the operating temperature curve.
Q3: What is the usual delivery time for customized shaped parts?
A: It takes about 2-3 weeks from mold opening to sample delivery for conventional simple irregular parts; For orders with extremely complex structures or requiring special sintering processes, the lead time is approximately 4-6 weeks. We provide an expedited channel, and for urgent R&D projects, the first batch of validation samples can be provided within 10 days at the earliest.
Q4: How to ensure the dimensional stability of irregular parts during high-temperature use?
A: We control the sintering shrinkage rate within a very small error range (usually ± 0.3%) by controlling the particle size distribution of the powder, optimizing the binder formula, and using precise debinding sintering curves. For parts that require ultra-high precision, we also provide post-processing services such as diamond grinding and laser processing to ensure that the dimensional tolerance of the finished product reaches the micrometer level.

Core user challenges and solutions
As a device manufacturer or end user, are you facing the problem of rapid failure of metal components in highly corrosive environments, inability of traditional ceramics to match complex installation structures, or material softening and deformation under high temperature conditions? Our special industrial ceramic shaped parts are designed to solve these core problems for you. We not only provide materials, but also offer an integrated solution of “materials+structure+process”, completely eliminating the risk of downtime caused by component failure, extending the service life of equipment, and helping you achieve stable operation and cost reduction and efficiency improvement under extreme working conditions.

Ultimate performance, reshaping the boundaries of working conditions
Ultra hard and wear-resistant: Its hardness is second only to diamond and 3-5 times that of hard alloys, greatly extending its service life in slurry transportation and grinding media.
Corrosion resistant insulation: It has strong chemical inertness to acids, alkalis, salts, and molten metals, as well as excellent electrical insulation properties, suitable for the fields of electrochemistry and semiconductors.
High temperature and high strength: It maintains high strength above 1000 ℃ without creep phenomenon, making it an ideal material for aircraft engines and heat treatment furnaces.
Lightweight design: The density is only 1/3 to 1/2 of steel, significantly reducing the inertial force of rotating components and improving equipment response speed and energy efficiency.

Full size deep customization service
What we need to do is not just standard products, but also your exclusive components.
Size range: Supports customization from 0.5mm micro structural components to 500mm large structural components.
Process adaptation: Flexible selection of dry pressing, isostatic pressing, injection molding, tape casting, or additive manufacturing (3D printing) processes based on the complexity of the part shape.
Precision machining: Equipped with a five axis linkage ceramic dedicated machining center, it can provide comprehensive post-processing such as turning, milling, grinding, drilling, laser cutting, etc., ensuring zero assembly errors.
Material options: covering 95% -99.9% alumina, zirconia (Y-TZP), silicon carbide, silicon nitride, aluminum nitride, machinable ceramics and other systems.

Overcoming typical application problems
Corrosion and leakage of chemical pump sealing rings: Traditional metal or ordinary ceramic sealing rings are prone to intergranular corrosion or brittle fracture in strong acid and alkali mixtures. Our reaction sintered silicon carbide shaped sealing ring, utilizing its dense microstructure and chemical inertness, completely eliminates corrosion leakage and increases its lifespan by more than 5 times.
Semiconductor wafer gripper contamination: In high-temperature diffusion furnaces, metal fixtures are prone to releasing ions that contaminate the wafer. Customized high-purity alumina porous suction cups not only withstand high temperatures of 1200 ℃, but also have high purity and no precipitation, ensuring wafer yield.
Wear of textile machinery guide wire: Under high-speed operation, ordinary guide wires are worn out of grooves by fibers within a few days. Zirconia toughened ceramic shaped wire guide, with ultra-high toughness and surface smoothness, can run continuously without damage for several months, greatly reducing downtime for replacement.

Customer Application Case (Anonymous)
Case 1: a well-known new energy battery material manufacturer – spray drying tower wear-resistant lining transformation
Background: When the customer was producing lithium iron phosphate precursor, the guide cone and nozzle inside the spray drying tower were washed by high-speed particles for a long time. The original imported stainless steel lining needed to be replaced every two weeks, which seriously affected the production capacity and the purity of the battery was affected by metal impurities.
Solution: After on-site investigation, our technical team designed an integrated silicon carbide composite shaped flow guide component. Utilizing its special spiral flow channel design to optimize the airflow field, while adopting pressureless sintered silicon carbide material.
Effect: After the new component was launched, it ran continuously for 18 months without significant wear and tear, not only eliminating the risk of metal impurity pollution and improving the consistency of battery materials by 15%, but also saving customers over 2 million yuan in maintenance costs annually by reducing the number of maintenance shutdowns.
Case 2: A certain aerospace research institute – hypersonic wind tunnel testing probe
Background: In conducting hypersonic wind tunnel experiments, the test probe needs to maintain its shape and stable signal transmission under the instantaneous high temperature and strong aerodynamic impact of 2000 ℃. Traditional quartz glass is prone to softening, while metal probes are prone to melting.
Solution: We have customized a silicon nitride based multiphase ceramic shaped probe head for it, designed with special gradient functional materials. The head is resistant to ultra-high temperatures, and the tail ensures high-strength connection. And achieved micrometer level surface accuracy through precision grinding.
Effect: The probe has successfully passed dozens of extreme wind tunnel tests, with complete and accurate data collection without any deformation or fracture, providing key support for obtaining aerodynamic data of key aircraft models in the country and receiving high praise from customers.
Case Three: A Large Paper Group Upgrades Vacuum Box Panels
Background: The vacuum box panel of the paper machine has been rubbing against high-speed paper for a long time, causing the original polymer material panel to wear out quickly, resulting in a decrease in vacuum degree, uneven paper dehydration, and affecting paper quality.
Solution: Provide large-sized microcrystalline alumina ceramic vacuum panels with nanoscale polishing treatment on the surface, with extremely low friction coefficient and excellent wear resistance.
Effect: The service life has been extended from the original 3 months to 3 years, the paper uniformity has been significantly improved, the paper breakage rate has been reduced by 40%, and the customer has recovered the renovation cost within one year.

Does your device also face the challenge of extreme working conditions? Is there an urgent need to customize complex alien structures?
Please contact us immediately and send us your drawings or working condition description. Our senior engineers will provide you with feasibility analysis and customized solutions within 24 hours.
