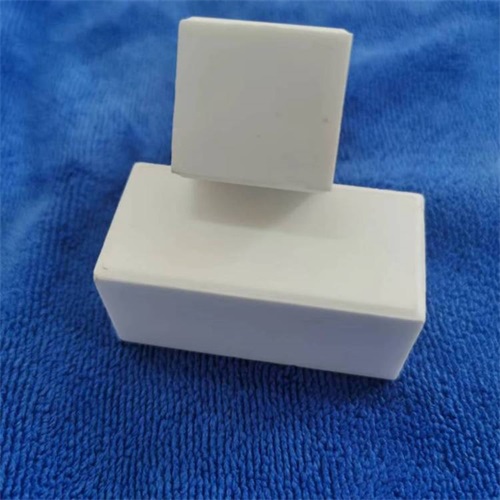

5-200mm zirconia ceramic lining

Zirconia ceramic lining is an advanced ceramic material mainly composed of zirconia (ZrO ₂) and sintered at high temperatures. Its size range is from 5mm to 200mm and can be customized according to customer needs. Due to its excellent physical and chemical properties, zirconia ceramic lining has been widely used in multiple fields.

1. Material characteristics
   Zirconia ceramic lining has the following excellent properties:
   High hardness and strength: The Mohs hardness of zirconia ceramics can reach 8-9, second only to diamond, and can withstand extremely high pressure and wear.
   High toughness: Compared to other ceramic materials, zirconia ceramics have higher fracture toughness and are less prone to brittle fracture.
   High temperature resistance: Zirconia ceramics have a melting point of up to 2715 ° C and can be used for a long time in high-temperature environments.
   Wear resistance: Its wear resistance is several times or even tens of times that of most metal materials, making it particularly suitable for harsh working conditions.
   Corrosion resistance: It has good resistance to most chemicals such as acids, alkalis, and salts.
   Biocompatibility: Zirconia ceramics have good biocompatibility and can be used in the medical field.
2. Size range
   Diameter: Customizable within the range of 5-200mm.
   Thickness: The thickness can be adjusted according to customer needs to adapt to different application scenarios.
   Accuracy: The machining accuracy can reach ± 0.01mm, meeting the high-precision requirements.

Application

1. Industrial sector
   Chemical equipment: Zirconia ceramic lining is widely used as an inner lining for chemical pipelines, reaction vessels, and other equipment to resist the erosion of corrosive media.
   Wear resistant components: In industries such as cement, mining, and metallurgy, zirconia ceramic lining is used for conveying pipelines and wear-resistant lining plates, significantly improving equipment life.
   High temperature environment: Zirconia ceramic lining is used in engine combustion chambers, cylinder liners, and other components in aerospace, energy, and other fields due to its excellent high-temperature resistance.
2. Medical field
   Artificial joints: Zirconia ceramics are used in the manufacturing of artificial joints due to their high wear resistance and biocompatibility.
   Dental materials: Zirconia ceramics can be used as dental restoration materials, such as crowns, bridges, etc.
3. Electronic field
   Sensors: Zirconia ceramics can be used to make high-temperature sensors, such as oxygen sensors, for detecting the oxygen content in industrial waste gases.
   Electronic packaging: Due to its high thermal conductivity and electrical insulation, zirconia ceramics are used as packaging materials for electronic components.
4. Special Environment
   Marine engineering: In environments such as seawater desalination and offshore platforms, zirconia ceramic lining exhibits excellent corrosion resistance and wear resistance.
   Nuclear industry: Zirconia ceramic liners can be used in high-temperature and corrosive environments in nuclear reactors.

Customized description

1. Material selection
   Zirconia types: Partially stabilized zirconia (PSZ), fully stabilized zirconia (FSZ), or zirconia toughened alumina (ZTA) can be selected according to demand.
   Additives: Stabilizers such as yttrium oxide (Y ₂ O3) and magnesium oxide (MgO) can be added to improve the toughness and stability of the material.
2. Surface treatment
   Surface roughness: Grinding, polishing and other treatments are carried out according to the requirements to meet different surface roughness requirements.
   Coating treatment: Special coatings can be applied to improve corrosion resistance, wear resistance, or insulation.
3. Accuracy level
   Normal precision: suitable for general industrial applications.
   High precision: suitable for precision machinery, electronics and other fields.
   Ultra high precision: suitable for high demand fields such as aerospace and medical.
4. Quantity and delivery cycle
   We can customize different quantities of zirconia ceramic lining according to customer needs, from individual samples to mass production, and the delivery cycle depends on the complexity of the order.

5-200mm zirconia ceramic lining is an advanced ceramic material with excellent performance and wide application. Through customized services, we can meet the needs of different customers in different fields and provide them with the best solutions. If you have any needs regarding zirconia ceramic lining, please feel free to consult us and we will be dedicated to serving you!
