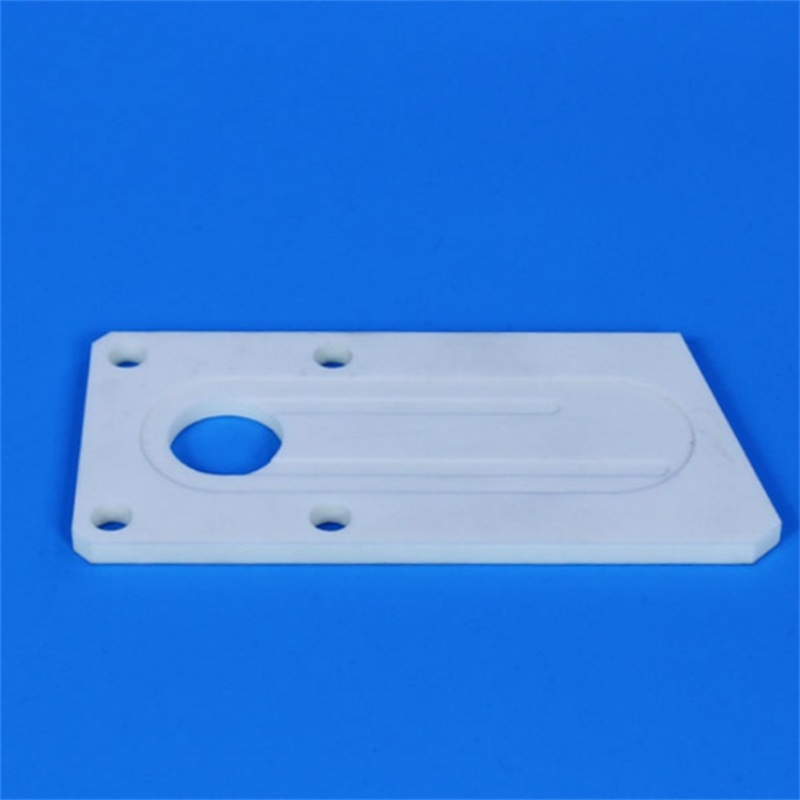

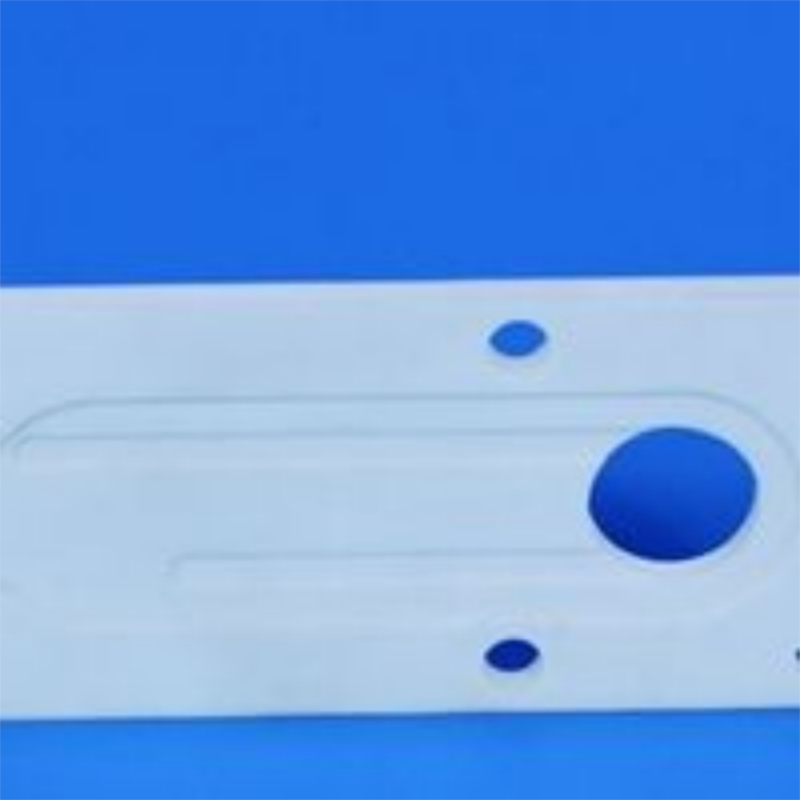

What is a photovoltaic ceramic suction cup

---

Photovoltaic ceramic suction cup is a high-precision adsorption and fixing device designed specifically for the photovoltaic (solar energy) industry, mainly used in the handling, processing, and testing of silicon wafers, solar cells, and components. It is made of high-performance ceramic materials and uses the principle of vacuum adsorption to safely and stably grasp and move photovoltaic products. It is one of the core components for achieving automated production.

Product Application
Photovoltaic ceramic suction cups are widely used in the following scenarios:
-Silicon wafer cutting and sorting: Transport ultra-thin silicon wafers after cutting to avoid fragments or hidden cracks.
-Printing and sintering of battery cells: precise positioning of battery cells in screen printing and sintering furnace transportation.
-Component lamination and packaging: Fix the battery string and glass backplate during the lamination process.
-Appearance and electrical performance testing: Maintain the flatness of the battery cell in EL (electroluminescence) or PL (photoluminescence) testing.

Product advantages

1. High precision and stability: Ceramic materials have a low coefficient of thermal expansion, are resistant to high temperatures without deformation, and are suitable for high-precision environments.
2. Clean and pollution-free: The ceramic surface is smooth and does not produce particles, meeting the cleanliness requirements of photovoltaic production.
3. Wear resistant and corrosion-resistant: high hardness, acid and alkali resistance, long service life, low maintenance cost.
4. Customized design: The suction cup shape and aperture can be customized according to the size, thickness, and production line speed of the battery cells.

What problems can be solved?
-High fragmentation rate: Traditional suction cups can easily cause hidden cracks or damage to silicon wafers, while ceramic suction cups can evenly adsorb and significantly reduce losses.
-Pollution risk: Metal or polymer suction cups may introduce impurities, while ceramic materials are clean to ensure product yield.
-Insufficient accuracy: Ordinary suction cups are prone to deformation in high-temperature environments, while ceramic suction cups maintain stable shape and improve process consistency.
-Automation bottleneck: Adapt to high-speed automated production lines to improve production efficiency and reliability.

Customer Case (Anonymous)
-Case 1: The fragment rate of silicon wafer sorting in a leading photovoltaic enterprise has been reaching 0.5% for a long time. After adopting our customized porous ceramic suction cup, the fragment rate has been reduced to below 0.1%, saving more than 3 million yuan in annual costs.
-Case 2: A battery cell manufacturer made a misjudgment during EL testing due to uneven adsorption. After replacing our high flatness ceramic suction cup, the detection accuracy increased by 15% and the production efficiency increased by 20%.

Although photovoltaic ceramic suction cups are small components, they are the key factors affecting the yield and cost of photovoltaic production. Choosing a reliable supplier means choosing a guarantee of efficiency and quality.
Do you need to customize high reliability photovoltaic ceramic suction cups for your production line? Please contact us immediately and provide the process parameters to receive a free adaptation solution!
