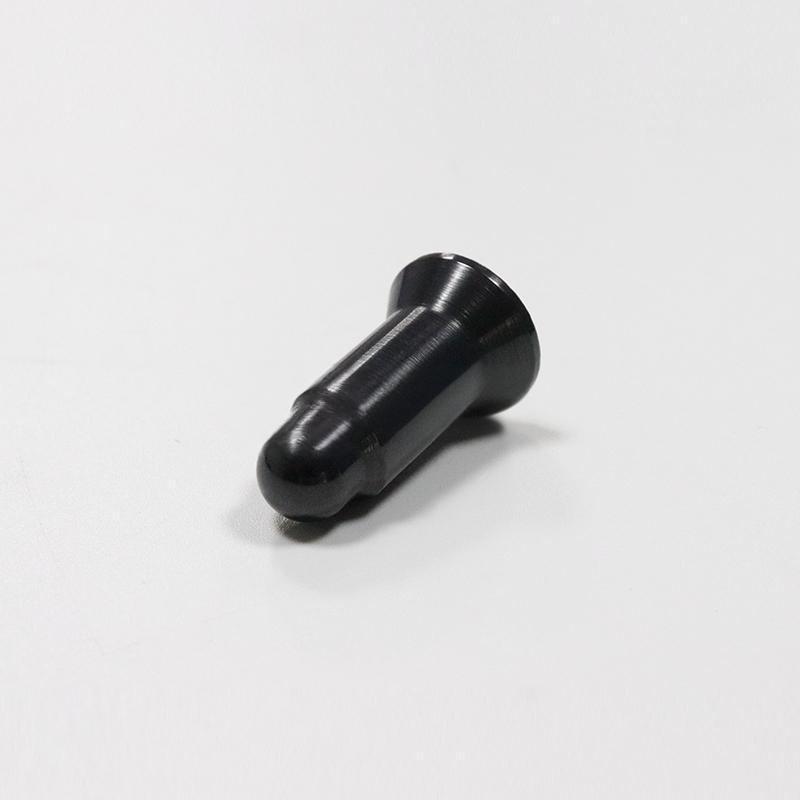

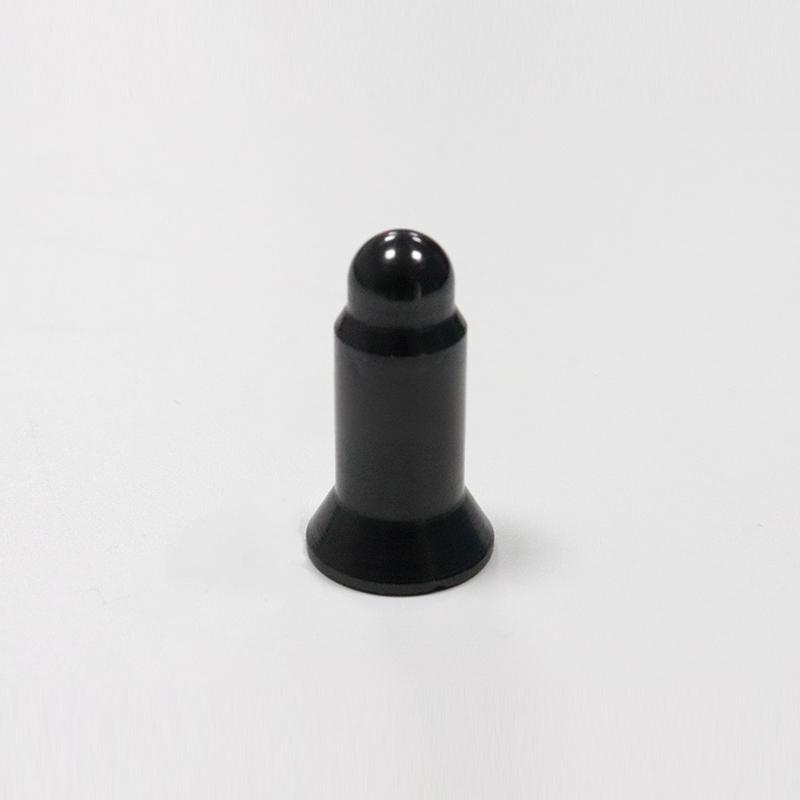

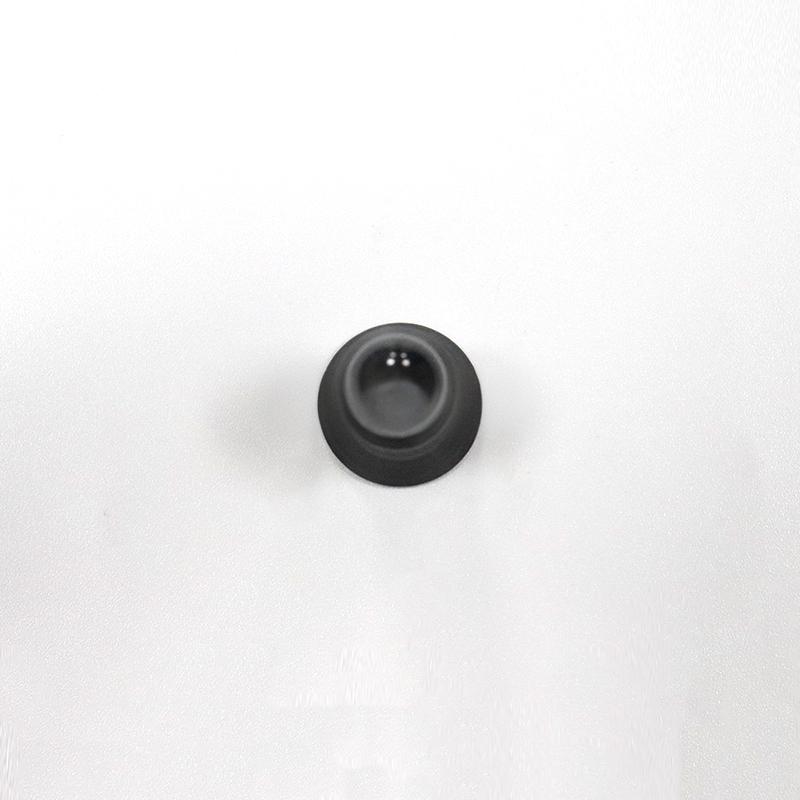

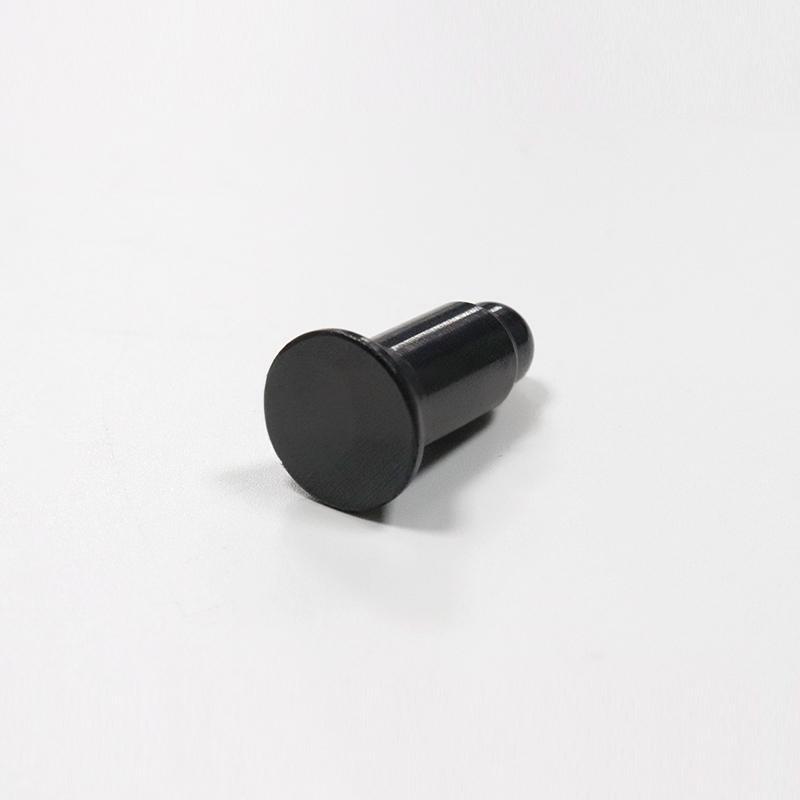

Silicon nitride positioning pin

In the fields of precision manufacturing and high-end assembly, the accuracy and durability of positioning pins directly determine the stability of equipment operation and the yield of products. Silicon nitride positioning pin, as a high-performance precision component made of advanced ceramic materials, is becoming an ideal choice for solving positioning problems under harsh working conditions due to its outstanding characteristics that surpass traditional metal materials. It not only has extremely high hardness and wear resistance, but also demonstrates unparalleled advantages in lightweight, insulation, and corrosion resistance, providing a new generation of solutions for precision positioning in modern industry.

Frequently Asked Questions (FAQ)
Q: What are the core advantages of silicon nitride positioning pins compared to traditional metal positioning pins?
Answer: Traditional metal positioning pins are prone to decreased positioning accuracy due to wear, rust, or fatigue deformation during long-term use. The hardness of silicon nitride positioning pins is second only to diamond, with excellent wear resistance, and they are completely non-magnetic, non-conductive, heat-resistant, and resistant to chemical corrosion. In applications that require high-precision maintenance, electrical insulation, or extreme environments, their service life is often several times or even tens of times that of metal parts.
Q: Will this positioning pin be very brittle and prone to breakage?
Answer: Silicon nitride is widely recognized as one of the most resilient structural ceramics, with excellent bending strength and fracture toughness. Under normal positioning, load-bearing, and assembly conditions, its mechanical strength fully meets or even exceeds industrial application standards. Of course, we will also conduct targeted structural design and strength verification based on your specific working conditions, such as impact loads and installation methods.
Q: Can you provide customization for non-standard sizes or irregular structures?
Answer: Absolutely possible. We have the full industry chain capability from material formulation, precision molding to ultra hard material precision grinding. Whether it’s millimeter level positioning pins for small electronic devices or customized length, stepped, threaded, or special installation structure positioning pins for large equipment, we can provide “one-to-one” customized solutions.

Resolve your core pain points
If you are facing the following problems – frequent wear of positioning pins leading to decreased equipment accuracy, metal pins interfering with signals in electromagnetic fields, parts rusting and biting due to humid or corrosive environments, or parts weighing too much affecting the responsiveness of high-speed movement – silicon nitride positioning pins will be your ideal solution. It fundamentally solves the comprehensive problem of traditional positioning components being “not durable, uninsulated, corrosion-resistant, and heavy”, helping you reduce maintenance costs and improve overall equipment efficiency.

Product Applications and Core Advantages
Core application areas

1. Semiconductor and electronic manufacturing equipment
   In wafer transfer and precision testing equipment, positioning pins need to have non-magnetic, non-conductive, and high wear resistance characteristics to avoid electrostatic discharge (ESD) damage to components and electromagnetic interference. Silicon nitride positioning pins perfectly meet these stringent requirements, ensuring long-term stable operation in high cleanliness environments.
2. Aerospace and Precision Machinery
   The dimensional stability of locating pins is directly related to the overall performance of the engine assembly, high-precision machine tools, and measuring instruments. The thermal expansion coefficient of silicon nitride material is extremely low, and it can maintain extremely high positional repeatability even under drastic temperature changes. Its density is only 40% of steel, significantly reducing the inertia of moving parts.
3. Medical and life science equipment
   Magnetic resonance imaging (MRI) equipment, high-precision surgical robots, etc. have strict magnetic compatibility and biocompatibility requirements for their components. Silicon nitride positioning pins have no metal ion precipitation, no magnetic interference, and can withstand high temperature and high pressure steam sterilization, ensuring the safety and hygiene of key equipment.
4. Automobile and new energy manufacturing
   In automated production lines such as lithium battery production lines and motor assembly lines, positioning pins need to cope with challenges such as electrolyte corrosion and sustained high-frequency impact. Silicon nitride positioning pins, with their excellent corrosion resistance and fatigue resistance, have become key components for improving production line utilization.
   Product advantages
   -Ultra high hardness and wear resistance: The hardness is second only to diamond, and there is no wear during long-term use, ensuring long-lasting positioning accuracy.
   -Excellent electrical insulation: With high volume resistivity, it can effectively block current circuits and prevent electrochemical corrosion.
   -High temperature resistance and thermal shock resistance: It can maintain stable performance in high temperature environments above 1000 ℃ and has excellent thermal shock resistance.
   -Lightweight and high rigidity: Low density, high specific rigidity, ensuring structural rigidity while achieving lightweight.
   -Chemical inertness: resistant to strong acids, strong bases, and most organic solvents, suitable for various harsh chemical environments.
   Flexible customized services
   We are well aware that every device and every working condition has unique requirements for positioning pins. Therefore, we provide comprehensive customized services, including:
   -Size customization: Diameter range of 0.5mm-50mm, length and tolerance processed according to the drawing, with a maximum accuracy of ± 0.001mm.
   -Geometric shapes: cylindrical pin, taper pin, step pin, diamond pin, with internal/external thread structure, etc.
   -Surface condition: mirror polishing, precision grinding, special chamfering, rounded corner treatment, etc., to meet different assembly requirements.
   -Batch and delivery time: Support from sample trial production to stable supply in bulk, flexible response.

Customer Application Case (Anonymous)
Case 1: A high-end semiconductor packaging equipment manufacturer
-Background: The metal positioning pin used by the customer for wafer alignment has been contaminated with metal particles due to long-term friction with the wafer edge, and the magnetic interference of the metal pin has affected the readings of high-precision sensors, resulting in a decrease in equipment yield.
-Solution: We have customized a micro silicon nitride positioning pin with a diameter of 3mm and a length of 15mm for our customers. The surface is treated with ultra precision polishing, with a roughness Ra ≤ 0.05 μ m.
-Effect: After replacement, the cleanliness level of the equipment is increased by one level, and the problem of sensor signal interference is completely solved. After continuous operation for 8000 hours, the positioning pin was tested and found to have a size wear of less than 0.5 μ m, with an expected service life increased by more than 10 times compared to before.
Case 2: A well-known European automotive parts automation production line integrator
-Background: In the assembly wiring of its power battery module, the metal positioning pin rusts and peels off on the surface after frequent contact with residual electrolyte, which not only causes positioning jamming, but also poses a risk of short circuit inside the battery pack due to the peeling rust. The production line needs to be shut down and replaced once a week on average.
-Solution: We customized a large aspect ratio silicon nitride positioning pin with a special anti loosening structure based on its fixture drawings, and carried out overall corrosion resistance strengthening treatment on the pin body.
-Effect: After importing the new positioning pin, the downtime of the production line caused by positioning pin failures has been reduced from about 8 hours per month to almost zero. After evaluation by the customer, it was stated that although the cost per unit is higher than that of metal parts, the overall operating costs have decreased by about 60% due to comprehensive maintenance costs, production losses, and safety risks.

Whether it’s purchasing standard specifications of spare parts or customized for specific application scenarios, we will provide you with professional, efficient, and reliable silicon nitride positioning solutions. Welcome to contact us immediately and provide us with your drawings or working condition requirements. Our technical experts will provide you with one-on-one service to help your equipment achieve higher precision and longer lifespan stable operation.
