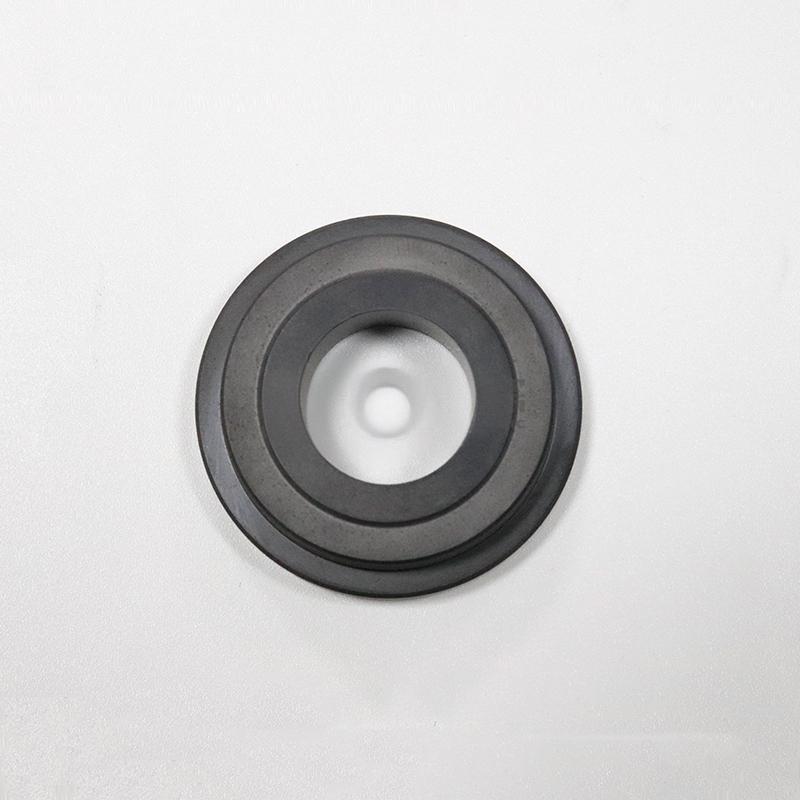

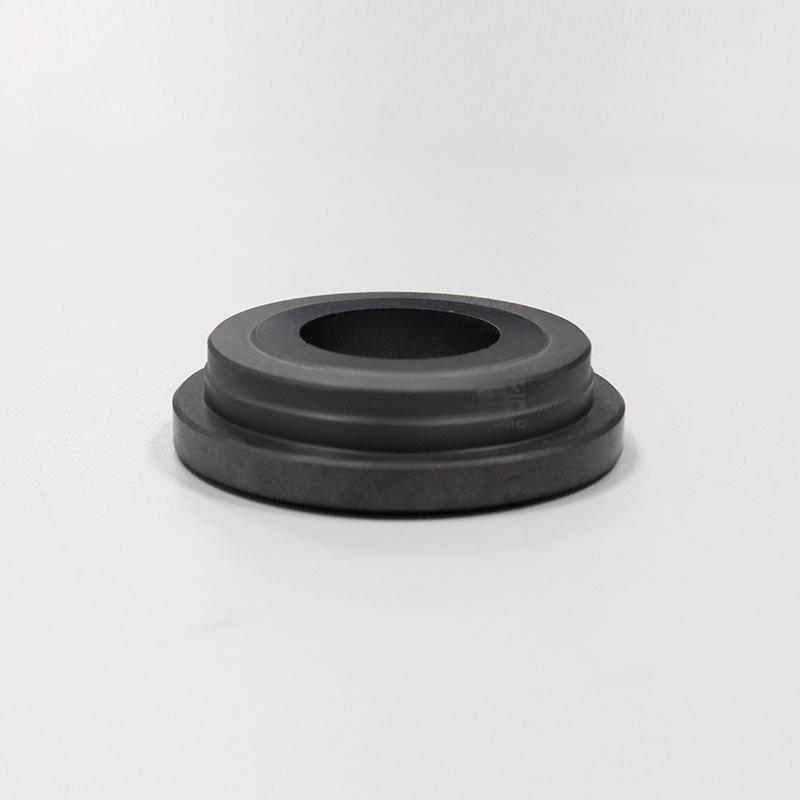

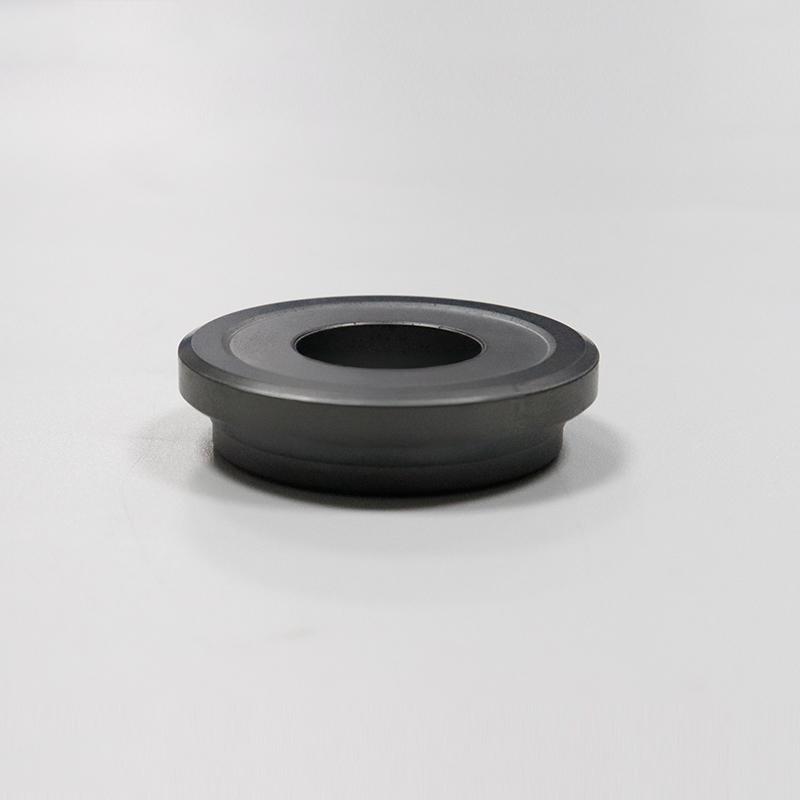

Silicon nitride ceramic shaft sleeve

Silicon nitride (Si3N4) ceramic shaft sleeve is a precision mechanical component made of high-performance engineering ceramic materials. With extremely high hardness, excellent wear resistance, and outstanding high temperature resistance, it is designed for extreme working conditions and can perfectly replace traditional metal shaft sleeves, significantly improving the operating life and stability of mechanical equipment in high-speed, heavy-duty, and corrosive environments.

What can it solve for you?
Q1: Can this product solve the problem of frequent shutdowns of my equipment bearings due to rapid wear and tear?
A: Absolutely possible. The hardness of silicon nitride ceramics is second only to diamond, and its wear resistance is several times that of hard alloys. It can effectively solve the problem of size changes caused by friction, significantly extend maintenance cycles, and reduce unplanned downtime.
Q2: What should we do if the working environment temperature is very high or there is strong acid and alkali corrosion, and the metal parts cannot withstand it?
A: This is precisely the strength of silicon nitride. It can maintain its strength at high temperatures up to 800 ^ circ C and has extremely strong chemical corrosion resistance, completely ignoring the erosion of acidic and alkaline environments, making it an ideal choice for harsh working conditions.
Q3: The equipment has a high rotational speed and severe heat generation. Is there a lightweight solution available?
A: Yes, there is. The density of silicon nitride is only about 40% of that of steel. The use of ceramic shaft sleeves can significantly reduce the centrifugal force of rotating components, reduce heat generation and energy loss, allowing equipment to operate smoothly at higher speeds.

Why is it the key to industrial upgrading?
Excellent product application field
Silicon nitride ceramic bushings are widely used in cutting-edge fields that require extremely high reliability:
High end fluid machinery: mechanical seal rings and shaft sleeves for chemical pumps and mud pumps.
Precision manufacturing equipment: semiconductor wafer processing equipment, high-precision machine tool spindles.
New energy and automobiles: turbocharger rotor bearings, electric vehicle motor bearings.
Metallurgy and heat treatment: transmission components in high-temperature furnaces, steel rolling guides.

Core Performance Advantages
High Wear Resistance: Low friction coefficient, good self-lubricating performance, and can work for a long time even under oil-free lubrication conditions.
Thermal Stability: Low coefficient of thermal expansion, excellent thermal shock resistance, and will not crack due to rapid temperature changes.
High Strength to Weight Ratio: With a light weight and low inertia, it is suitable for high-speed rotating applications.
Electrical&Chemical Insulation: Excellent electrical insulation and inertness to the vast majority of acid, alkali, and salt solutions.

Comprehensive Customization Services
We are well aware of the uniqueness of each application scenario, and therefore provide flexible customization solutions:
Size customization: Supports precision machining of inner diameter Phi 5mm – Phi 500mm and various non-standard lengths.
Structural customization: Complex geometric shapes such as stepped shaft sleeves, flange shaft sleeves, and slotted shaft sleeves can be processed according to the drawings.
Accuracy level: It can provide tolerance fit of IT5-IT7 level, and the surface roughness can reach Ra 0.05mm mirror effect.
Material modification: Adjust the silicon nitride crystal phase content or composite other ceramic materials according to specific working conditions to optimize specific properties.

What specific problems are being solved?
Addressing the issue of ‘short lifespan’: increasing the lifespan of vulnerable parts from a few months to several years.
Resolve “precision instability”: eliminate changes in fit clearance caused by thermal expansion and maintain long-term high precision.
Addressing the ‘pollution risk’: In the food, pharmaceutical, and semiconductor industries, avoiding the precipitation of metal ions to contaminate products.
Addressing “high energy consumption”: reducing frictional resistance and directly improving equipment energy efficiency.

Customer Application Cases (Case Studies)
Case 1: Renovation of Strong Corrosive Medium Transport Pump in a Large Chemical Group
Customer requirement: The centrifugal pump used by the customer to transport strong acidic slurries has an average service life of only 3 months for the originally used tungsten carbide (WC) shaft sleeve under strong acid corrosion and particle erosion. Frequent replacement leads to frequent interruptions in the production line and poses a safety hazard of leakage.
Solution: We recommend and customize reaction sintered silicon nitride (RBSN) bushings. A self-lubricating structure with micro spiral grooves was designed for its special installation cavity, and matched with the excellent acid resistance and high hardness characteristics of silicon nitride.
Final effect: After the renovation, the shaft sleeve has been running continuously for more than 18 months without obvious wear, and no corrosion marks have been found. The customer not only saved 90% of spare parts procurement costs, but also increased annual production capacity by about 5% due to reduced downtime maintenance frequency.
Case 2: High speed SMT machine spindle upgrade for a precision electronics manufacturer
Customer requirement: The spindle speed of the customer’s high-end SMT mounting machine needs to be increased to 60000 RPM, but the original steel shaft sleeve heats up severely at high speeds, causing thermal deformation and affecting the mounting accuracy (CPK value does not meet the standard).
Solution: Use hot pressed sintered silicon nitride (HPSN) sleeve instead. By utilizing its low density (reducing centrifugal load) and low thermal expansion coefficient (good dimensional stability), the interference fit tolerance has been redesigned.
Final effect: The equipment successfully and stably operated at 60000 RPM, with a 15 ^ circ C reduction in spindle temperature rise and an increase in surface mount accuracy CPK value from 1.1 to 1.6, meeting the stringent requirements of customers for producing the latest generation of microchip components.

If you are facing challenges such as rapid equipment wear, harsh working conditions, or pursuit of ultimate performance, silicon nitride ceramic bushings will be your best solution.
Welcome to contact us anytime! Whether it’s requesting samples, obtaining detailed technical parameter tables, or providing customized quotes for non-standard drawings, our engineering team is ready to provide you with one-on-one professional services.
