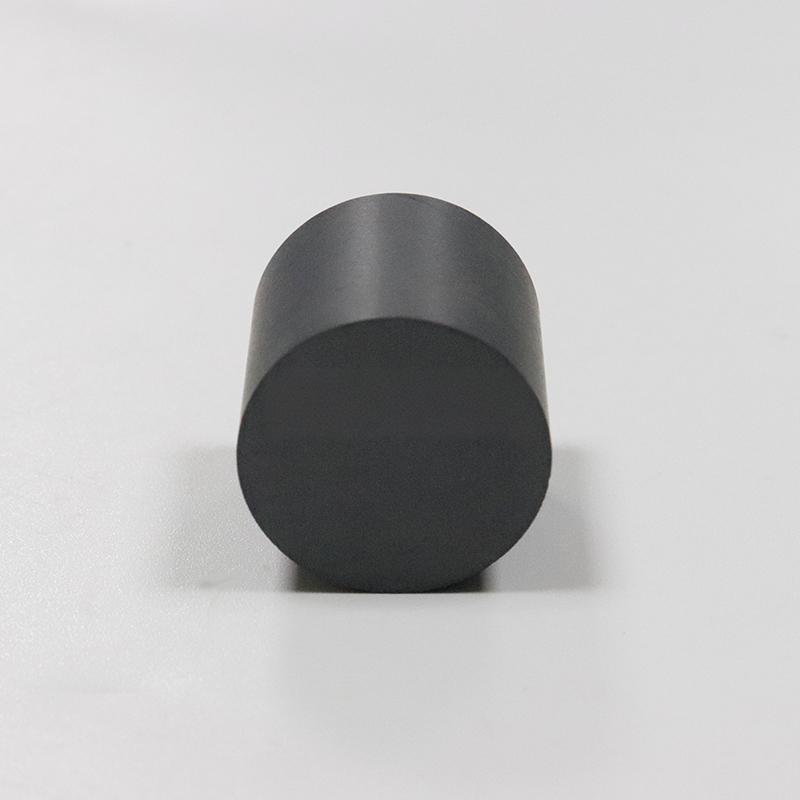

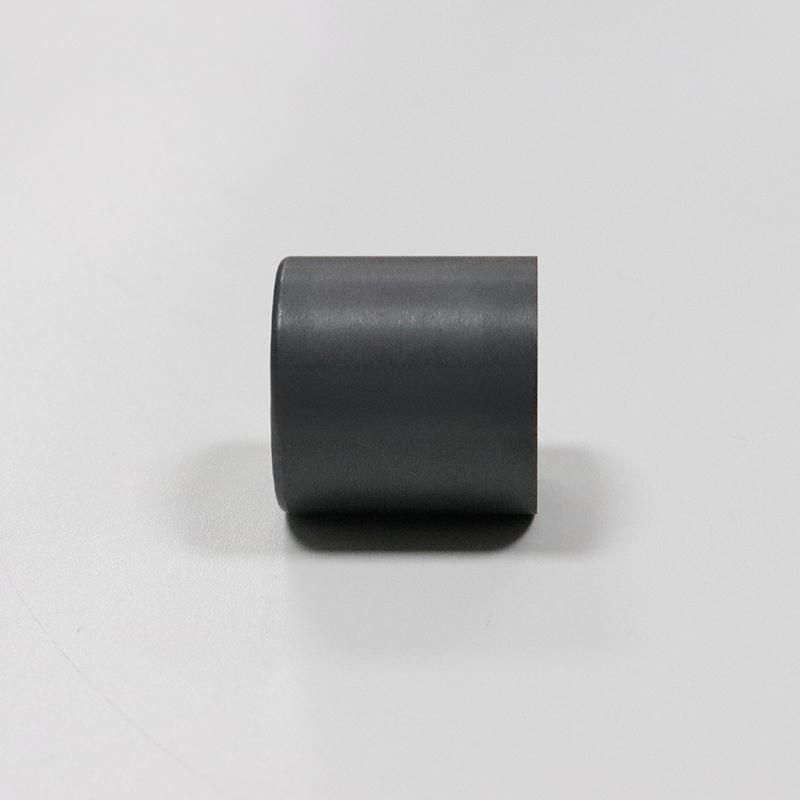

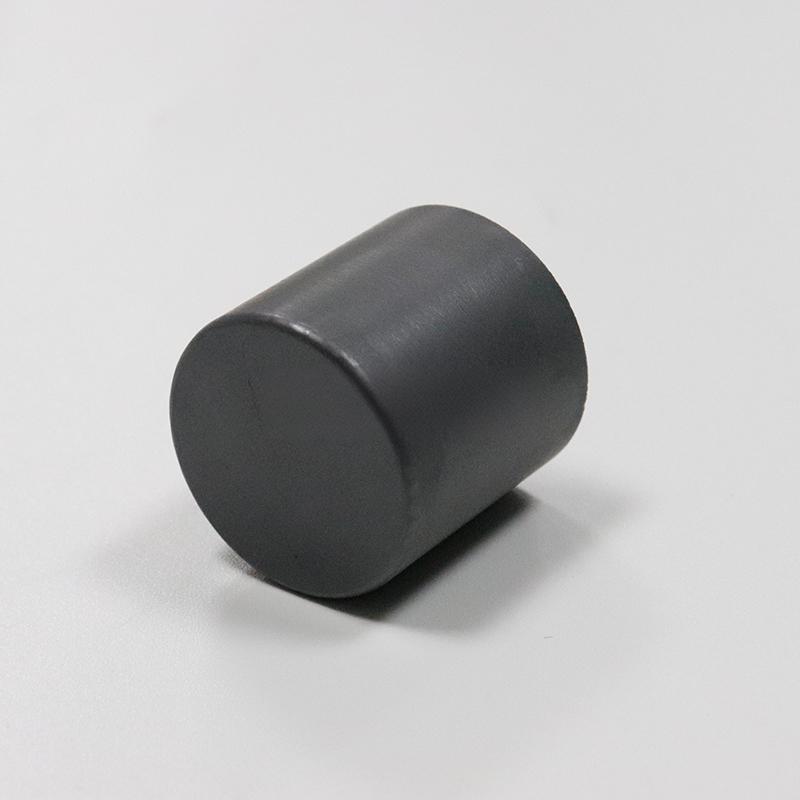

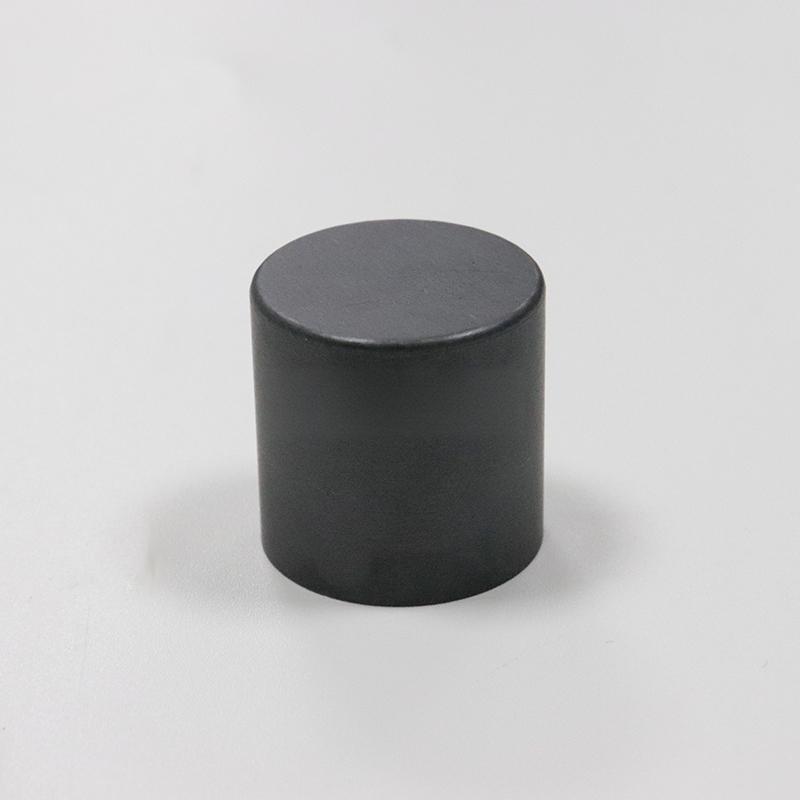

Silicon nitride ceramic pillar

Silicon nitride ceramic pillar is a high-performance industrial component made from high-purity silicon nitride (Si3N4) through advanced sintering technology. It is known as one of the best comprehensive structural ceramic materials due to its excellent mechanical properties and thermal stability.

Product Frequently Asked Questions (FAQ)
What core problems can this silicon nitride ceramic pillar solve in my production?
If you are looking for structural components that can withstand ultra-high temperatures, withstand rapid thermal shocks, and are not easily worn, silicon nitride ceramic columns are the ideal choice. It can effectively solve the problems of metal parts being prone to softening and deformation at high temperatures, and traditional ceramics being prone to brittle fracture, making it particularly suitable for high load, high-speed, or highly corrosive environments.
What are its advantages compared to metal or ordinary ceramic columns?
Silicon nitride ceramic columns have the characteristics of low density (only 40% of steel), high hardness, and good self-lubricating properties. This means that it can significantly reduce equipment load, operate stably without lubrication, and its thermal shock resistance is 2-3 times that of ordinary alumina ceramics, effectively avoiding explosions caused by sudden temperature changes.
Can you provide customized non-standard specifications?
Of course. We are well aware of the uniqueness of each application scenario, so we support full-size customization from diameter, length to chamfer accuracy. Whether you need precision guide columns at the micrometer level or high-temperature support columns longer than one meter, we can mass produce them based on drawings or samples.

Product advantages
-Extreme physical and chemical properties: Hardness can reach HRA 90 or above, temperature resistance can reach up to 1200 ° C, and high bending strength can still be maintained at this temperature.
-Accurate size control: Advanced cold isostatic pressing and precision machining technology are adopted to ensure that the tolerance of cylindricity and straightness is controlled at the micrometer level.
-Customized service: As an extension technology ceramic manufacturer of quartz products, we have rich experience in non-standard shaped parts processing, which can meet the specific structural needs of customers.

Main application areas
-Photovoltaics and semiconductors: as load-bearing pillars or supporting blades in diffusion furnaces and sintering furnaces, utilizing their high-temperature stability and non particle pollution characteristics.
-Mechanical metallurgy: used for guide rails, positioning pins, and wear-resistant bushings in high-temperature environments to resist metal melting erosion.
-Petrochemical industry: serving as a structural column or sealing substrate in strong acidic and alkaline environments, providing long-term corrosion resistance protection.

Customer Application Cases
Requirement background:
A well-known European photovoltaic cell manufacturer (anonymous at the request of the customer) encountered component loss issues in the oxidation annealing furnace of its new generation TOPCon battery production line. The originally used metal based support column experienced creep at a sustained high temperature of 1050 ° C, causing the silicon wafer to tilt during transport, and the metal volatiles caused slight contamination of the silicon wafer.
Solution:
After understanding the working conditions, our engineering team recommended high-purity silicon nitride ceramic columns to replace the original metal components. We have customized a long column with a length of 850mm and a diameter accuracy requirement of ± 0.05mm for the furnace size. By utilizing the high-temperature creep resistance and chemical inertness of silicon nitride, deformation and pollution problems have been fundamentally solved.
Final effect:
After replacing the silicon nitride ceramic columns, the continuous operation cycle of the customer’s production line has been extended from the original 3 months to over 12 months, reducing equipment maintenance costs by 60% and increasing product yield by nearly 5%. The customer stated that the self-lubricating properties of silicon nitride material also reduce the frictional resistance of the transmission system, further reducing energy consumption.

If you are looking for silicon nitride ceramic columns that can improve the ultimate performance of your equipment, or have any customized requirements for non-standard sizes, please feel free to contact us at any time. Let’s tailor the most reliable ceramic support solution according to your specific working conditions!
