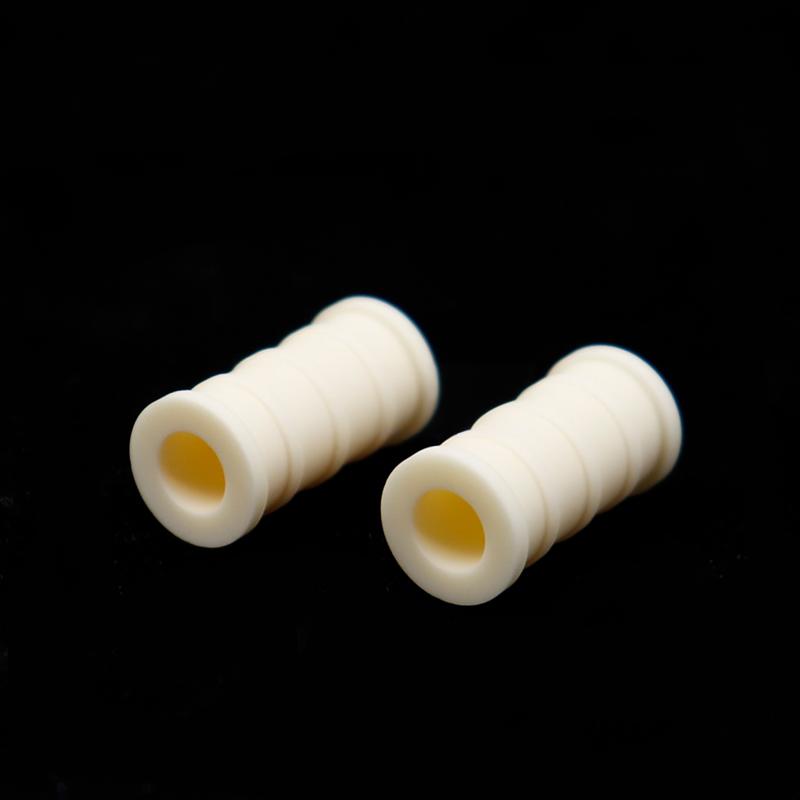

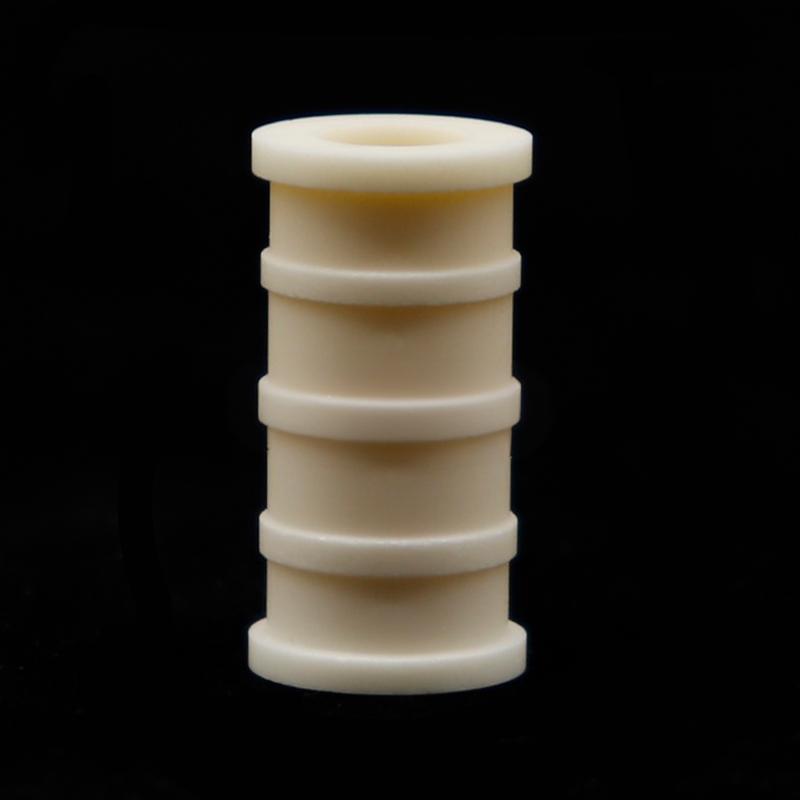

원통형 다층 적층 구조 알루미나 세라믹 튜브 is a high-performance inorganic non-metallic material product, made from high-purity alumina (Al ₂ O3) powder through isostatic pressing, high-temperature sintering, and precision machining processes. Its core design is a multi-layer concentric cylindrical stacking structure, which significantly improves the mechanical strength, thermal stability, and functional integration of ceramic tubes through interlayer interface optimization and material gradient distribution technology.
Product Features:
High strength and wear resistance: alumina content ≥ 95%, hardness above HRA88, bending strength ≥ 350MPa, suitable for high load and strong friction environments.
Excellent thermal performance: high temperature resistance (operating temperature ≥ 1600 ℃), low coefficient of thermal expansion (7.2 × 10 ⁻⁶/℃), outstanding thermal shock resistance (Δ T ≥ 300 ℃ cycling without cracks).
화학적 안정성: resistant to acid and alkali corrosion (except hydrofluoric acid), suitable for environments with strong corrosive media.
Structural advantages: Multi layer stacking design can disperse stress and reduce the risk of cracking; Functional materials (such as conductive and heat-insulating coatings) can be embedded between layers to achieve composite functionality.
정밀 가공: Inner/outer diameter tolerance ≤ ± 0.05mm, cylindricity ≤ 0.02mm, supports customized aperture, wall thickness, and surface treatment (polishing, coating, etc.).
Core application scenarios
This product, with its high performance and structural designability, is widely used in the following fields to solve pain points that traditional materials find difficult to balance:
반도체 제조 장비
Application: As a wafer transfer chamber, vacuum suction cup, or heater base.
Solution: Replace metal components to avoid metal contamination; Multi layer structure achieves thermal uniformity control and reduces warpage caused by thermal stress on the wafer.
High temperature industrial furnaces and heat treatment equipment
Application: Furnace rollers, support frames, radiation tubes or insulation sleeves.
Solution: Resistant to high temperature oxidation and thermal shock, extending service life; Multi layer insulation structure reduces energy consumption and improves thermal efficiency.
Chemical and Environmental Protection Fields
Application: Corrosive fluid transport pipelines, reactor liners, or catalyst carriers.
Solution: Replace stainless steel or plastic pipes to resist strong acid and alkali corrosion; High surface finish reduces medium retention and lowers pollution risk.
New Energy and Power Electronics
Application: Fuel cell electrolyte separator, solid-state battery packaging tube or high-voltage insulation sleeve.
Problem solving: High insulation (volume resistivity ≥ 10 ¹⁴Ω· cm) and airtightness ensure equipment safety; Multi layer conductive/insulating layer integration simplifies structural design.
Aerospace and Precision Instruments
Application: Missile nozzle, infrared window bracket, or optical component base.
Problem solving: Balancing lightweight (density 3.9g/cm ³) with high rigidity; Low thermal expansion coefficient reduces deformation errors caused by temperature changes.
맞춤형 서비스
To meet the differentiated needs of different industries, we provide customized solutions for the entire process:
Customized structural design
Layer and material combination: Supports 2-10 layer stacking, with functional materials such as zirconia (ZrO ₂) and silicon nitride (Si ∝ N ₄) embedded between layers.
Geometric parameters: diameter range of 10-500mm, length ≤ 2000mm, adjustable wall thickness of 0.5-50mm.
Interface form: threaded, flange, slot or taper connection, compatible with existing equipment.
성능 최적화 사용자 지정
Surface treatment: polishing (Ra ≤ 0.1 μ m), gold/platinum plating (anti catalytic), graphite coating (lubrication) or carburizing treatment (wear-resistant).
Functional coating: Add conductive, heat-conducting, heat-insulating, or anti stick coatings according to the application scenario.
Porosity control: dense body (porosity<0.1%) or breathable ceramic (porosity 10-30%).
No matter what high temperature, corrosion, insulation or sealing challenges you face, we look forward to working with you to bring revolutionary performance improvements to your equipment and processes through customized ceramic solutions.
