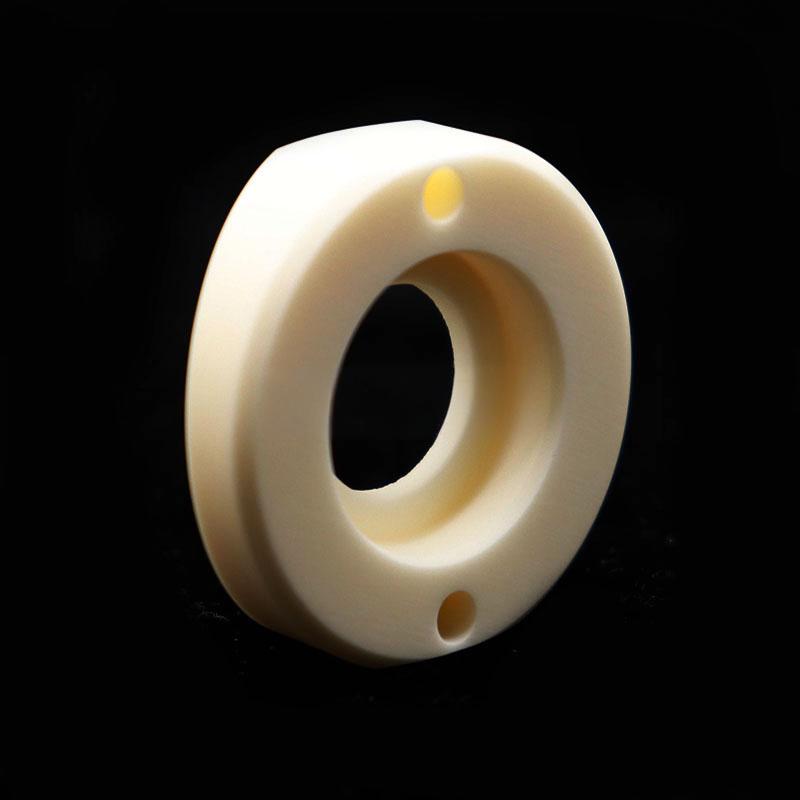

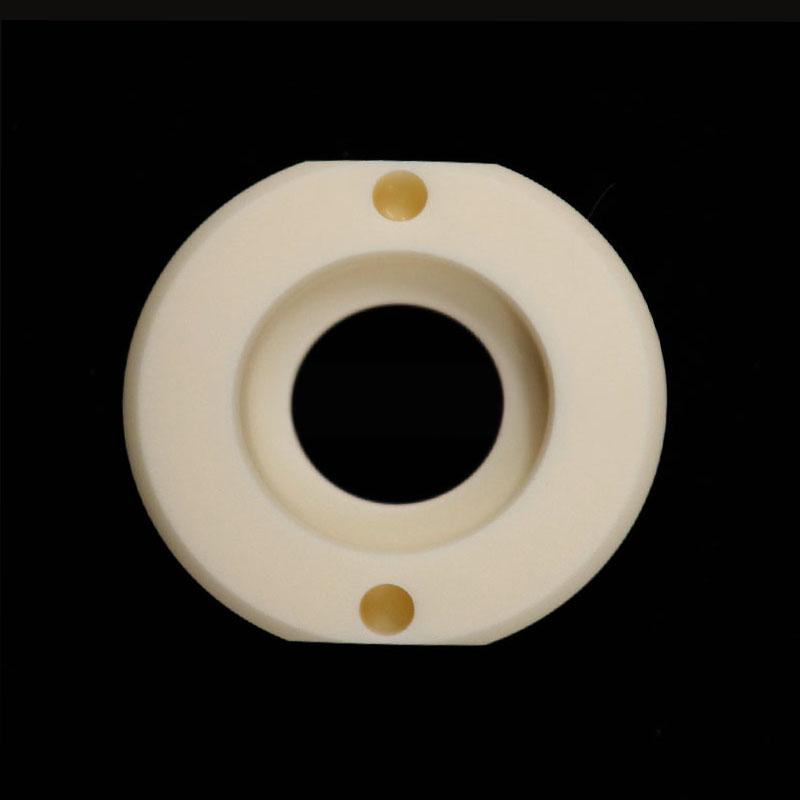

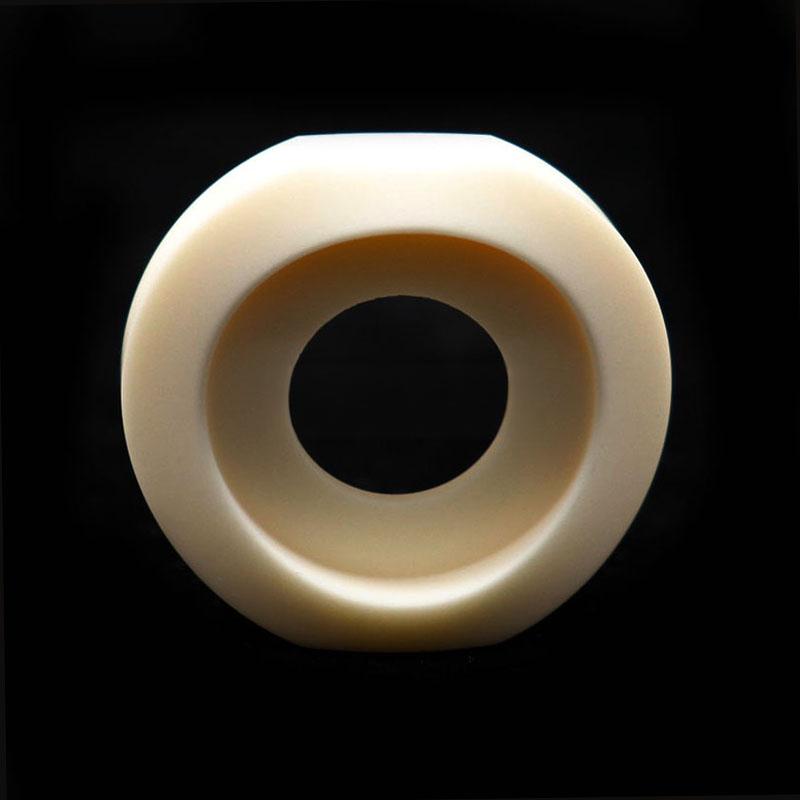

Anillo guía cerámico de óxido de aluminio is a circular mechanical component made of high-purity (usually 95% -99.5%) aluminum oxide (Al ₂ O3) material, which is precision formed and high-temperature sintered. It is designed specifically for harsh industrial environments and has become an ideal replacement for traditional metal rail rings due to its outstanding physical and chemical properties.
Características principales y problemas resueltos:
Ultimate wear resistance, solving the problem of short equipment life:
Characteristics: Extremely high hardness, second only to diamond and silicon carbide, with a Rockwell hardness (HRA) of 80-90.
Problem solving: In environments with frequent reciprocating motion, high loads, or particle pollution, traditional steel guide rails are prone to wear and scratches, resulting in loss of accuracy and equipment shutdown. Ceramic guide rail rings can effectively resist abrasive wear, extend the service life of equipment by several times, and significantly reduce maintenance costs and downtime.
Super strong corrosion resistance, suitable for harsh working conditions:
Characteristics: It has excellent chemical inertness and can withstand corrosion from most chemical media such as acid, alkali, solvents, and seawater.
Problem solving: Metal components are prone to rusting and corrosion in corrosive environments such as chemical, electroplating, and marine engineering. Ceramic guide rail rings fundamentally eliminate corrosion problems and ensure long-term stable operation of equipment under harsh working conditions.
High rigidity&low density, achieving high speed and high precision:
Characteristics: High elastic modulus, high bending strength, and much lower density than steel.
Problem solving: High rigidity means minimal deformation under load, ensuring linear accuracy and positioning accuracy of motion. Low density reduces the inertia of moving parts and is very suitable for high-speed reciprocating applications, reducing system vibration and noise.
Insulation and high temperature resistance, suitable for special needs:
Features: Excellent electrical insulation and a melting point of up to 1600 ℃.
Problem solving: In situations where electrical insulation is required (such as semiconductor equipment, medical equipment), the risk of current conduction can be avoided. Its high temperature resistance enables it to maintain stable performance in high temperature environments without softening or deforming due to heat.
Stable friction coefficient and smooth operation:
Characteristics: Smooth surface, low and stable friction coefficient.
Problem solving: When used in conjunction with ceramic balls or retainers, it can provide smooth and steady linear motion, avoiding the phenomenon of “stick slip”, especially suitable for precision positioning at the micrometer or nanometer level.
Principales ámbitos de aplicación
With the excellent performance mentioned above, alumina ceramic guide rings play an irreplaceable role in the following high-end and demanding fields:
- Semiconductor and Electronic Manufacturing:
Application points: wafer handling robots, lithography machine workbenches, PCB drilling machines, bonding machines.
Addressing pain points: high cleanliness requirements, no magnetic interference, high-precision positioning, long lifespan and maintenance free. - Precision measurement and testing equipment:
Application points: Coordinate measuring machine, laser scanner, image measuring instrument.
Addressing pain points: Ensure the rigidity and stability of the measurement platform to avoid measurement errors caused by rail wear or deformation. - Medical and life science equipment:
Application points: Automated analytical instruments, DNA sequencers, medical robots, X-ray machine slip rings.
Addressing pain points: biocompatibility (resistant to disinfectant corrosion), oil-free lubrication (meeting cleanliness requirements), smooth and quiet operation. - Chemical and special environmental machinery:
Application points: Chemical valve actuators, electroplating production lines, marine exploration equipment.
Addressing pain points: Resistant to strong acid and alkali corrosion, never rusting in humid and salt spray environments. - High end industrial automation:
Application points: high-speed parallel robots, precision assembly lines, laser processing equipment.
Addressing pain points: Achieving rapid response and precise positioning at high speeds and high acceleration, improving production efficiency and product quality.
Servicio personalizado
We are well aware that standard products may not necessarily meet the unique needs of all customers. Therefore, we provide comprehensive flexible customization services to ensure that our products perfectly match your application.
- Personalización del tamaño y la forma:
We can customize guide rail rings with non-standard inner and outer diameters, thicknesses, and special cross-sectional shapes based on your equipment drawings.
Service value: Achieving seamless replacement or integration with existing device structures without the need to redesign the entire system. - Customization of accuracy level:
Provide customization of different levels of dimensional tolerances, roundness, flatness, and surface finish (Ra value).
Service value: Meeting different levels of needs from ordinary transmission to ultra precision positioning, helping you balance cost and performance. - Material formula optimization:
The purity of alumina can be adjusted according to demand (such as 99% Al ₂ O3 for higher wear and corrosion resistance scenarios), or specific components can be added to improve specific performance.
Service value: Provide the best material solutions tailored to your specific working conditions, such as extreme temperatures and special media. - Auxiliary processing services:
Provide subsequent precision machining services such as drilling, tapping, slotting, and grinding.
Service value: What we deliver to you is a “ready to use” finished product, saving you the trouble and risk of secondary processing and ensuring installation accuracy.
Alumina ceramic guide ring is not only a single component, but also a systematic solution to improve equipment reliability, accuracy, and lifespan. It directly addresses and solves the core pain points of traditional metal guide rails in wear-resistant, corrosion-resistant, high-speed, and clean environments. Whether you need standard products or customized solutions, we are committed to becoming your reliable partner and pushing the boundaries of technology together.
Contact us immediately for exclusive technical solutions and quotes!
Cerámica Brudeze suministra y vende una amplia gama de vidrio de cuarzo de alta calidad, incluyendo cerámica de alúmina, cerámica de circonio, cerámica de nitruro de silicio, cerámica de nitruro de aluminio, cerámica de carburo de silicio, cerámica de carburo de boro, biocerámica, cerámica mecanizable, etc. Podemos satisfacer los requisitos de personalización de varios productos cerámicos.
Etiquetas: cerámica de carburo de boro, resistente a la corrosión
