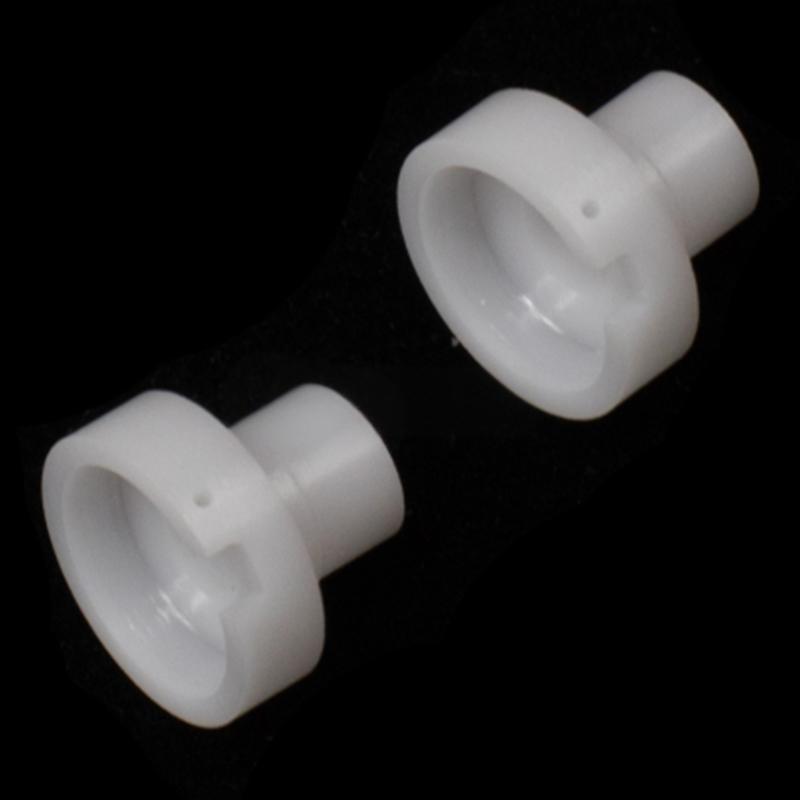

Zirconia ceramic positioning column

The zirconia ceramic positioning column is made of high-purity zirconia ceramic, which has the characteristics of high hardness, wear resistance, corrosion resistance, high temperature resistance, and excellent insulation performance. It has high dimensional accuracy and strong stability, and can be used for a long time in harsh environments. It is widely used in high-precision positioning scenarios in fields such as semiconductors and precision machinery.
In the fields of precision manufacturing, automated production, and semiconductor packaging, extreme requirements have been put forward for the accuracy, stability, and durability of positioning components. Traditional metal positioning columns are prone to wear and deformation, which has become a bottleneck restricting equipment performance and product yield. Zirconia ceramic positioning columns have emerged as the best choice for high demand application scenarios due to their excellent comprehensive performance.

Product core advantage: Why is zirconia the ideal choice?
Zirconia ceramic positioning column is not an ordinary ceramic. It uses high-purity zirconia (ZrO ₂) powder and is made through advanced powder metallurgy and precision machining technology. It has the following unparalleled advantages:

1. Ultimate wear resistance: high hardness (HRA ≥ 88), low friction coefficient. Its wear resistance is more than 10 times that of traditional tool steel, effectively resisting the wear caused by frequent insertion and extraction, greatly extending its service life, reducing replacement frequency and maintenance costs.
2. Ultra high rigidity&dimensional stability: High Young’s modulus, minimal deformation under stress. In environments with temperature and humidity fluctuations, it can maintain extremely high dimensional stability, ensuring consistent positioning accuracy and avoiding positioning deviations caused by deformation.
3. Insulated and non-magnetic: Excellent electrical insulation and non-magnetic properties, suitable for environments sensitive to electromagnetic interference, such as testing and assembly of precision electronic components, without interfering with signals.
4. Corrosion resistance and aging resistance: It has excellent corrosion resistance to most acids, alkalis and organic solvents, and is non rusting. It can work stably under harsh conditions such as moisture and oil pollution, and its performance does not decay.
5. Low density&self-lubricating: Weighing only 45% of steel, it can effectively reduce the inertia of moving parts and improve equipment response speed. It has a certain degree of self-lubricating properties and can reduce or not require additional lubrication under certain operating conditions.

What key issues are being addressed?
Zirconia ceramic positioning column directly targets and solves the following industry pain points:
Addressing the issue of accuracy degradation: Say goodbye to the gradual decrease in positioning accuracy caused by wear and deformation of metal positioning columns, ensuring product consistency and yield.
Resolve frequent maintenance issues: significantly reduce downtime and replacement frequency with an extended lifespan, and improve overall equipment utilization efficiency (OEE).
Addressing pollution and interference issues: With its non-magnetic and corrosion-resistant properties, it avoids metal debris and magnetic interference, making it particularly suitable for cleanrooms, semiconductors, and medical equipment.
Addressing the issue of high costs: Although the cost per piece may be higher than that of metal, its long lifespan and stable performance significantly reduce the total cost of ownership (TCO) over its entire lifecycle.

Widely applicable fields
Zirconia ceramic positioning columns are the “guardians of accuracy” in the following industries:
Precision automation and robotics: precise positioning of robotic end effectors (EOATs), assembly line fixtures, and visual inspection equipment.
Semiconductor and electronic packaging: wafer carrier, IC test socket, SMT placement machine positioning pin.
Medical and pharmaceutical equipment: medical analytical instruments, automated filling equipment, surgical robot positioning components, meeting biocompatibility requirements .
New energy vehicles and lithium batteries: battery module assembly, laser welding fixtures, and their insulation ensure safety in high-voltage environments.
Precision measurement and optical instruments: serve as measurement reference components to ensure the accuracy and repeatability of measurement results.

Customer real case (anonymous)
Background: A globally leading automotive electronics manufacturer used imported steel positioning columns in its ECU (Engine Control Unit) testing and sorting equipment. Due to the extremely high testing frequency, the positioning column will show significant wear and tear on average every 2 weeks, resulting in inaccurate alignment between the testing probe and the contact point, and an increased misjudgment rate of the product. It needs to be shut down for replacement and calibration every month, which seriously affects production efficiency.
Our solution: We have customized and developed a Ø 3mm x 10mm zirconia ceramic positioning column for it, with key mating surface tolerances controlled within ± 0.002mm and treated with high smoothness.
Application effect:
Lifetime improvement: The zirconia positioning column has been continuously used for more than 12 months without any visible wear, and its lifespan has been increased by more than 20 times.
Yield improvement: The positioning accuracy remains stable, and the equipment misjudgment rate has been reduced by 35%, significantly improving the product’s factory yield.
Cost savings: Thoroughly solved the problem of frequent replacement and shutdown calibration, saving the customer over 500000 RMB in maintenance costs and production capacity losses annually.
The customer has now fully replaced the positioning columns of all similar devices under their umbrella with our products.

Are you also troubled by wear, accuracy, or lifespan issues with positioning components?
Welcome to contact our technical advisor immediately for customized solutions. Let us use reliable zirconia ceramic technology to ensure the accuracy and production efficiency of your equipment!
