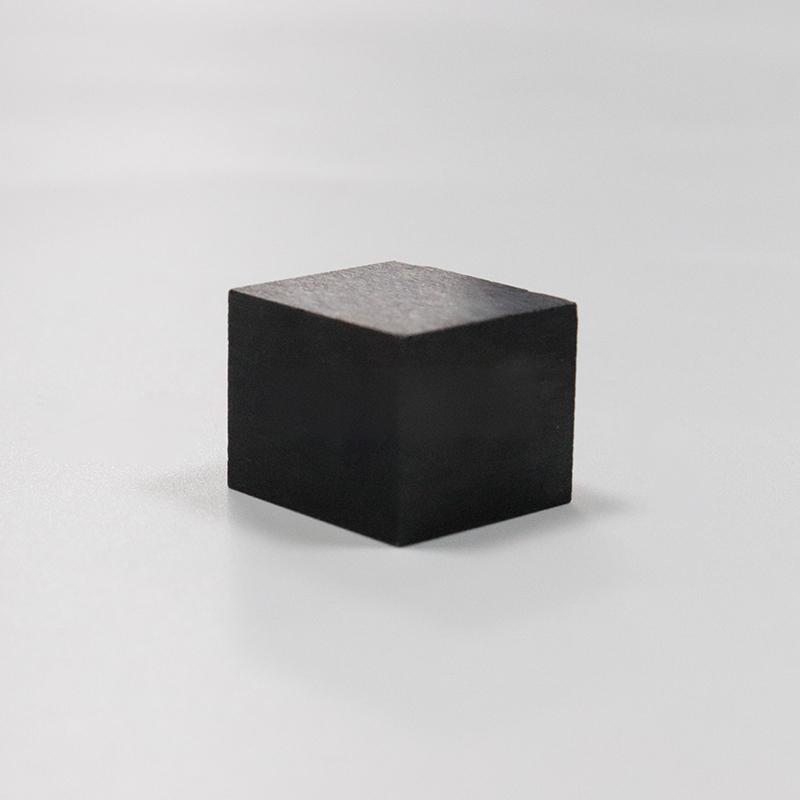

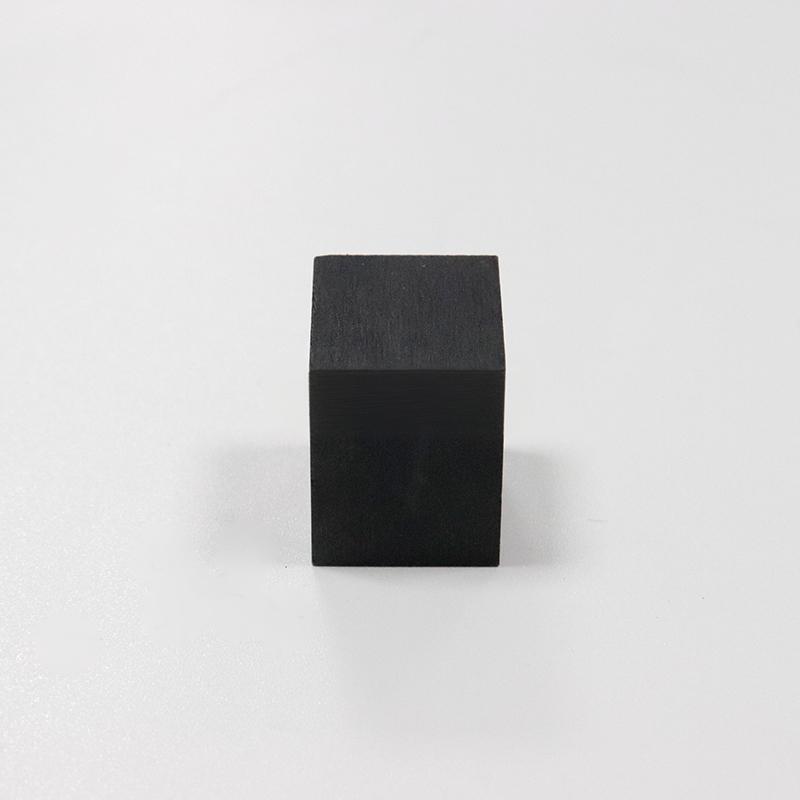

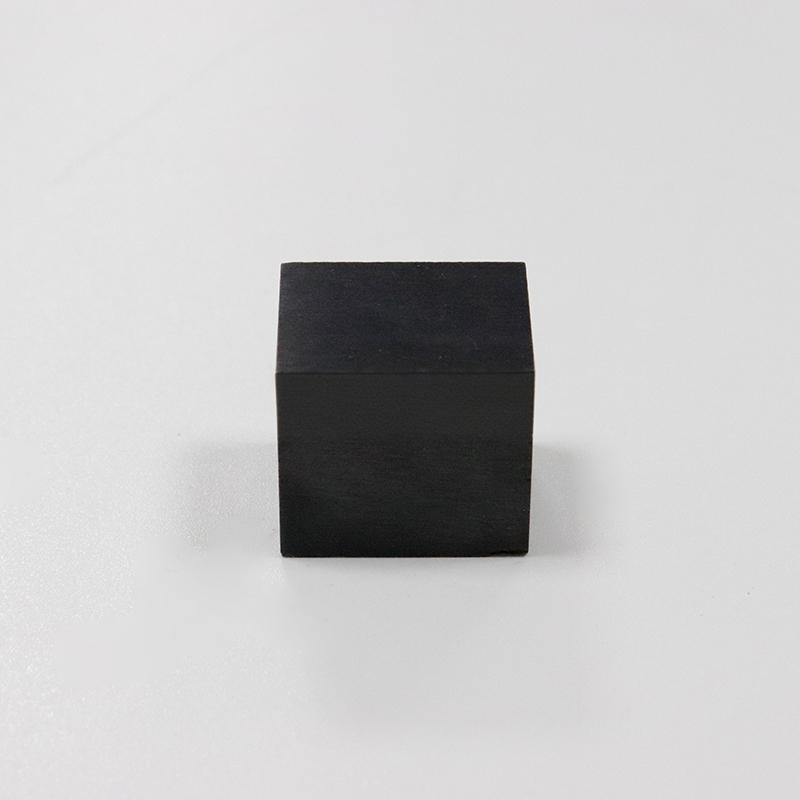

Silicon carbide ceramic block

Silicon carbide ceramic block is a high-performance advanced ceramic material prepared mainly from high-purity silicon carbide (SiC) through advanced sintering processes such as pressureless sintering and reaction sintering. It perfectly inherits the inherent advantages of silicon carbide materials and is made into block, plate or irregular structural parts of various specifications and sizes through precision machining, making it a key material for solving extreme working conditions challenges in modern industry.

Caractéristiques principales et problèmes résolus :
Silicon carbide ceramic blocks are not ordinary materials, and their design aims to solve the pain points of insufficient performance of traditional materials (such as metals, ordinary ceramics, graphite, etc.) in harsh environments:

1. Ultimate wear resistance, solving the problem of rapid equipment wear and tear
   Problem: In industries such as mining, power, metallurgy, etc., equipment wear and tear in the material conveying and crushing processes is extremely severe, resulting in short lifespan of metal components, frequent replacement, and high maintenance costs due to downtime.
   Solution: Silicon carbide ceramic blocks have extremely high hardness, second only to diamond and cubic boron nitride, and their wear resistance is tens of times that of high chromium cast iron. Using it to make lining plates, nozzles, liners, etc. can greatly extend the service life of equipment, reduce downtime, and lower overall maintenance costs.
2. Excellent high temperature resistance and high thermal conductivity, solving thermal management problems
   Problem: In fields such as high-temperature furnaces and semiconductor heat treatment, traditional refractory materials have good thermal insulation but poor thermal conductivity, which affects heating efficiency; And metals are prone to softening and oxidation at high temperatures.
   Solution: Silicon carbide ceramic blocks can work stably for a long time at high temperatures of 1600 ° C, and their high-temperature strength does not decrease but instead increases. At the same time, it has excellent thermal conductivity and is an ideal material for heat exchangers and kiln furniture supports (rollers, plates). It can withstand high temperatures while achieving efficient and uniform heat transfer, improving energy utilization and product quality.
3. Outstanding chemical corrosion resistance, solving the problem of corrosion in harsh environments
   Problem: In industries such as chemical, environmental protection, and papermaking, corrosive media such as strong acids, strong alkalis, and molten salts can cause serious corrosion to equipment, posing safety hazards and pollution risks.
   Solution: Silicon carbide ceramic blocks have extremely strong resistance to most acids, bases, and salts, and have extremely high chemical stability. Using it to make sealing rings, valves, pump components, and chemical reactor liners can effectively resist chemical corrosion, ensure long-term reliable operation of equipment, and protect the purity of the production process.
4. High hardness and stability, solving deformation and vibration problems in precision machining
   Problem: In precision machinery, optics, and semiconductor manufacturing, workbenches and structural components require extremely high rigidity and dimensional stability, and any small deformation or vibration can affect machining accuracy.
   Solution: Silicon carbide ceramic blocks have a high specific stiffness (ratio of elastic modulus to density), which is much higher than that of cast iron and aluminum alloys, and has an extremely low coefficient of thermal expansion. As a measurement platform, optical mirror holder, and robot arm component, it can effectively suppress deformation and vibration, ensuring extremely high dimensional accuracy and stability under temperature and load changes.

Principaux domaines d'application
Based on the excellent performance mentioned above, silicon carbide ceramic blocks play an irreplaceable role in the following high-end fields:
Wear and erosion resistance field:
Applications: slurry pump flow parts, cyclone liner, powder conveying pipeline, sandblasting nozzle, mining sorting machine liner.
Solution: Significantly reduce equipment failure caused by abrasive wear and improve the reliability of the conveying system.
High temperature industrial field:
Application: Kiln rollers, burning plates, crossbeams, atmosphere furnace insulation screens, burner nozzles.
Solution: Replace traditional heavy refractory materials, reduce the weight of kiln cars, achieve rapid firing, save energy and reduce consumption, and improve the service life of kiln furniture.
Dans le domaine du génie chimique et de la protection de l'environnement :
Applications: mechanical seal rings, chemical pump valve components, desulfurization nozzles, heat exchangers, evaporating dishes.
Problem solving: Provide long-lasting, maintenance free solutions in environments with strong corrosion and high wear, reducing environmental pollution risks.
Industrie des semi-conducteurs et de l'électronique :
Applications: wafer carriers (boats, paddles), epitaxial trays, plasma etching machine components, vacuum suction cups.
Problem solving: High purity, high temperature resistance, and resistance to plasma erosion ensure the cleanliness and yield of the chip manufacturing process.
Industries de l'aérospatiale et de la défense :
Applications: Lightweight armor materials, rocket nozzles, gas turbine blades, optical system structural components.
Problem solving: Provide excellent bulletproof performance, burn resistance, and dimensional stability in extreme environments.
Precision Machinery and Measurement:
Application: Three coordinate measuring machine bracket, laser base, precision bearing, air bearing.
Problem solving: Achieve ultra-high dynamic stability and static accuracy to meet the needs of nanoscale manufacturing and measurement.

Service personnalisé
We are well aware that standard products may not necessarily meet the unique needs of all customers. Therefore, we provide comprehensive professional customization services, from materials to finished products, to help you achieve the optimal solution.

1. Personnalisation de la formule du matériau :
   We can adjust the purity, particle size distribution, and sintering additives of silicon carbide according to your specific application environment (such as specific acid and alkali resistance, thermal shock resistance, and conductivity requirements), and develop exclusive material formulas.
2. Personnalisation de la taille et de la forme :
   We have strong CNC machining, grinding, grinding, and polishing capabilities. Whether you need simple blocks, complex shaped parts, or high-precision structural parts with micropores and grooves, we can perform precision machining according to the drawings to ensure dimensional and positional tolerances reach micrometer level.
3. Personnalisation du traitement de surface :
   Provide multiple surface treatment options, including:
   Polishing: Achieve mirror level smoothness, reduce friction coefficient, suitable for sealing and optical components.
   Grinding: Achieve a specific surface roughness (Ra value) to meet different assembly requirements.
   Coating: Special coatings can be applied on the silicon carbide substrate to further enhance its wear resistance, anti sticking, or anti-oxidation properties.

Silicon carbide ceramic blocks are outstanding achievements born from modern materials science to solve extreme industrial challenges. It is gradually replacing traditional materials with its unparalleled comprehensive performance of wear resistance, high temperature resistance, corrosion resistance, and high stability, becoming a key force driving technological progress and industrial upgrading. No matter what demanding working conditions you face, silicon carbide ceramic blocks and their customized services may be your ideal solution.
Welcome to contact us for more technical information or to discuss customized needs.

Brudeze Ceramics fournit et vend une large gamme de verre de quartz de haute qualité, y compris des céramiques d'alumine, des céramiques de zircone, des céramiques de nitrure de silicium, des céramiques de nitrure d'aluminium, des céramiques de carbure de silicium, des céramiques de carbure de bore, des biocéramiques, des céramiques usinables, etc. Nous pouvons répondre aux exigences de personnalisation de divers produits céramiques.
